AutoMeter Quad Gauge System (MPN: 1309)

Compact 4-in-1 gauge solution for performance monitoring.

The AutoMeter Quad Gauge System is designed to optimize dashboard space while delivering essential performance metrics. This system features four individual gauges: fuel level, oil pressure, speedometer, and voltmeter, all housed in a sleek 3-3/8 inch design. Each gauge utilizes air-core meter movements for precise readings, ensuring reliability in demanding environments. The voltmeter operates within a range of 8-18 volts, suitable for negative ground electrical systems, while the fuel level gauge accurately measures from 240 ohms empty to 33 ohms full.

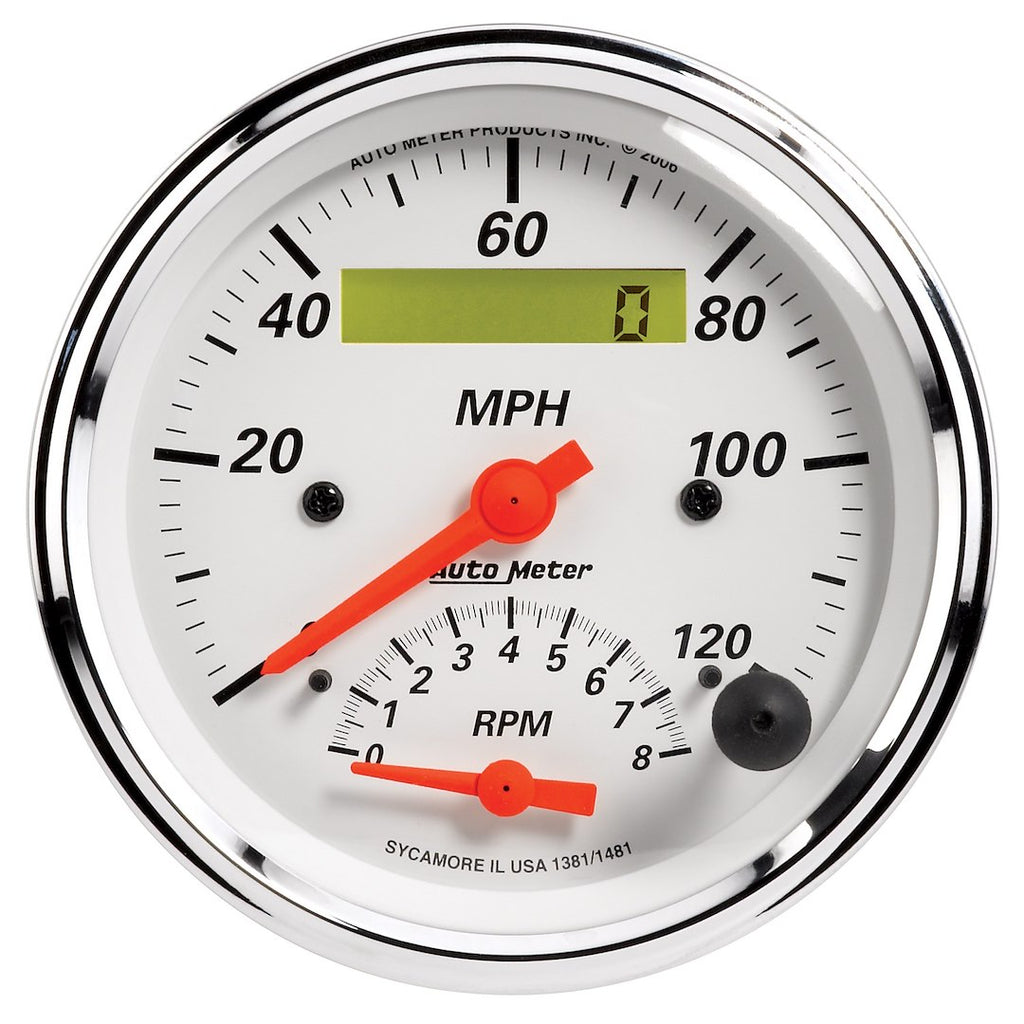

The speedometer offers a full sweep from 0 to 120 miles per hour and includes a simple push-button calibration for easy adjustments. It is compatible with various vehicle speed sensors and features a lit LCD odometer capable of tracking up to one million miles. The tachometer accommodates a wide range of ignition signals, making it versatile for different engine types. With traditional incandescent lighting illuminating the dial perimeter, the AutoMeter Quad Gauge System combines functionality with a clean aesthetic, making it a valuable addition to any performance vehicle.

Features

• Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
• Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
• No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
• Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
• Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
• 4 In 1 Gauge Design Saves Valuable Real Estate On Your Dash While Allowing You To Monitor Critical Parameters
• Tachometer Is Compatible With 0.5 To 6 Pulse Ignition Signals (1 To 12 Cylinder Engines) With Points, Electronic, And Most 12 Volt High-Performance Racing Ignitions
• 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: 1309
• Size (IN): 3-3/8 Inch
• Type: Electrical
• Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
• Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
• Speedometer Range (MPH): 0 To 120 Miles Per Hour
• Tachometer Range (RPM): 0 To 8000 RPM
• Voltmeter Range (Volt): 8 To 18 Volt
• Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
• Display: Analog
• Sweep: Full Sweep
• Face Color: White
• Needle Color: Orange
• Bezel Color: Silver
• Number Color: Black
• Mounting Type: In-Dash
• Lighting: Incandescent
• Includes Warning Indicator: No
• Warning Indicator Type: Not Applicable
• Includes Peak Memory: No
• Liquid-Filled: No

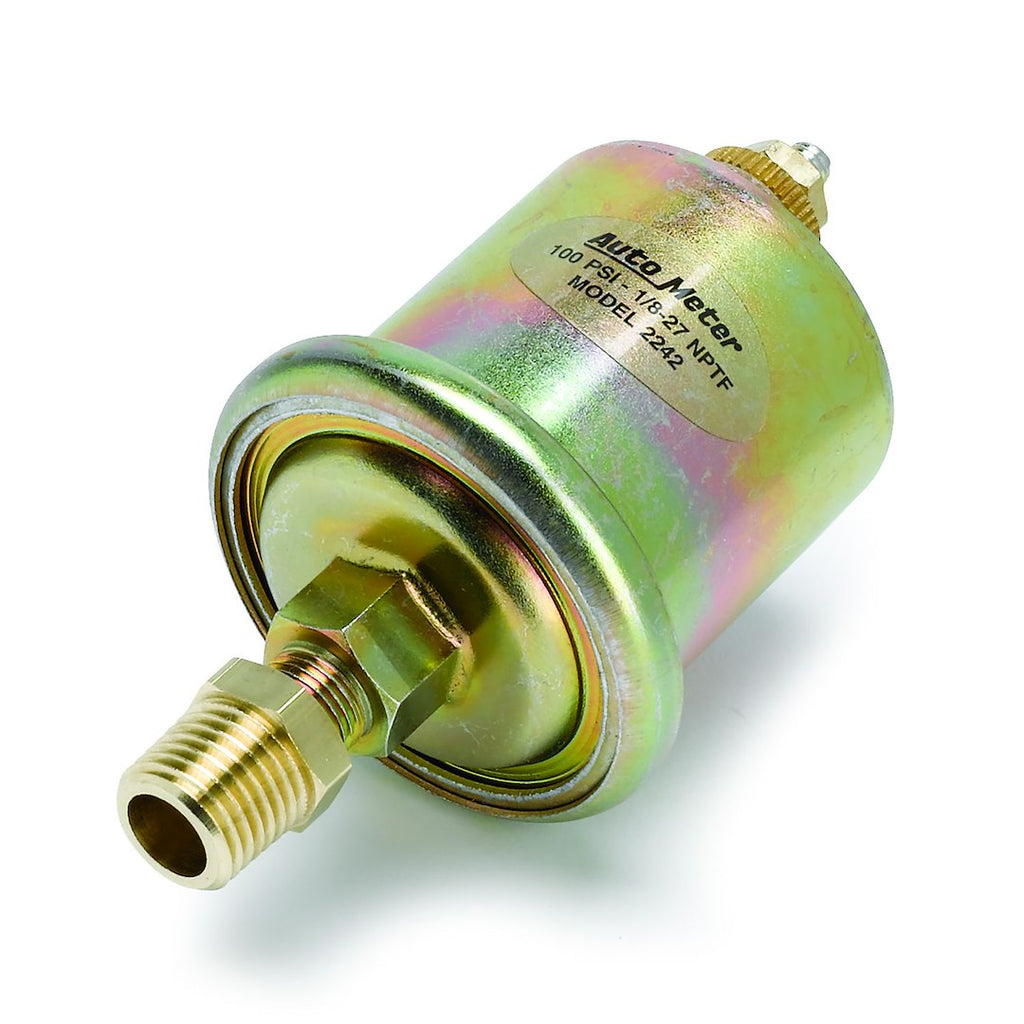

• Includes Sending Unit: Yes
• Includes Wiring Harness: No
• Includes Fittings: No
