Compact and accurate gauge solution for performance vehicles

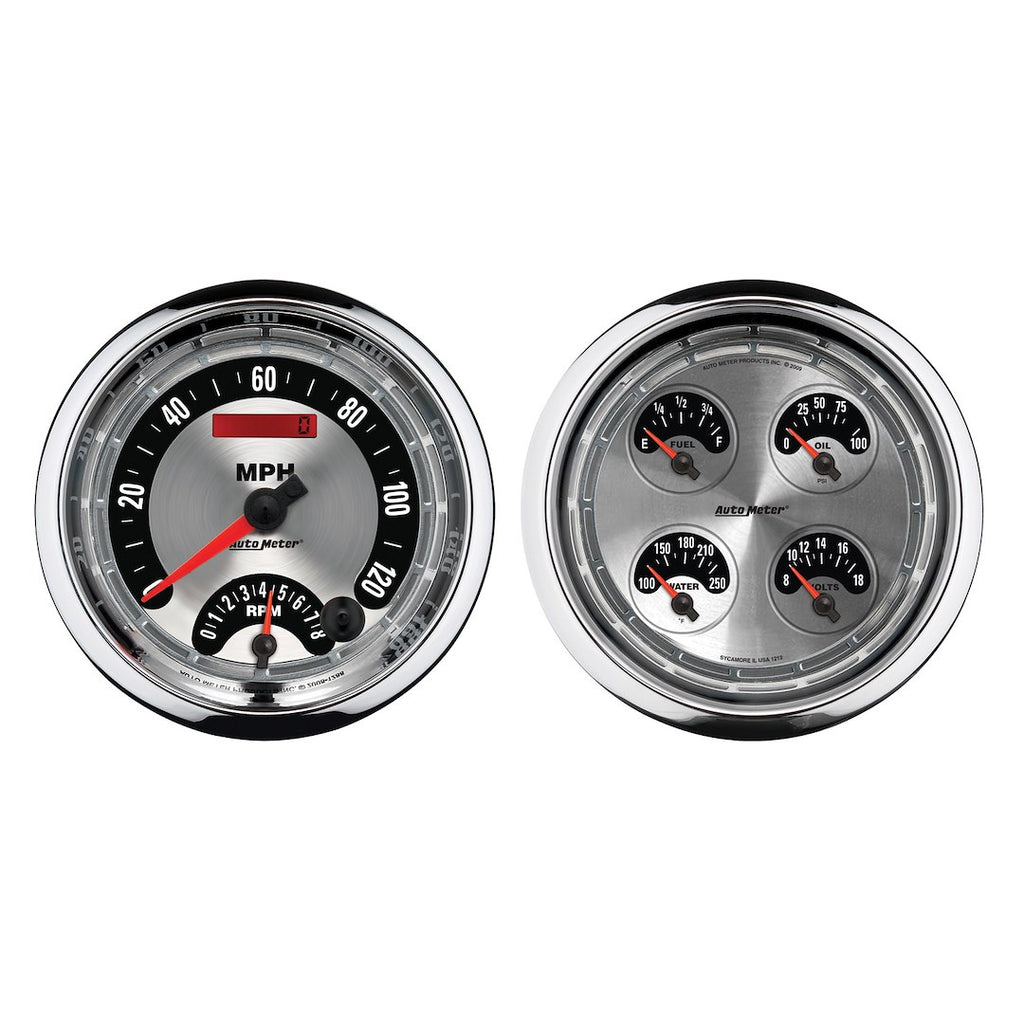

The AutoMeter Quad Gauge System is designed to provide essential readings in a compact format, making it suitable for vehicles with limited dashboard space. This system includes four electric analog gauges: fuel level, oil pressure, speedometer, and tachometer, all housed in a sleek 5-inch design. Each gauge features high-definition LED lighting for clear visibility, ensuring that critical information is easily readable at night.

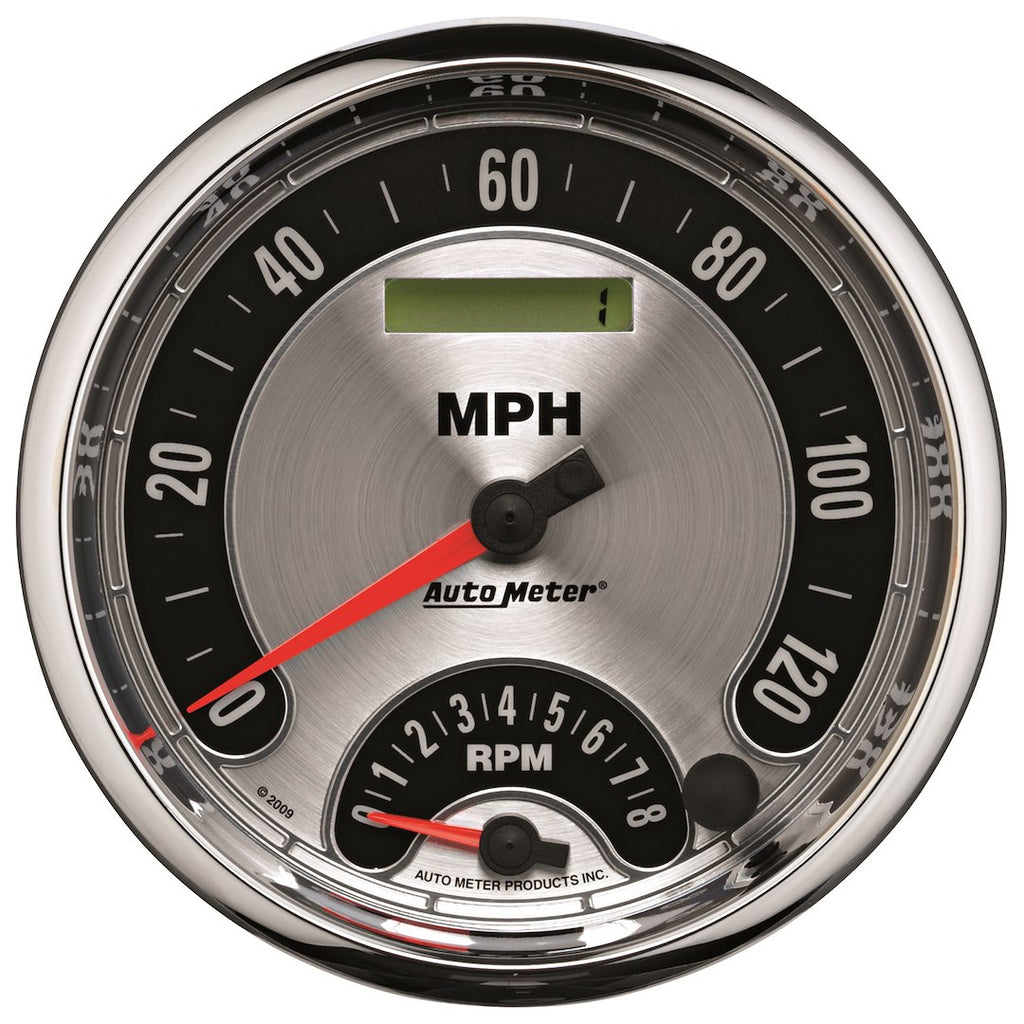

The fuel level gauge operates within a resistance range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The speedometer offers a full sweep from 0 to 120 MPH and includes a simple push-button calibration feature, allowing for easy adjustments based on gear ratio or tire size changes. The tachometer reads from 0 to 8000 RPM, compatible with various ignition signals, making it versatile for different engine types.
Constructed with durability in mind, the AutoMeter Quad Gauge utilizes race-proven air-core electric instruments that provide quick and accurate readings without the risk of hazardous fluids entering the vehicle. This gauge system is compatible with most 12V high-performance racing ignitions and is designed to meet the demands of both street and race applications.
Features
- Modern LED Through-The-Dial Lighting Provides Clear Visibility During Nighttime Use
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedomete Has Simple Push Button, 2 Mile Drive Calibration
- No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
- Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers

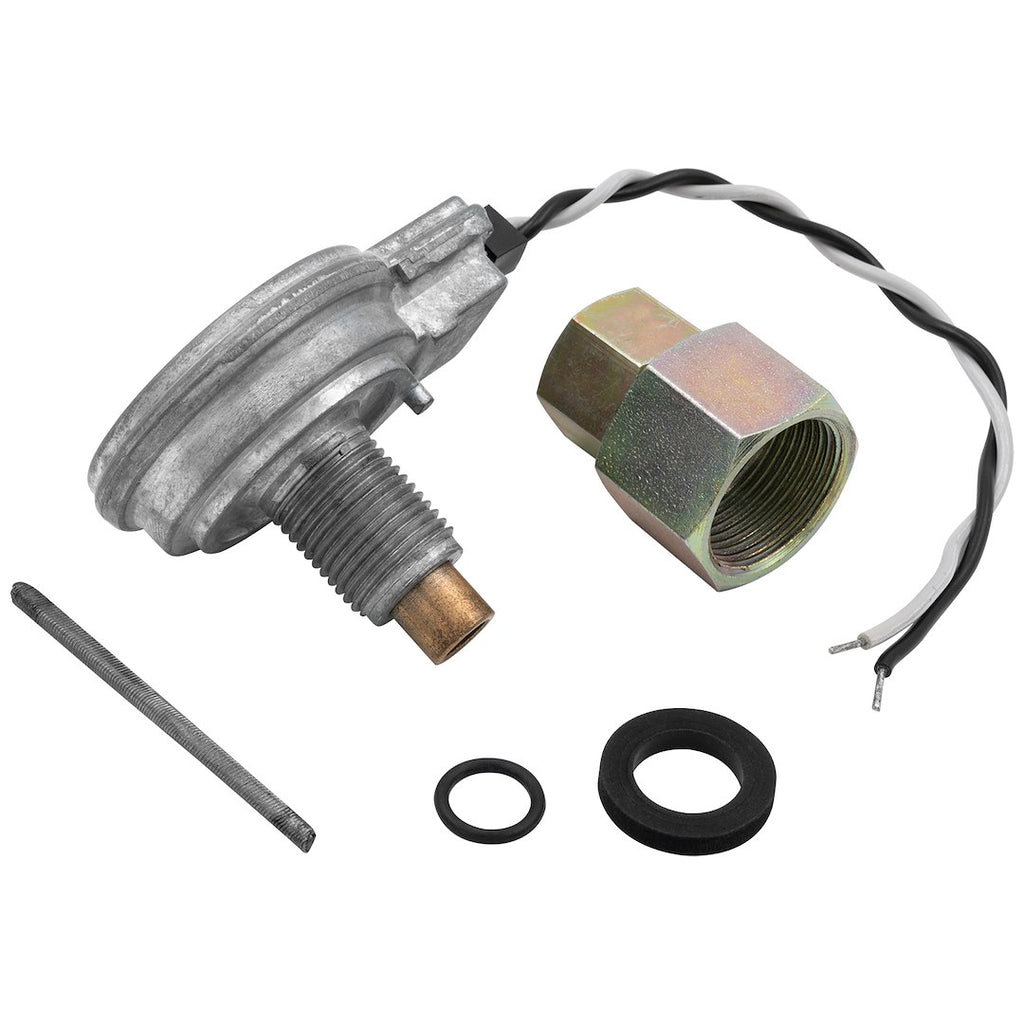

- Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
- Tachometer Is Compatible With 0.5 To 6 Pulse Ignition Signals (1 To 12 Cylinder Engines) With Points, Electronic, And Most 12 Volt High-Performance Racing Ignitions
- 4 In 1 Gauge Design Saves Valuable Real Estate On Your Dash While Allowing You To Monitor Critical Parameters
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 1205
- Size (IN): 5 Inch
- Type: Electrical

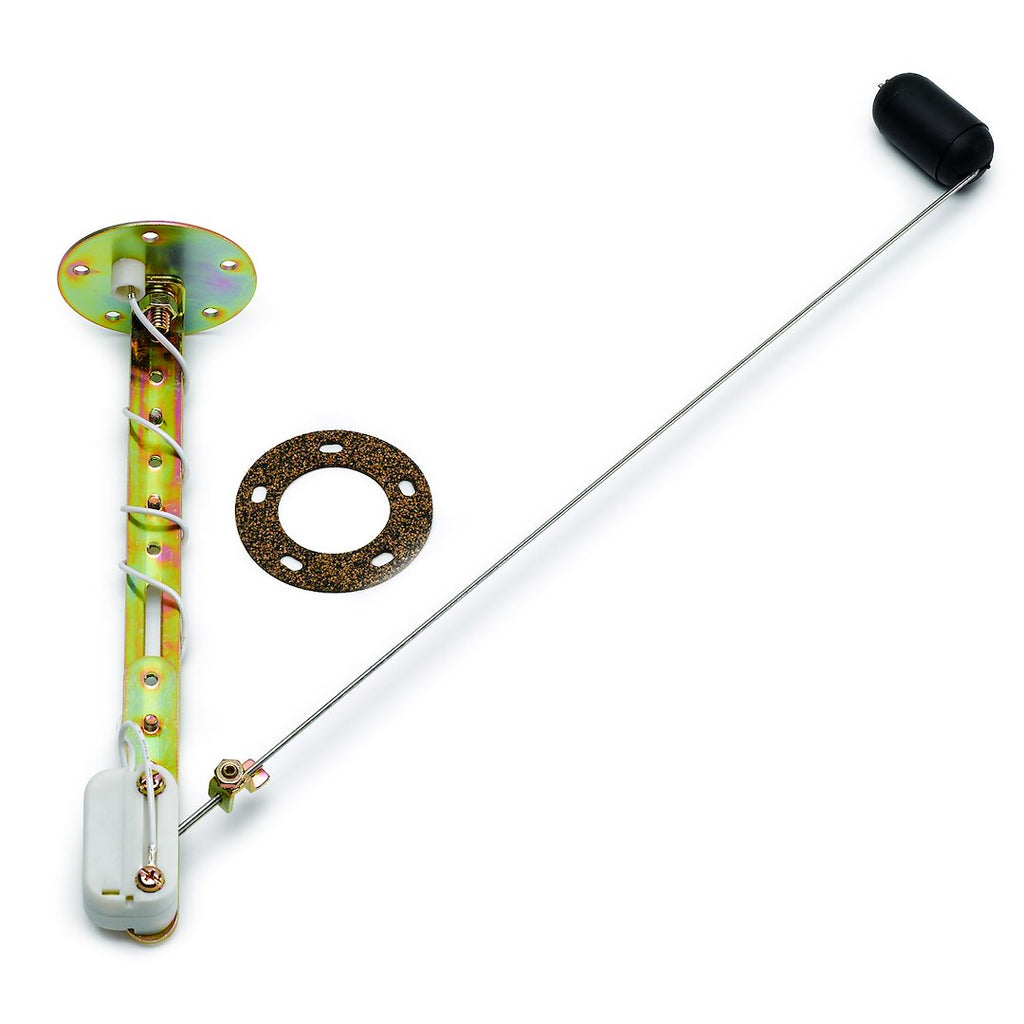

- Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full

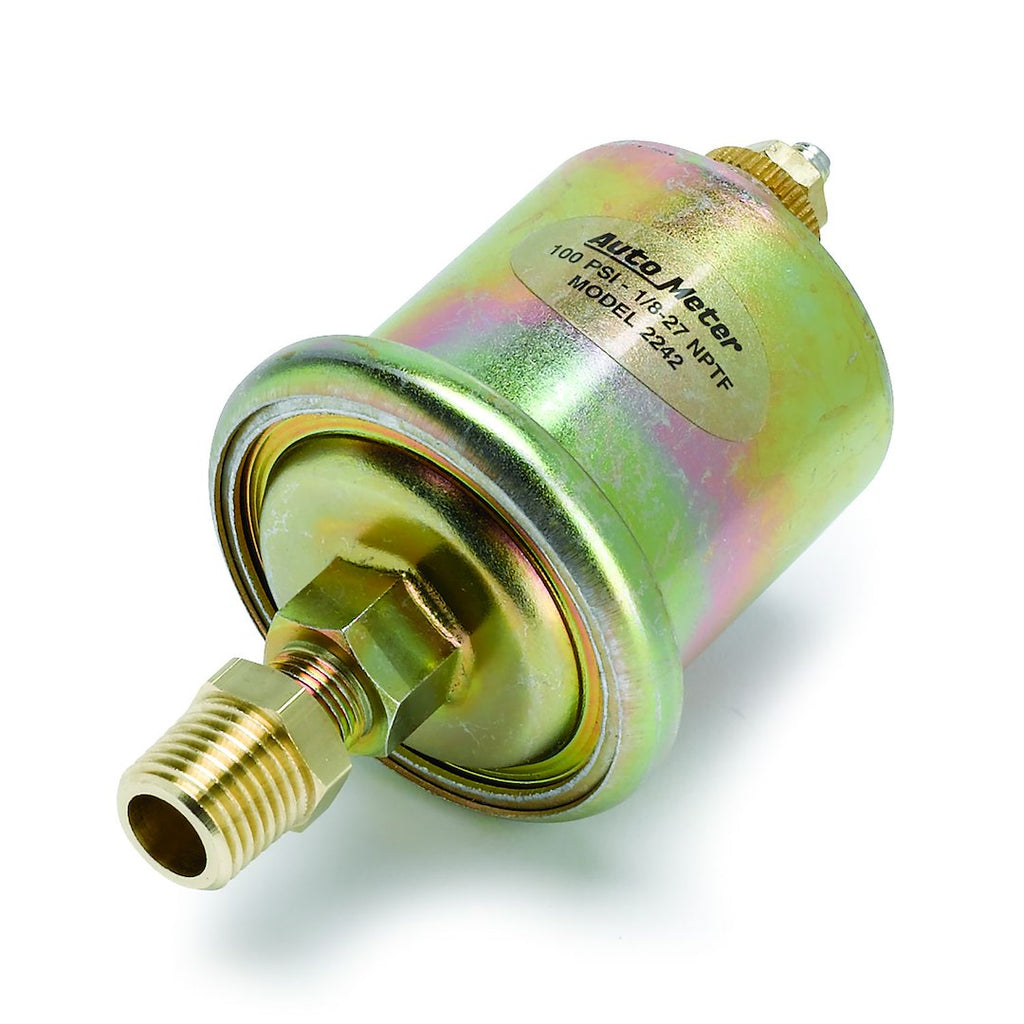

- Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
- Speedometer Range (MPH): 0 To 120 Miles Per Hour
- Tachometer Range (RPM): 0 To 8000 RPM
- Voltmeter Range (Volt): 8 To 18 Volt
- Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
- Display: Analog
- Sweep: Full Sweep
- Face Color: Silver/Black
- Needle Color: Orange
- Bezel Color: Silver
- Number Color: White
- Mounting Type: In-Dash
- Lighting: High Definition LED
- Includes Warning Indicator: No
- Warning Indicator Type: Not Applicable
- Includes Peak Memory: No
- Liquid-Filled: No
- Includes Sending Unit: Yes
- Includes Wiring Harness: No
- Includes Fittings: No
