AutoMeter Quad Gauge Set (MPN: 1820)

Compact design with essential readings for performance monitoring.

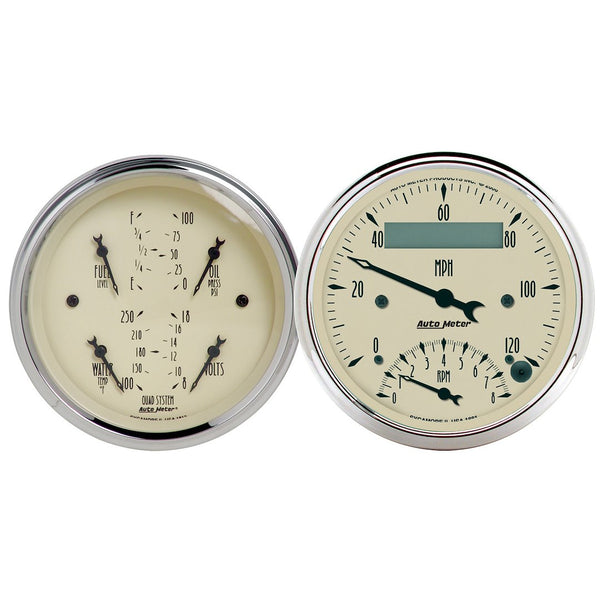

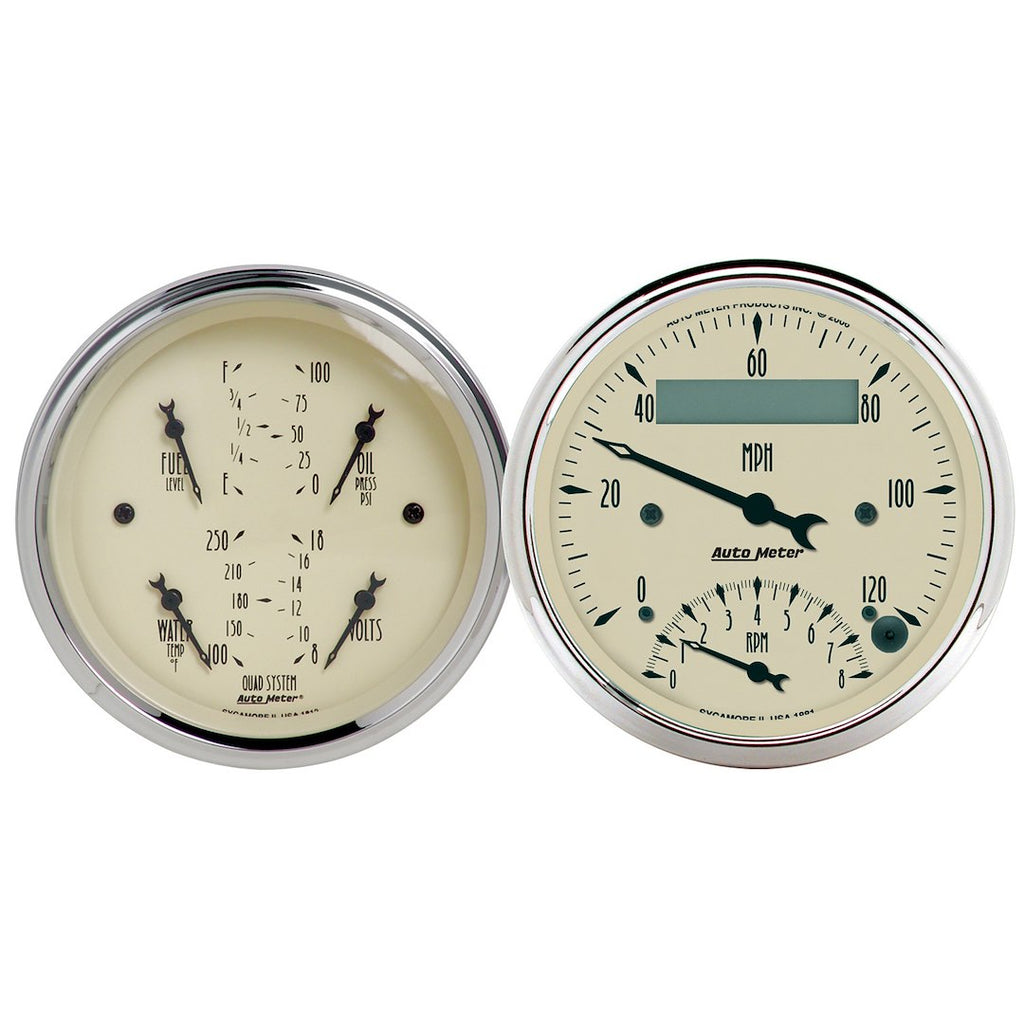

The AutoMeter Quad Gauge Set is designed to optimize dashboard space while delivering essential performance metrics. This set includes four electric analog gauges: fuel level, oil pressure, speedometer, and tachometer, all housed in a sleek 3-3/8 inch design. Each gauge features traditional incandescent lighting for visibility and is engineered for accuracy and durability, making it suitable for both street and race applications.

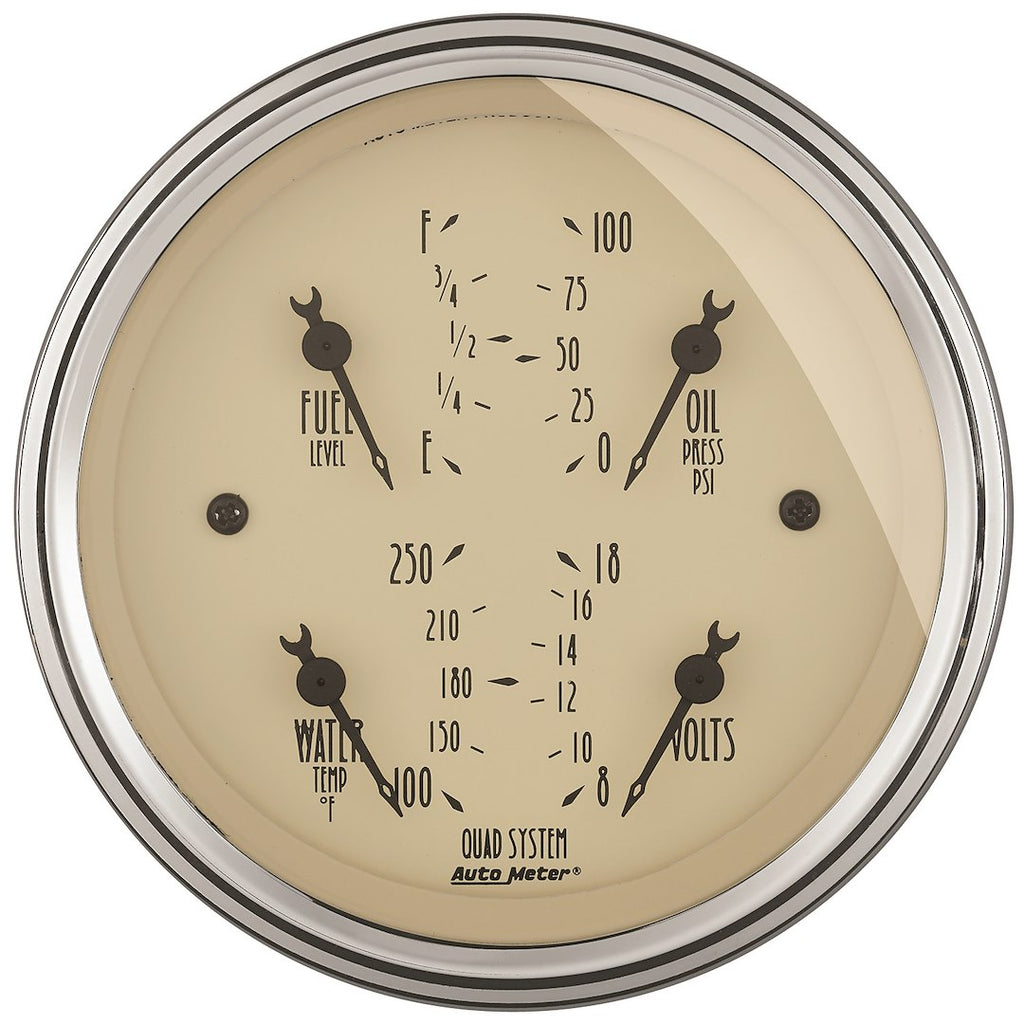

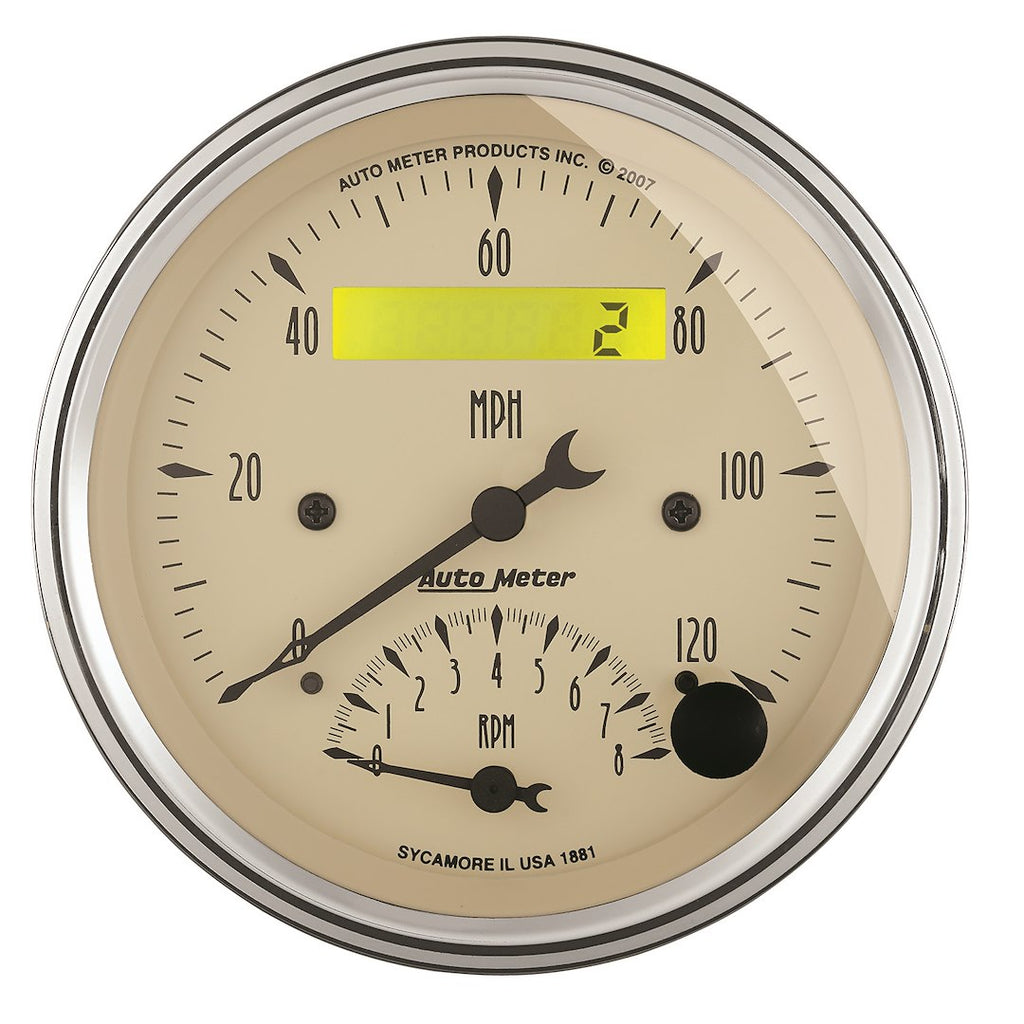

The fuel level gauge operates within a resistance range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The speedometer offers a full sweep from 0 to 120 MPH and includes a simple push-button calibration feature, allowing for easy adjustments to accommodate changes in gear ratios or tire sizes. The tachometer supports a range of 0 to 8000 RPM and is compatible with various ignition systems, ensuring versatility across different engine types.

This gauge set is compatible with 12 and 16 volt electrical systems, making it a reliable choice for most vehicles. The clean beige face with a chrome bezel and black needle provides a classic look, while the air-core electric instruments ensure quick and accurate readings. The AutoMeter Quad Gauge Set is an essential tool for monitoring critical engine parameters efficiently.

Features

• Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
• Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
• No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
• Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
• Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
• 4 In 1 Gauge Design Saves Valuable Real Estate On Your Dash While Allowing You To Monitor Critical Parameters
• Tachometer Is Compatible With 0.5 To 6 Pulse Ignition Signals (1 To 12 Cylinder Engines) With Points, Electronic, And Most 12 Volt High-Performance Racing Ignitions
• 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: 1820
• Size (IN): 3-3/8 Inch
• Type: Electrical
• Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
• Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
• Speedometer Range (MPH): 0 To 120 Miles Per Hour
• Tachometer Range (RPM): 0 To 8000 RPM
• Voltmeter Range (Volt): 8 To 18 Volt
• Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
• Display: Analog
• Sweep: Full Sweep
• Face Color: Beige
• Needle Color: Black
• Bezel Color: Silver
• Number Color: Black
• Mounting Type: In-Dash
• Lighting: Incandescent
• Includes Warning Indicator: No
• Warning Indicator Type: Not Applicable
• Includes Peak Memory: No
• Liquid-Filled: No
• Includes Sending Unit: Yes
• Includes Wiring Harness: No
• Includes Fittings: No
