AutoMeter Nitrous Oxide Pressure Gauge (MPN: P320128)

Advanced gauge for precise nitrous pressure monitoring and control.

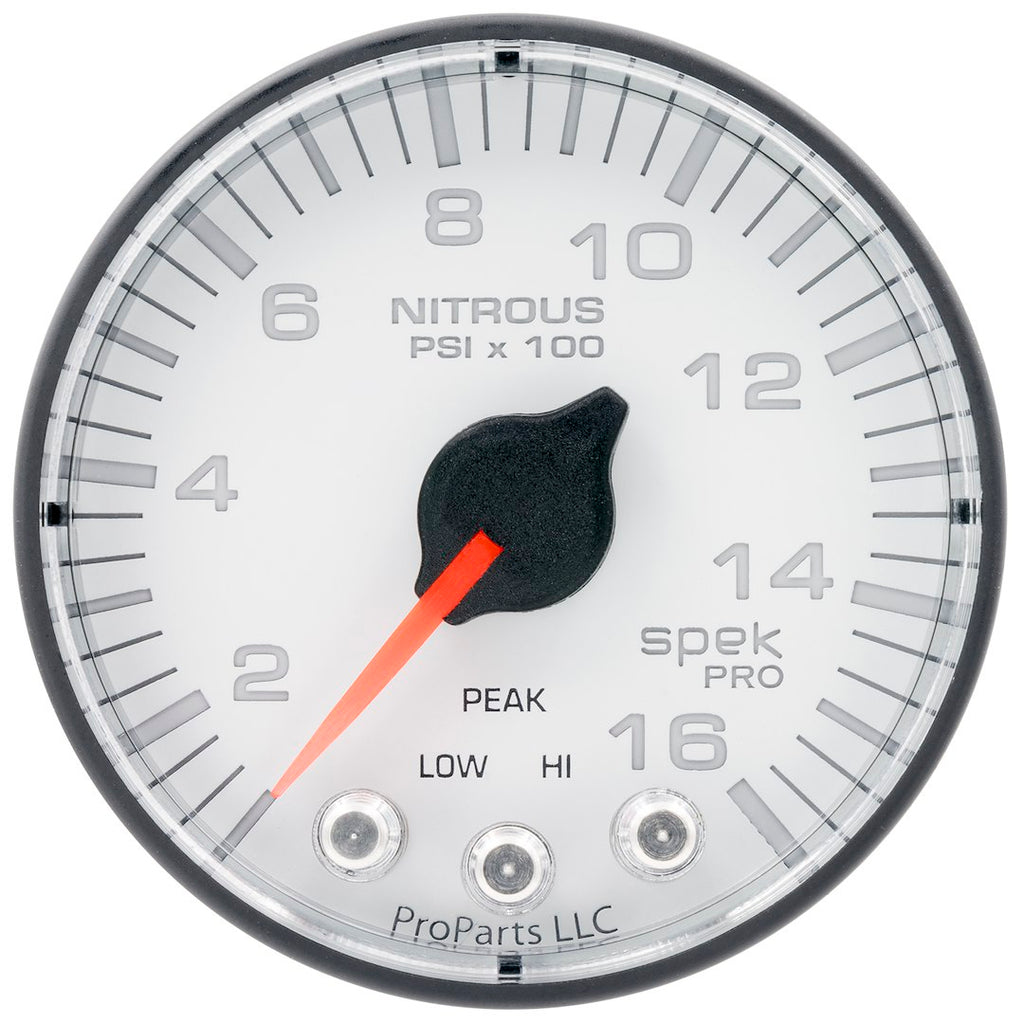

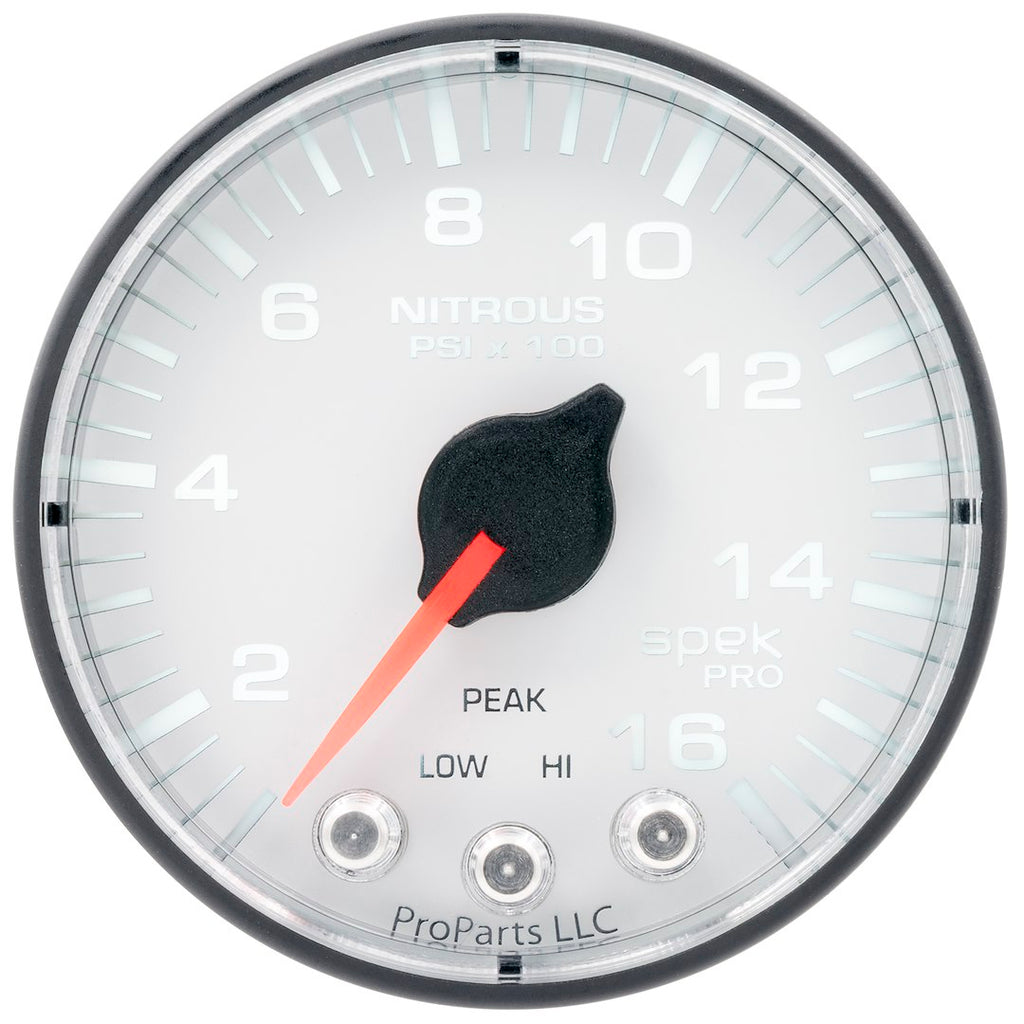

The AutoMeter Nitrous Oxide Pressure Gauge is designed to provide accurate readings of nitrous pressure, essential for maximizing engine performance. This 2-1/16 inch full sweep electric gauge features a range of 0 to 1600 PSI, ensuring compatibility with various nitrous systems. The analog display is complemented by a white face, red needle, and black bezel, enhancing visibility and readability under different lighting conditions.

Equipped with LED illumination, the gauge offers seven user-selectable background colors with adjustable brightness for both day and night use. The configurable high and low warnings can be set using three on-instrument-face buttons, allowing for immediate alerts when pressure levels are outside the desired range. Additionally, the pro-control output can activate relays for external devices such as warning lights or pumps, providing enhanced control over nitrous injection systems.

The gauge also features a peak recall function, which stores the highest reading until cleared, allowing users to monitor performance trends effectively. With solid-state data acquisition grade sending units, this gauge ensures unmatched accuracy and durability, even in harsh environments. The precision 280-degree brushless stepper motor movement guarantees quiet and fluid pointer movement, resulting in superior dial resolution.

Features

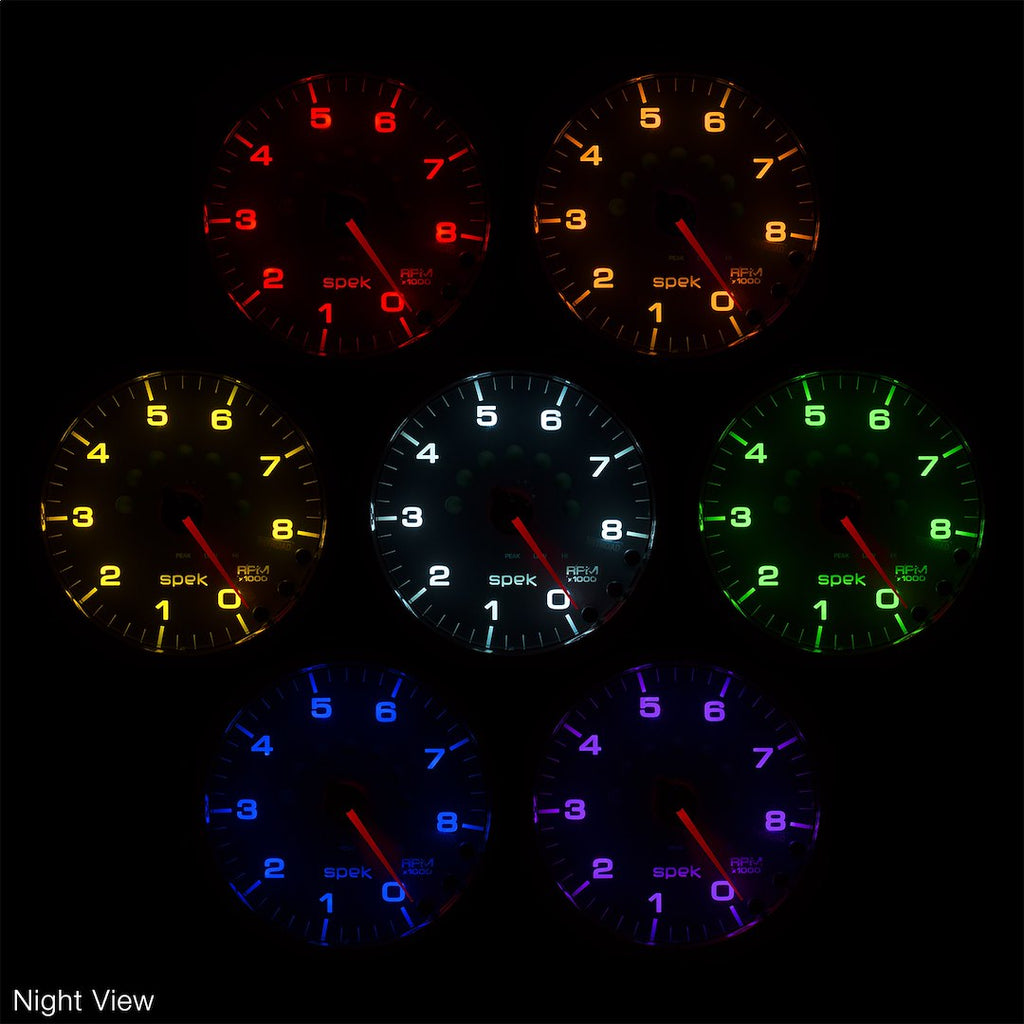

• 7 Color User-Selectable Background Illuminations With Adjustable Brightness For Day And Night - With Independent Dimming Of Dial And Pointer
• Configurable High And Low Warnings Using Three On-Instrument-Face Buttons
• Pro-Control Output Enables A 1.5 Ampere Load To Activate A Relay And Trigger The Choice Of Warning Lights, External Buzzers, Fans, Pumps, Or Features Such As Water Or Meth Or Nitrous Injection
• Features A Peak Recall Function, Which Enables The User To Review High Gauge Readings, The Highest Reading Will Be Stored By The Gauge Until It Is Cleared
• Solid-State Data Acquisition Grade Sending Units Provide Unmatched Gauge Accuracy And Withstand The Harshest Environments
• Precision 280 Degree Brushless Stepper Motor Movement Provides A Quiet, Fluid, And Accurate Pointer Movement With Superior Dial Resolution

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: P320128
• Size (IN): 2-1/16 Inch
• Type: Electrical
• Range (PSI): 0 To 1600 Pounds Per Square Inch
• Display: Analog
• Sweep: Yes
• Face Color: White
• Needle Color: Red
• Bezel Color: Black
• Number Color: White
• Lighting: LED Illuminated
• Includes Wiring Harness: Yes

Technical Documents

• 2650-1680.pdf
• 2650-1685.pdf
• 2650-1686.pdf
