AutoMeter Gauge Set with Analog Display (MPN: 1420)

Comprehensive instrumentation for accurate vehicle monitoring.

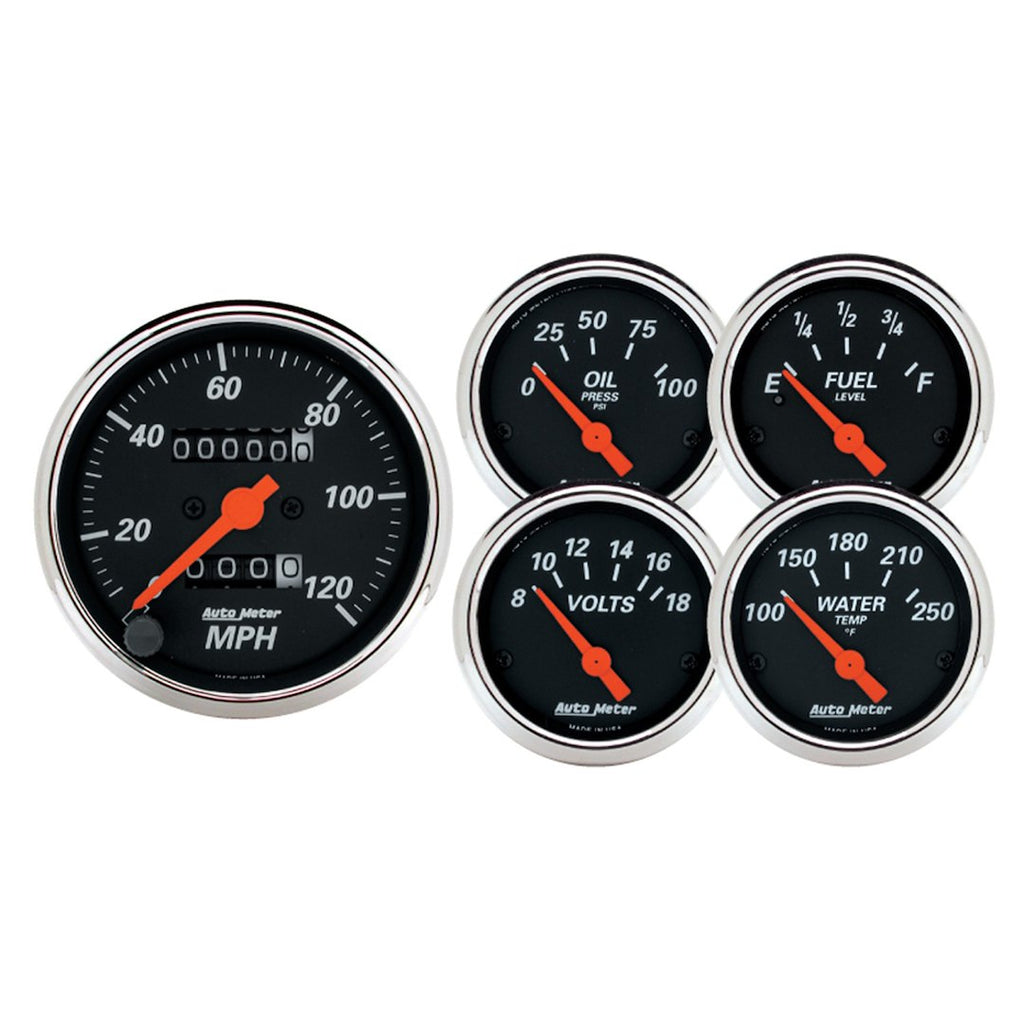

The AutoMeter Gauge Set provides essential vehicle monitoring with five precision analog gauges. This set includes an electric fuel level gauge, electric oil pressure gauge, mechanical speedometer, electric voltmeter, and electric water temperature gauge, all designed for seamless dashboard integration. Each gauge features a black face with a chrome bezel and an orange needle for clear visibility, while traditional incandescent lighting illuminates the dial perimeter for enhanced readability in low light conditions.

The electric fuel level gauge operates within a range of 240 ohms empty to 33 ohms full, ensuring accurate fuel readings. The oil pressure gauge measures from 0 to 100 PSI, providing critical information about engine health. The mechanical speedometer offers a full sweep from 0 to 120 MPH, equipped with a traditional rolling drum odometer and a resettable tripmeter for tracking distance traveled. The voltmeter and water temperature gauge complete the set, measuring from 8 to 18 volts and 100 to 250 degrees Fahrenheit, respectively.

Designed for durability and performance, this gauge set is suitable for a variety of applications. The gauges are easy to install and come with necessary senders, although additional sender part numbers may be required for the speedometer. With its combination of electrical and mechanical gauges, the AutoMeter Gauge Set is an essential upgrade for any vehicle enthusiast seeking reliable and accurate instrumentation.

Features

• Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
• Speedometer Features A Traditional Rolling Drum Odometer And A Resetable Tripmeter
• Speedometer Accepts A 5/8 Inch X 18 Thread Speedometer Cable And Is Calibrated For 60 Mile Per Hour At 1,000 Cable RPM

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: 1420
• Size (IN): 2-1/16 Inch
• Type: Electrical And Mechanical
• Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
• Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
• Speedometer Range (MPH): 0 To 120 Miles Per Hour
• Voltmeter Range (Volt): 8 To 18 Volt
• Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
• Display: Analog
• Sweep: Short Sweep/ Full Sweep
• Face Color: Black
• Needle Color: Orange
• Bezel Color: Silver
• Number Color: White
• Mounting Type: Dash Mount
• Lighting: Incandescent
• Includes Warning Indicator: No
• Warning Indicator Type: Not Applicable
• Includes Peak Memory: No
• Liquid-Filled: No
• Includes Sending Unit: Yes
• Includes Wiring Harness: No
• Includes Fittings: No
• Includes Mounting Bracket: Yes

Technical Documents

• 2650-1079.pdf
• 2650-1180.pdf
