Comprehensive instrumentation for accurate vehicle monitoring and performance.

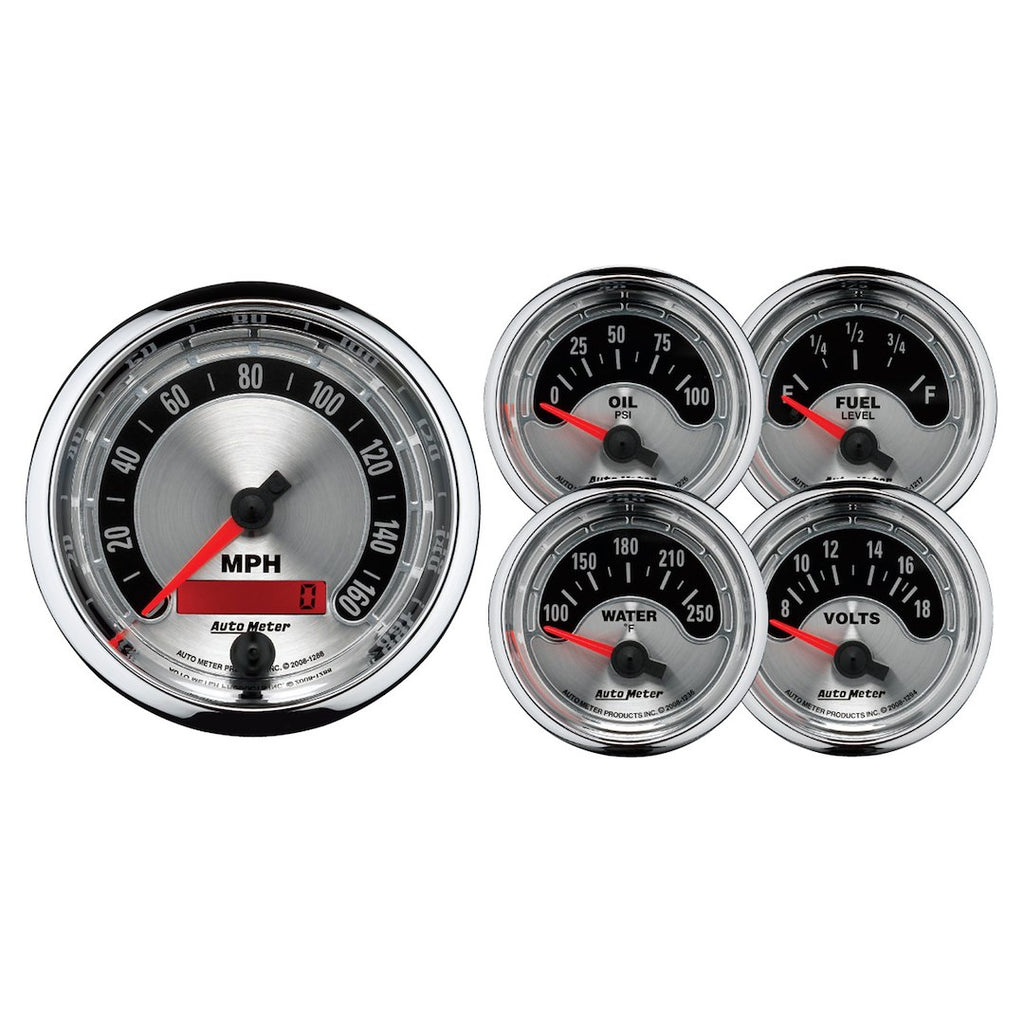

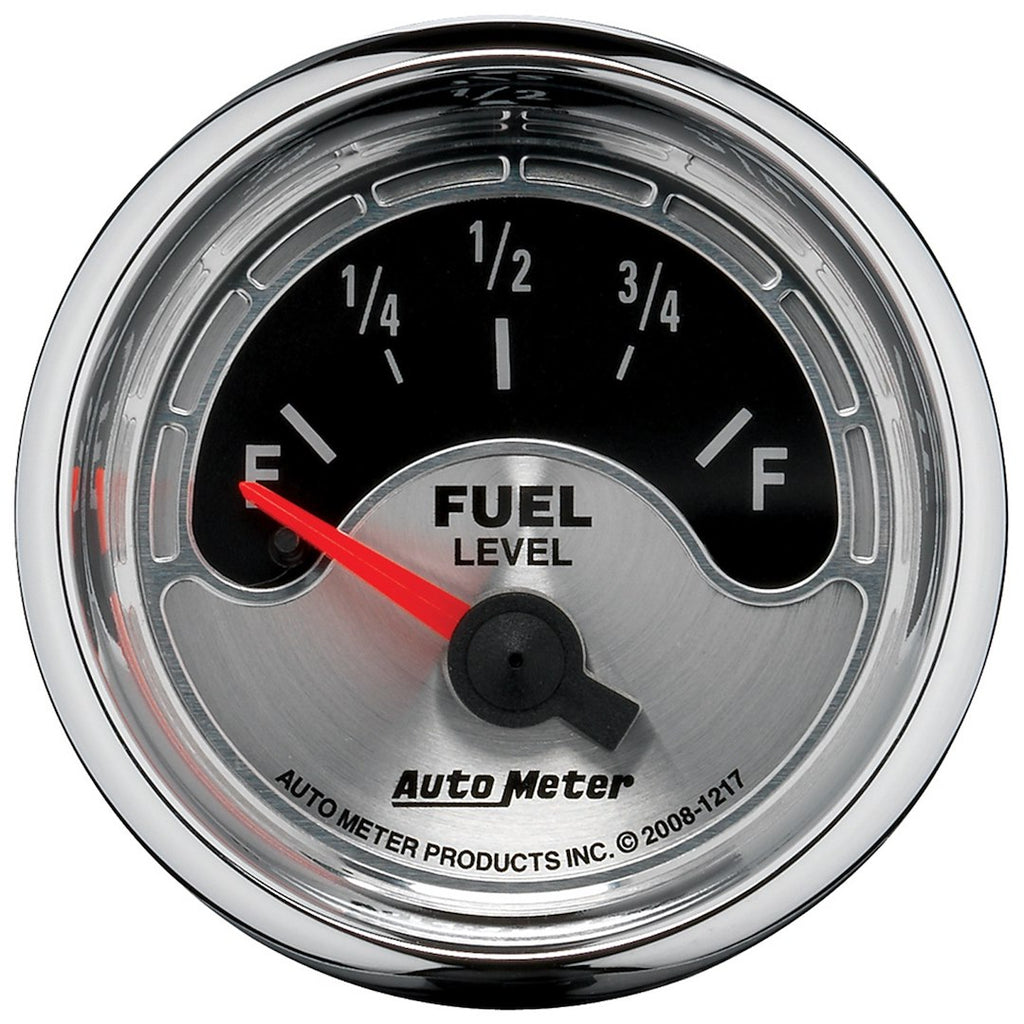

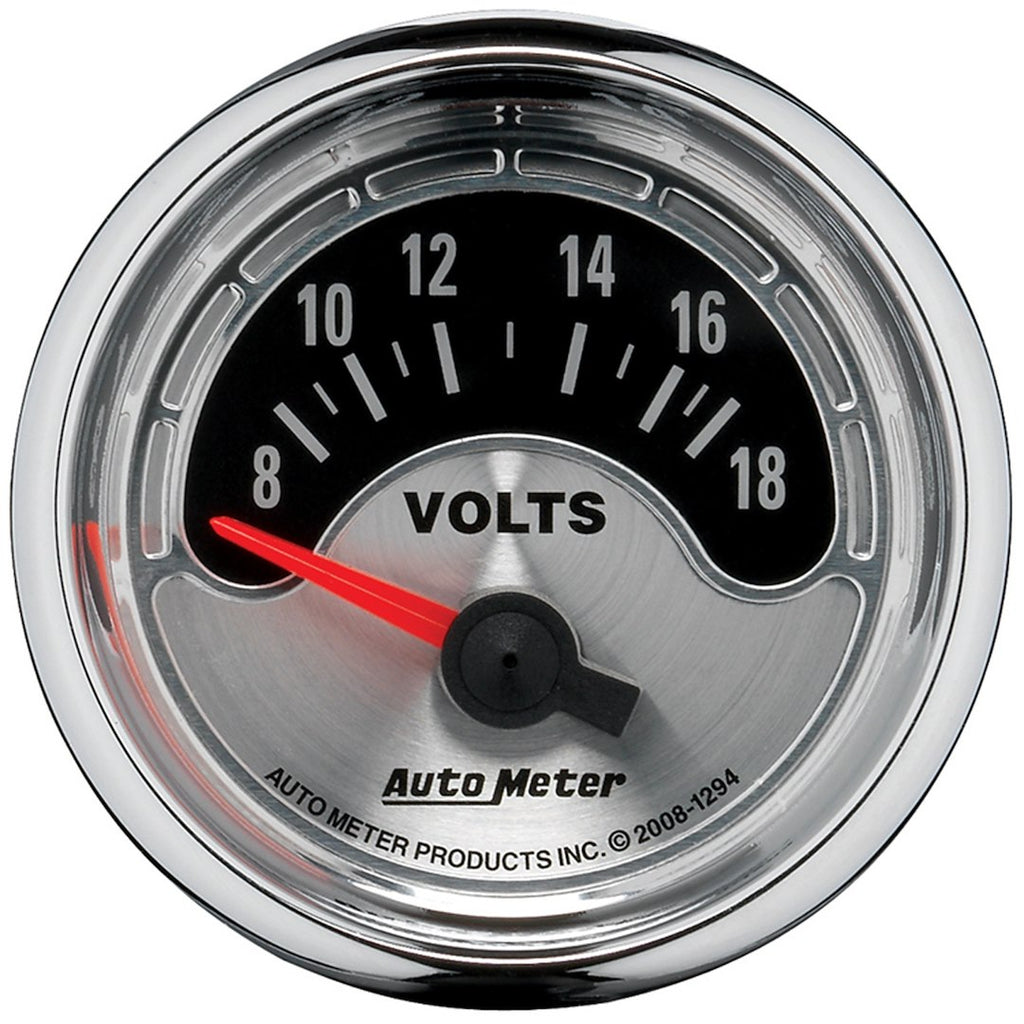

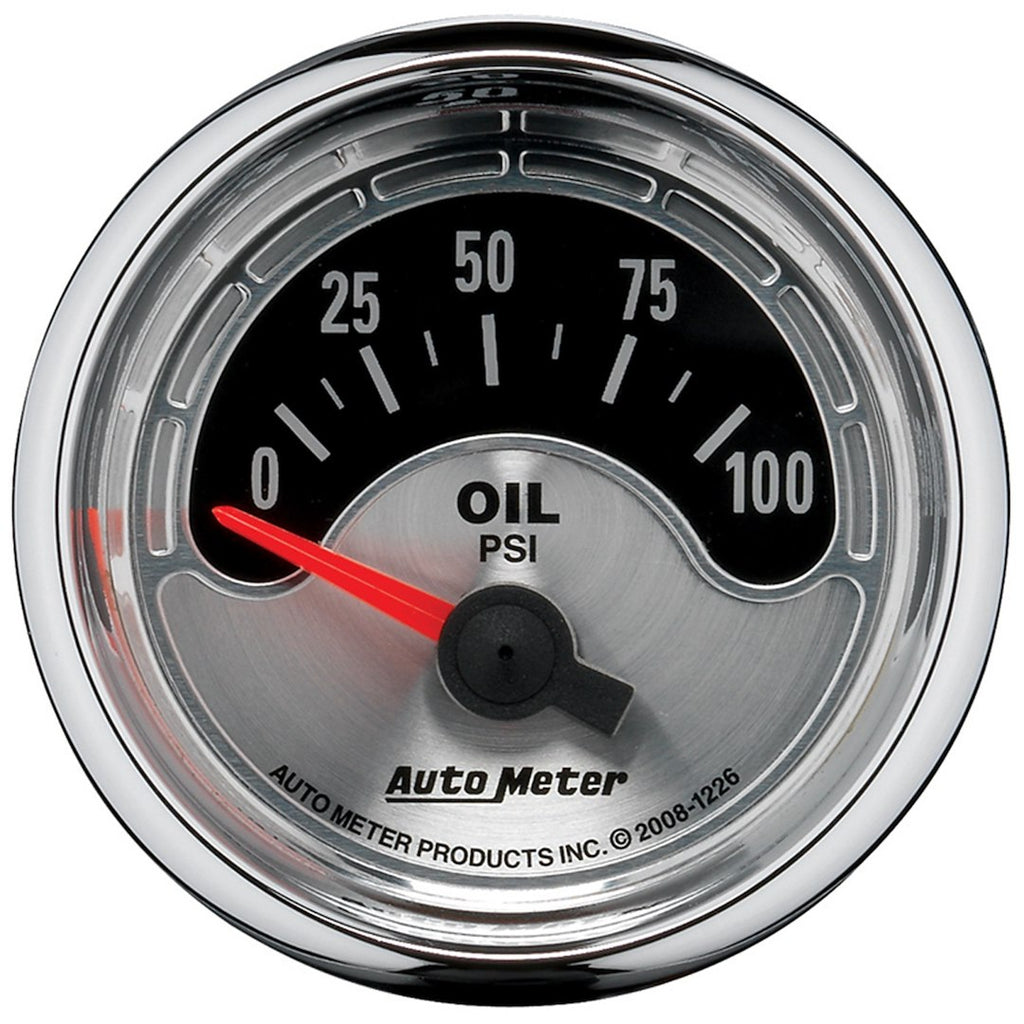

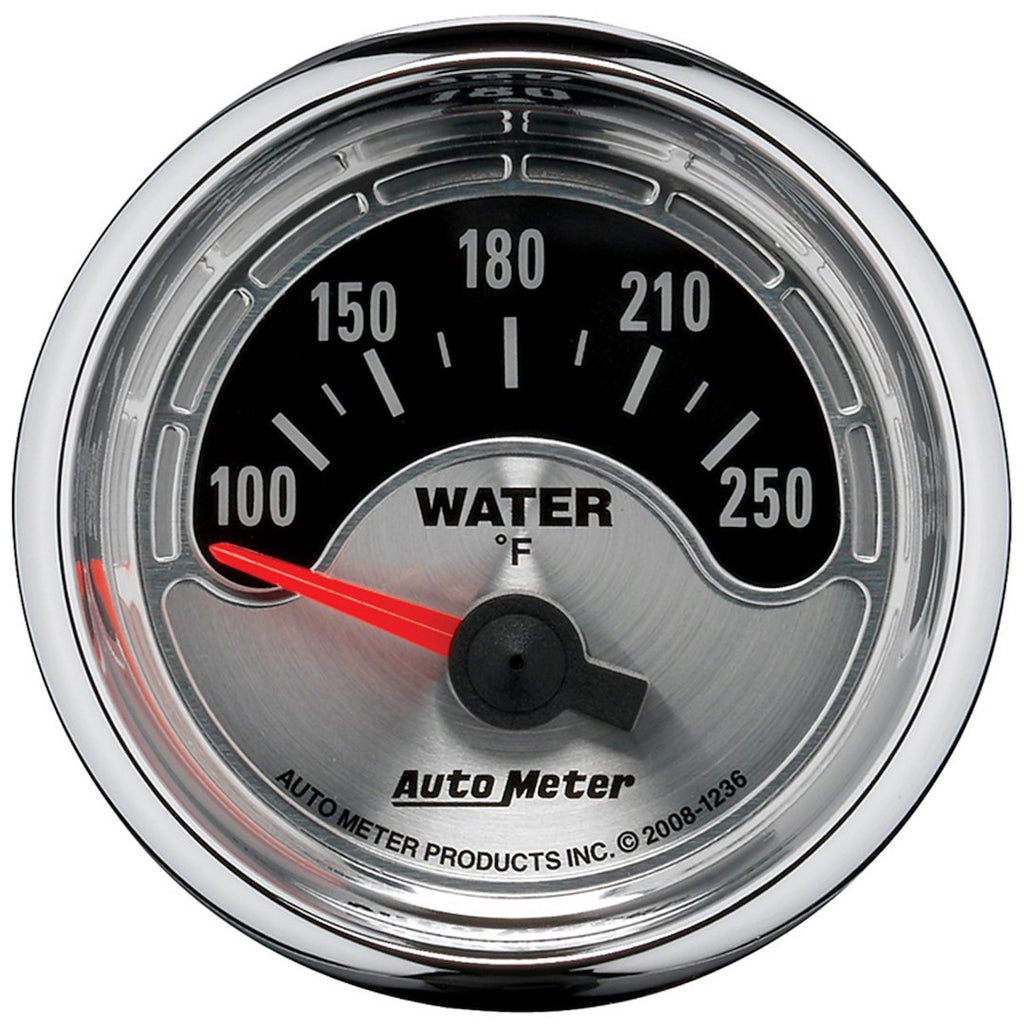

The AutoMeter Gauge Set is designed specifically for American muscle vehicles, providing essential readings for fuel level, oil pressure, speed, voltage, and water temperature. This set includes five analog gauges: an electric fuel level gauge with a range of 240 ohms empty to 33 ohms full, an electric oil pressure gauge measuring from 0 to 100 PSI, a speedometer with a full sweep range of 0 to 120 MPH, a voltmeter ranging from 8 to 18 volts, and a water temperature gauge with a range of 100 to 250 degrees Fahrenheit. Each gauge features a silver and black face with a chrome bezel and an orange needle, ensuring visibility and style in any dashboard setup.

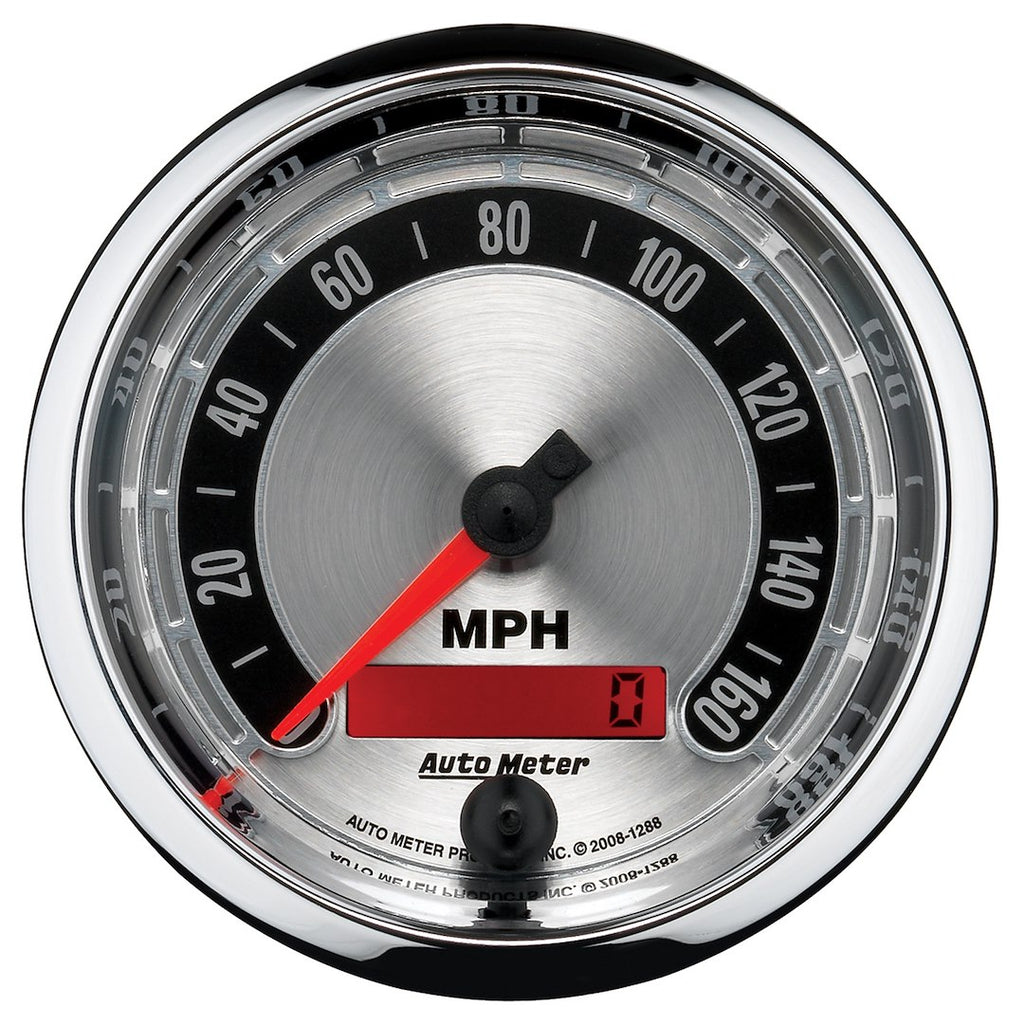

The gauges are equipped with modern LED through-the-dial lighting, providing clear visibility during nighttime use. The race-proven air-core electric instruments deliver quick and accurate readings while keeping hazardous fluids outside the vehicle. The speedometer includes a simple push-button, 2-mile drive calibration and can be reprogrammed to accommodate changes in gear ratio or wheel and tire combinations, making it versatile for various applications.

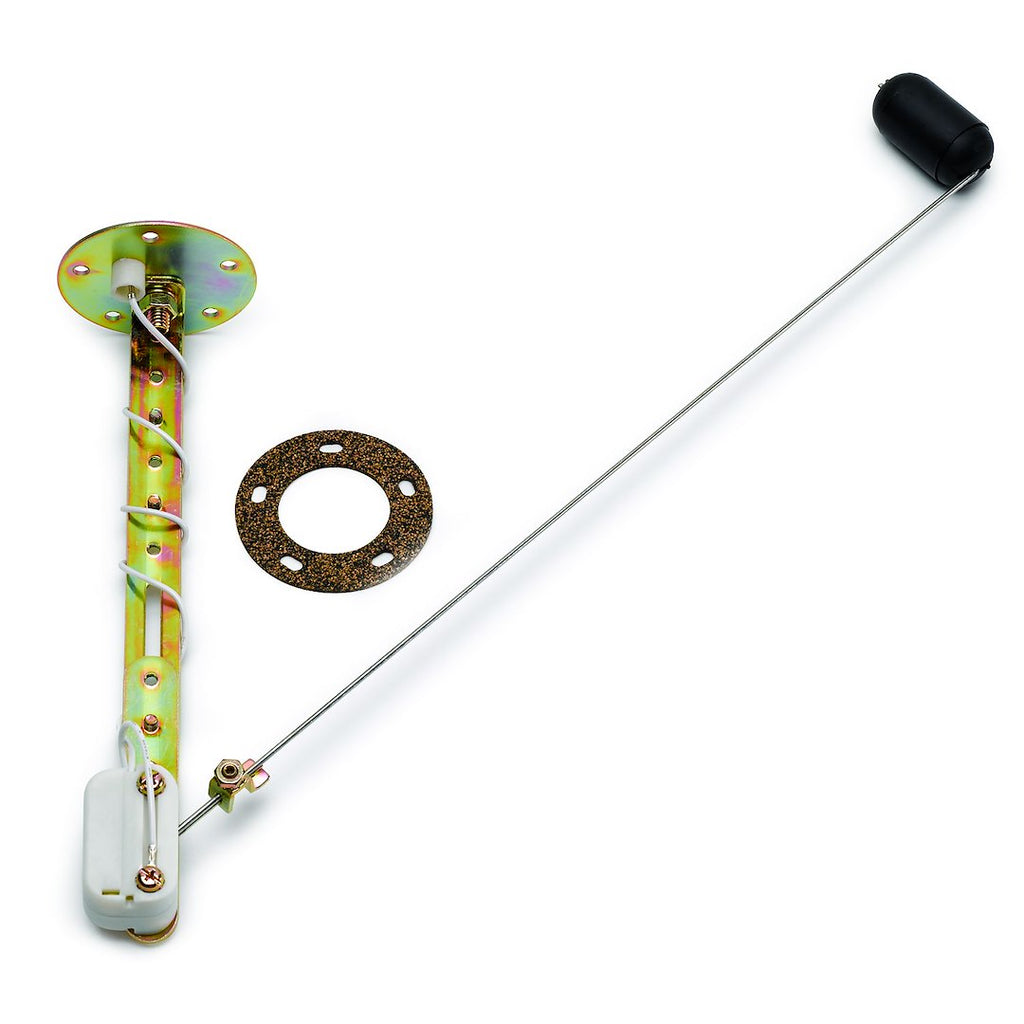

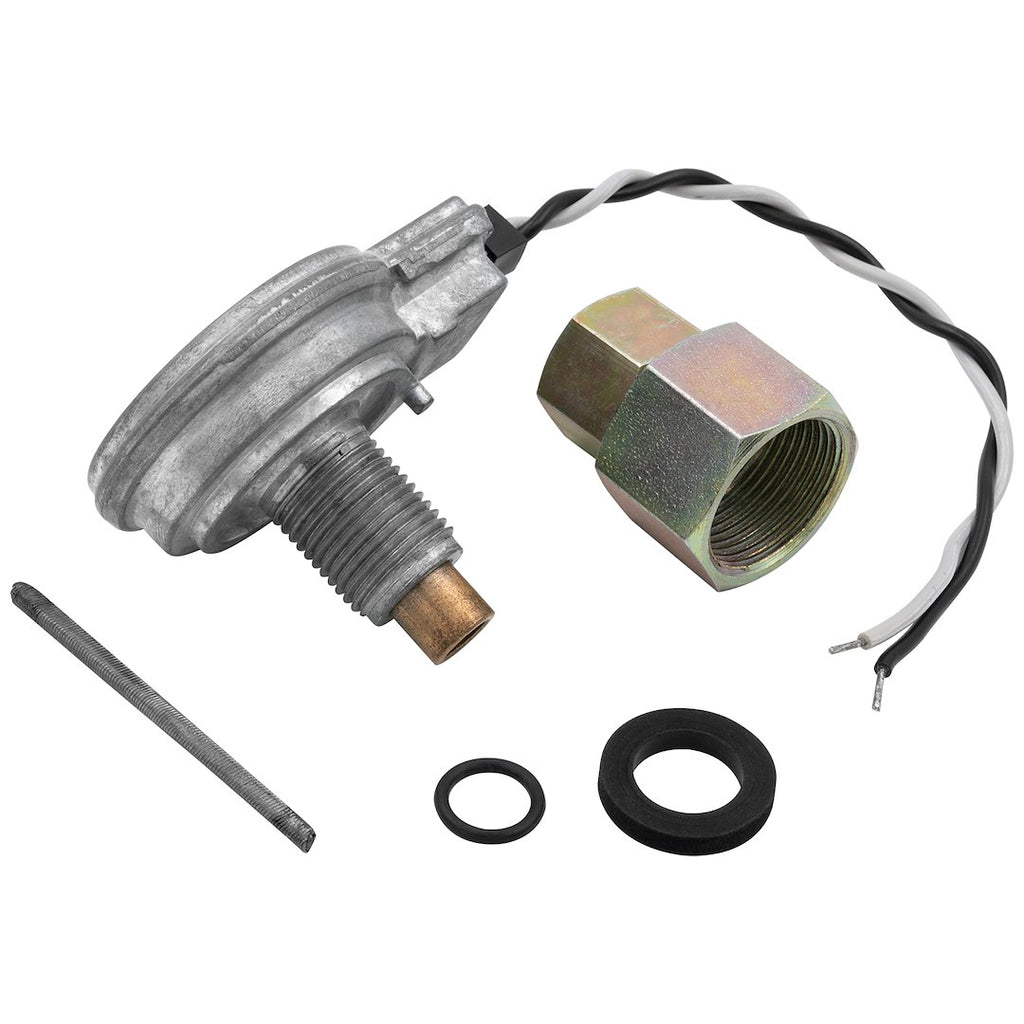

Compatible with most two-wire sine wave and three-wire Hall effect vehicle speed sensors, this gauge set is designed to work with nearly every street car or race car electrical system. The included sending units ensure that all necessary components are provided for installation, making it a comprehensive solution for vehicle instrumentation.
Features
- Modern LED Through-The-Dial Lighting Provides Clear Visibility During Nighttime Use
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedomete Has Simple Push Button, 2 Mile Drive Calibration
- No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
- Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
- Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 1202
- Size (IN): 2-1/16 Inch/ 3-1/8 Inch
- Type: Electrical
- Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
- Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
- Speedometer Range (MPH): 0 To 120 Miles Per Hour
- Voltmeter Range (Volt): 8 To 18 Volt
- Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
- Display: Analog
- Sweep: Short Sweep/ Full Sweep
- Face Color: Silver/Black
- Needle Color: Orange
- Bezel Color: Silver
- Number Color: White
- Mounting Type: Dash Mount
- Lighting: High Definition LED
- Includes Warning Indicator: No
- Warning Indicator Type: Not Applicable
- Includes Peak Memory: No
- Liquid-Filled: No
- Includes Sending Unit: Yes
- Includes Wiring Harness: No
- Includes Fittings: No
- Includes Mounting Bracket: Yes
