Comprehensive instrumentation for accurate vehicle monitoring.

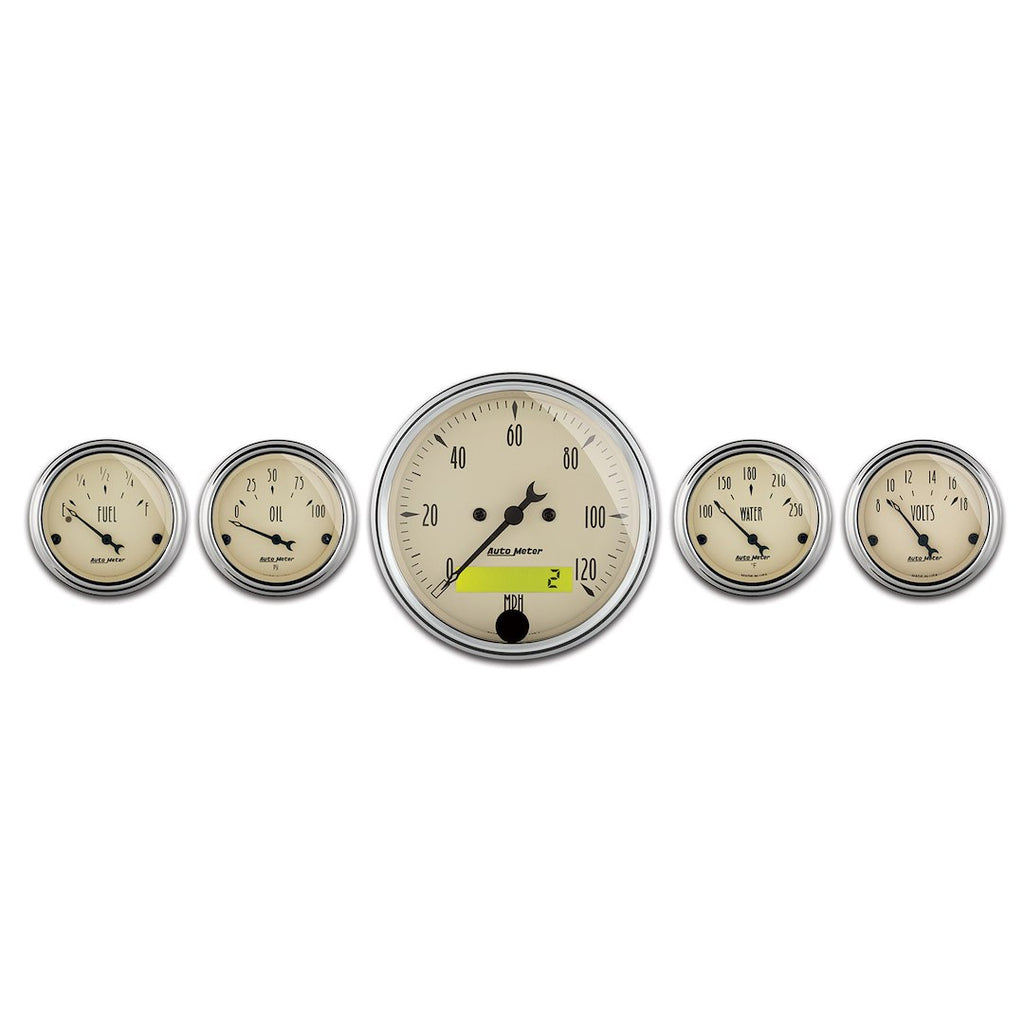

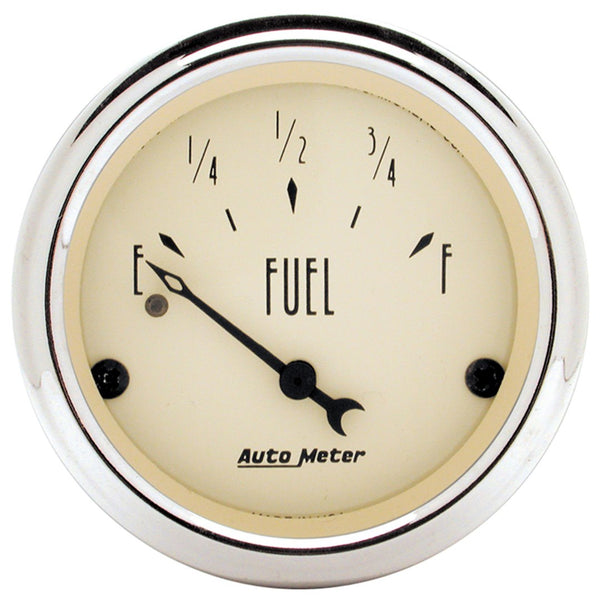

The AutoMeter Gauge Set offers a complete solution for monitoring essential vehicle parameters including fuel level, oil pressure, speed, voltage, and water temperature. This set features five analog gauges, each designed for precision and reliability. The electric fuel level gauge operates within a range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The speedometer provides readings up to 120 MPH, ensuring accurate speed tracking during operation.
Each gauge is designed with a beige face, chrome bezel, and black needle, providing a classic aesthetic that complements various vehicle interiors. The traditional incandescent lighting illuminates the perimeter of the dial, enhancing visibility in low-light conditions. The speedometer includes a simple push-button calibration feature, allowing for easy adjustments to accommodate changes in gear ratios or tire sizes.
This gauge set is compatible with most street and race car electrical systems, operating on both 12 and 16 volts. The included sending units ensure that all gauges provide accurate readings, while the robust construction keeps hazardous fluids outside the vehicle. With a focus on performance and durability, the AutoMeter Gauge Set is an essential addition for any vehicle enthusiast.
Features
- Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
- Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire CombinationSpeedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensor
- Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 1809
- Size (IN): 2-1/16 Inch/ 3-1/8 Inch
- Type: Electrical

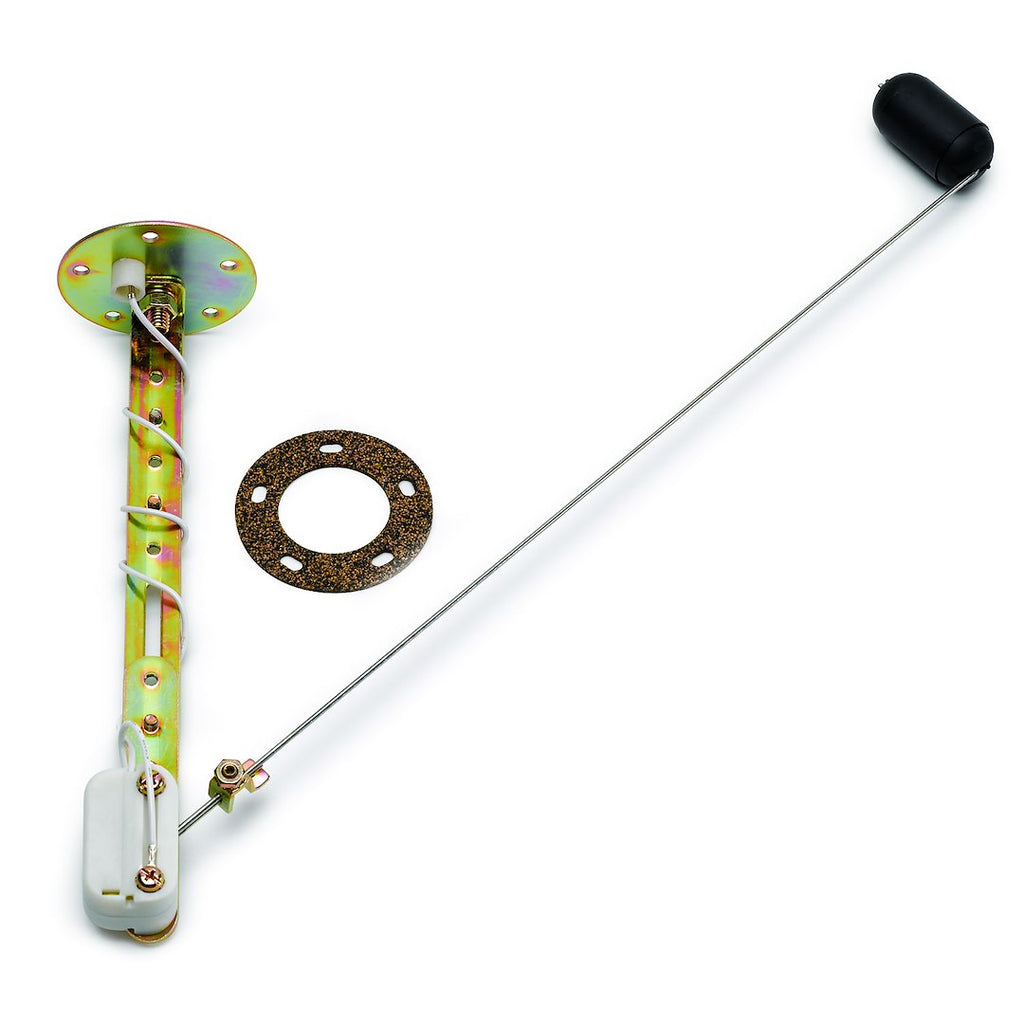

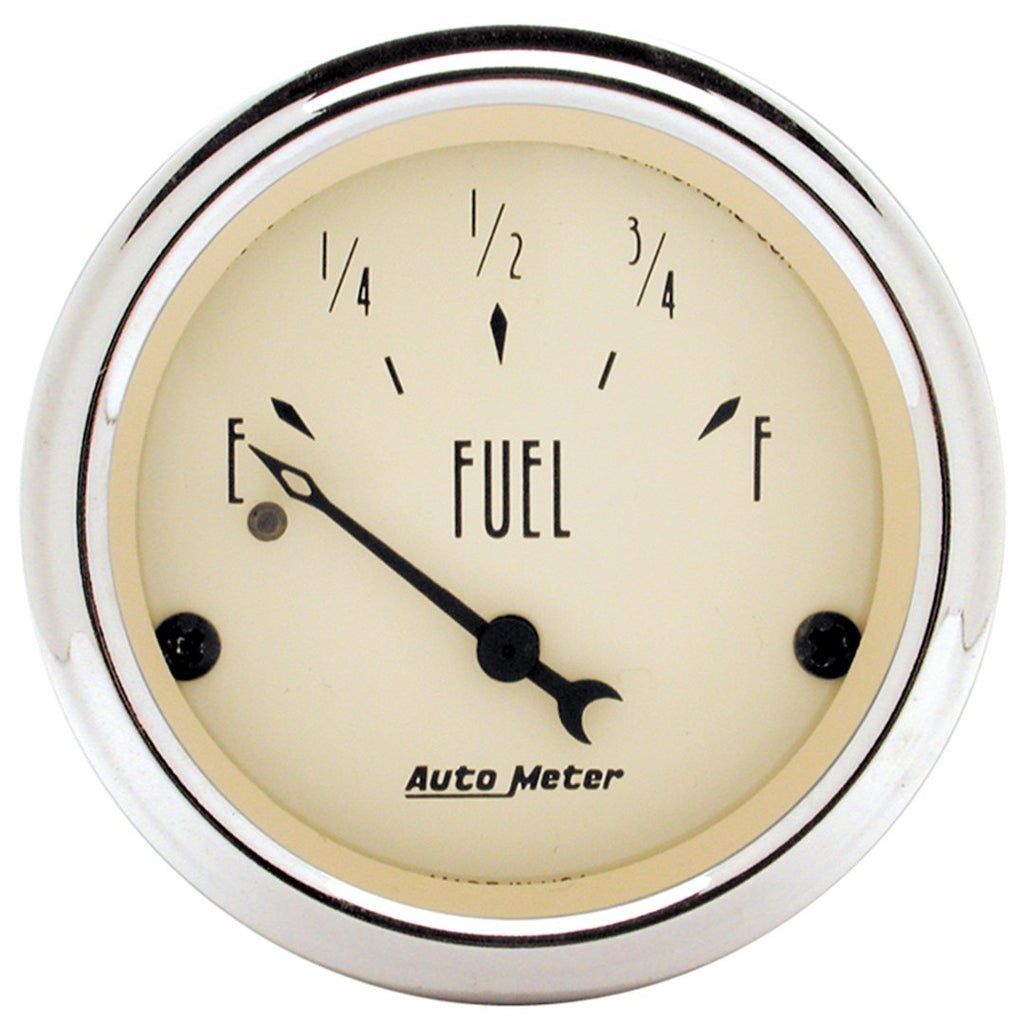

- Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full

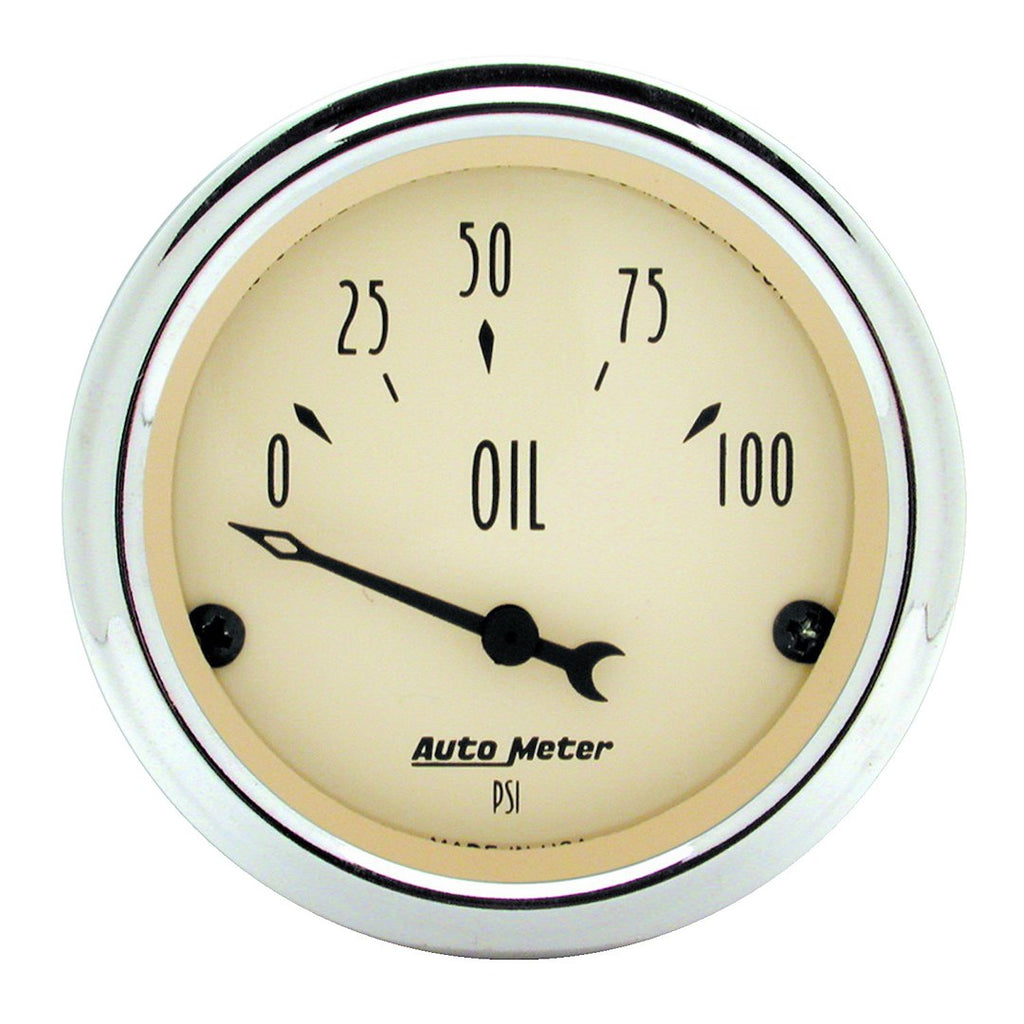

- Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch

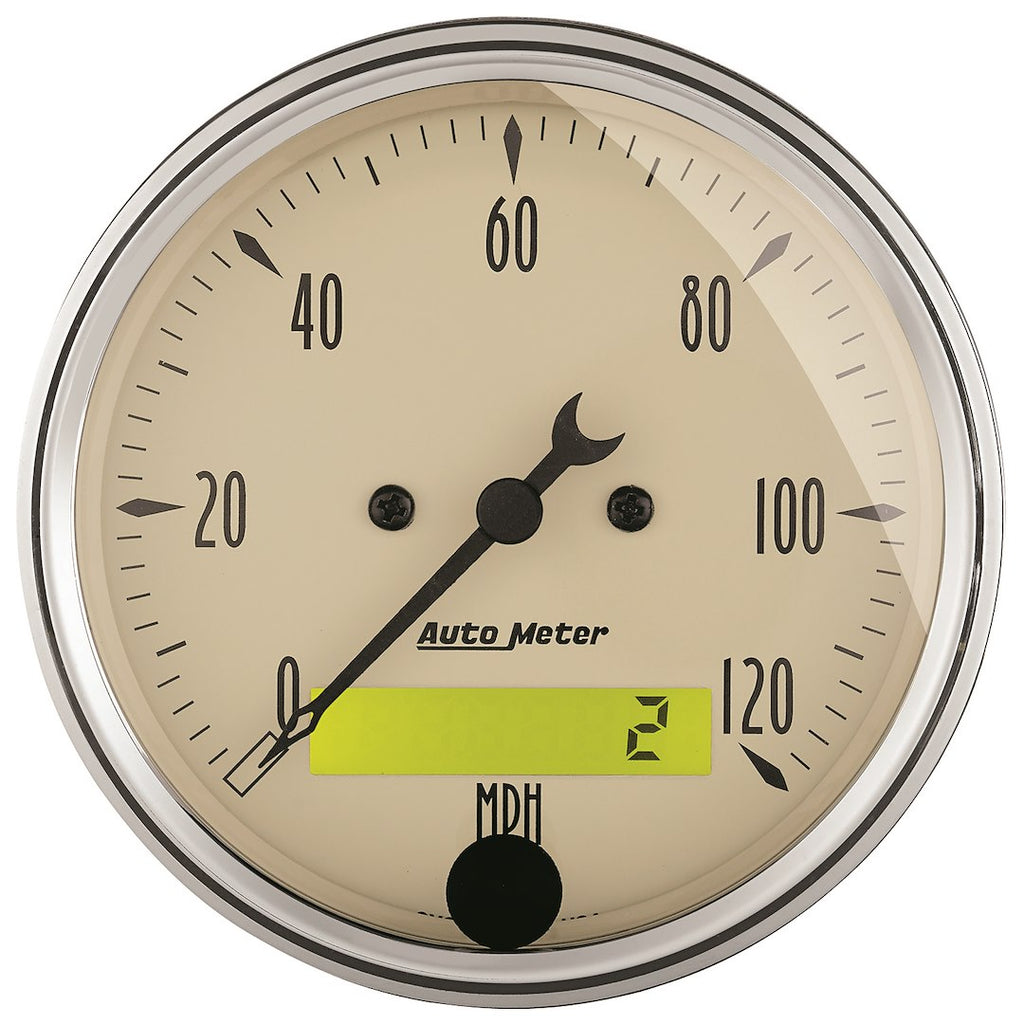

- Speedometer Range (MPH): 0 To 120 Miles Per Hour

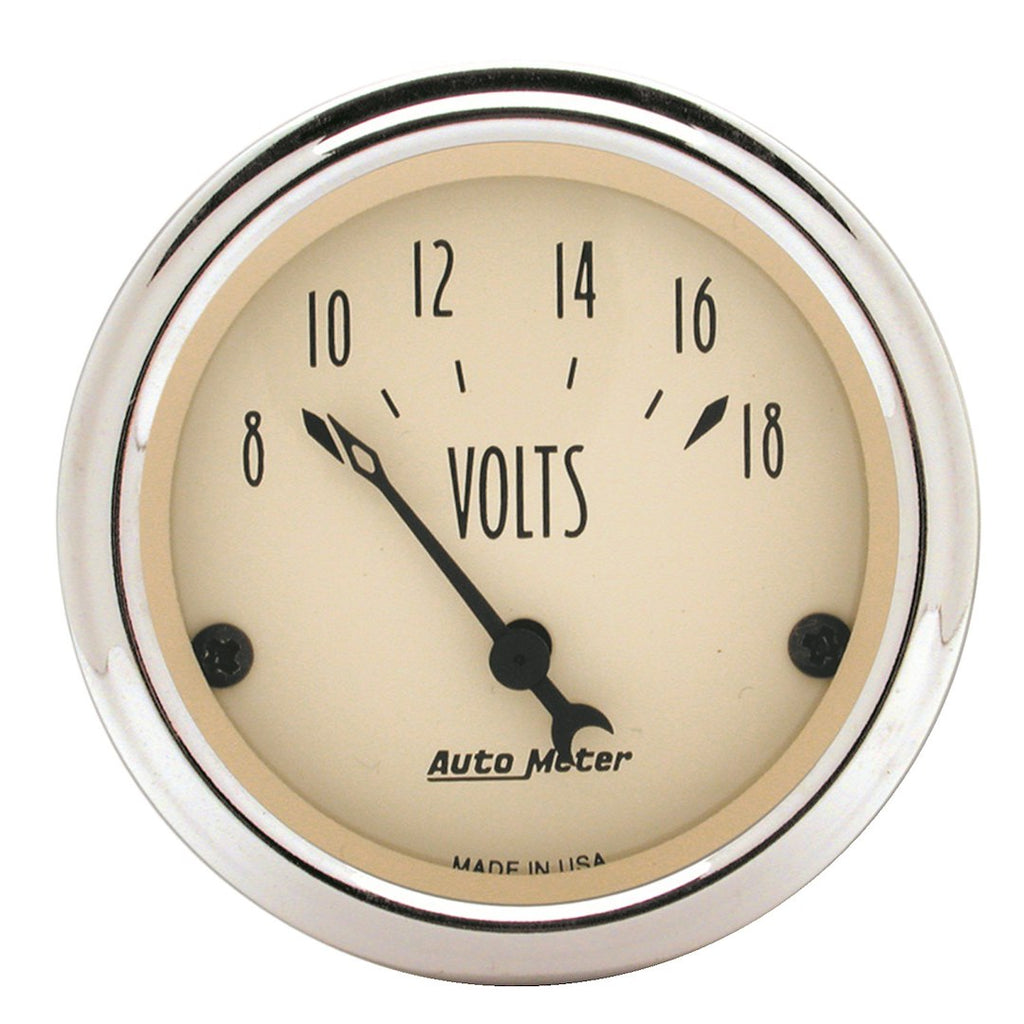

- Voltmeter Range (Volt): 8 To 18 Volt

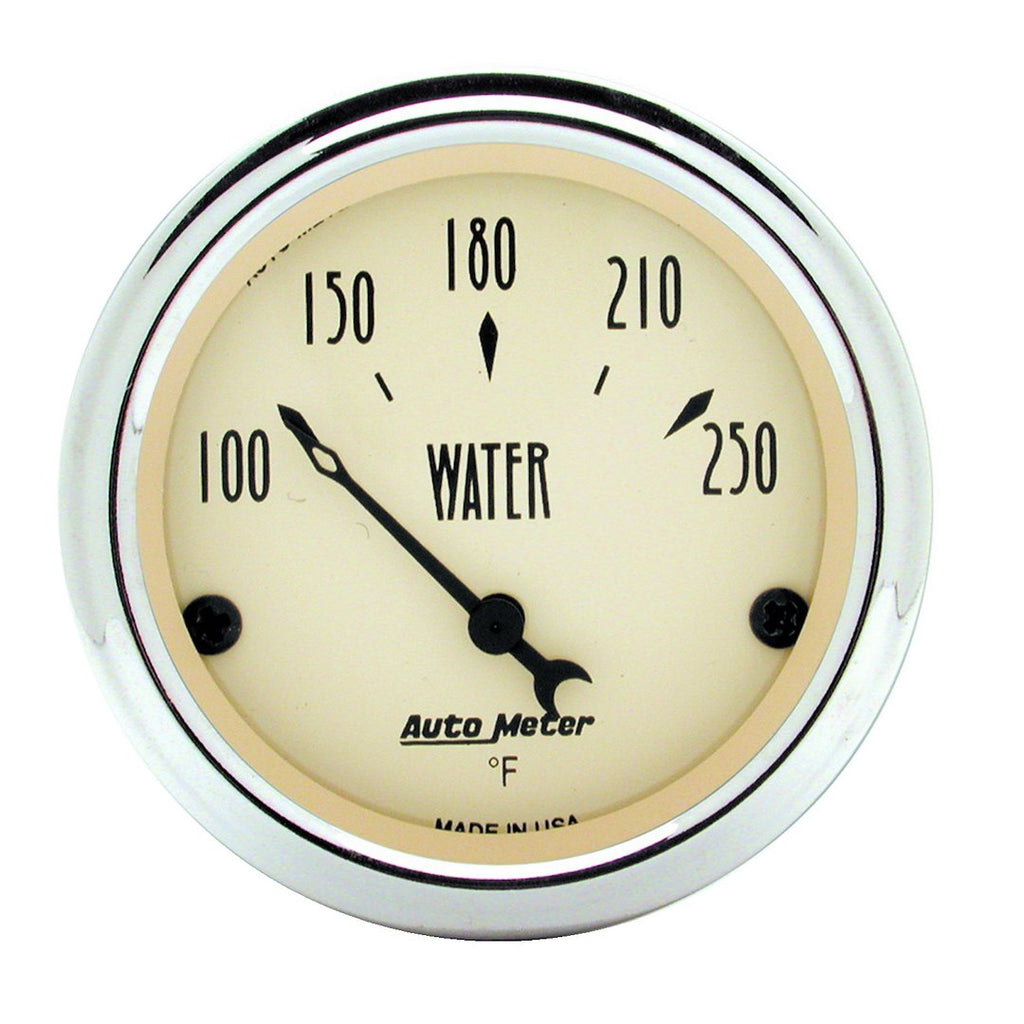

- Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
- Display: Analog
- Sweep: Short Sweep/ Full Sweep
- Face Color: Beige
- Needle Color: Black
- Bezel Color: Silver
- Number Color: Black
- Mounting Type: Dash Mount
- Lighting: Incandescent
- Includes Warning Indicator: No
- Warning Indicator Type: Not Applicable
- Includes Peak Memory: No
- Liquid-Filled: No

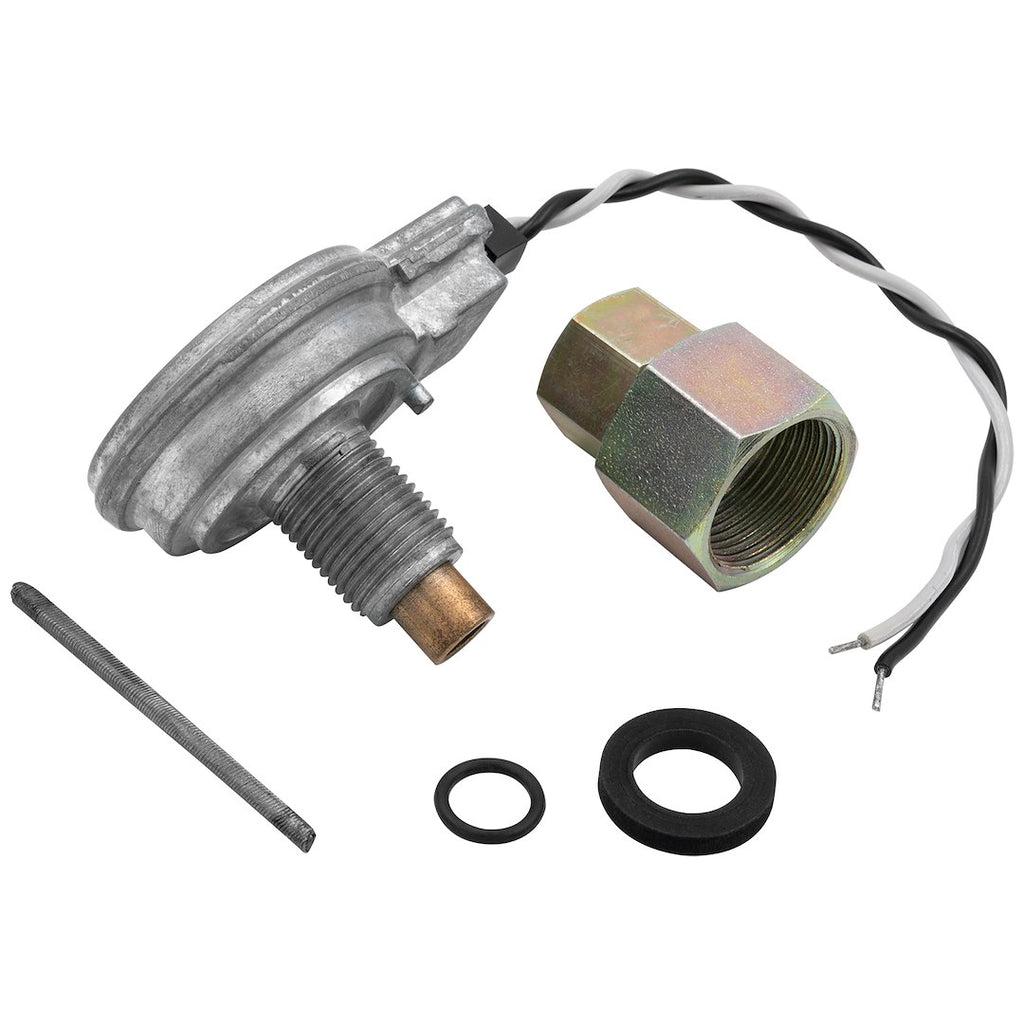

- Includes Sending Unit: Yes
- Includes Wiring Harness: No
- Includes Fittings: No
- Includes Mounting Bracket: Yes
