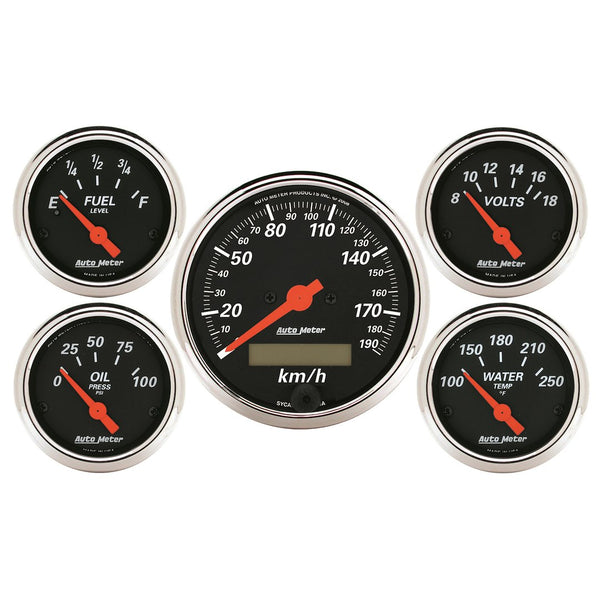

AutoMeter Gauge Set (MPN: 1421-M)

Comprehensive instrumentation for accurate vehicle monitoring.

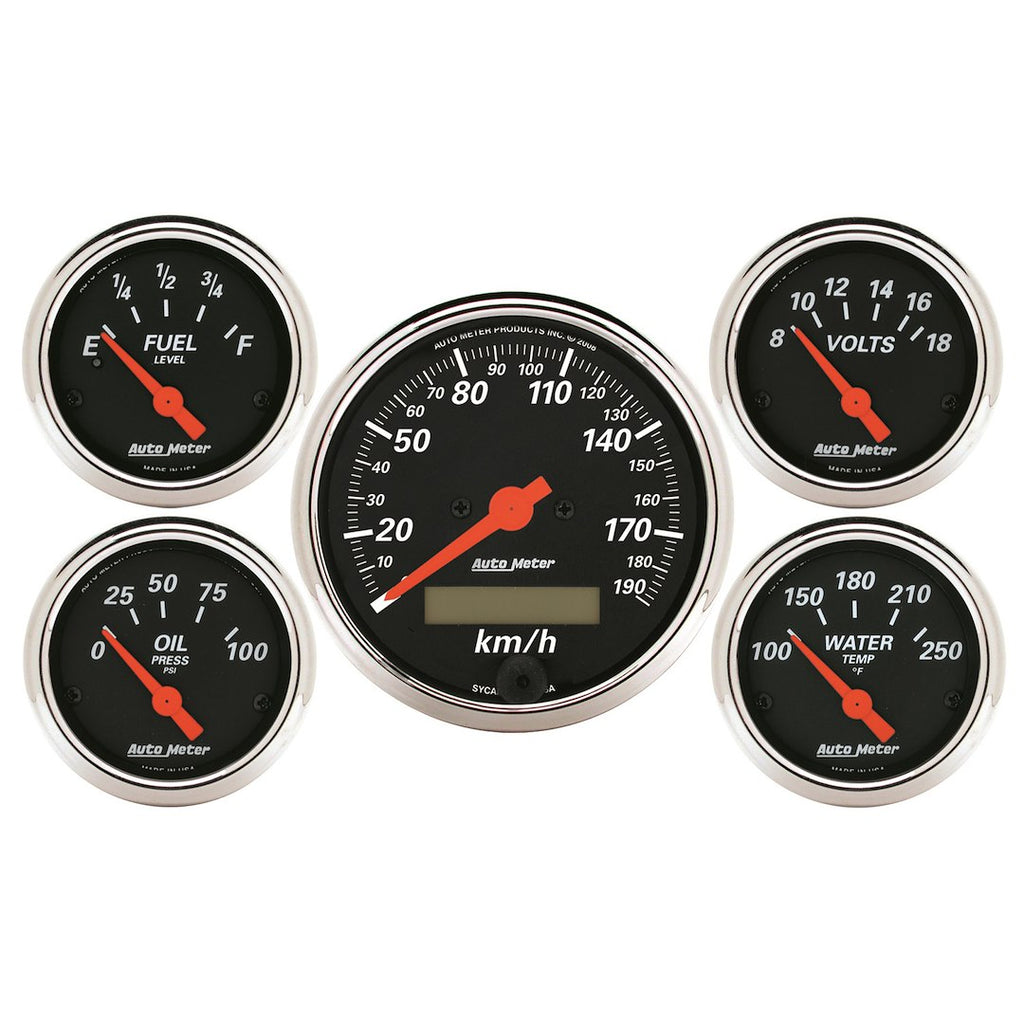

The AutoMeter Gauge Set provides essential monitoring for fuel level, oil pressure, speed, voltage, and water temperature. This set includes five analog gauges designed for precision and reliability, featuring a black face with chrome bezels and orange needles for clear visibility. The electric fuel level gauge operates within a range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The speedometer offers a full sweep from 0 to 190 KPH, ensuring accurate speed readings under various conditions.

Each gauge is equipped with traditional incandescent lighting that illuminates around the perimeter of the dial, enhancing readability in low-light environments. The race-proven air-core electric instruments provide quick and accurate readings, keeping hazardous fluids outside the vehicle. The speedometer includes a simple push-button calibration feature, allowing for easy adjustments to accommodate changes in gear ratios or tire sizes.

This gauge set is compatible with most two-wire sine wave and three-wire Hall effect vehicle speed sensors, making it versatile for various applications. With a robust design and comprehensive functionality, the AutoMeter Gauge Set is an essential upgrade for any vehicle enthusiast looking to enhance their dashboard instrumentation.

Features

• Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
• Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• Speedomete Has Simple Push Button, 2 Mile Drive Calibration
• No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
• Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
• Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
• 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: 1421-M
• Size (IN): 2-1/16 Inch/ 3-1/8 Inch
• Type: Electrical
• Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
• Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
• Speedometer Range (MPH): 0 To 118 Miles Per Hour
• Voltmeter Range (Volt): 8 To 18 Volt
• Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
• Display: Analog
• Sweep: Short Sweep/ Full Sweep
• Face Color: Black
• Needle Color: Orange
• Bezel Color: Silver
• Number Color: White
• Mounting Type: Dash Mount
• Lighting: Incandescent
• Includes Warning Indicator: No
• Warning Indicator Type: Not Applicable
• Includes Peak Memory: No
• Liquid-Filled: No
• Includes Sending Unit: Yes
• Includes Wiring Harness: No
• Includes Fittings: No
• Includes Mounting Bracket: Yes
