Comprehensive instrumentation for accurate vehicle monitoring.

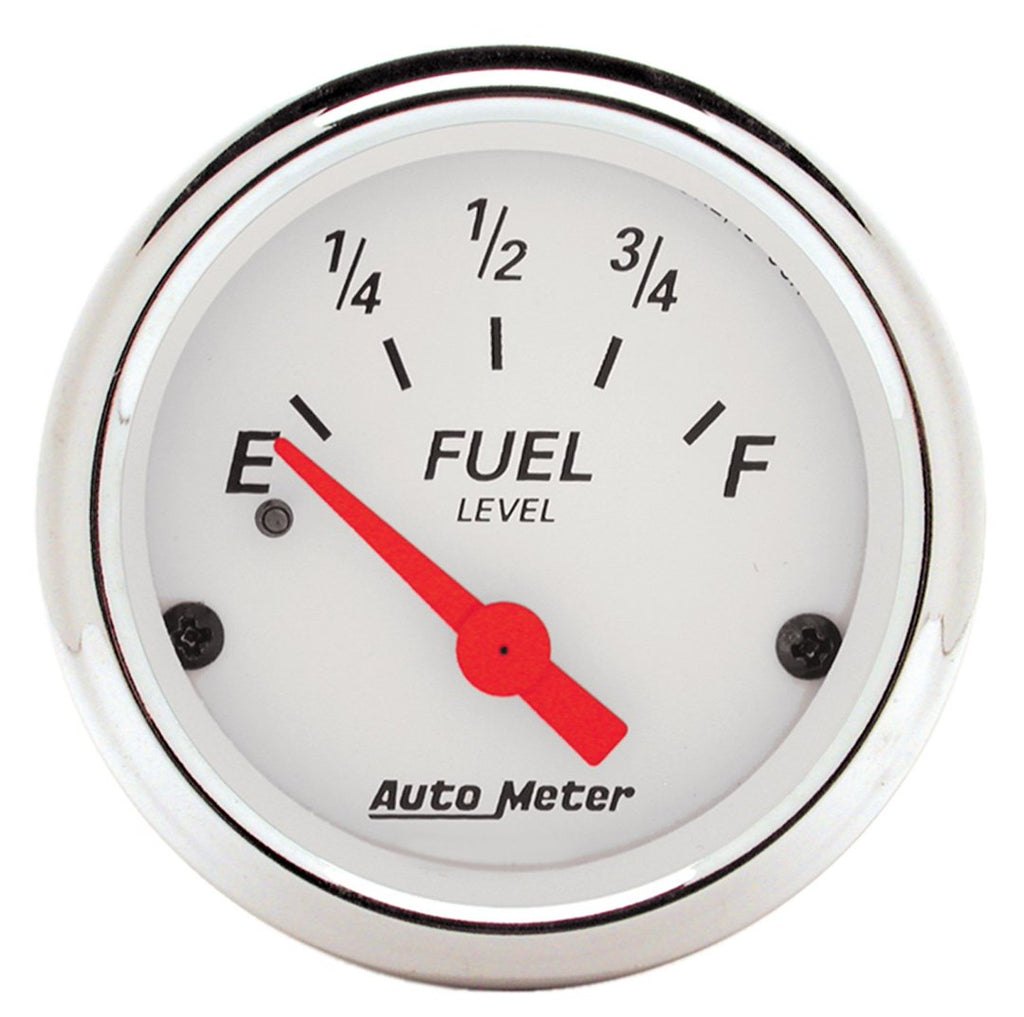

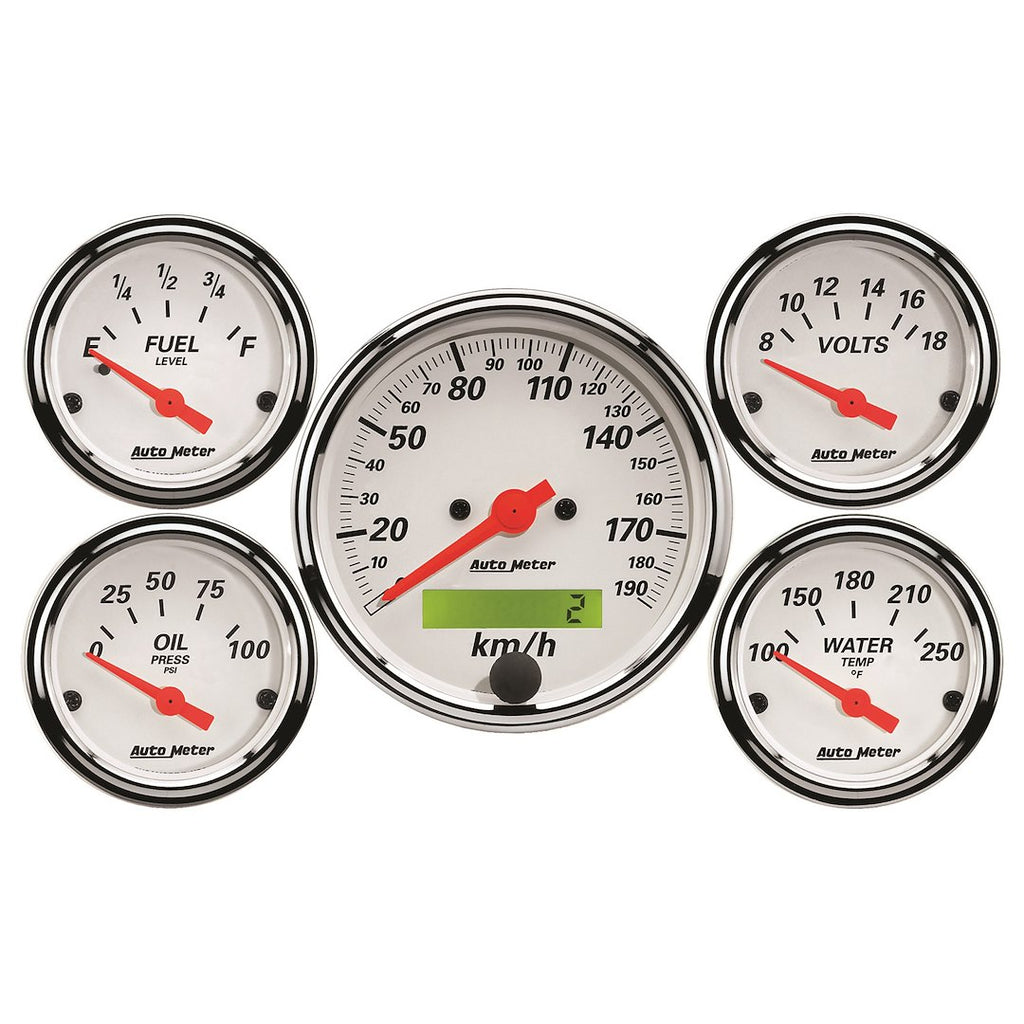

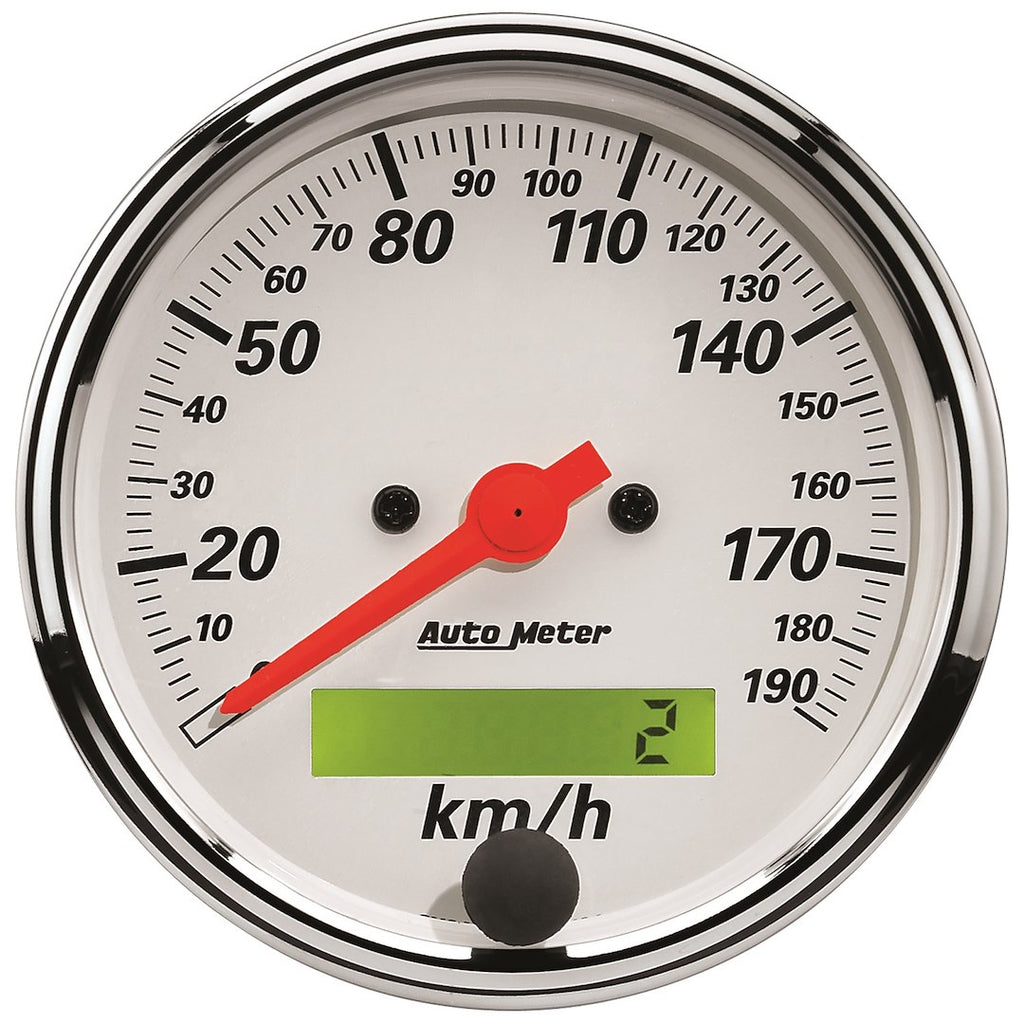

The AutoMeter Gauge Set provides essential monitoring for fuel level, oil pressure, speed, voltage, and water temperature. This set includes five analog gauges designed for precision and reliability, featuring a white face with a chrome bezel and an orange needle for clear visibility. The electric fuel level gauge operates within a range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The speedometer offers a full sweep from 0 to 190 KPH, and the voltmeter and water temperature gauge cover ranges of 8 to 18 volts and 100 to 250 degrees Fahrenheit, respectively.
Designed for seamless dashboard integration, these gauges utilize race-proven air-core electric instruments that ensure quick and accurate readings. The speedometer includes a simple push-button calibration feature, allowing for easy adjustments to accommodate changes in gear ratios or wheel and tire combinations. With compatibility for most two-wire sine wave and three-wire Hall effect vehicle speed sensors, this gauge set is versatile for various automotive applications.

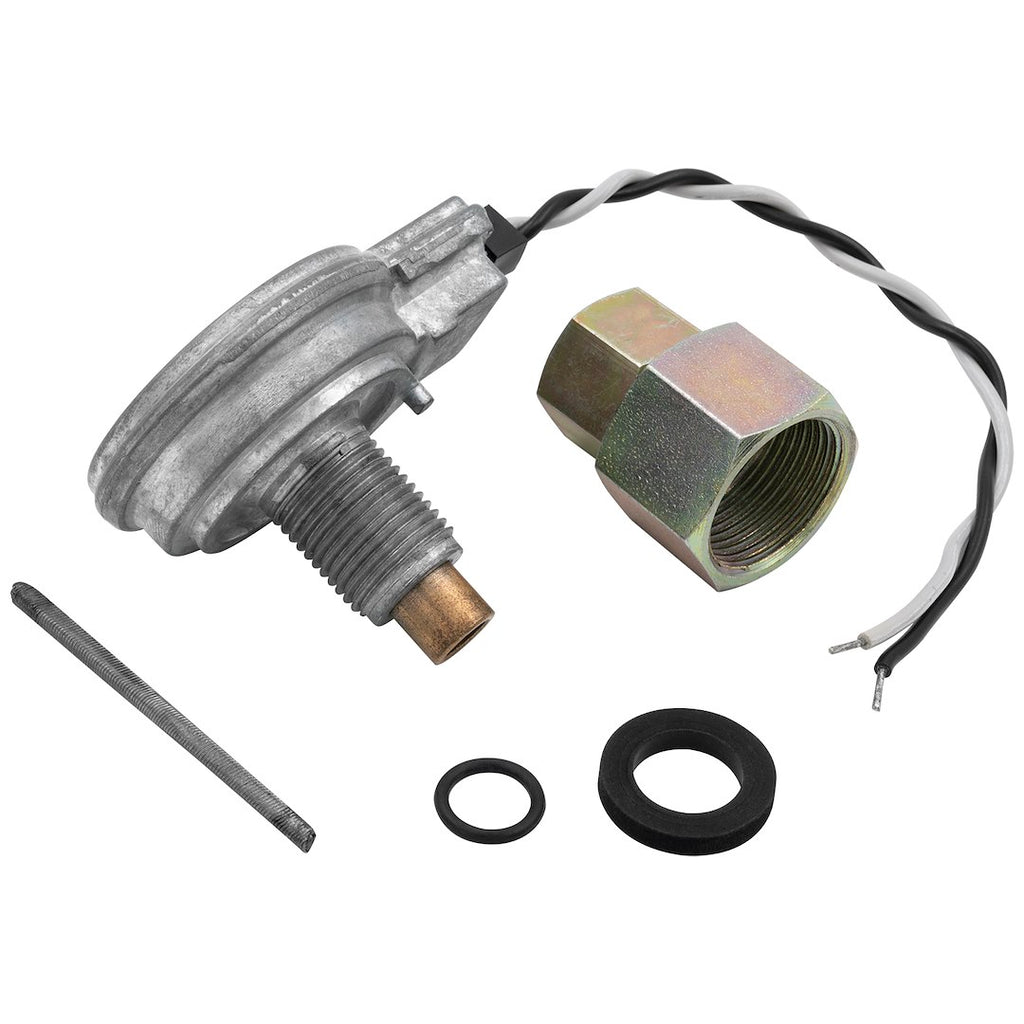

The traditional incandescent lighting illuminates the perimeter of each dial, enhancing visibility in low-light conditions. This gauge set is compatible with nearly every street car or race car electrical system, operating efficiently on both 12 and 16-volt systems. Each gauge comes with the necessary sending units, ensuring a straightforward installation process.
Features
- Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
- No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
- Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
- Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 1302-M
- Size (IN): 2-1/16 Inch/ 3-1/8 Inch
- Type: Electrical
- Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full

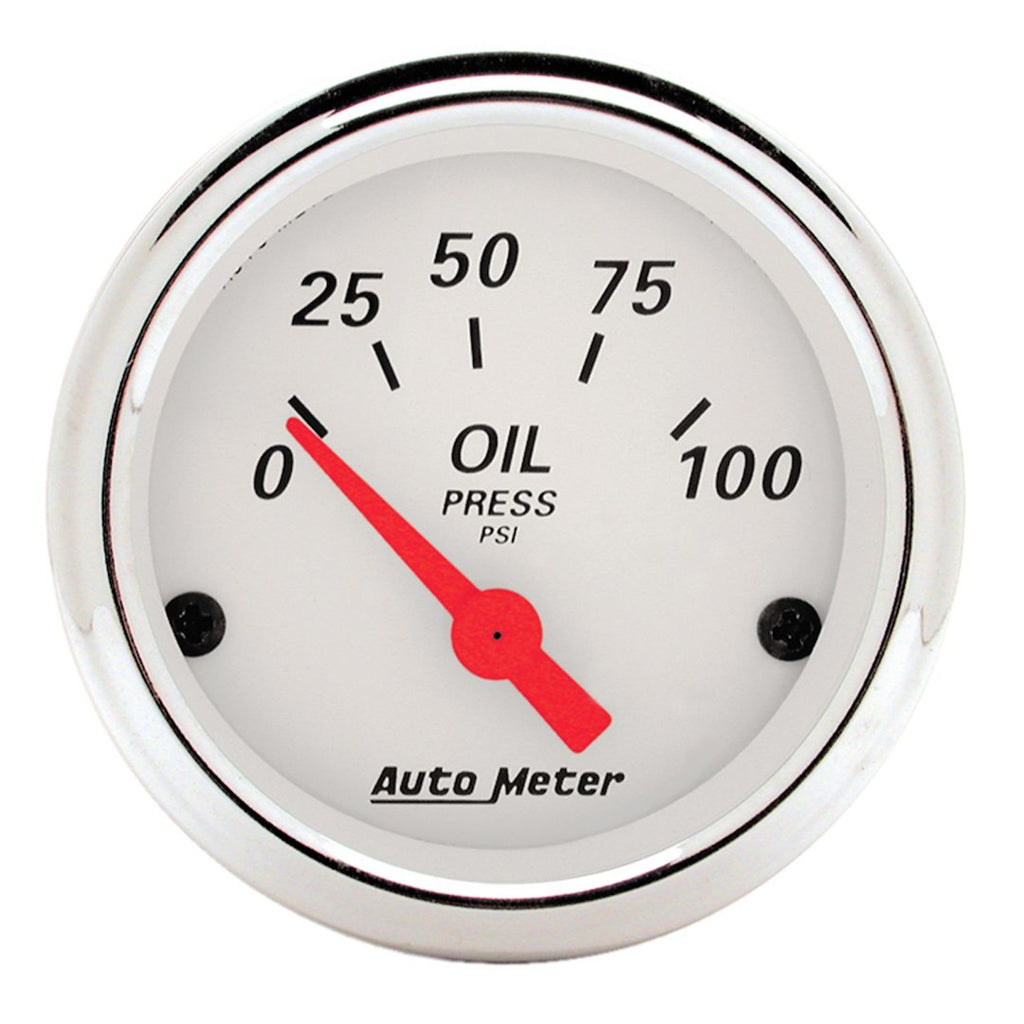

- Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
- Speedometer Range (MPH): 0 To 118 Miles Per Hour

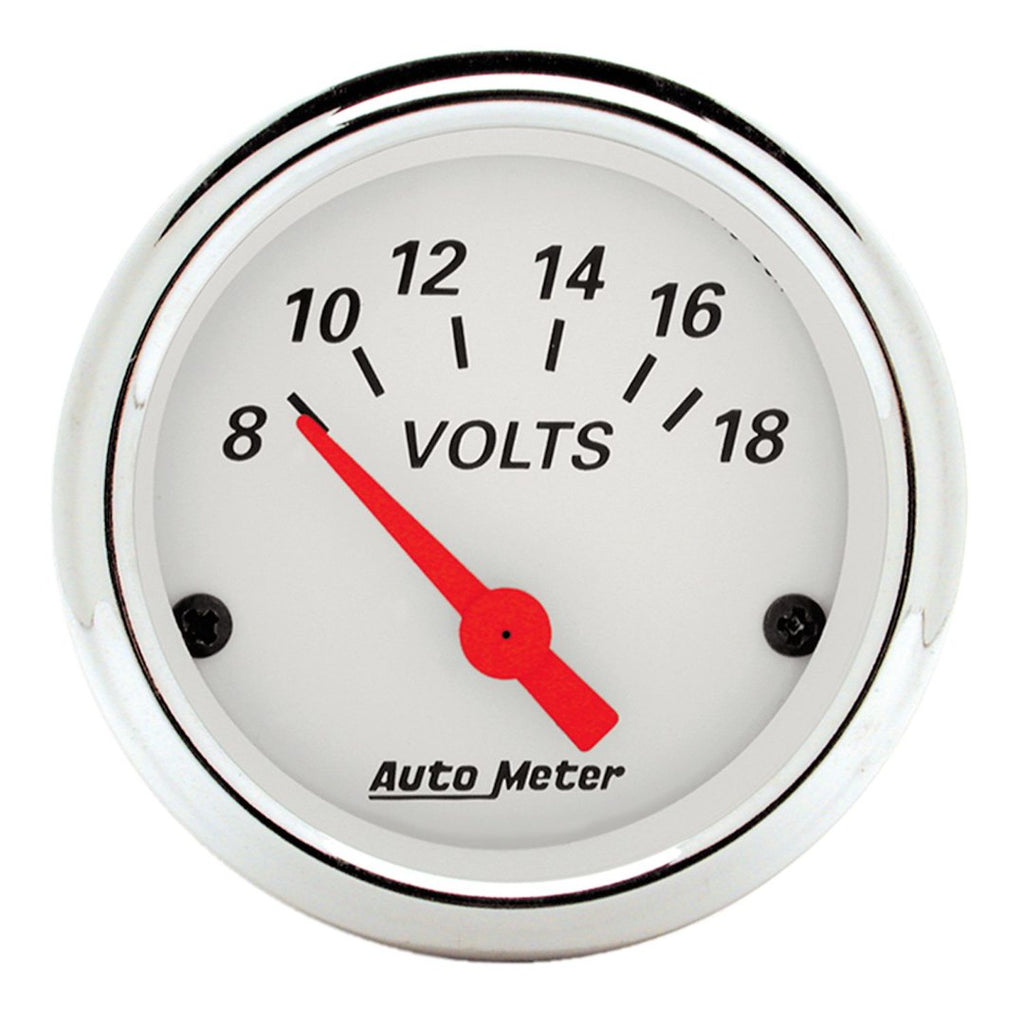

- Voltmeter Range (Volt): 8 To 18 Volt

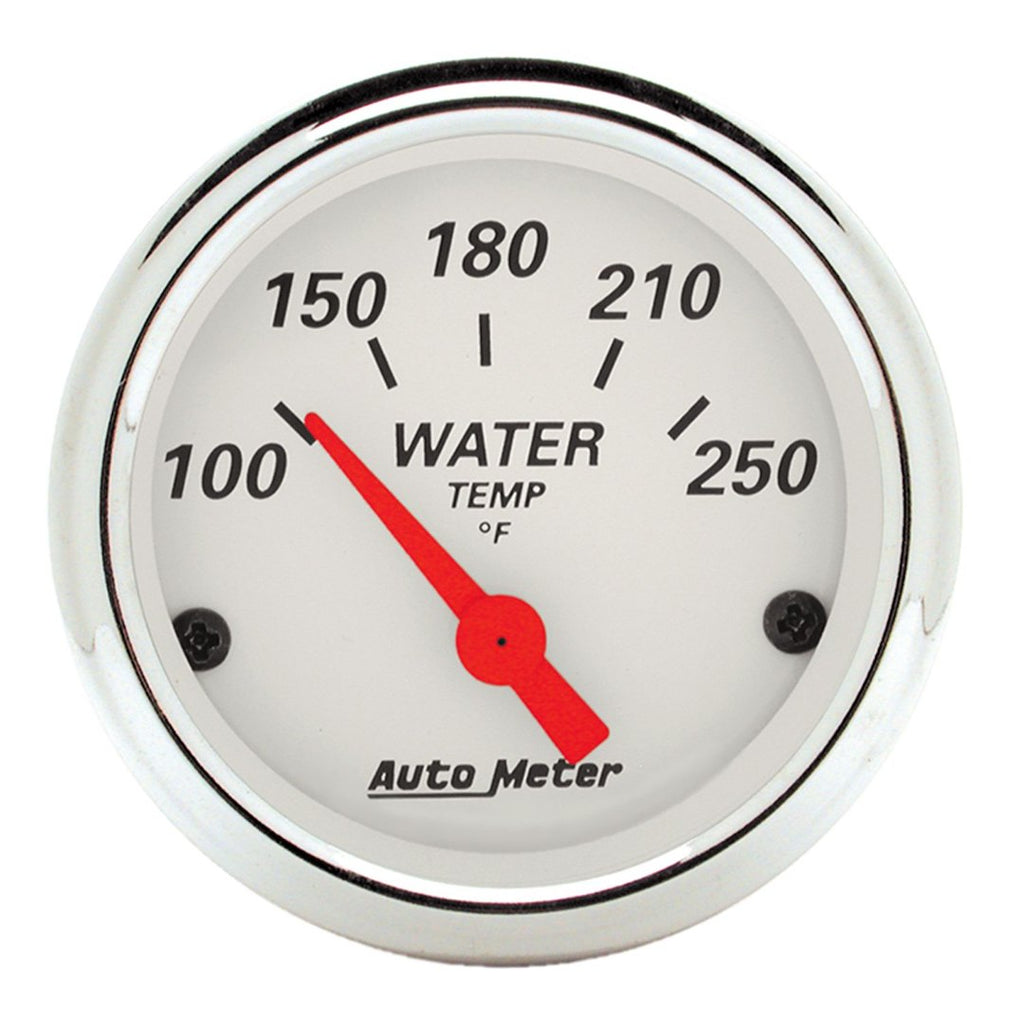

- Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
- Display: Analog
- Sweep: Short Sweep/ Full Sweep
- Face Color: White
- Needle Color: Orange
- Bezel Color: Silver
- Number Color: Black
- Mounting Type: Dash Mount
- Lighting: Incandescent
- Includes Warning Indicator: No
- Warning Indicator Type: Not Applicable
- Includes Peak Memory: No
- Liquid-Filled: No

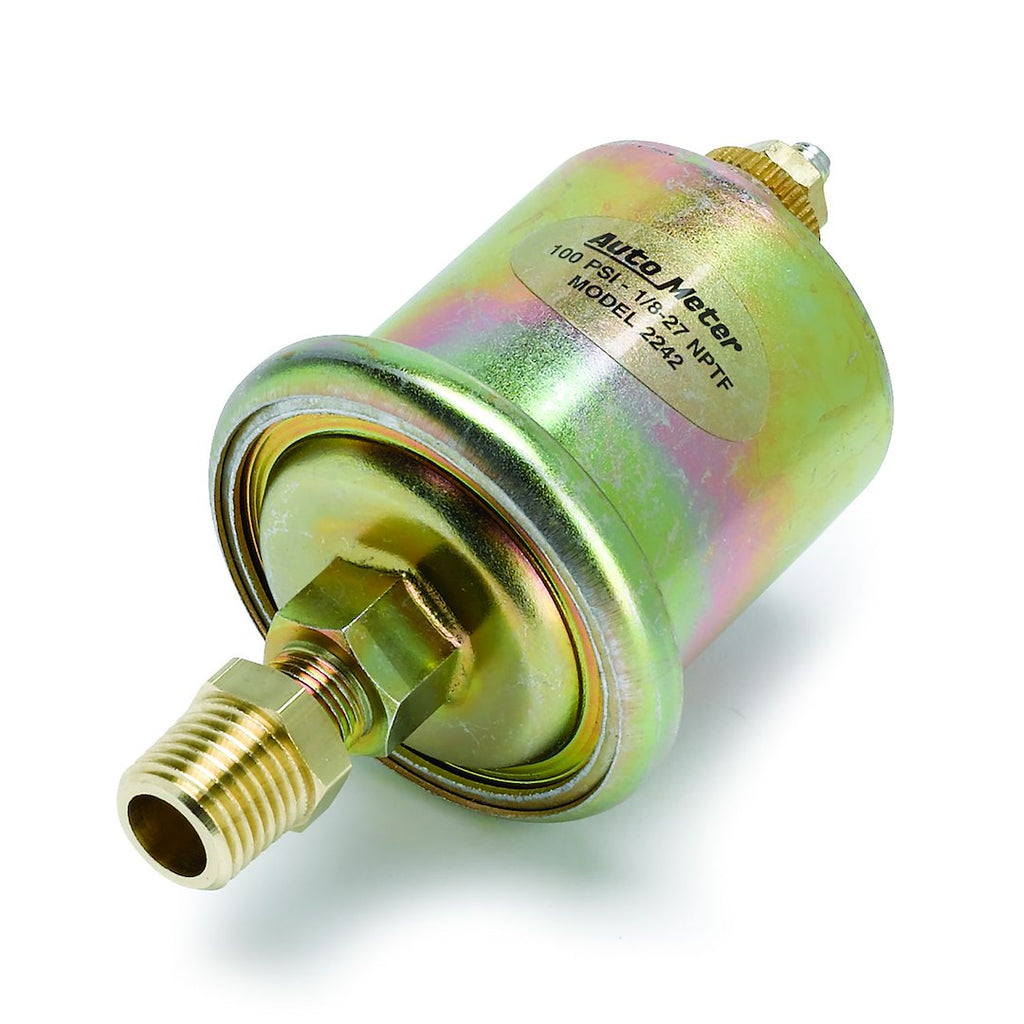

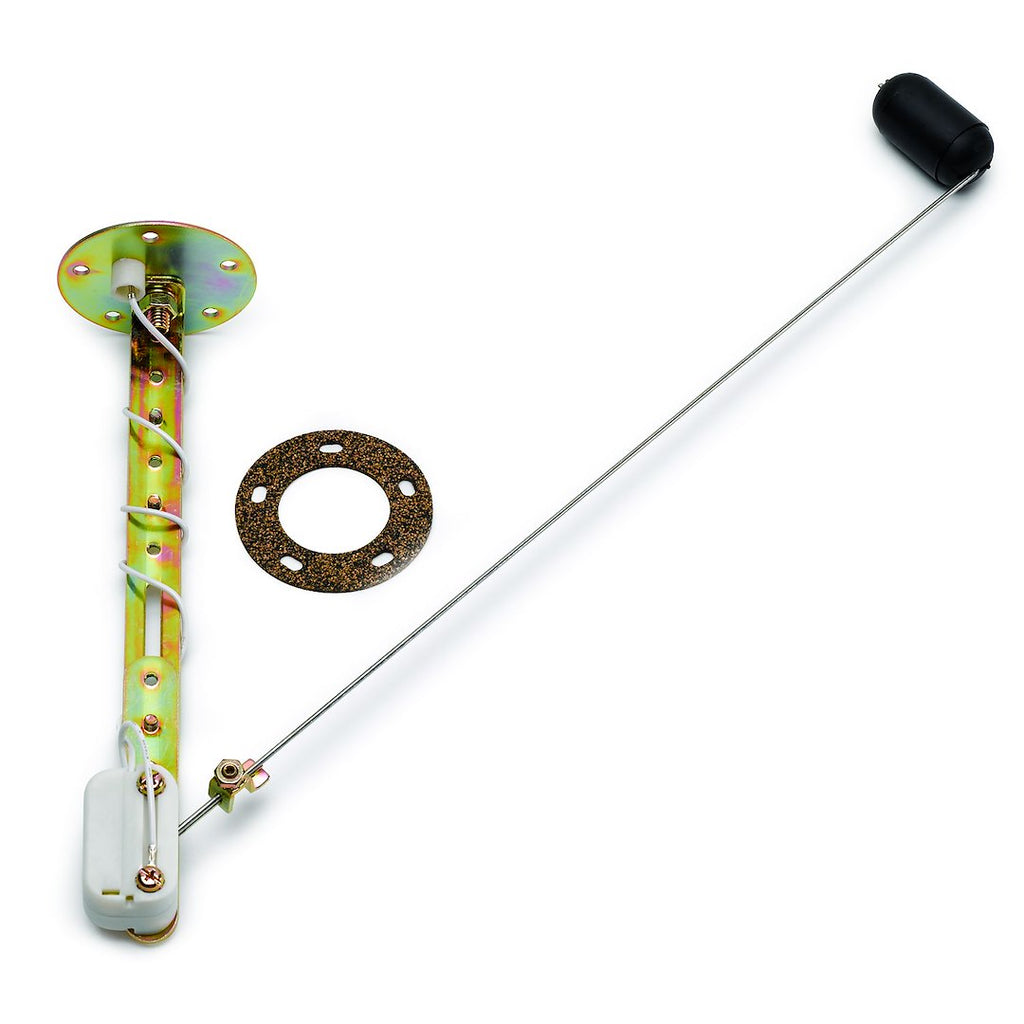

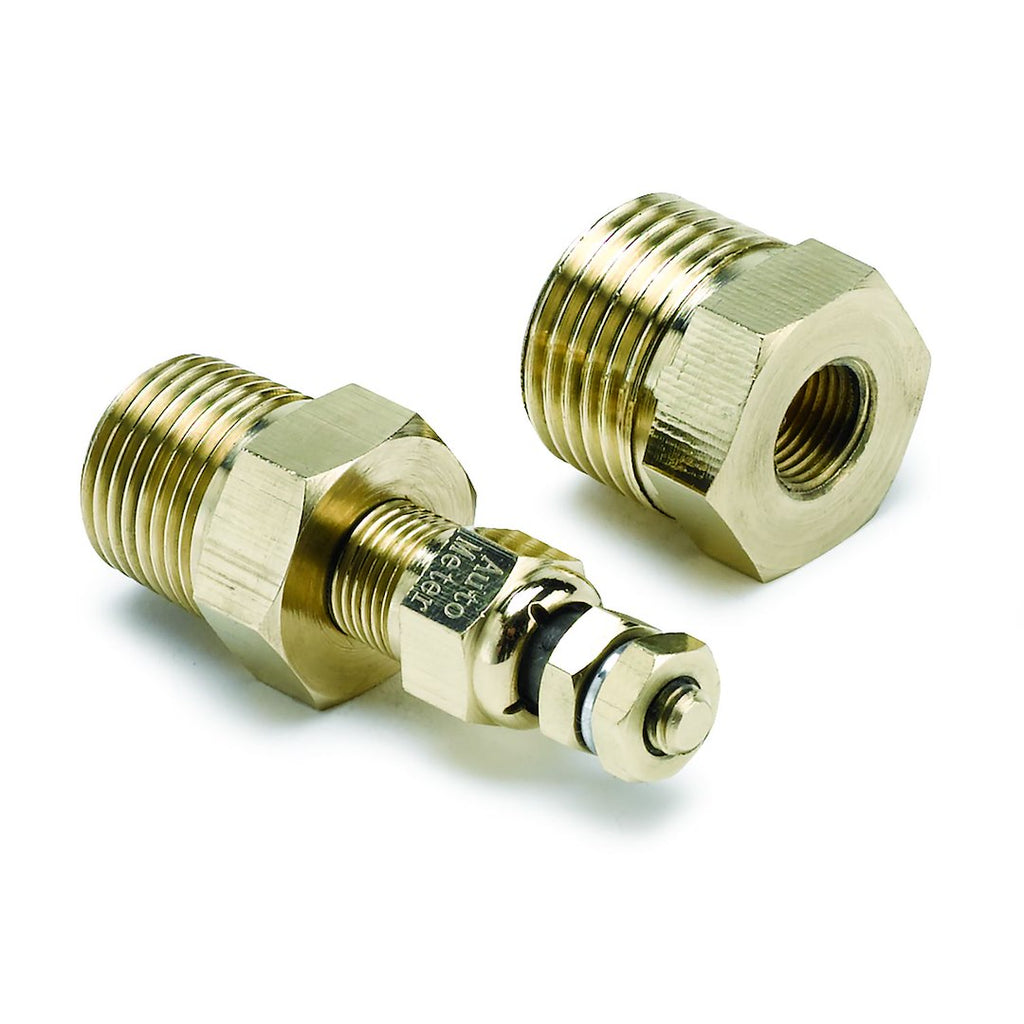

- Includes Sending Unit: Yes
- Includes Wiring Harness: No
- Includes Fittings: No
- Includes Mounting Bracket: Yes
