Accurate monitoring for turbo and supercharger applications

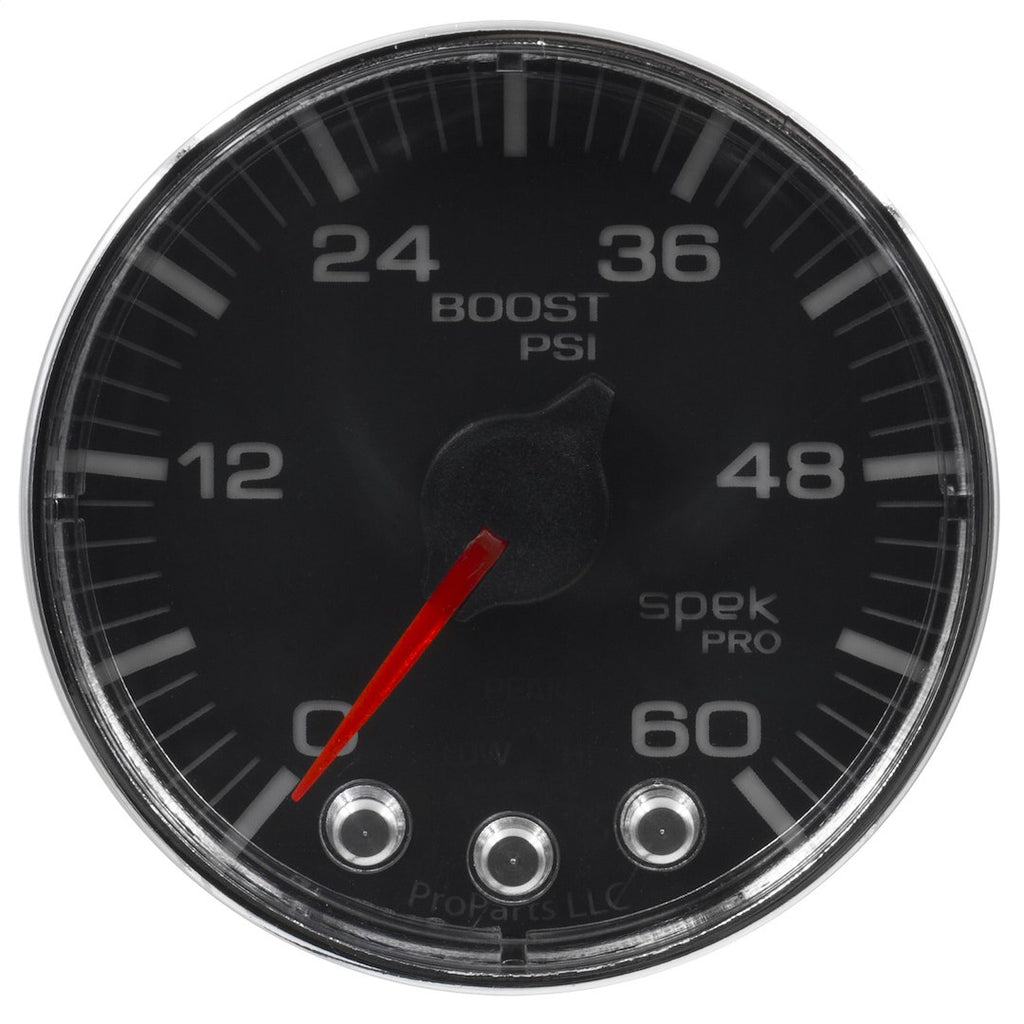

The AutoMeter Gauge Boost is designed for forced induction applications, providing precise monitoring of boost pressure generated by turbochargers or superchargers. This 2-1/16 inch full sweep electric gauge features a black face with a chrome bezel and a red needle, ensuring clear visibility and readability. The gauge includes a 1/8 inch NPT pressure transducer and wiring harness for straightforward installation, making it suitable for both diesel and extreme boost applications.
Equipped with advanced features, the gauge offers seven user-selectable background illuminations, allowing customization for day and night visibility. The adjustable brightness and independent dimming of the dial and pointer enhance usability in various lighting conditions. Additionally, configurable high and low warnings can be set using three buttons on the instrument face, providing critical alerts for optimal engine performance.
The AutoMeter Gauge Boost also includes a peak recall function, enabling users to review the highest gauge readings stored until cleared. With solid-state data acquisition grade sending units, this gauge ensures unmatched accuracy and durability in harsh environments. The patented wide angle dial design maximizes the viewable area, while the precision brushless stepper motor movement guarantees quiet and fluid pointer movement, enhancing the overall user experience.
Features

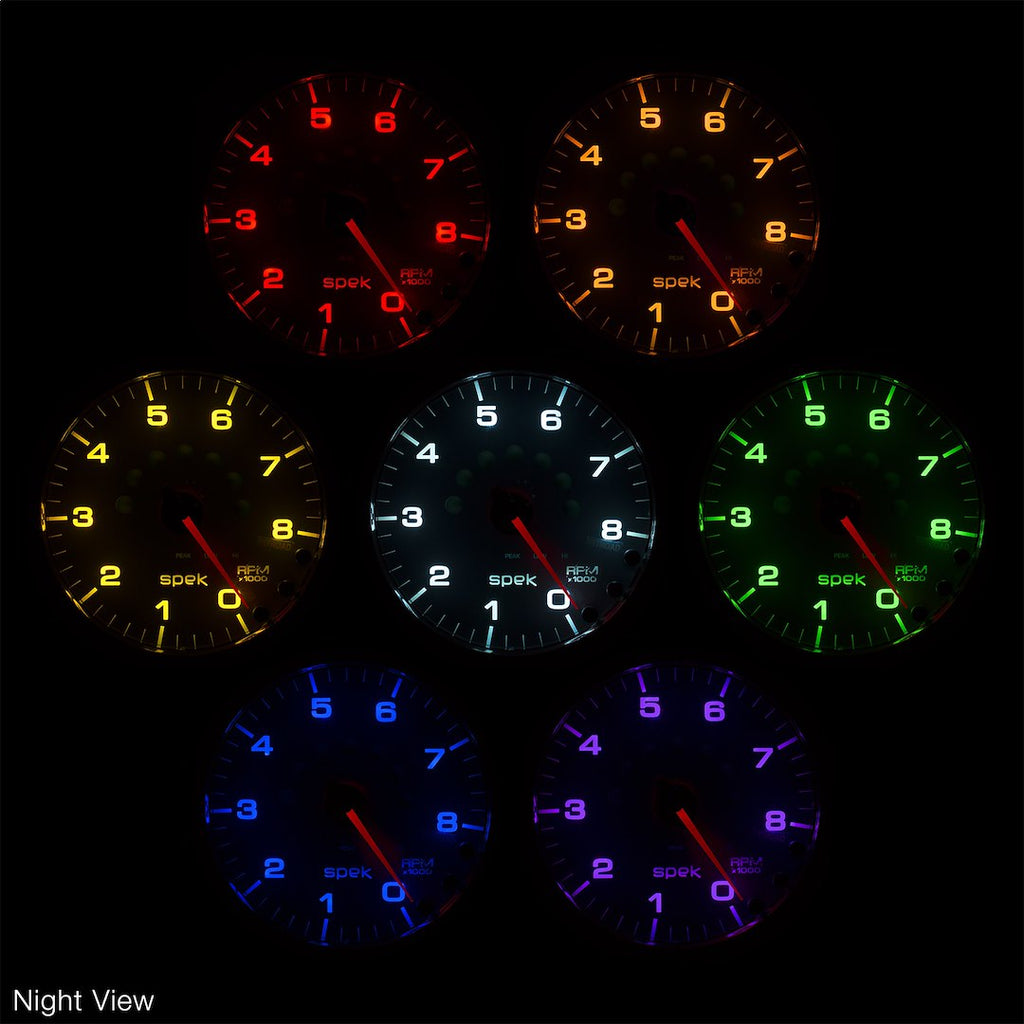

- 7 Color User-Selectable Background Illuminations (Red, Blue, Green, White, Yellow, Orange, And Violet) With Adjustable Brightness For Day And Night - With Independent Dimming Of Dial And Pointer

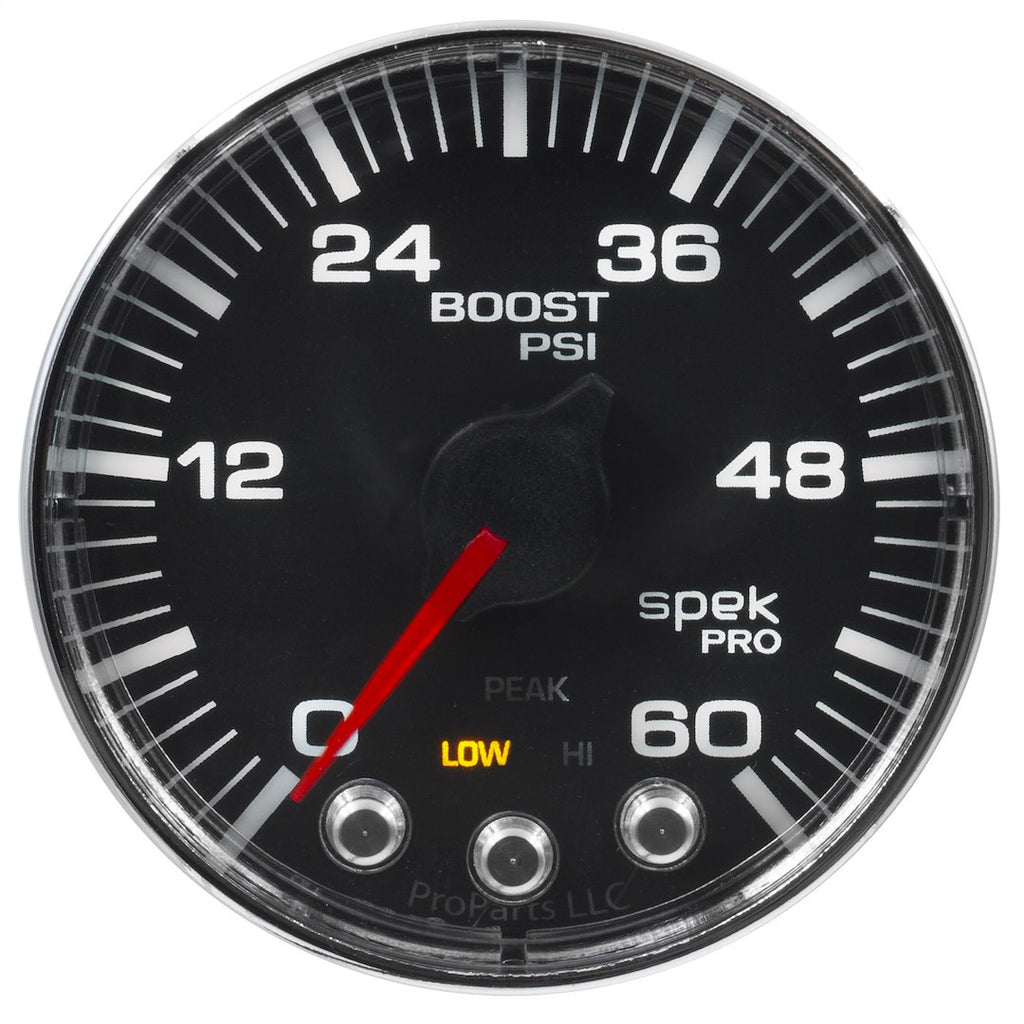

- Configurable "High" And "Low" Warnings Using Three On-Instrument-Face Buttons
- Pro-Control Output Enables A 1.5 Amp Load To Activate A Relay And Trigger Your Choice Of Warning Lights, External Buzzers, Fans, Pumps, Or Features Such As Water/Meth/Nitrous Injection
- Features A Peak Recall Function, Which Enables The User To Review High Gauge Readings. The Highest Reading Will Be Stored By The Gauge Until It Is Cleared
- Solid-State Data Acquisition Grade Sending Units Provide Unmatched Gauge Accuracy And Withstand The Harshest Environments
- Patented Wide Angle Dial Design Provides The Largest Viewable Dial Available In A 2-1/16 Inch Gauge
- Precision 280 Degree Brushless Stepper Motor Movement Provides A Quiet, Fluid, And Accurate Pointer Movement With Superior Dial Resolution
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: P304318
- Size (IN): 2-1/16 Inch
- Type: Electrical
- Range: 0 To 60 Pounds Per Square Inch
- Display: Analog
- Sweep: Full Sweep
- Face Color: Black
- Needle Color: Red
- Bezel Color: Silver
- Number Color: White
- Mounting Type: Dash Mount
- Lighting: LED Illuminated
- Liquid-Filled: No
- Includes Sending Unit: Yes
- Includes Wiring Harness: Yes
- Includes Fittings: No
