Accurate monitoring for turbo and supercharger applications

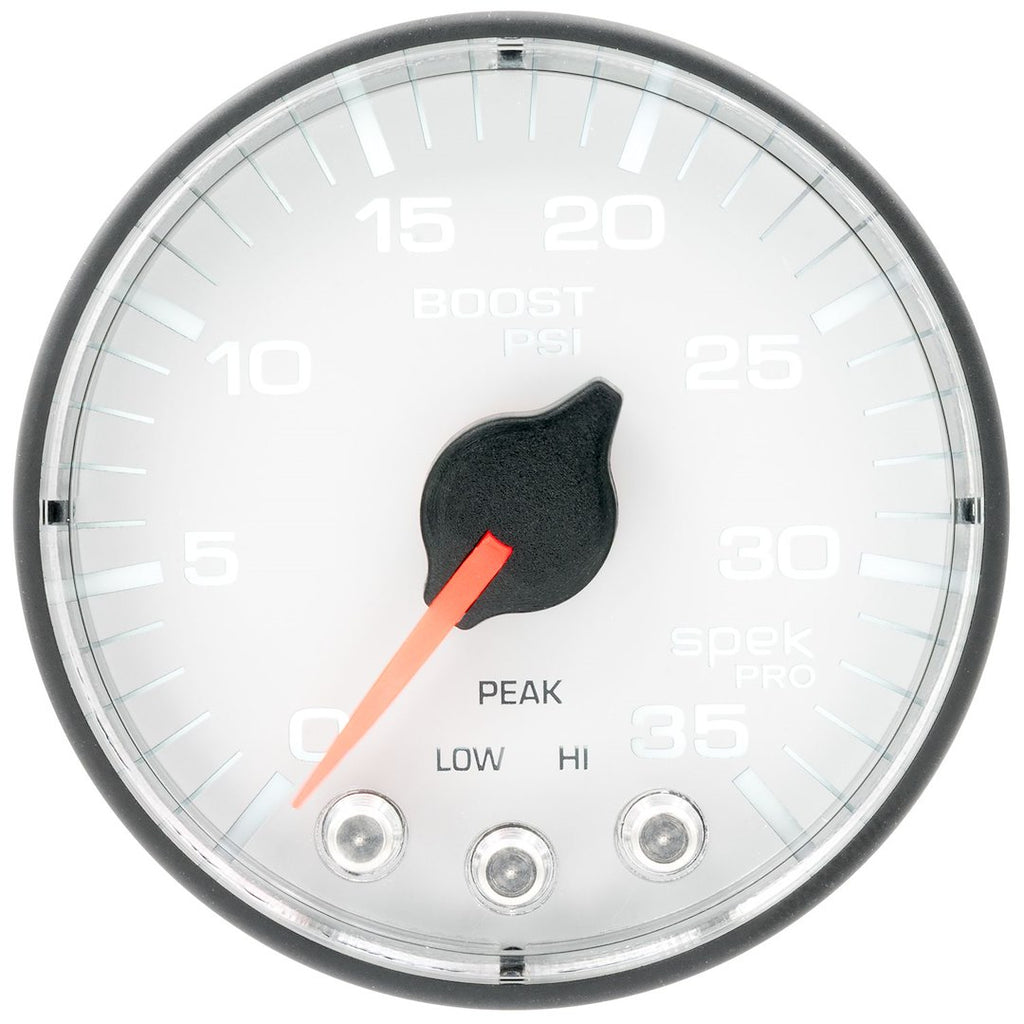

The AutoMeter Gauge Boost is designed for forced induction applications, providing precise monitoring of boost pressure generated by turbochargers or superchargers. This 2-1/16 inch full sweep electric gauge features a white face with a black bezel and a red needle, ensuring clear visibility under various lighting conditions. The LED illumination enhances readability, making it suitable for both day and night use.
Equipped with advanced features, this gauge includes seven color user-selectable background illuminations with adjustable brightness, allowing customization to suit user preferences. The configurable high and low warnings can be set using three on-instrument-face buttons, providing real-time alerts for critical pressure levels. Additionally, the pro-control output enables activation of external devices such as warning lights or pumps, enhancing the functionality of the gauge.
The peak recall function allows users to review the highest gauge readings, ensuring that important data is easily accessible. With solid-state data acquisition grade sending units, the gauge delivers unmatched accuracy and durability, capable of withstanding harsh environments. The precision 280-degree brushless stepper motor movement ensures quiet and fluid pointer movement, providing superior dial resolution for accurate readings.
Features

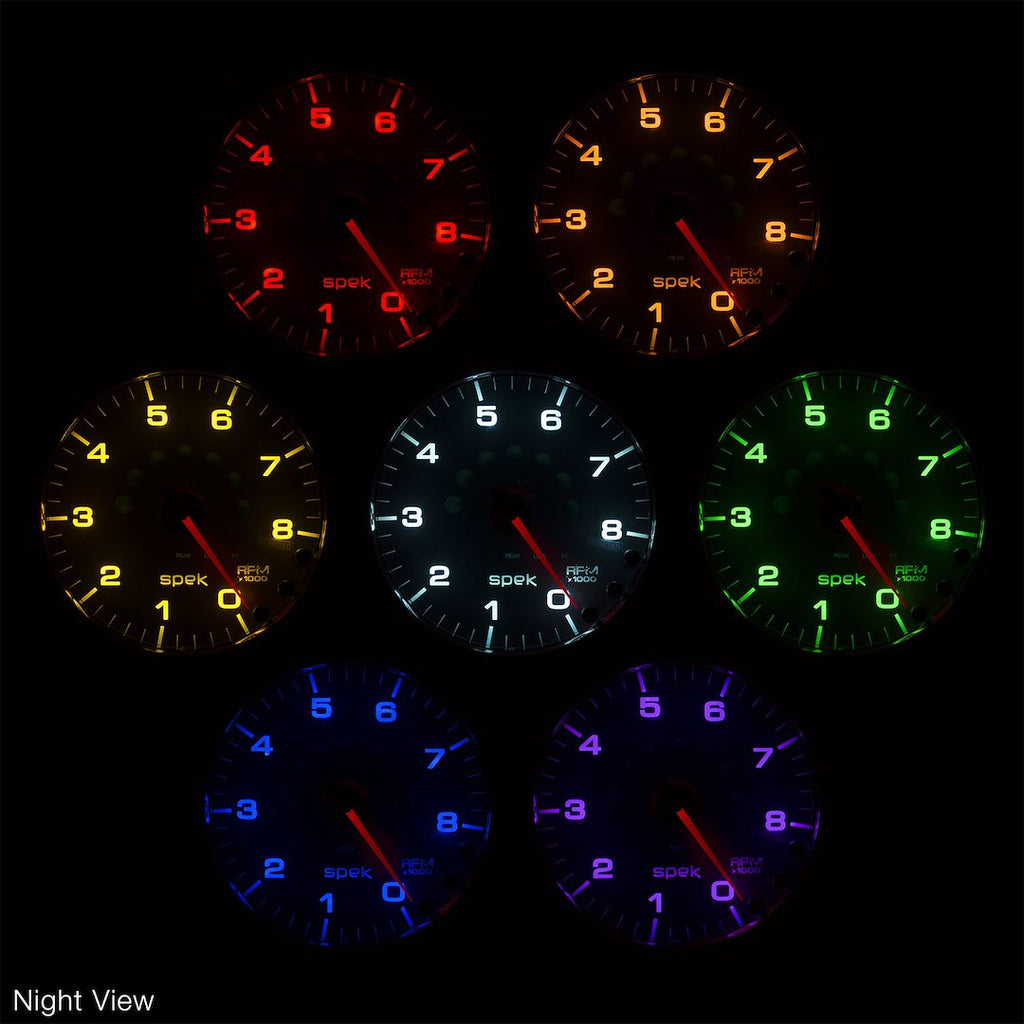

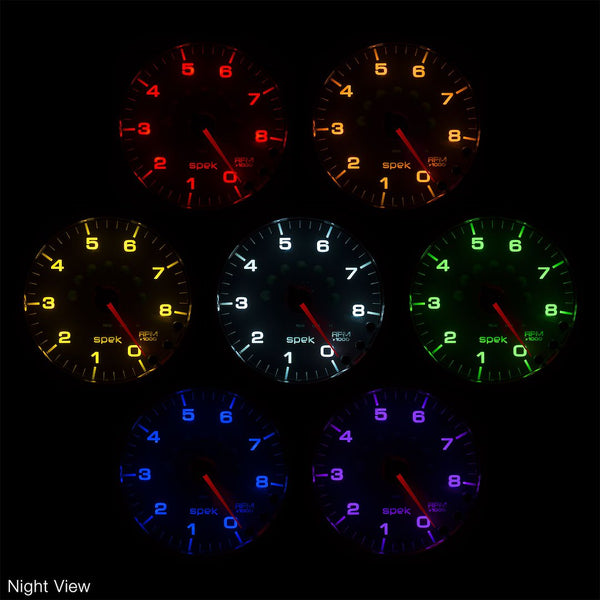

- 7 Color User-Selectable Background Illuminations With Adjustable Brightness For Day And Night - With Independent Dimming Of Dial And Pointer
- Configurable High And Low Warnings Using Three On-Instrument-Face Buttons
- Pro-Control Output Enables A 1.5 Ampere Load To Activate A Relay And Trigger The Choice Of Warning Lights, External Buzzers, Fans, Pumps, Or Features Such As Water Or Meth Or Nitrous Injection
- Features A Peak Recall Function, Which Enables The User To Review High Gauge Readings, The Highest Reading Will Be Stored By The Gauge Until It Is Cleared
- Solid-State Data Acquisition Grade Sending Units Provide Unmatched Gauge Accuracy And Withstand The Harshest Environments
- Precision 280 Degree Brushless Stepper Motor Movement Provides A Quiet, Fluid, And Accurate Pointer Movement With Superior Dial Resolution
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: P303128
- Size (IN): 2-1/16 Inch
- Type: Electrical
- Range: 0 To 100 Pounds Per Square Inch
- Display: Analog
- Sweep: Full Sweep
- Face Color: White
- Needle Color: Red
- Bezel Color: Black
- Number Color: White
- Mounting Type: Dash Mount
- Lighting: LED Illuminated
- Liquid-Filled: No
- Includes Sending Unit: Yes
- Includes Wiring Harness: Yes
- Includes Fittings: No
Technical Documents
