AutoMeter Fuel Pressure Gauge (MPN: 8564)

Precision measurement for optimal vehicle performance and safety.

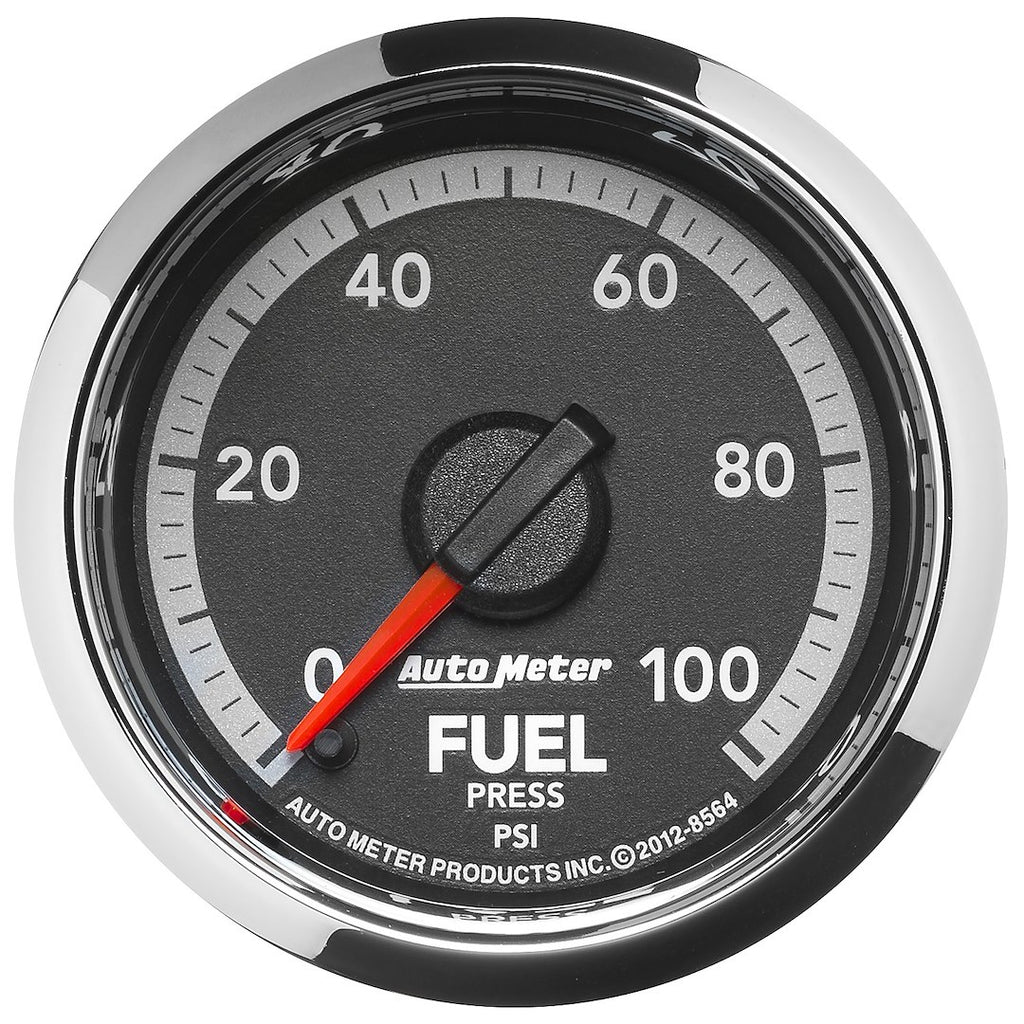

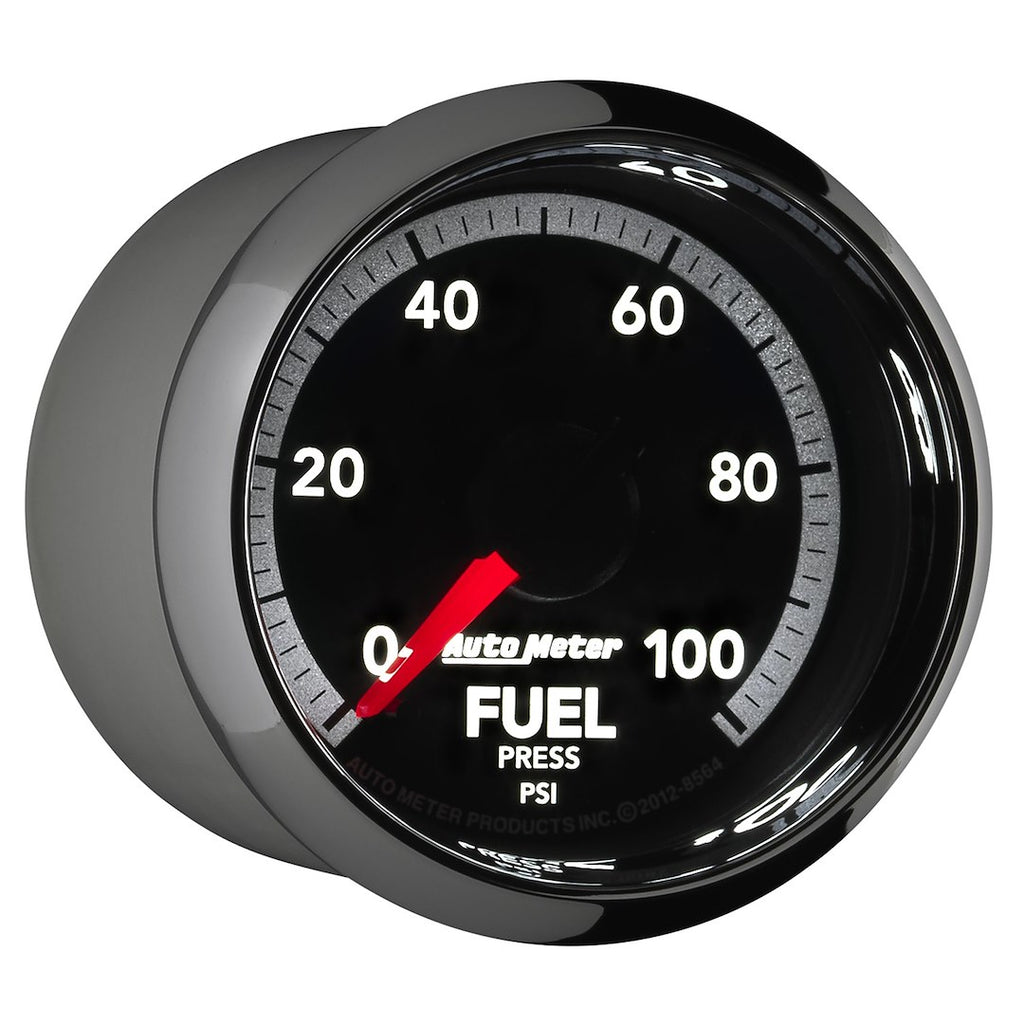

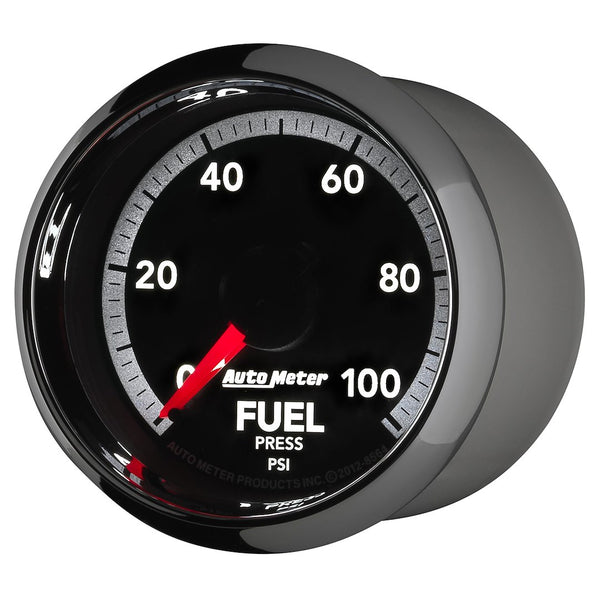

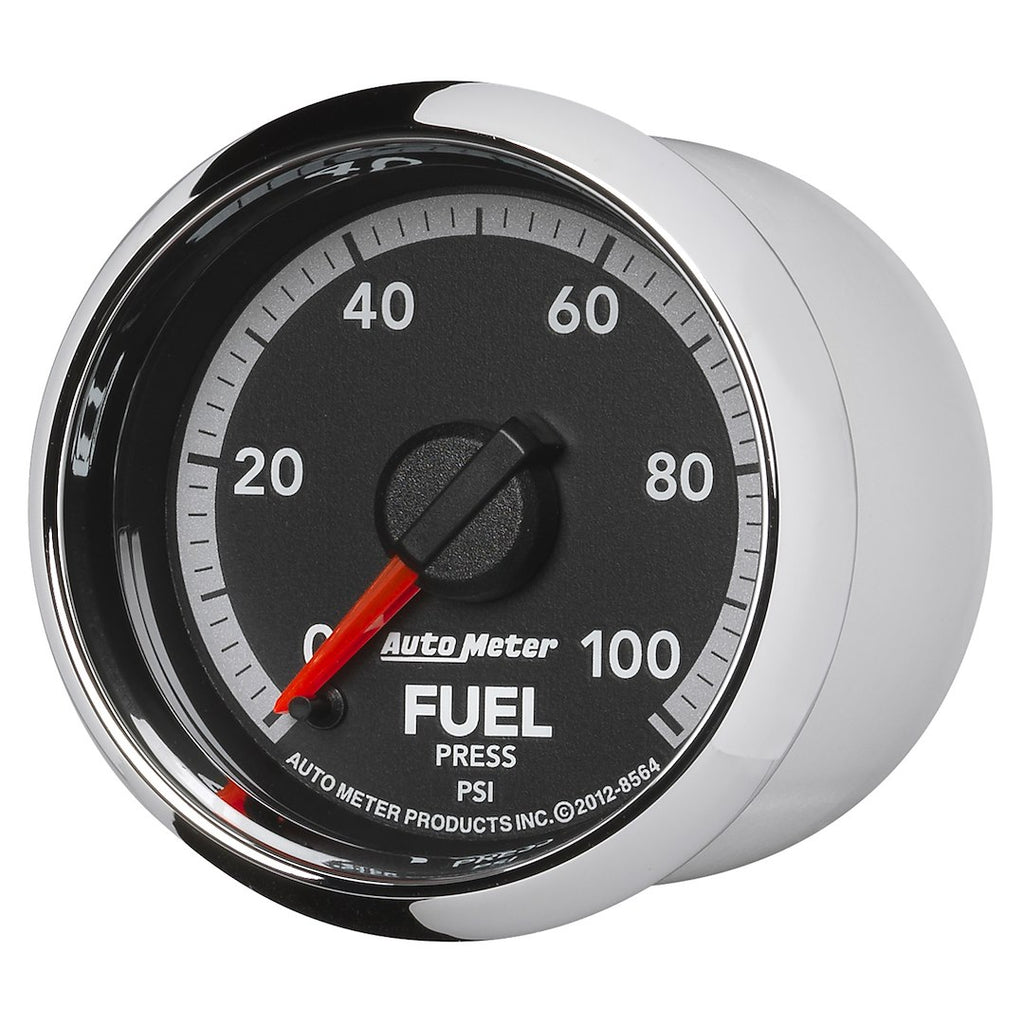

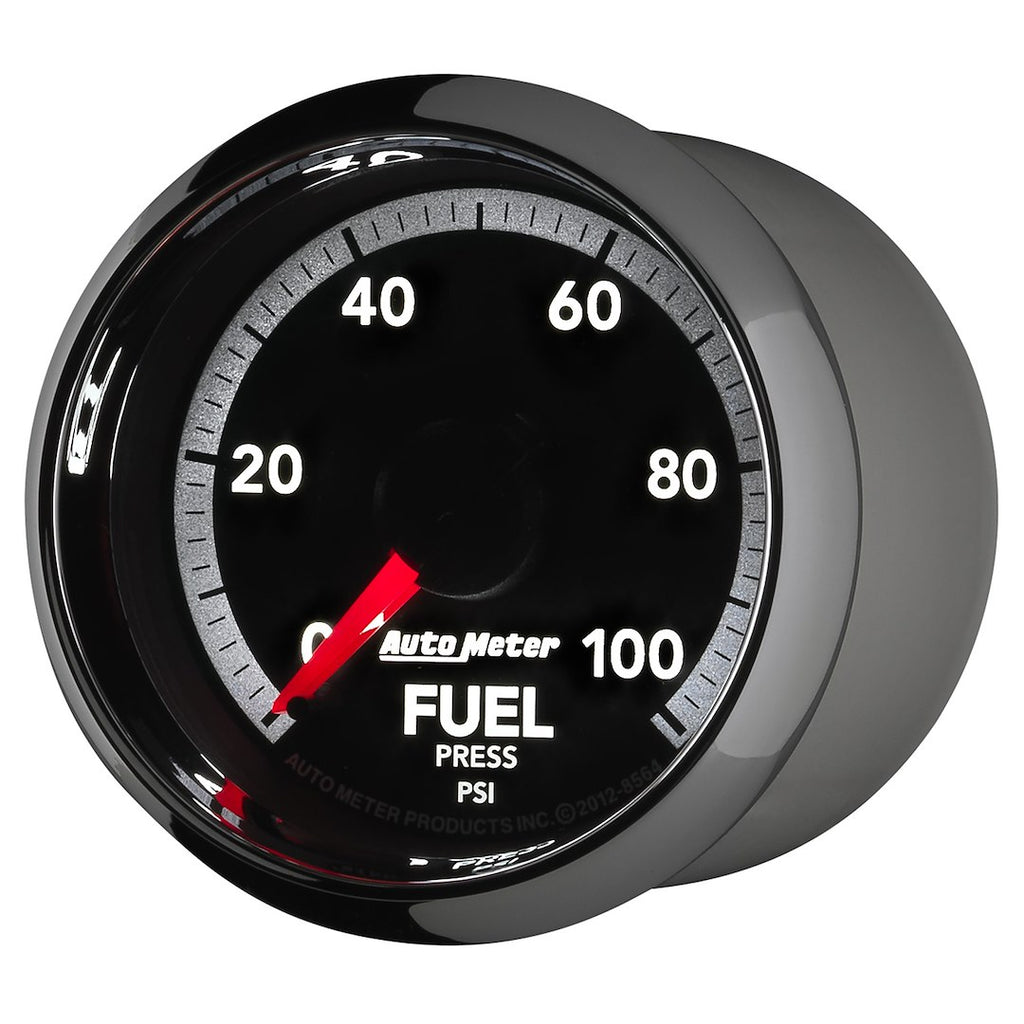

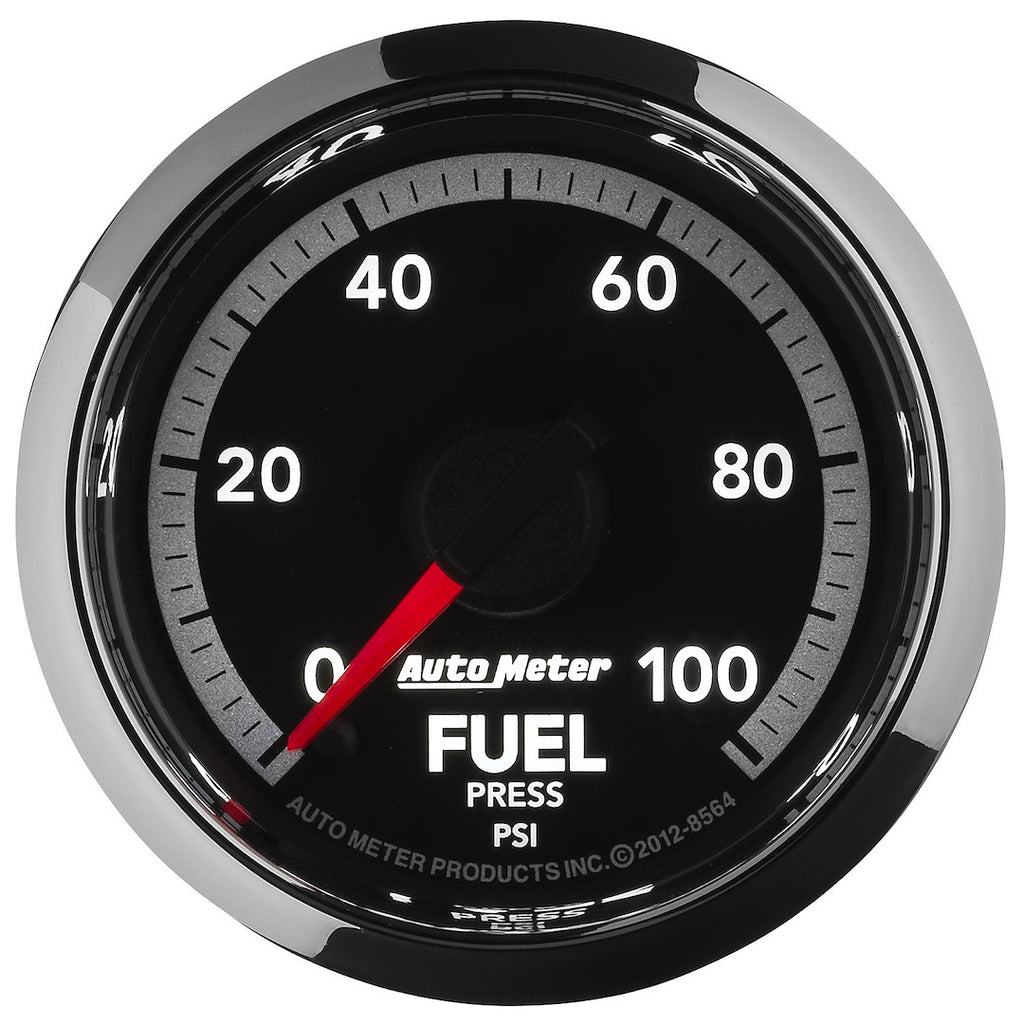

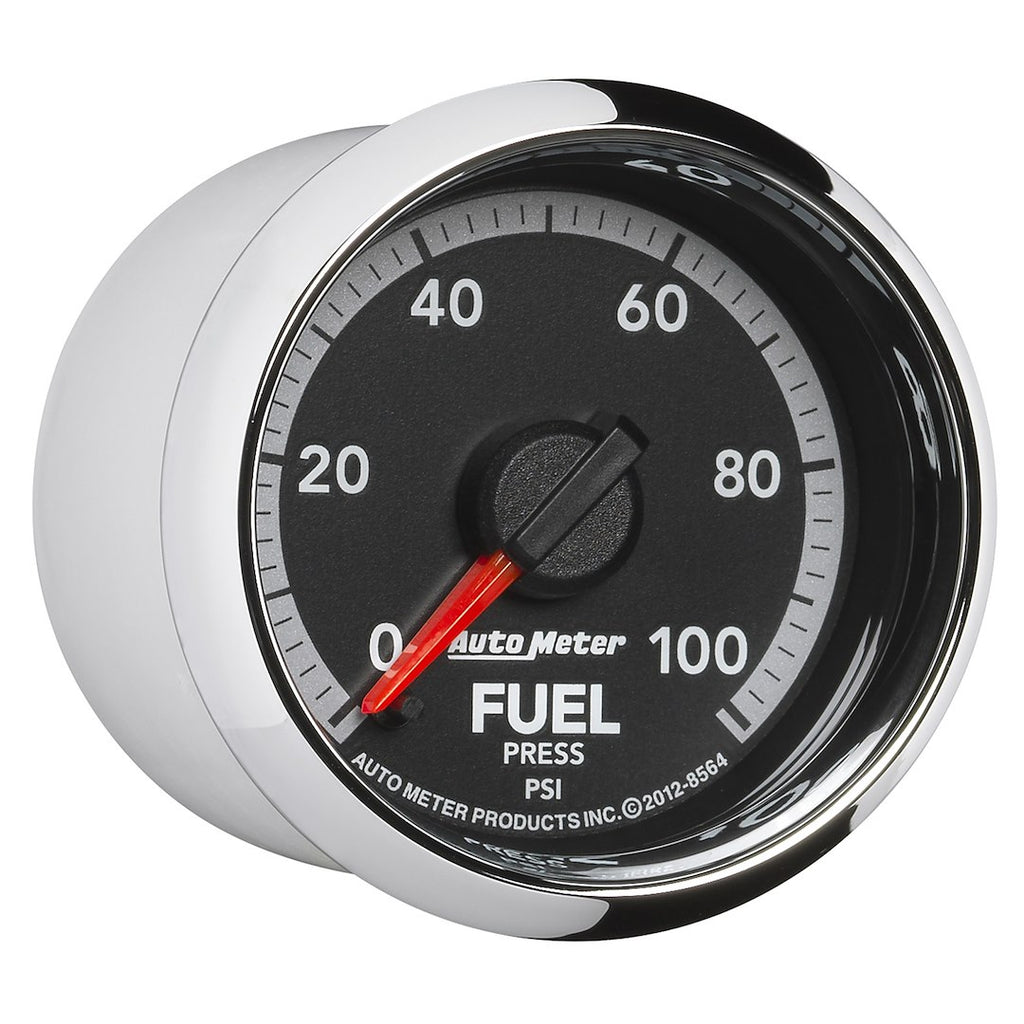

The AutoMeter Fuel Pressure Gauge is designed to provide accurate readings of fuel pressure, essential for maintaining optimal performance in both fuel injected and carbureted applications. With a 2-1/16 inch size and a full sweep electric design, this gauge measures pressure from 0 to 100 PSI, ensuring that users can monitor their fuel system effectively. The gauge features a black and white face with an orange needle, enhancing visibility and readability under various lighting conditions.

Equipped with a data acquisition grade solid-state pressure transducer, the AutoMeter gauge offers unmatched accuracy and durability, even in harsh environments. Its race proven digital stepper motor technology keeps hazardous fluids outside the vehicle while delivering precise measurements. The factory matched LED through-the-dial lighting ensures clear visibility during nighttime use, making it compatible with nearly every street car or race car electrical system.

Installation is straightforward, and for specific applications such as the 98-02 Dodge Cummins Diesel, a snubber restrictor fitting is required. This gauge includes a 1/8 inch NPT sender, wiring harness, and necessary fittings, making it a comprehensive solution for monitoring fuel pressure. By investing in this gauge, vehicle owners can safeguard their performance and prevent costly failures.

Features

• Data Acquisition Grade Solid-State Pressure Transducer, Providing Unmatched Accuracy And Durability Even In The Harshest Environments
• Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy While Keeping Hazardous Fluids Outside Of The Vehicle
• Compatible With Nearly Every Street Car Or Race Car Electrical System
• Factory Matched LED Through-The-Dial Lighting Provides Clear Visibility During Nighttime Use And Matches OEM Instrumentation

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: 8564
• Size (IN): 2-1/16 Inch
• Type: Electric
• Pressure Range: 0 To 100 Pounds Per Square Inch
• Display: Analog
• Sweep: Full Sweep
• Face Color: Black And White
• Needle Color: Orange
• Bezel Color: Silver
• Number Color: White
• Lighting: Incandescent Through The Dial Lighting
• Includes Warning Indicator: No
• Warning Indicator Type: No
• Includes Peak Memory: No
• Liquid-Filled: No
• Includes Sending Unit: Yes
• Includes Wiring Harness: Yes
• Includes Isolator: No
• Includes Fittings: Yes

Compatibility / Fit

• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2011-2018 Ram 2500
• 2011-2018 Ram 3500
• 2011-2024 Ram 4500
• 2011-2018 Ram 5500

Technical Documents

• 2650-1331.pdf
