Seamlessly connect AutoMeter gauges with any sending unit.

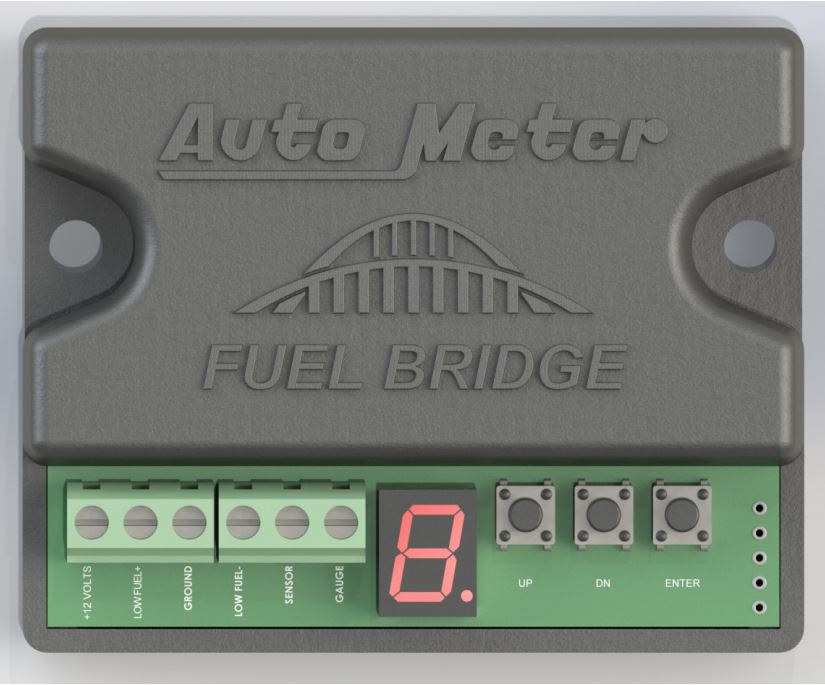

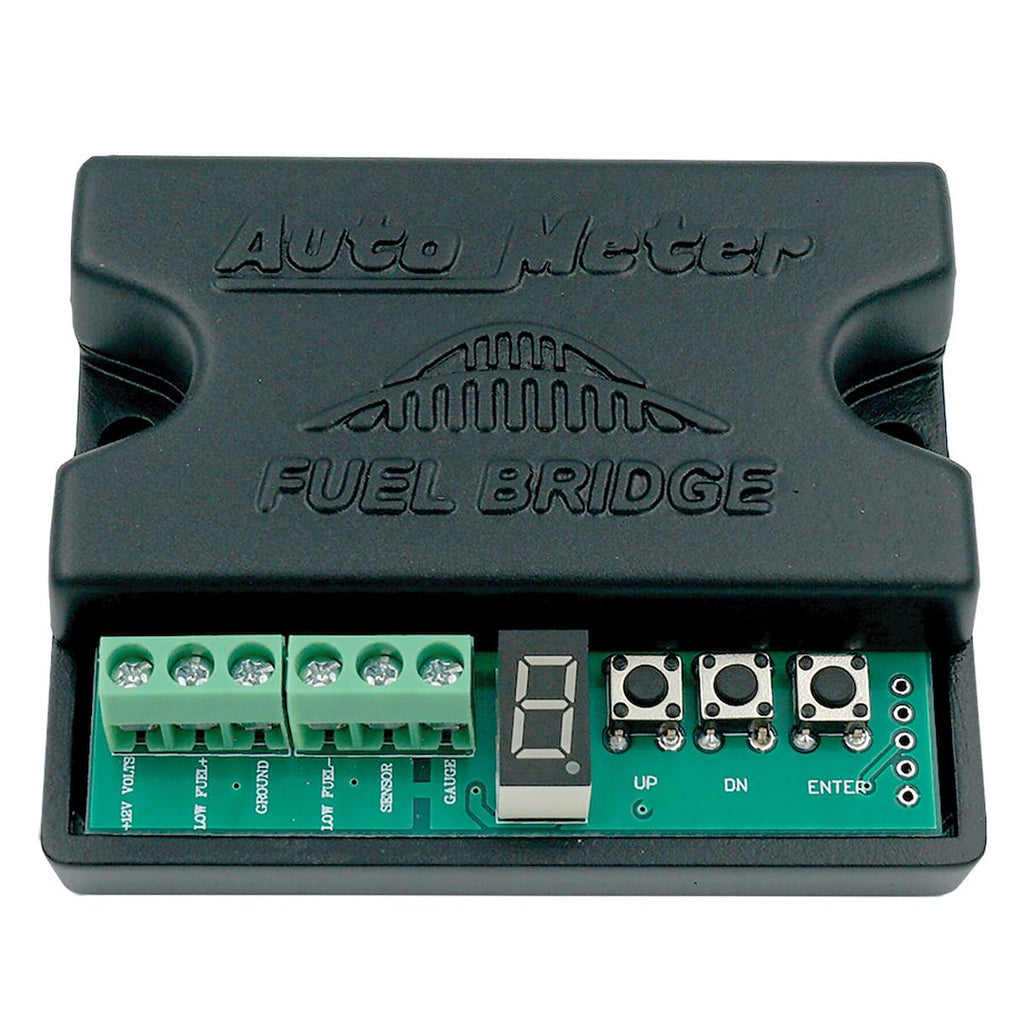

The AutoMeter Fuel Bridge Adapter is designed to facilitate the connection between AutoMeter fuel level gauges and various stock or aftermarket fuel sending units. This compact unit measures 3 1/8 inches wide, 2-1/2 inches tall, and 3/4 inches thick, making it easy to integrate into existing setups. It features a user-friendly interface with three push buttons and an LED display for straightforward configuration.
One of the key functionalities of the Fuel Bridge is its low fuel level warning system, which activates at 10 percent and deactivates at 15 percent. This feature can trigger an LED or relay, providing a practical alert for low fuel conditions. Additionally, the adapter supports eight pre-programmed resistance ranges, accommodating popular fuel level sending units, including configurations such as 240/33 and 0/90.
With its versatile compatibility and advanced features, the AutoMeter Fuel Bridge Adapter enhances the functionality of fuel level monitoring systems, ensuring accurate readings and reliable performance.
Features
- Allows You To Use Any AutoMeter Fuel Level Gauge With Any Stock Or Aftermarket Fuel Sending Unit
- Three Push Buttons With LED Display For Easy Set Up
- Low Fuel Level Warning At 10 Percent And Off At 15 Percent With Ability To Trigger LED Or Relay
- 8 Pre-Programmed Resistance Ranges For Popular Fuel Level Sending Units
- Pre-Programmed For The Following: 240/33, 0/90, 0/30, 16/158, 73/10 (Linear And Non-Linear), 10/180, 40/250
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 9109
- Compatibility: Autometer Fuel Level Gauge
