Comprehensive gauge set for monitoring key vehicle metrics.

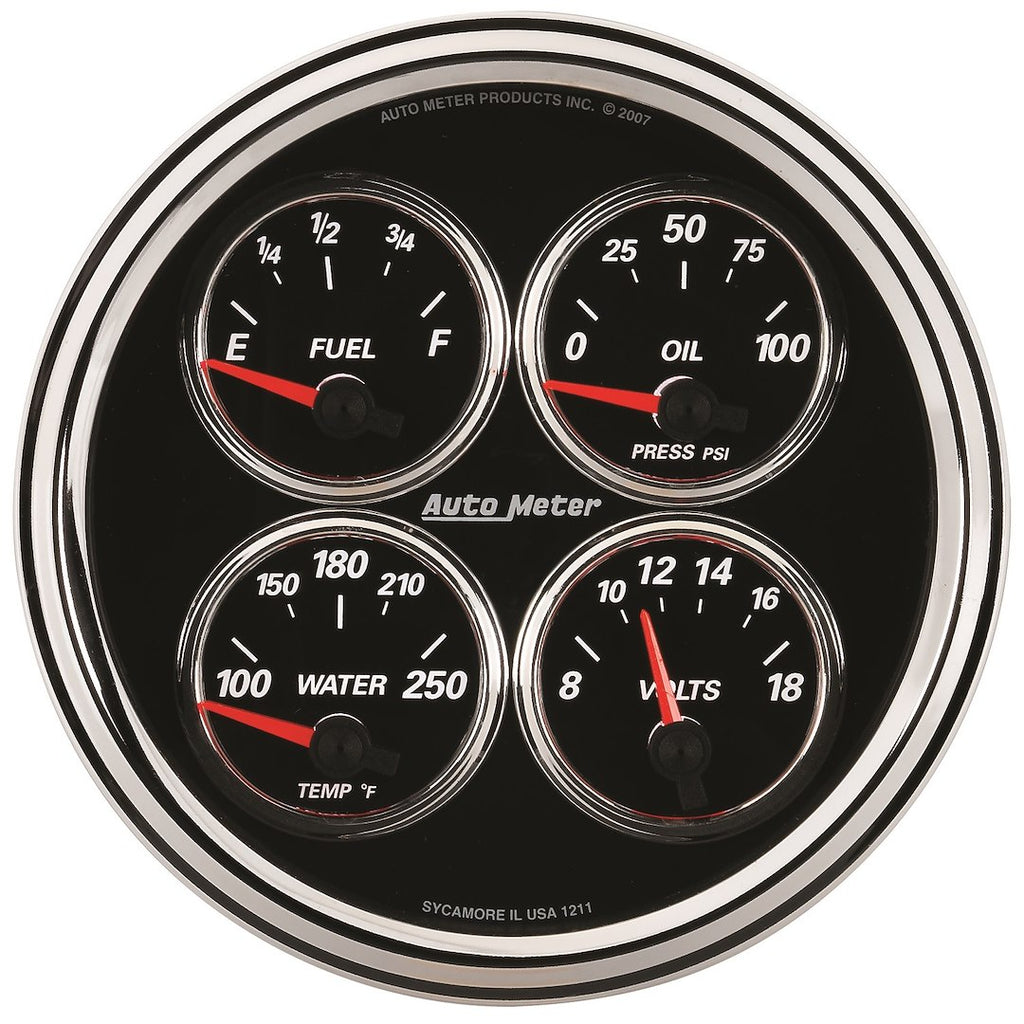

The AutoMeter Designer Black II Gauge Set is designed for most GM vehicles manufactured between 1965 and 1997, providing essential monitoring of fuel level, oil pressure, voltage, and water temperature. This set features a 5-inch analog gauge with a black face, chrome bezel, and an orange needle for clear visibility. The gauges operate within specific ranges: fuel level from 0 ohms (empty) to 90 ohms (full), oil pressure from 0 to 100 PSI, voltage from 8 to 18 volts, and water temperature from 100 to 250 degrees Fahrenheit.
This gauge set includes necessary fittings for installation, such as a 1/8 inch NPT sender and various adapter fittings (1/4 inch, 3/8 inch, and 1/2 inch). The LED lighting around the dial enhances visibility in low-light conditions, ensuring that critical information is easily readable at all times. The short sweep display provides quick and accurate readings, making it a reliable choice for vehicle monitoring.
With its robust construction and precise measurements, the AutoMeter Designer Black II Gauge Set is an essential tool for vehicle enthusiasts looking to maintain optimal performance. It is important to note that this gauge set may not operate on some 1998 or later vehicles with a 40 to 250 ohm sender.
Features
- Includes 1/4 Inch NPT Adapter/Fitting, 3/8 Inch NPT Adapter/Fitting, 1/2 Inch NPT Adapter/Fitting
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 1224
- Size (IN): 5 Inch
- Type: Electrical
- Fuel Level Gauge Range (OHM): 40 To 250 Ohms
- Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
- Voltmeter Range (Volt): 8 To 18 Volt
- Water Temperature Gauge Range (Deg F): 0 To 250 Degree Fahrenheit
- Display: Analog
- Sweep: Short Sweep
- Face Color: Black
- Needle Color: Orange
- Bezel Color: Silver
- Number Color: White
- Mounting Type: Dash Mount
- Lighting: LED
- Warning Indicator Type: No
- Includes Peak Memory: No
- Liquid-Filled: No
- Includes Sending Unit: Yes
- Includes Wiring Harness: No
- Includes Fittings: Yes
- Includes Mounting Bracket: Yes
