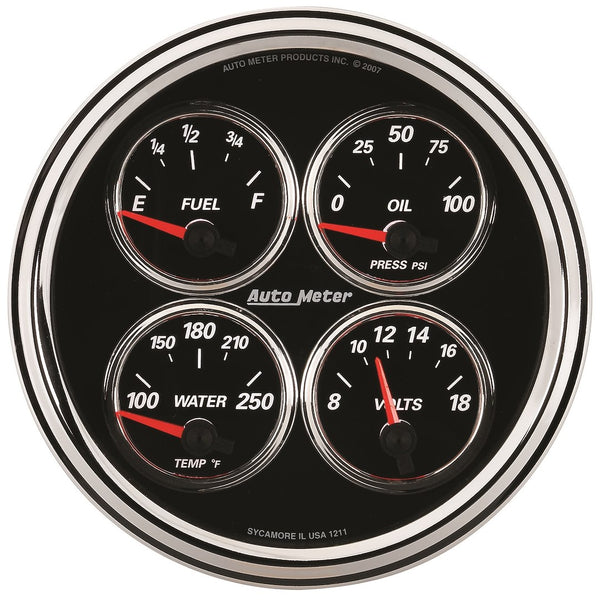

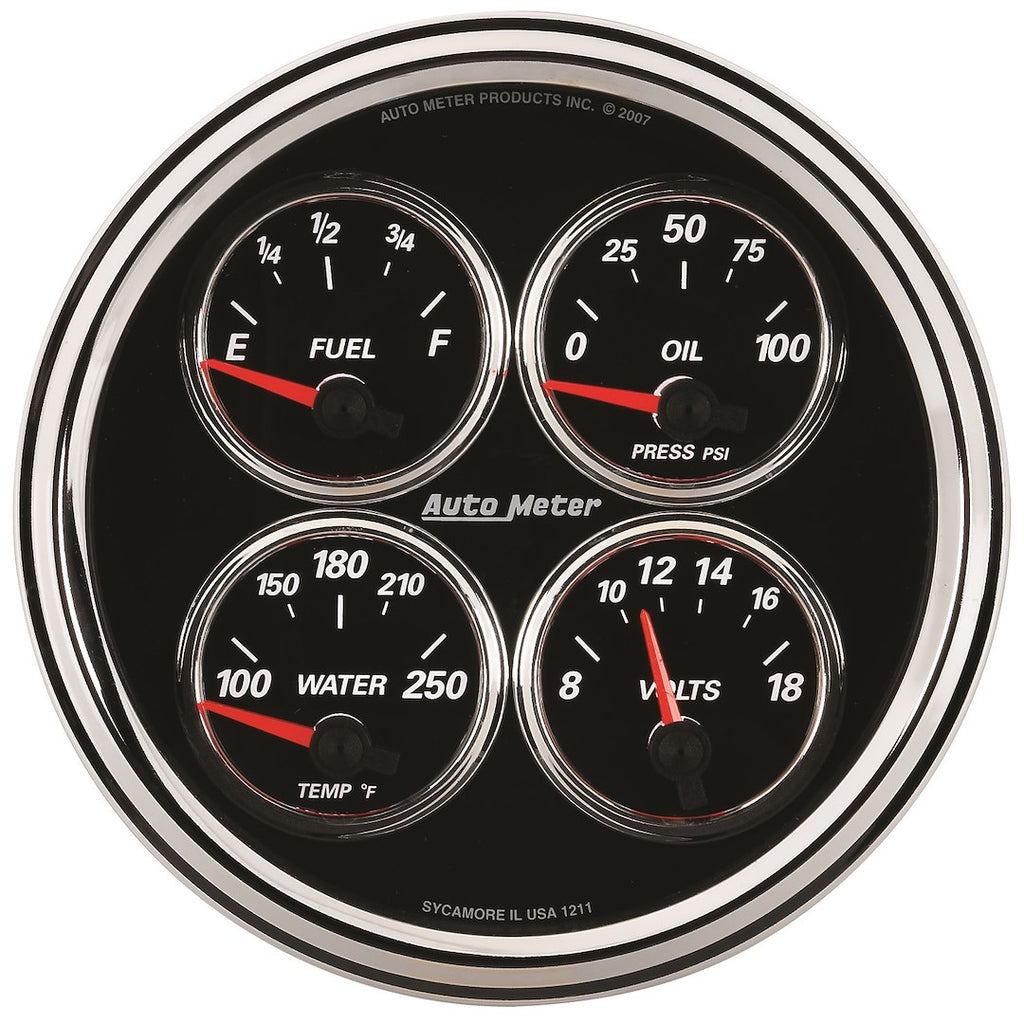

AutoMeter Designer Black II Gauge Set (MPN: 1211)

Comprehensive monitoring with advanced air core movements and electric sending units.

The AutoMeter Designer Black II Gauge Set offers a complete solution for monitoring essential engine parameters including fuel level, oil pressure, voltmeter, and water temperature. This set features a 5-inch analog display with a black face, chrome bezel, and an orange needle for clear visibility. The gauges utilize advanced 90-degree air core movements, ensuring quick and precise readings while maintaining a simple three-wire installation process.

Each gauge is designed to provide accurate data with electric sending units that keep hazardous fluids contained within the engine compartment. This design allows for the transmission of critical information via electrical signals, enhancing safety and reliability. The fuel level gauge operates within a range of 240 ohms empty to 33 ohms full, while the oil pressure gauge measures from 0 to 100 PSI. The voltmeter covers a range of 8 to 18 volts, and the water temperature gauge operates between 100 to 250 degrees Fahrenheit.

Included with the gauge set are various adapter fittings, ensuring compatibility with different installations. The illuminated display enhances visibility in low-light conditions, making it suitable for various environments. This gauge set is an essential tool for those seeking to monitor their vehicle's performance accurately and efficiently.

Features

• Advanced 90 Degree Air Core Movements And Simple Three Wire Installation Characterize These High Performance Instruments
• Electric Sending Units Keep Hazardous Fluids In The Engine Compartment Sending Collected Data Via An Electrical Signal To Quick Reacting, Precise Air Core Movements To Give You All The Information

Specifications

• Manufacturer: AutoMeter
• Manufacturer Part Number: 1211
• Size (IN): 5 Inch
• Type: Electrical
• Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
• Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
• Voltmeter Range (Volt): 8 To 18 Volt
• Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
• Display: Analog
• Sweep: Short Sweep
• Face Color: Black
• Needle Color: Orange
• Bezel Color: Silver
• Number Color: White
• Lighting: Illuminated
• Warning Indicator Type: No Warning Indicator
• Includes Peak Memory: No
• Liquid-Filled: No
• Includes Sending Unit: Yes
• Includes Wiring Harness: No
• Includes Fittings: Yes
• Includes Mounting Bracket: No

Technical Documents

• 2650-1178.pdf
