Comprehensive gauge set for accurate vehicle monitoring and performance.

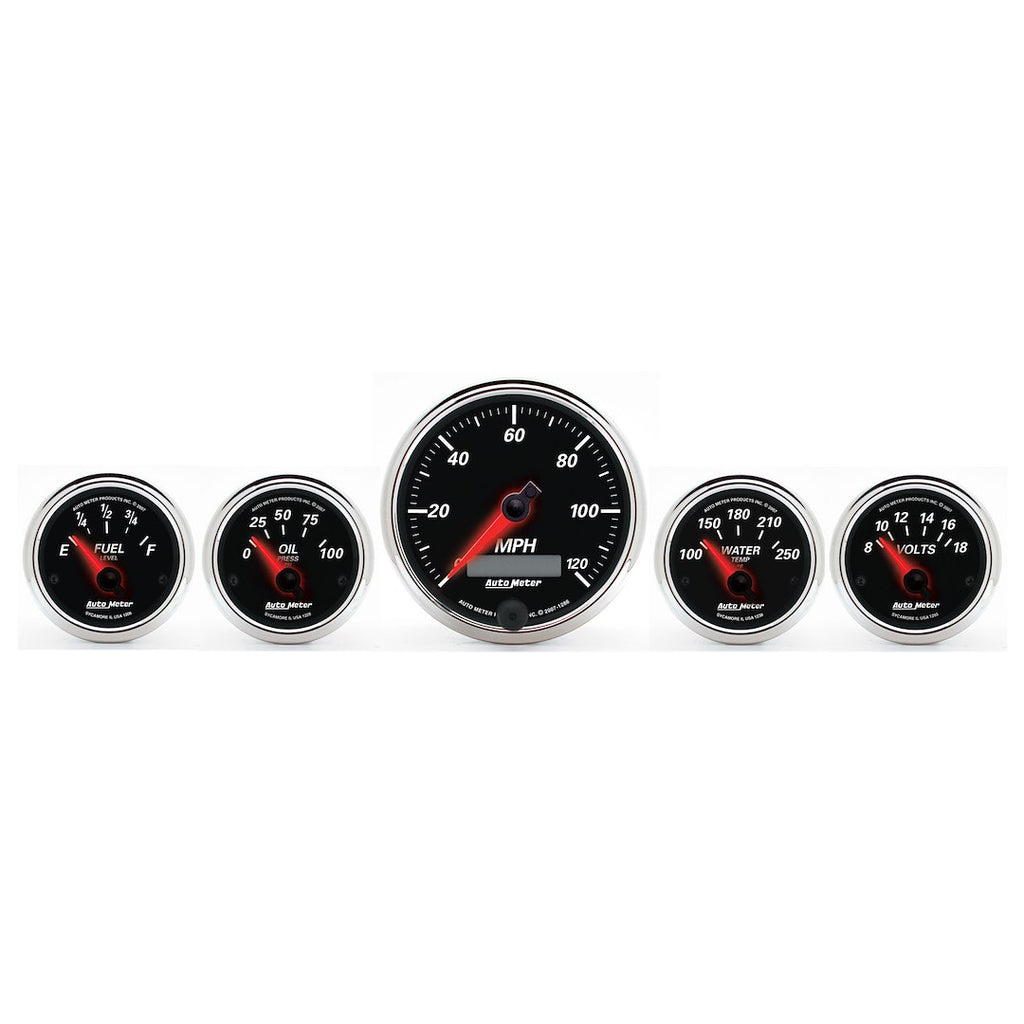

The AutoMeter Designer Black II Gauge Set offers a complete solution for monitoring essential vehicle parameters including fuel level, oil pressure, speed, voltage, and water temperature. This set includes five analog gauges: an electric fuel level gauge with a range of 240 ohms empty to 33 ohms full, an electric oil pressure gauge measuring from 0 to 100 PSI, a full sweep electric speedometer with a range of 0 to 120 MPH, an electric voltmeter ranging from 8 to 18 volts, and an electric water temperature gauge with a range of 100 to 250 degrees Fahrenheit. Each gauge features a black face, chrome bezel, and orange needle for clear visibility and a modern aesthetic.
Designed for seamless dashboard mounting, these gauges utilize high-definition LED lighting for enhanced visibility during nighttime use. The race-proven air-core electric instruments provide quick and accurate readings while ensuring hazardous fluids remain outside the vehicle. The speedometer includes a simple push-button, 2-mile drive calibration and can be reprogrammed to accommodate changes in gear ratio or wheel and tire combinations, making it versatile for various applications.
This gauge set is compatible with most two-wire sine wave and three-wire Hall effect vehicle speed sensors, and operates on both 12 and 16-volt electrical systems, making it suitable for nearly every street car or race car. The inclusion of all necessary sending units ensures a straightforward installation process, allowing for immediate use upon setup.
Features
- Modern LED Through-The-Dial Lighting Provides Clear Visibility During Nighttime Use
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedomete Has Simple Push Button, 2 Mile Drive Calibration
- No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
- Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
- Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
Specifications
- Manufacturer: AutoMeter
- Manufacturer Part Number: 1201
- Size (IN): 2-1/16 Inch/ 3-1/8 Inch
- Type: Electrical
- Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
- Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
- Speedometer Range (MPH): 0 To 120 Miles Per Hour
- Voltmeter Range (Volt): 8 To 18 Volt
- Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
- Display: Analog
- Sweep: Short Sweep/ Full Sweep
- Face Color: Black
- Needle Color: Orange
- Bezel Color: Silver
- Number Color: White
- Mounting Type: Dash Mount
- Lighting: High Definition LED
- Includes Warning Indicator: No
- Warning Indicator Type: Not Applicable
- Includes Peak Memory: No
- Liquid-Filled: No
- Includes Sending Unit: Yes
- Includes Wiring Harness: No
- Includes Fittings: No
- Includes Mounting Bracket: Yes
