Advanced venting solution for fuel tanks with surge protection and water intrusion prevention.

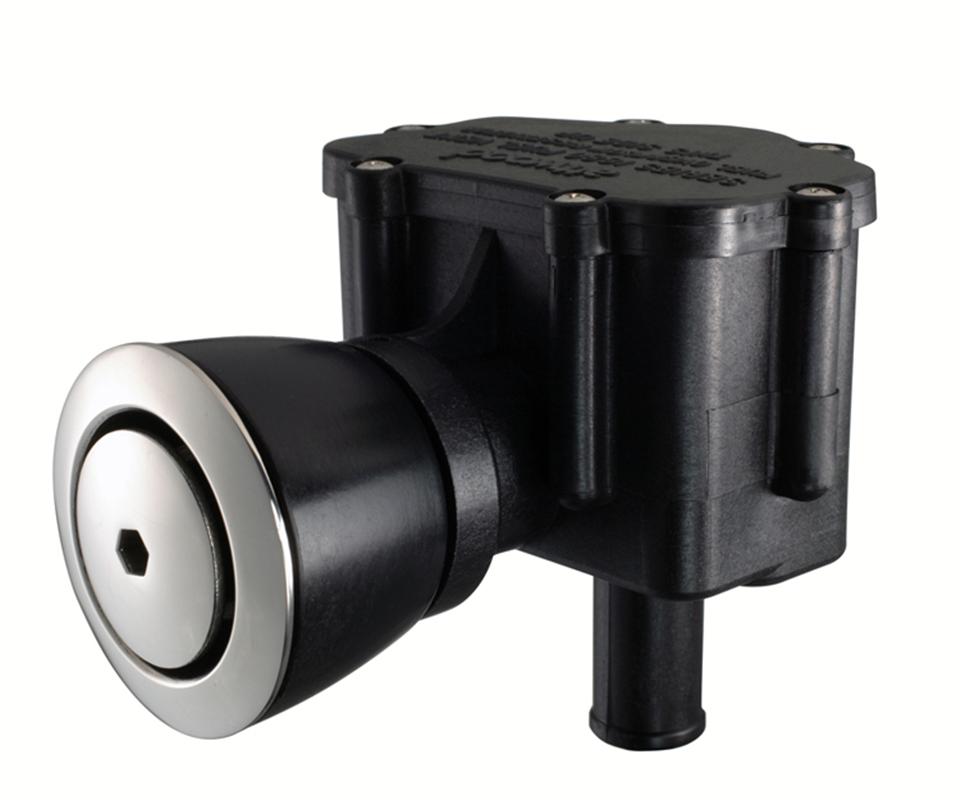

The Attwood Marine Boat Fuel Tank Vent is designed to enhance the safety and efficiency of fuel tank systems. This P-Trap vent is compatible with 5/8 inch inside diameter hoses and can accommodate hull thicknesses of up to 1 inch. Constructed from durable glass-filled polypropylene, it is engineered to withstand exposure to oil, gas, and alcohol-blended fuels, ensuring long-lasting performance in marine environments.
This innovative vent features a surge ball mechanism that effectively closes the large vent opening during fuel surges, minimizing spillage and allowing for controlled fuel flow. When the tank reaches full capacity, it automatically triggers fuel nozzles to shut off, preventing overfilling. The design also incorporates baffles and traps that protect against water intrusion, making it suitable for use in various sea conditions and during washdowns.
The Attwood Marine Boat Fuel Tank Vent operates efficiently in any orientation within 45 degrees of vertical, providing flexibility in installation. It meets ABYC standards, ensuring compliance with industry regulations. This product eliminates the need for separate fuel line vents and surge protectors, streamlining installation and enhancing the overall functionality of the fuel system.
Features
- Operates In Any Orientation Within 45 Degree Of Vertical
- Withstands Oil, Gas, Alcohol-Blended Fuels
- Constructed Of Glass-Filled Polypropylene
- Surge Protection
- Water Intrusion Protection
- Meets ABYC Standards
- Eliminates The Need To Install A Fuel Line Vent And A Surge Protector–now One Product Helps Avoid Fuel Spills
- Provides Fuel Tank Venting, And Resists Water Intrusion Into The Fuel System
Specifications
- Manufacturer: Attwood Marine
- Manufacturer Part Number: 1684-1
- Compatibility: 5/8 Inch Inside Diameter Hose
- Style: P-Trap Vent
- Hull Thickness: 1 Inch
- Color: Black
- Material: Plastic (Polypropylene)
- Mounting Type: Flush Mount
