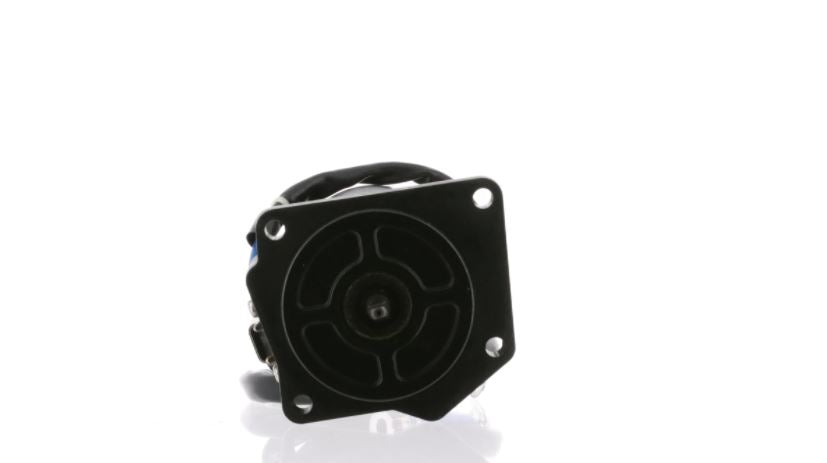

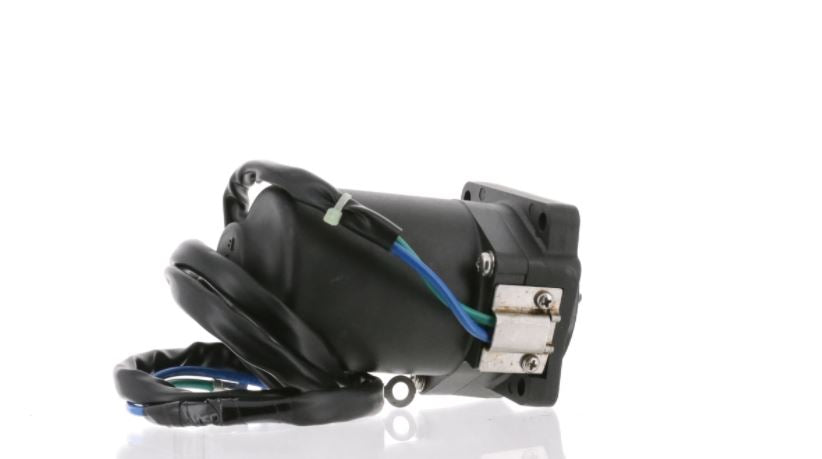

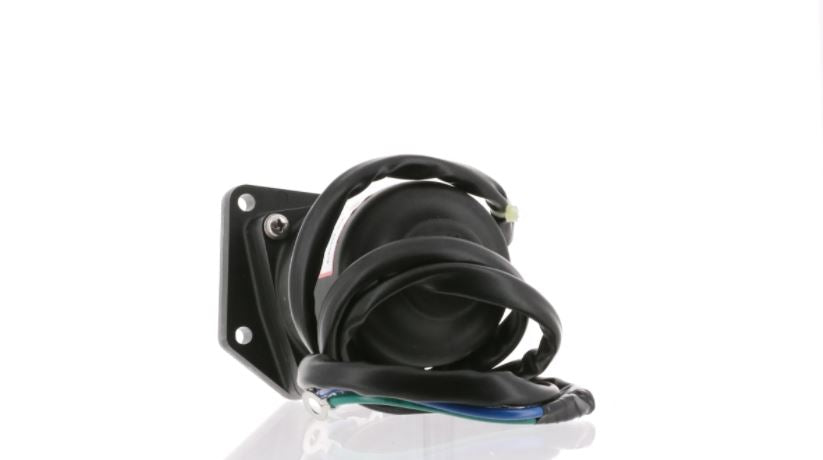

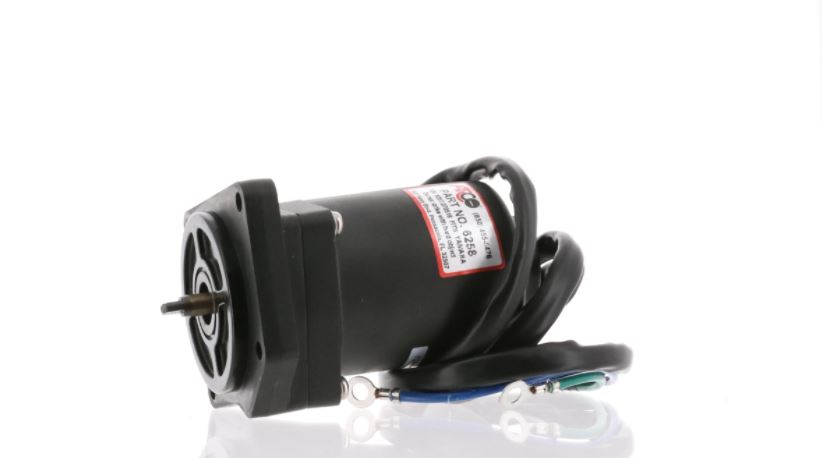

ARCO Outboard Tilt And Trim Motor (MPN: 6258)

Reliable performance for Yamaha 75 HP and 90 HP 4 Stroke engines.

The ARCO Outboard Tilt And Trim Motor is designed specifically for Yamaha 2005 and newer 75 HP and 90 HP 4 Stroke outboard engines. This motor features a robust 4-bolt mount and a 2 wire connection with ring terminal ends, ensuring a secure and reliable installation. With a voltage rating of 12 volts, it is engineered to provide dependable operation under various marine conditions.

Constructed with an epoxy powder coating, this motor offers maximum corrosion protection, making it suitable for harsh marine environments. The motor shafts are induction case hardened at bearing surfaces, providing superior wear resistance and longevity. Each unit undergoes rigorous testing to withstand 50 times the operational voltage, ensuring that it meets or exceeds OEM performance standards before packaging.

ARCO has a long-standing reputation for quality and reliability in marine engine parts, backed by nearly 60 years of experience. The commitment to excellence is evident in the performance testing conducted at five different load levels, ensuring that every motor delivers optimal functionality. This tilt and trim motor is a testament to ARCO's dedication to providing high-quality marine components.

Features

• Epoxy Powder Coated For Maximum Corrosion Protection
• Motor Shafts Induction Case Hardened At Bearing Surfaces For Superior Wear Resistance
• All Armatures Tested To Withstand 50 Times Operation Voltage (12 Voltage)
• All Motors Performance Tested At 5 Different Load Levels
• All Motors Must Meet Or Exceed OEM Performance Before Being Boxed

Specifications

• Manufacturer: Arco Marine
• Manufacturer Part Number: 6258
• Compatibility: Yamaha 2005-UP 75 HP 4 Stroke and 2005-UP 90 HP 4 Stroke Outboards
• Mounting Type: 4-Bolt
• Connection Type: 2 Wire
• Connector Gender: Ring Terminal
• Voltage: 12 Volt
• With O-Ring: Yes
