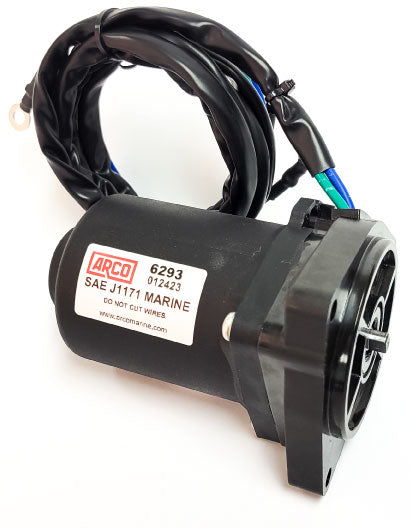

Arco Marine Outboard Tilt And Trim Motor (MPN: 6293)

Reliable tilt and trim motor for Yamaha 4-stroke engines from 2011 to 2021.

The Arco Marine Outboard Tilt And Trim Motor is designed specifically for Yamaha 4-stroke engines ranging from 150 to 250 HP, manufactured between 2011 and 2021. This motor features a robust 4-bolt mount and a 2 wire connector with a ring terminal, ensuring a secure and reliable installation. With a voltage rating of 12 volts and an included O-ring, this motor is built to withstand the harsh marine environment.

ARCO has established a reputation for dependability, having set the gold standard for marine engine parts nearly 60 years ago. Each unit is rigorously tested beyond normal operating conditions to ensure the highest quality and reliability. The epoxy powder coating provides maximum corrosion protection, while the induction case hardened motor shafts enhance wear resistance.

All armatures are tested to withstand 50 times the operation voltage, and each motor undergoes performance testing at five different load levels. ARCO guarantees that all motors meet or exceed OEM performance standards before they are packaged, making this tilt and trim motor a trusted choice for marine applications.

Features

• Epoxy Powder Coated For Maximum Corrosion Protection
• Motor Shafts Induction Case Hardened At Bearing Surfaces For Superior Wear Resistance
• All Armatures Tested To Withstand 50 Times Operation Voltage (12 Voltage)
• All Motors Performance Tested At 5 Different Load Levels
• All Motors Must Meet Or Exceed OEM Performance Before Being Boxed

Specifications

• Manufacturer: Arco Marine
• Manufacturer Part Number: 6293
• Compatibility: Yamaha 2011-2021 150 To 250 HP 4-Stroke Engines
• Mounting Type: 4-Bolt
• Connection Type: 2 Wire
• Connector Gender: Ring Terminal
• Voltage: 12 Volt
• With O-Ring: Yes
