Compact 8 Inch LED light bar with versatile mounting options and high performance.

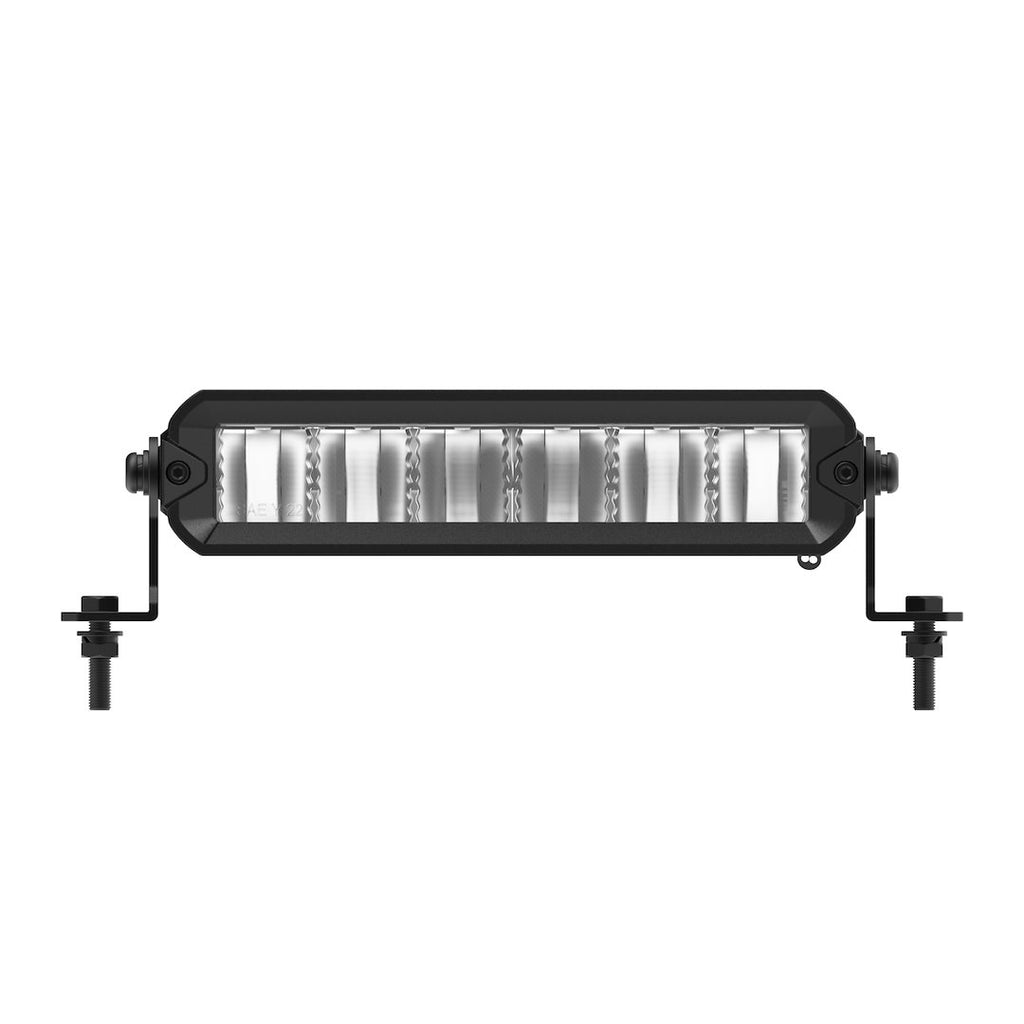

The ARC Lighting Xtreme LED Light Bar is engineered for exceptional performance in a compact design. Measuring 8 inches in length, this light bar features four white LEDs and a 24 LED halo ring, delivering an impressive 3400 lumens output. Its driving beam design ensures optimal visibility for various driving conditions, making it suitable for both on-road and off-road applications. The light bar is constructed with a clear polycarbonate lens and a powder-coated black cast aluminum housing, providing durability and resistance to harsh environmental conditions with an IP69K weatherproof rating.

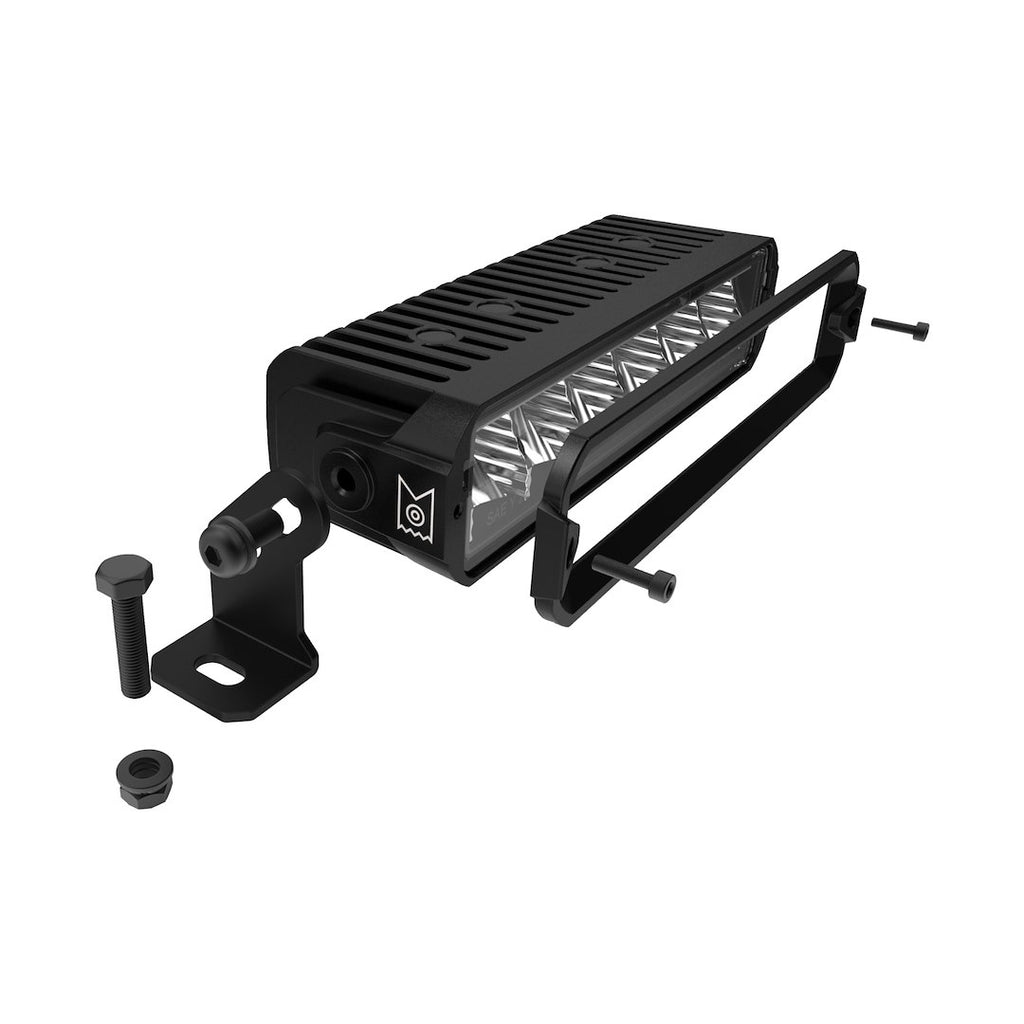

Designed for easy installation, the Xtreme Light Bar offers flexible mounting options, including universal and side bracket mounts. The modular design allows for stacking and customization, accommodating different setups without the need for drilling. Additionally, the dual-color technology enables users to switch between white and amber light, enhancing visibility in foggy conditions. The inclusion of a strobe mode further increases safety in work zones and emergency situations, making this light bar a versatile addition to any vehicle.
With a power draw of 4 amps at 12 volts and a wattage of 45 watts, the Xtreme Light Bar is efficient while providing high-intensity lighting. It is compliant with SAE J581 standards, ensuring reliability and performance. The package includes two LED light bars, four side mounting brackets, and necessary hardware, making it a comprehensive solution for enhancing vehicle lighting.
Features
- Small Compact LED Light
- Flexible Mounting Options For Versatile Installation
- SAE J581 Compliant
- Weatherproof IP69K Rating Ensures Protection Against Harsh Environmental Conditions
Specifications
- Manufacturer: ARC Lighting
- Manufacturer Part Number: 6402DT
- Bulb Type: LED
- Style: Straight
- Length: 8 Inch
- Beam Type: Driving Beam
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Lumens: 3400 Lumens
- Wattage: 45 Watt
- Width: 2.63 Inch
- Height: 1.6 Inch
- Voltage Rating: 10 To 48 Volt
- Ampere Rating At 12 Volts: 4 Amp
- Bulb Specifications: 4 White LED 45 Watts Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Universal Mount Or Side Bracket Mount
- Connection Type: Pigtail
- Includes: With Two LED Light Bar/ Four Side Mounting Brackets And Hardware/ Two DT Pigtail
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2024-2025 Toyota Tundra
