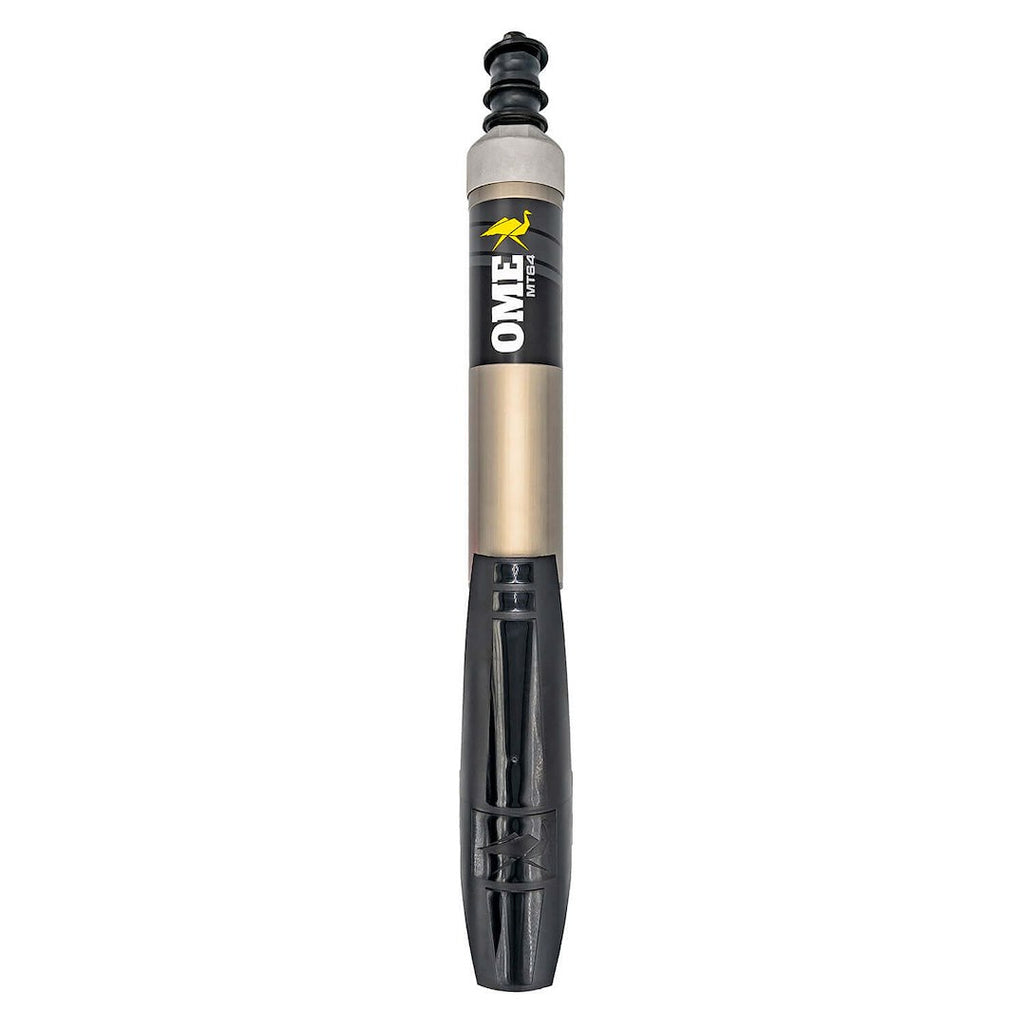

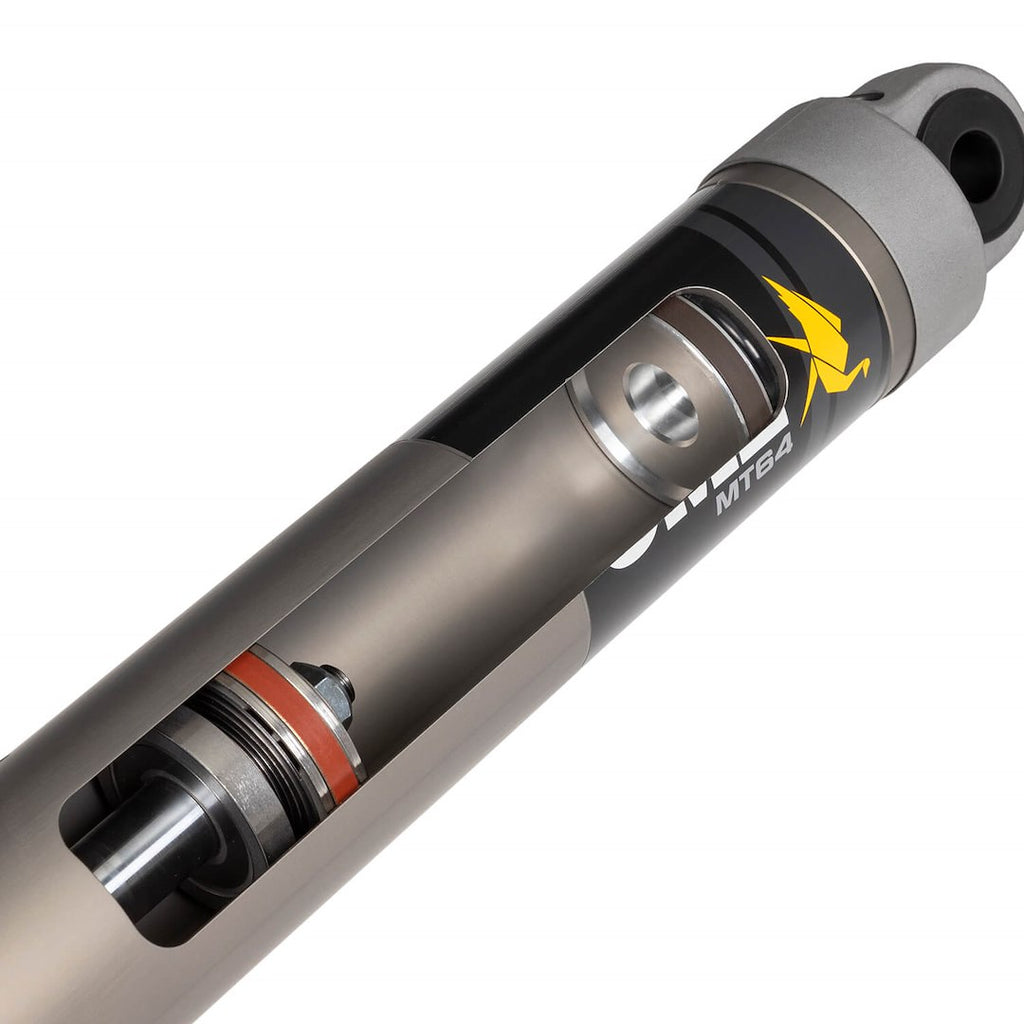

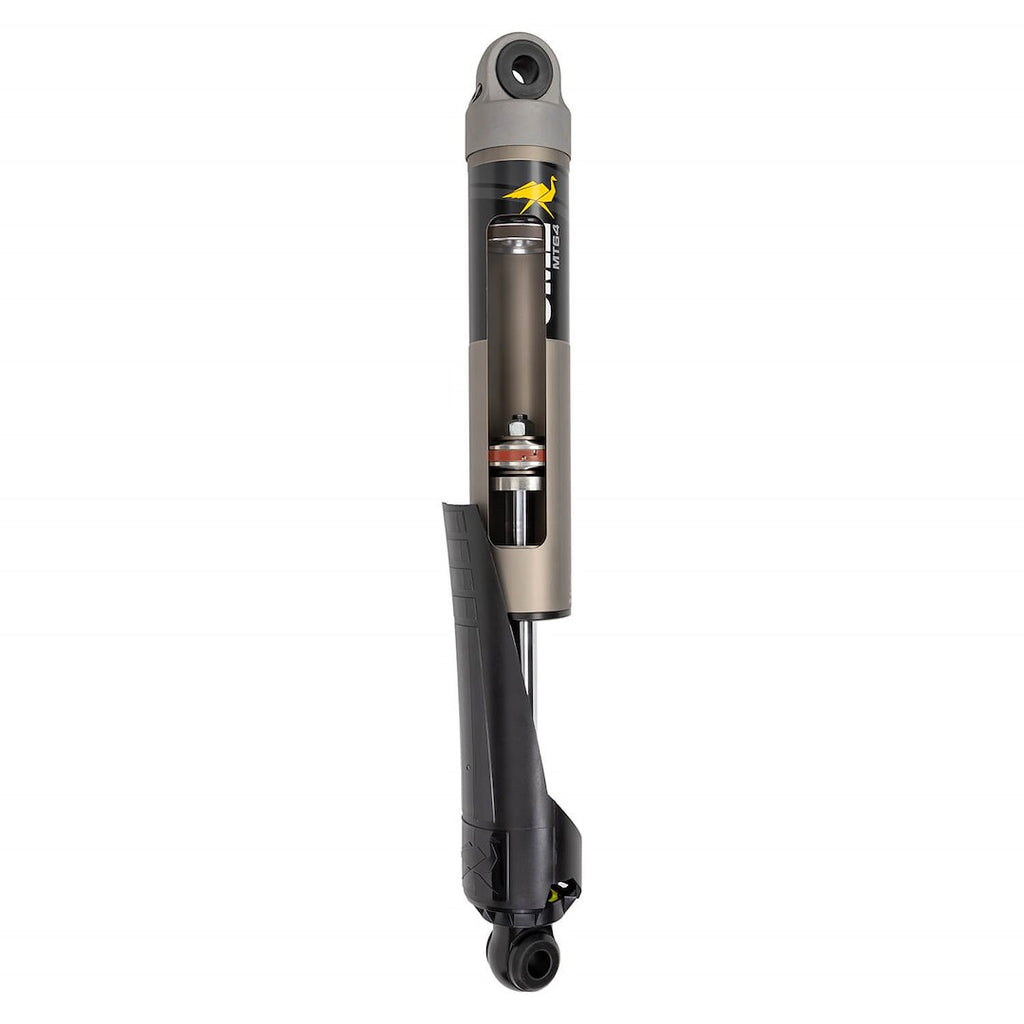

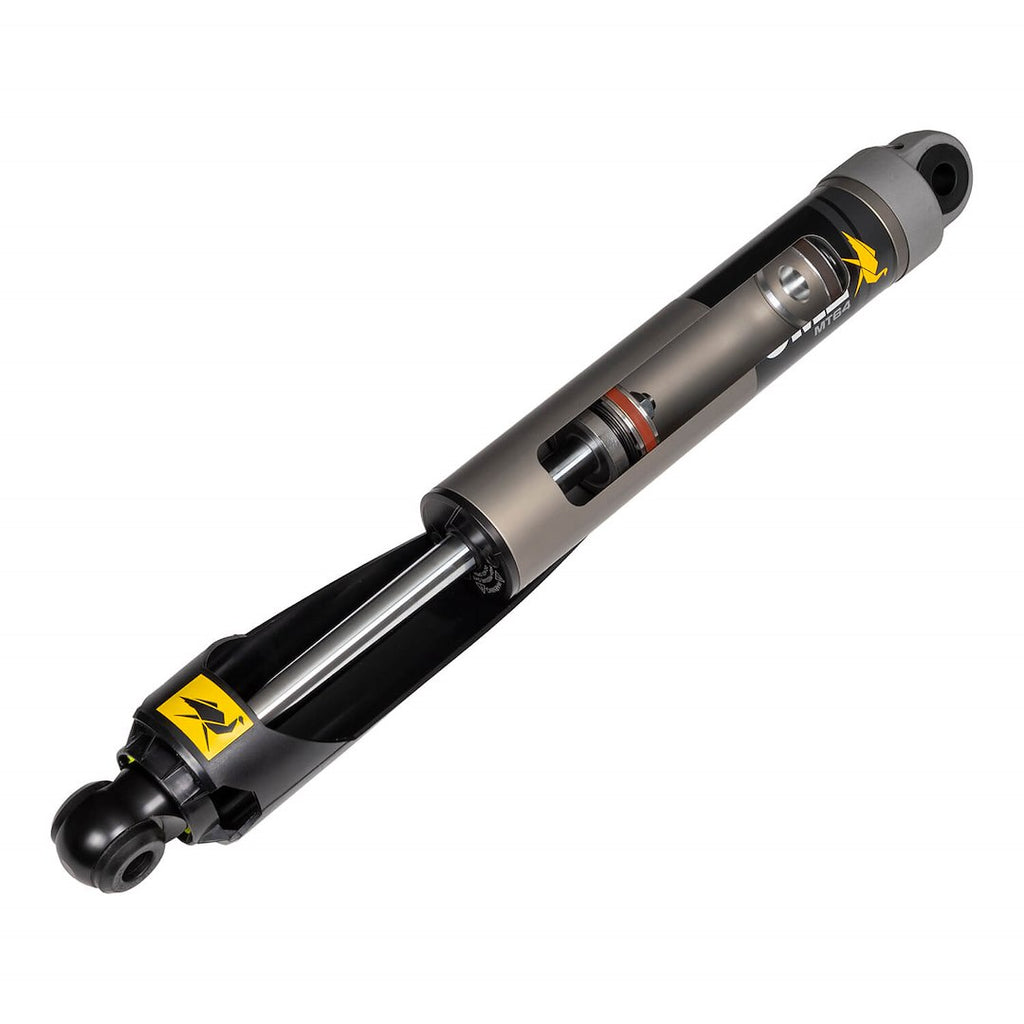

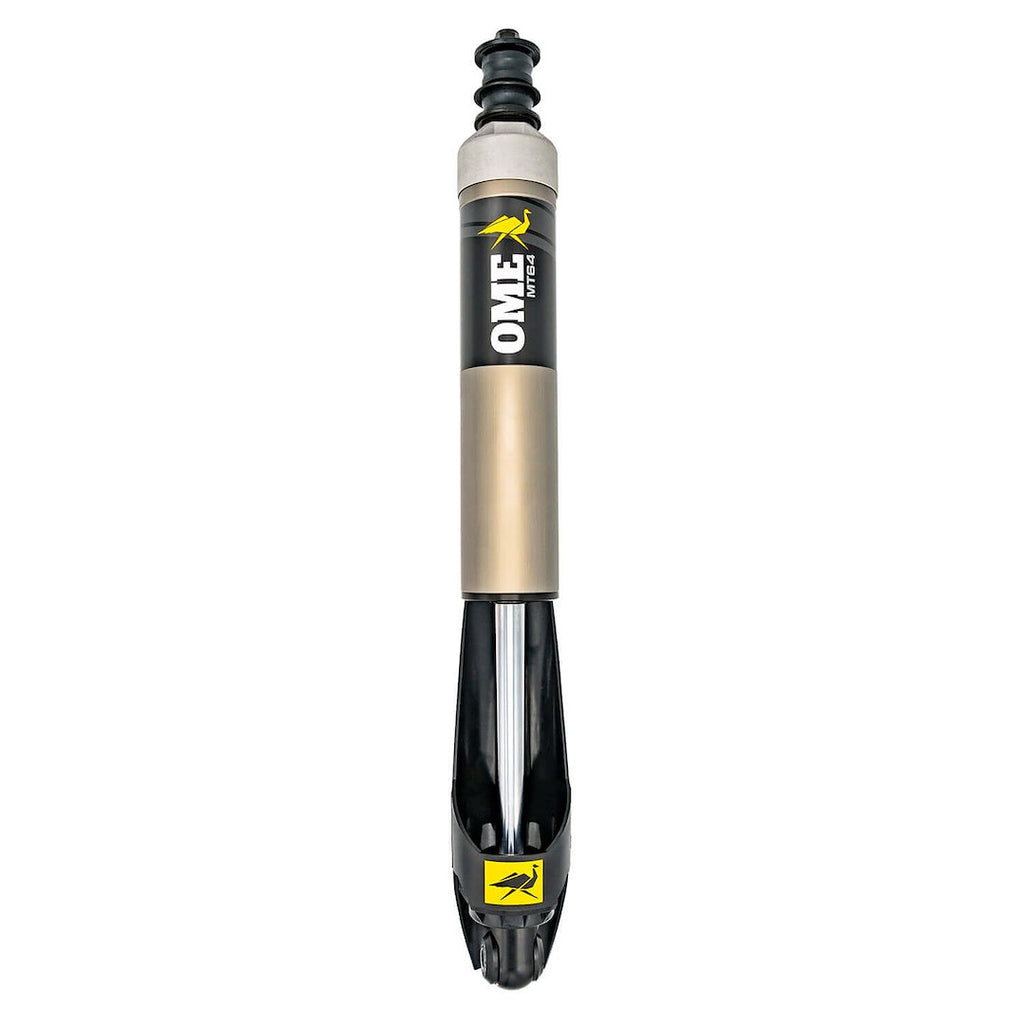

ARB Shock Absorber MT64 Hydraulic (MPN: MT64601013R)

Advanced shock absorber designed for optimal performance on and off-road.

The ARB Shock Absorber MT64 is a hydraulic shock designed to enhance vehicle stability and performance in various terrains. Featuring a monotube design with a 64mm inner bore diameter, this shock absorber is engineered to manage the dynamic loads created by vehicles equipped with campers, toppers, and other accessories. Its robust construction includes aerospace-grade aluminum, which effectively dissipates heat, ensuring consistent performance during extended use.

The MT64 is built to withstand the rigors of overlanding, providing a smooth ride and comfort for travelers. With a massive 2.8-inch body, it accommodates more oil and larger piston and shim stacks, which contribute to reduced heat and improved control throughout the stroke. The shock also features an adjustable spring seat with six positions, allowing for customization based on added accessory weights.

Designed for vehicle-specific applications, the MT64 is a single unit that does not include an external reservoir or adjustable valving. Its durable gray and black finish, combined with a 7/8 inch piston rod shaft, ensures exceptional stability and longevity. This shock absorber is an essential component for those seeking reliable performance in challenging conditions.

Features

• Featuring The Same Aerospace Grade Aluminum As Our High-Performance BP-51 To Dissipate Heat Effectively, The MT64 Also Boasts A 7/8 Inch Piston Rod Shaft For Exceptional Stability
• Highly Engineered Shock Absorber And Strut Range Represents An All-New Segment For The Brand And An Unmatched Customer Experience, Both On And Off-Road
• Cutting-Edge Shocks Are Built To Handle The Unique Challenges Faced By Vehicles Equipped With Campers, Toppers, Tents, And Rack Systems
• MT64 Is The Ultimate Overlanding Authority, Designed For The Traveler Who Wants A Smooth Ride And Comfort Both On And Off-Road
• Utilizing Ridges On The Body Of The Shock, MT64 Features An Adjustable Spring Seat With 6 Positions In 5mm Increments, Which Allows For One Coil Spring To Cater For Added Accessory Weights
• Massive 2.8 Inch Body Allows For More Oil And Bigger Piston And Shim Stacks, To Reduce Heat Providing More Control Through The Stroke Giving A More Refined Ride

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64601013R
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 23.6 Inch
• Compressed Length (IN): 15.4 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Digressive Disc Valving
• Ride Height Adjustable: Yes
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2005-2023 Toyota Tacoma
