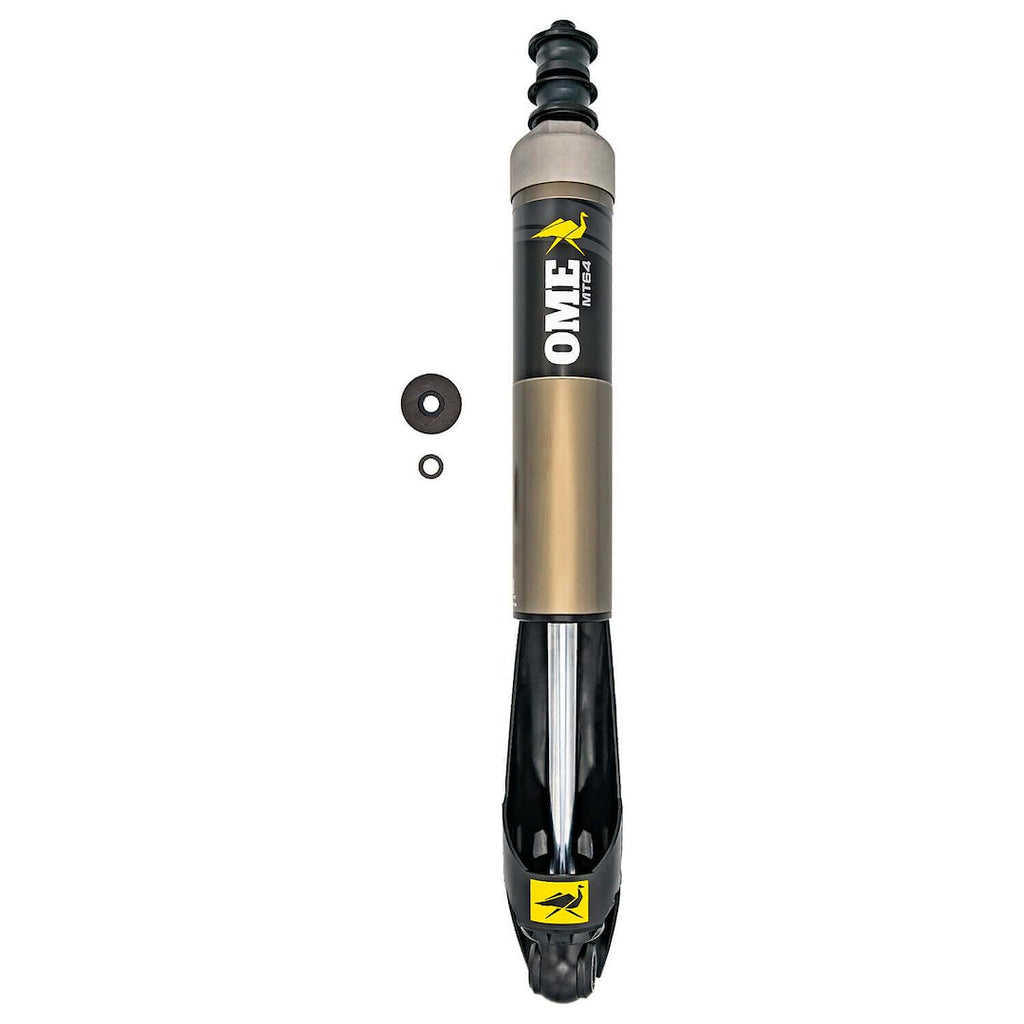

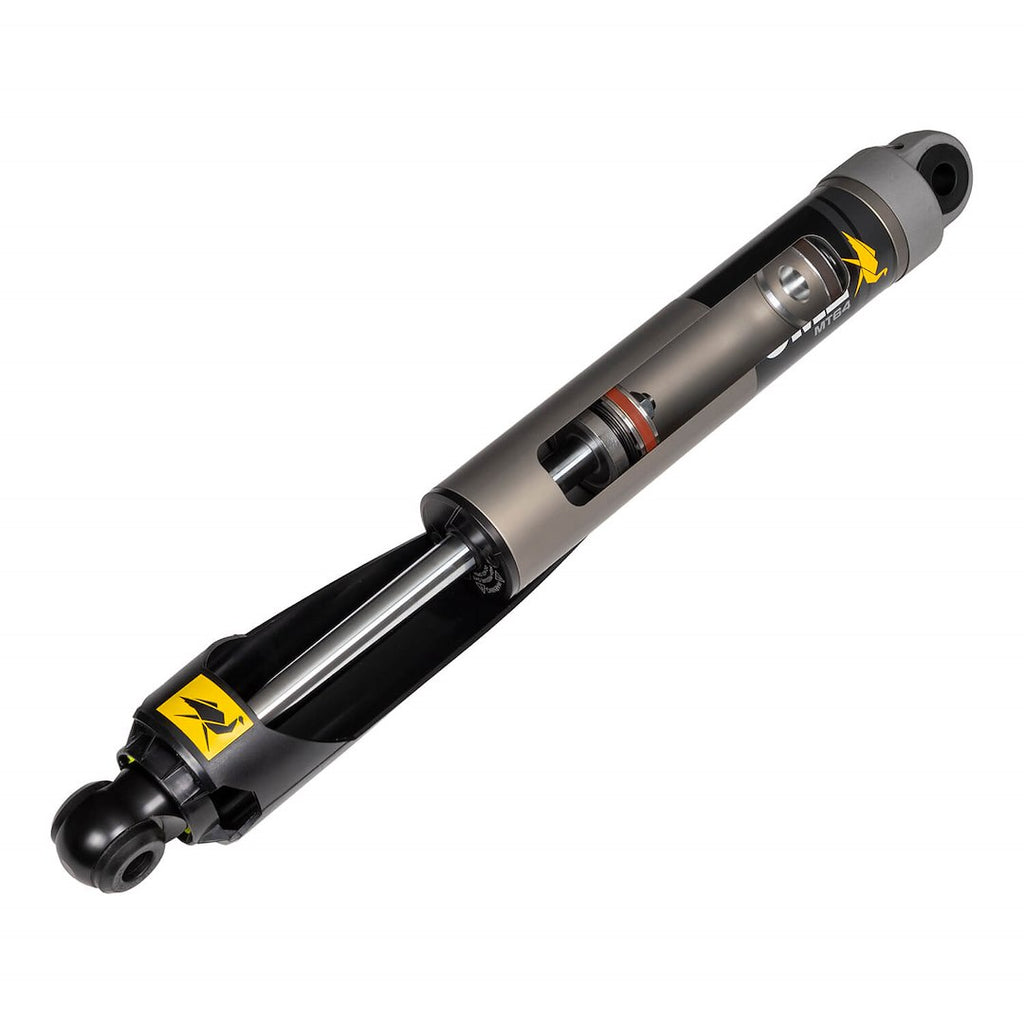

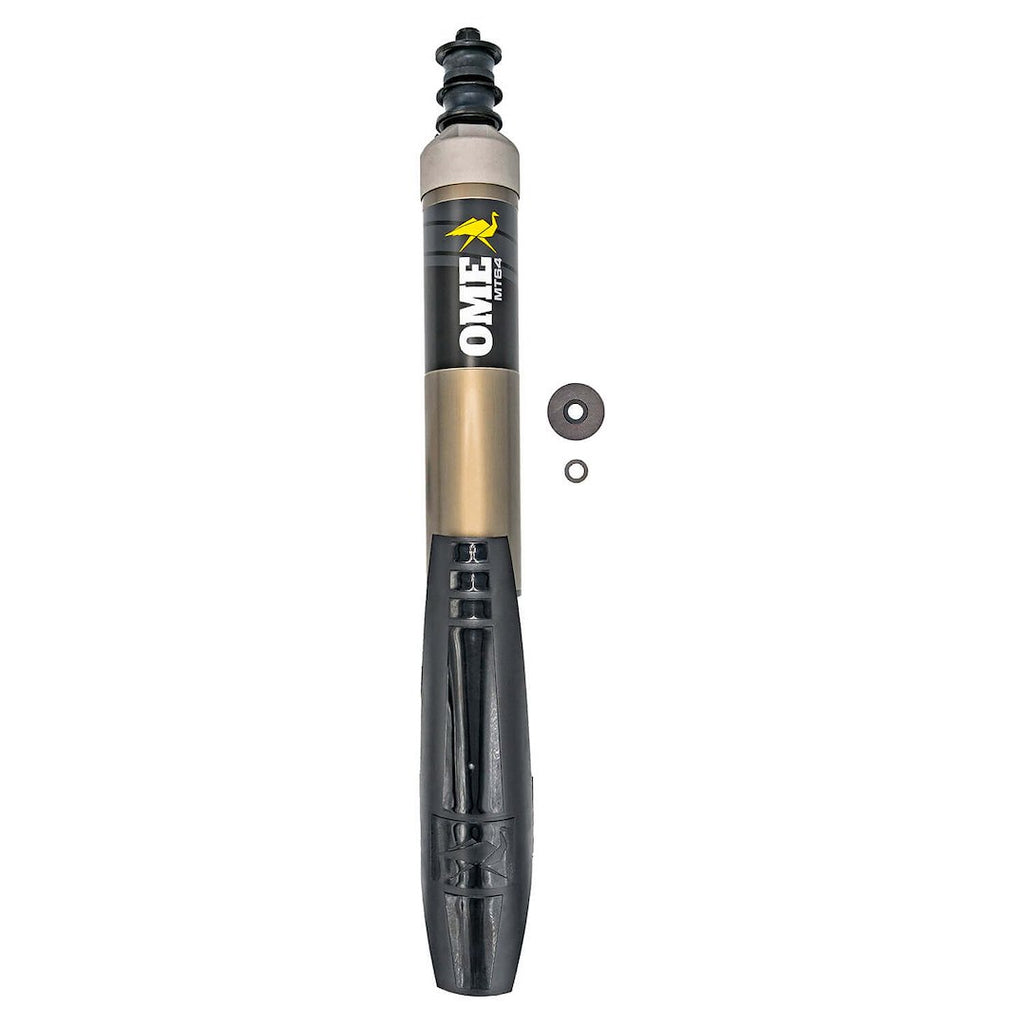

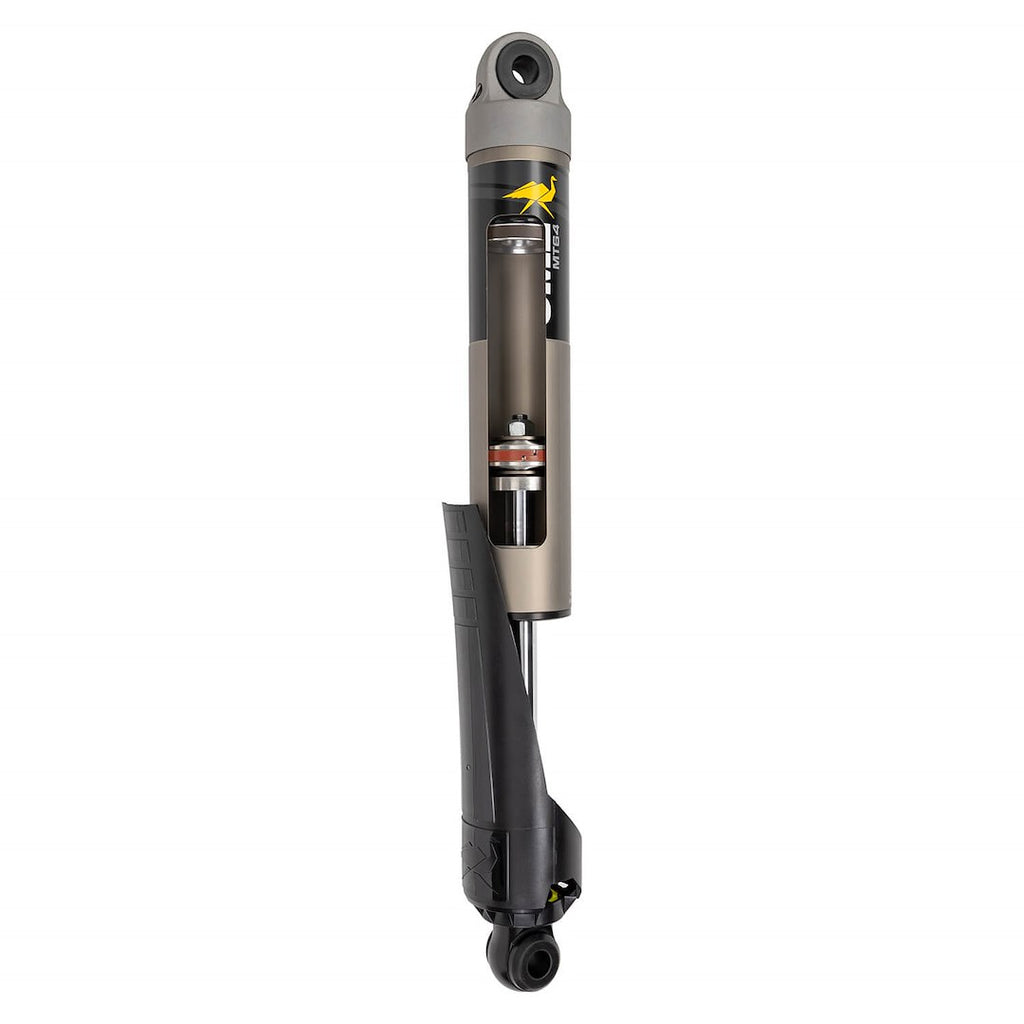

ARB Shock Absorber MT64 Hydraulic (MPN: MT64601010)

Advanced shock absorber designed for optimal performance on and off-road.

The ARB Shock Absorber MT64 is a hydraulic shock absorber engineered for both on-road and off-road applications. Featuring a monotube design with a 64mm inner bore diameter, this shock is built to handle the dynamic load shifts experienced by vehicles equipped with campers, toppers, and other accessories. The MT64 provides exceptional stability and performance, allowing drivers to navigate various terrains with confidence.

Constructed from aerospace-grade aluminum, the MT64 dissipates heat effectively, enhancing durability and performance. The shock features a 7/8 inch piston rod shaft, which contributes to its stability and control. With a massive 2.8 inch body, it accommodates more oil and larger piston and shim stacks, resulting in reduced heat and a refined ride.

The MT64 is designed for the overlanding enthusiast, offering a smooth ride and comfort in all conditions. Its adjustable spring seat allows for customization to cater to added accessory weights, ensuring optimal performance regardless of load. This shock absorber is a reliable choice for those seeking a high-quality solution for their vehicle's suspension needs.

Features

• Featuring The Same Aerospace Grade Aluminum As Our High-Performance BP-51 To Dissipate Heat Effectively, The MT64 Also Boasts A 7/8 Inch Piston Rod Shaft For Exceptional Stability
• Highly Engineered Shock Absorber And Strut Range Represents An All-New Segment For The Brand And An Unmatched Customer Experience, Both On And Off-Road
• Cutting-Edge Shocks Are Built To Handle The Unique Challenges Faced By Vehicles Equipped With Campers, Toppers, Tents, And Rack Systems
• MT64 Is The Ultimate Overlanding Authority, Designed For The Traveler Who Wants A Smooth Ride And Comfort Both On And Off-Road
• Utilizing Ridges On The Body Of The Shock, MT64 Features An Adjustable Spring Seat With 6 Positions In 5mm Increments, Which Allows For One Coil Spring To Cater For Added Accessory Weights

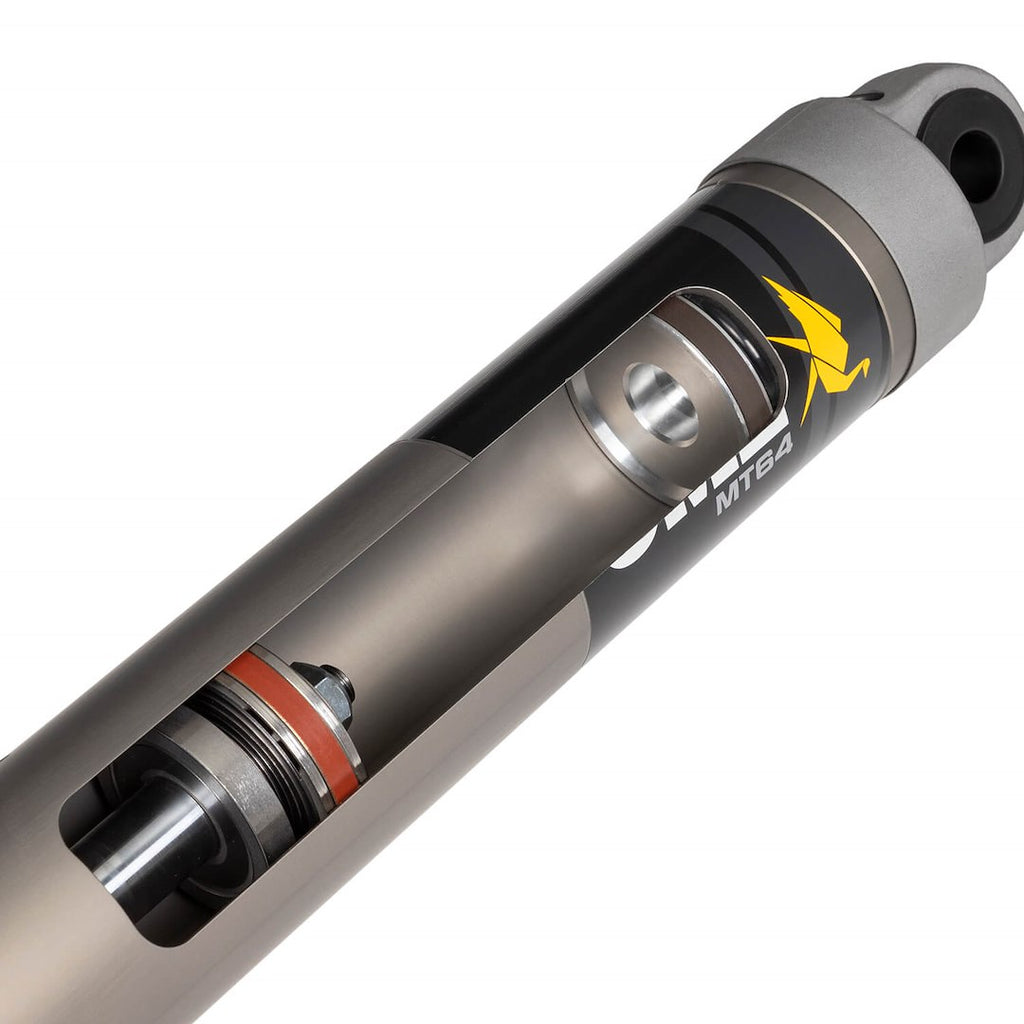

• Massive 2.8 Inch Body Allows For More Oil And Bigger Piston And Shim Stacks, To Reduce Heat Providing More Control Through The Stroke Giving A More Refined Ride

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64601010
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 23-1/2 Inch
• Compressed Length (IN): 15.4 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Digressive Disc Valving
• Ride Height Adjustable: Yes
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2003-2024 Toyota 4Runner
• 2007-2014 Toyota FJ Cruiser
