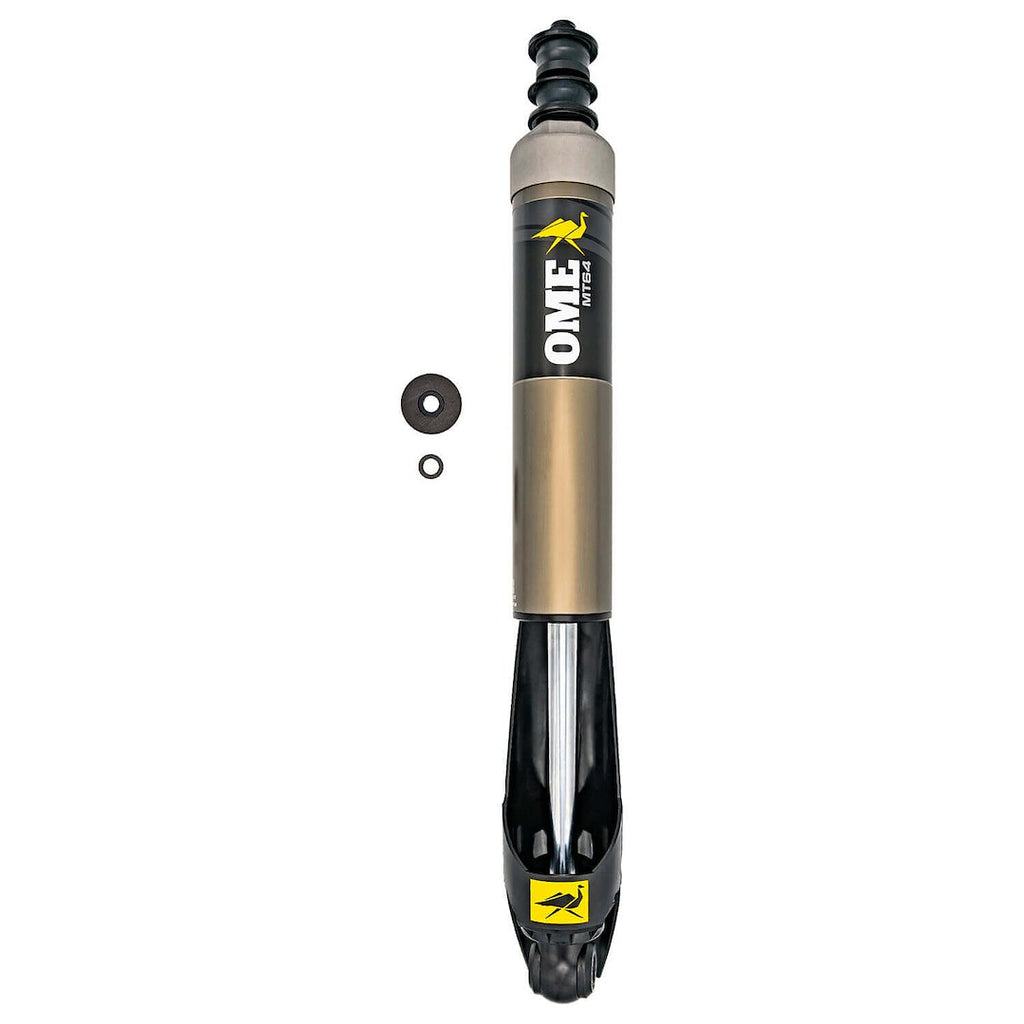

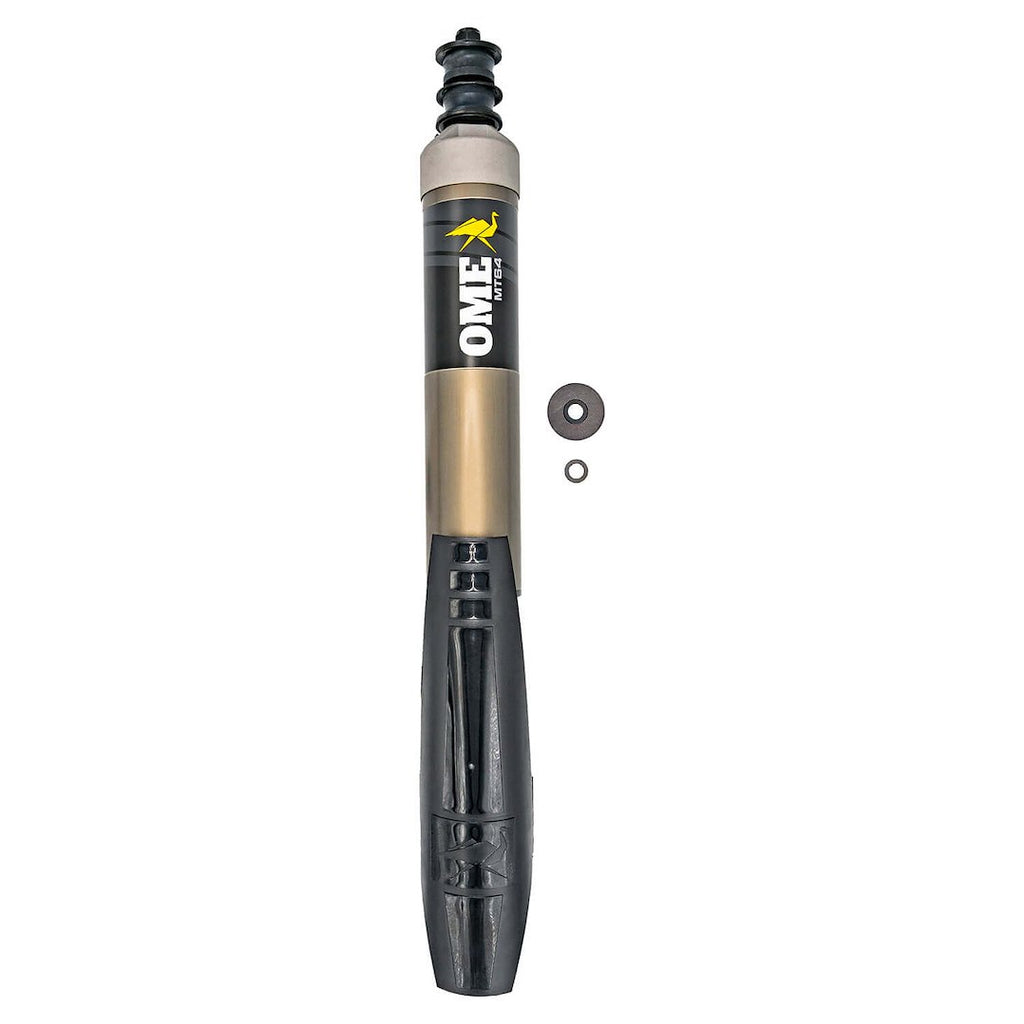

ARB Shock Absorber MT64 Hydraulic (MPN: MT64601009)

Advanced shock absorber designed for optimal performance on and off-road.

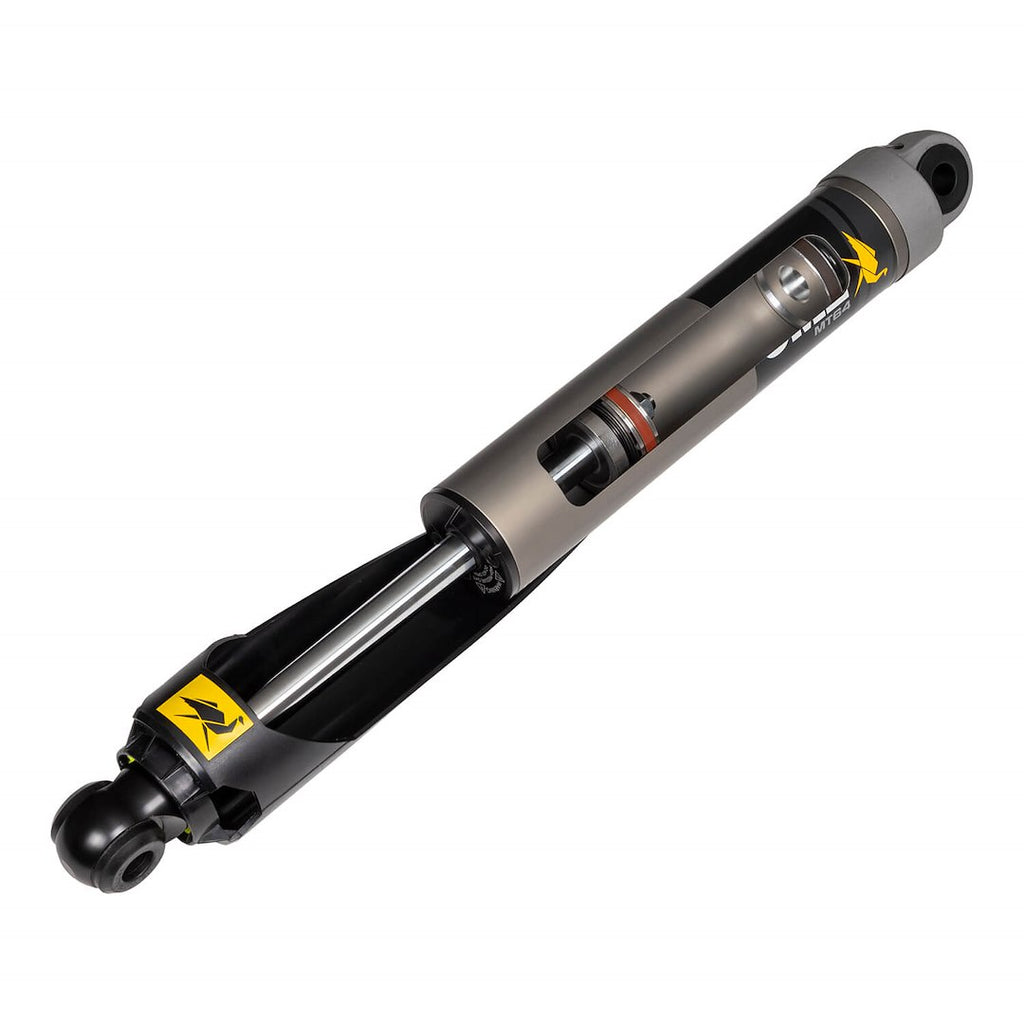

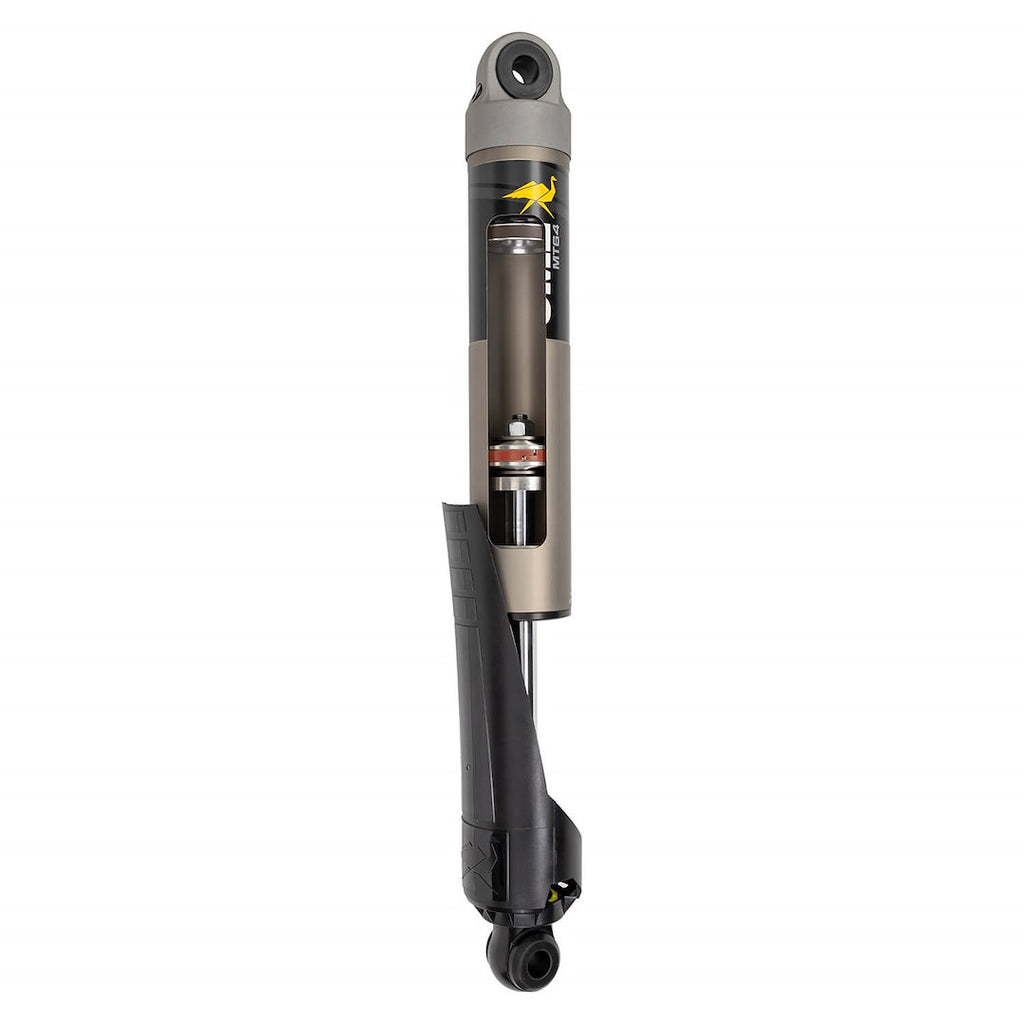

The ARB Shock Absorber MT64 is a hydraulic shock absorber engineered for both on-road and off-road applications. Its innovative monotube design features a substantial 64mm inner bore diameter, allowing it to effectively manage the dynamic loads encountered by vehicles equipped with campers, toppers, and other accessories. This shock absorber is built with aerospace-grade aluminum, ensuring efficient heat dissipation and enhanced durability.

Designed specifically for overlanding, the MT64 provides exceptional stability and performance across various terrains. The shock absorber's 7/8 inch piston rod shaft contributes to its overall stability, while the massive 2.8 inch body accommodates more oil and larger piston and shim stacks, reducing heat and improving control throughout the stroke. The adjustable spring seat offers six positions in 5mm increments, allowing for customization based on added accessory weights.

With a focus on delivering a refined ride experience, the MT64 is suitable for vehicle-specific applications and is built to withstand the rigors of daily use in diverse conditions. Its digressive disc valving ensures a smooth ride, making it a reliable choice for travelers seeking comfort and performance.

Features

• Featuring The Same Aerospace Grade Aluminum As Our High-Performance BP-51 To Dissipate Heat Effectively, The MT64 Also Boasts A 7/8 Inch Piston Rod Shaft For Exceptional Stability
• Highly Engineered Shock Absorber And Strut Range Represents An All-New Segment For The Brand And An Unmatched Customer Experience, Both On And Off-Road
• Cutting-Edge Shocks Are Built To Handle The Unique Challenges Faced By Vehicles Equipped With Campers, Toppers, Tents, And Rack Systems
• MT64 Is The Ultimate Overlanding Authority, Designed For The Traveler Who Wants A Smooth Ride And Comfort Both On And Off-Road
• Utilizing Ridges On The Body Of The Shock, MT64 Features An Adjustable Spring Seat With 6 Positions In 5mm Increments, Which Allows For One Coil Spring To Cater For Added Accessory Weights

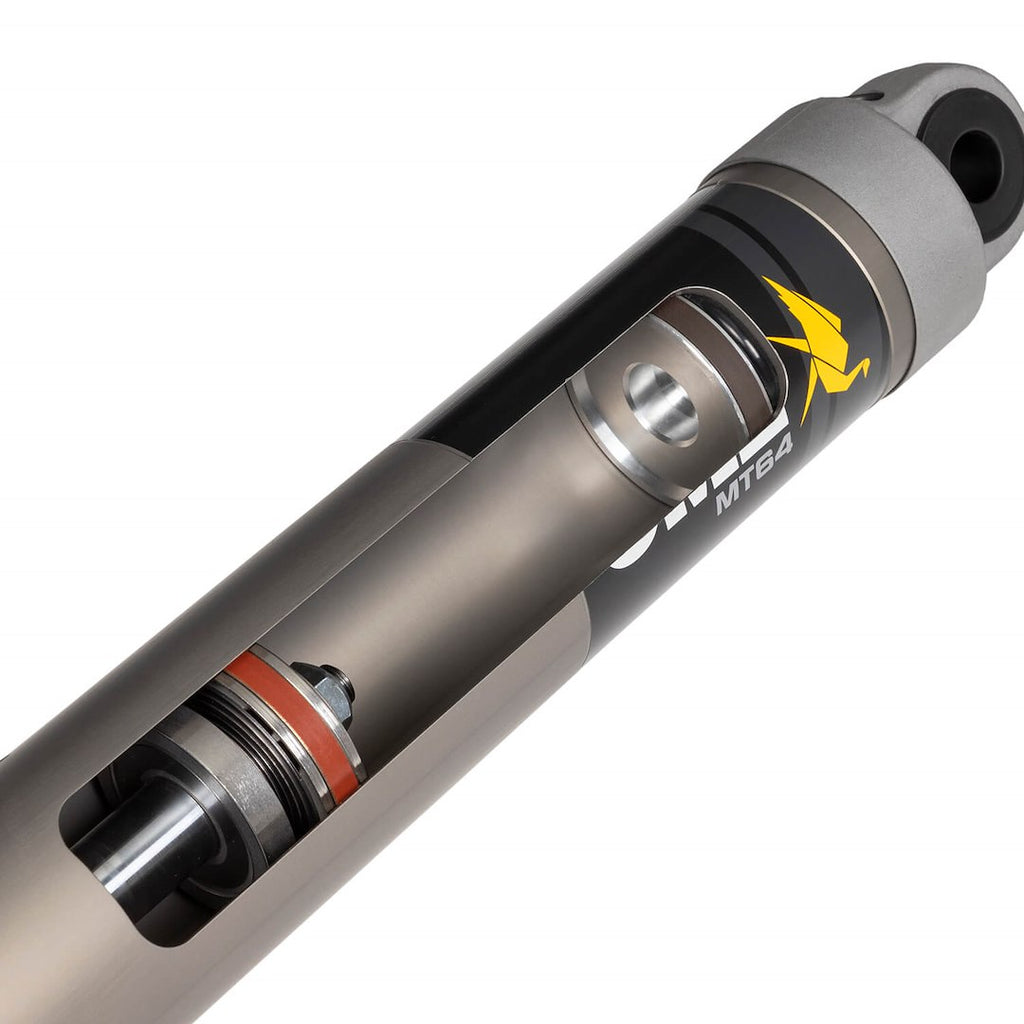

• Massive 2.8 Inch Body Allows For More Oil And Bigger Piston And Shim Stacks, To Reduce Heat Providing More Control Through The Stroke Giving A More Refined Ride

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64601009
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 23-1/2 Inch
• Compressed Length (IN): 15.4 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Digressive Disc Valving
• Ride Height Adjustable: Yes
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2010-2024 Toyota 4Runner
• 2010-2014 Toyota FJ Cruiser
