Advanced hydraulic shock absorber with independent adjustment for optimal performance.
The ARB Shock Absorber BP-51 is a high-performance hydraulic shock absorber designed for enhanced comfort and control in off-road conditions. Engineered by ARB's Old Man Emu ride engineers, this shock absorber is vehicle specific and utilizes existing mounting locations for straightforward installation without modifications. Its unique design features independent adjustment for both rebound and compression, allowing users to customize their ride experience based on individual vehicle needs and trip requirements.
Constructed with a 661 grade aluminum body and a hard anodized finish, the BP-51 ensures increased heat dissipation and corrosion resistance. The shock absorber includes a remote oil reservoir that enhances oil volume, resulting in lower operating temperatures. Additionally, the durable construction incorporates high-quality materials such as X5K grade steel coil and oversized rubber bushings, ensuring longevity and reliability in demanding environments.
The BP-51 also features a replaceable, impact-resistant polyethylene shaft guard that protects the shock from debris, along with a hard chromed piston shaft for added strength. With its advanced design and adjustable valving, the ARB Shock Absorber BP-51 is engineered to deliver superior performance and adaptability for various driving conditions.
Features
- 661 Grade Aluminum Remote Oil Canister Allows For Increased Oil Volume, Resulting In Lower Oil Temperatures
- Durable Dash 6 High Temperature Teflon Hose Incorporates High Flow Fittings For Optimum Oil Flow
- High Quality X5K Grade Steel Coil, For Use On Coil Over Models, Incorporates Application Specific Design
- Quality Oversized Rubber Bushings Result In Excellent Longevity
- Replaceable, Impact Resistant, High Density Polyethylene Shaft Guard Prevents Damage To The Shock Absorber Shaft From Stones And Other Debris
- Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability

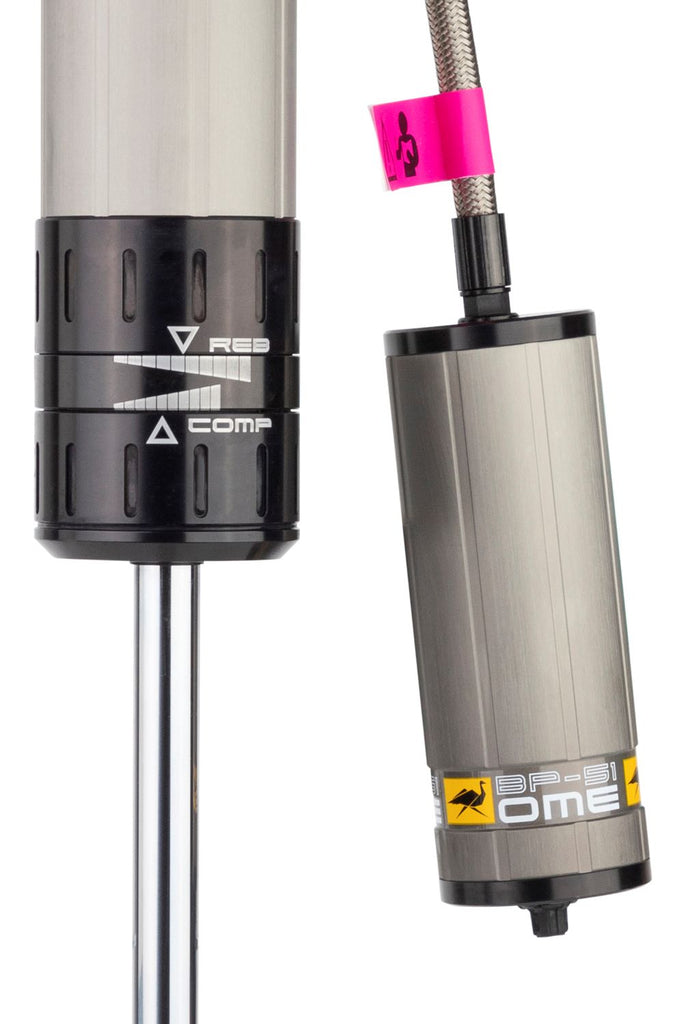

- External, Independent Rebound And Compression Adjustment Allows Fine Tuning Of Ride Comfort And Control To Suit Varying Vehicle And Trip Requirements
- 661 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance
- Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5160022
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 26.9 Inch
- Compressed Length (IN): 16-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Gray
- Rod Diameter (IN): 0.74 Inch
- Valving Type: Firm Compression And Adjustable Rebound Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2007-2018 Jeep Wrangler JK
