High performance hydraulic shock absorber with adjustable settings for comfort and control.

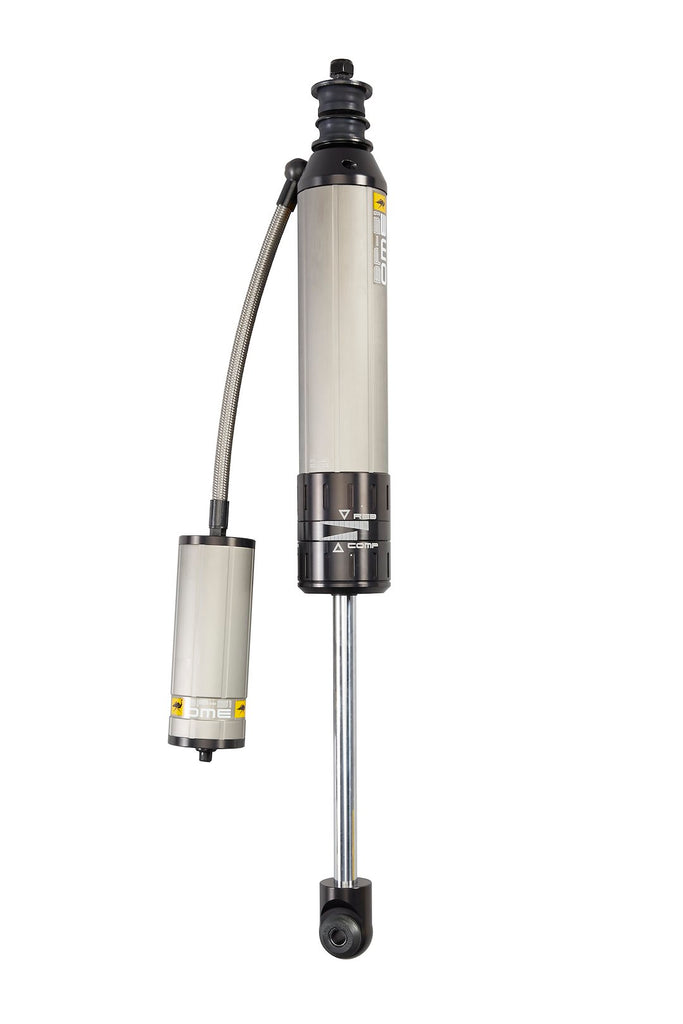

The ARB Shock Absorber BP-51 is a high performance hydraulic shock absorber designed for optimal comfort and control. Engineered by ARB's Old Man Emu ride engineers, this shock absorber is vehicle specific and utilizes existing mounting locations for straightforward installation without modifications. It features independent adjustment for both rebound and compression, allowing users to customize their ride experience based on individual vehicle needs or trip conditions.
Constructed with a 661 grade aluminum body and a hard anodized finish, the BP-51 ensures increased heat dissipation and corrosion resistance. The remote oil reservoir enhances oil volume, which helps maintain lower oil temperatures during operation. Additionally, the shock absorber is equipped with durable components such as high temperature Teflon hoses and oversized rubber bushings, contributing to its longevity and performance.
The design includes a replaceable, impact resistant polyethylene shaft guard that protects the shock absorber from debris, while the hard chromed piston shaft provides exceptional strength. With its advanced features, the ARB BP-51 shock absorber is engineered to deliver superior ride quality and control, making it a reliable choice for off-road enthusiasts.
Features
- 661 Grade Aluminum Remote Oil Canister Allows For Increased Oil Volume, Resulting In Lower Oil Temperatures
- Durable Dash 6 High Temperature Teflon Hose Incorporates High Flow Fittings For Optimum Oil Flow
- High Quality X5K Grade Steel Coil, For Use On Coil Over Models, Incorporates Application Specific Design
- Quality Oversized Rubber Bushings Result In Excellent Longevity
- Replaceable, Impact Resistant, High Density Polyethylene Shaft Guard Prevents Damage To The Shock Absorber Shaft From Stones And Other Debris
- Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability
- External, Independent Rebound And Compression Adjustment Allows Fine Tuning Of Ride Comfort And Control To Suit Varying Vehicle And Trip Requirements
- 661 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance
- Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5160021
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 24.9 Inch
- Compressed Length (IN): 15.6 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Gray
- Rod Diameter (IN): 0.74 Inch
- Valving Type: Firm Compression And Adjustable Rebound Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2007-2018 Jeep Wrangler JK
