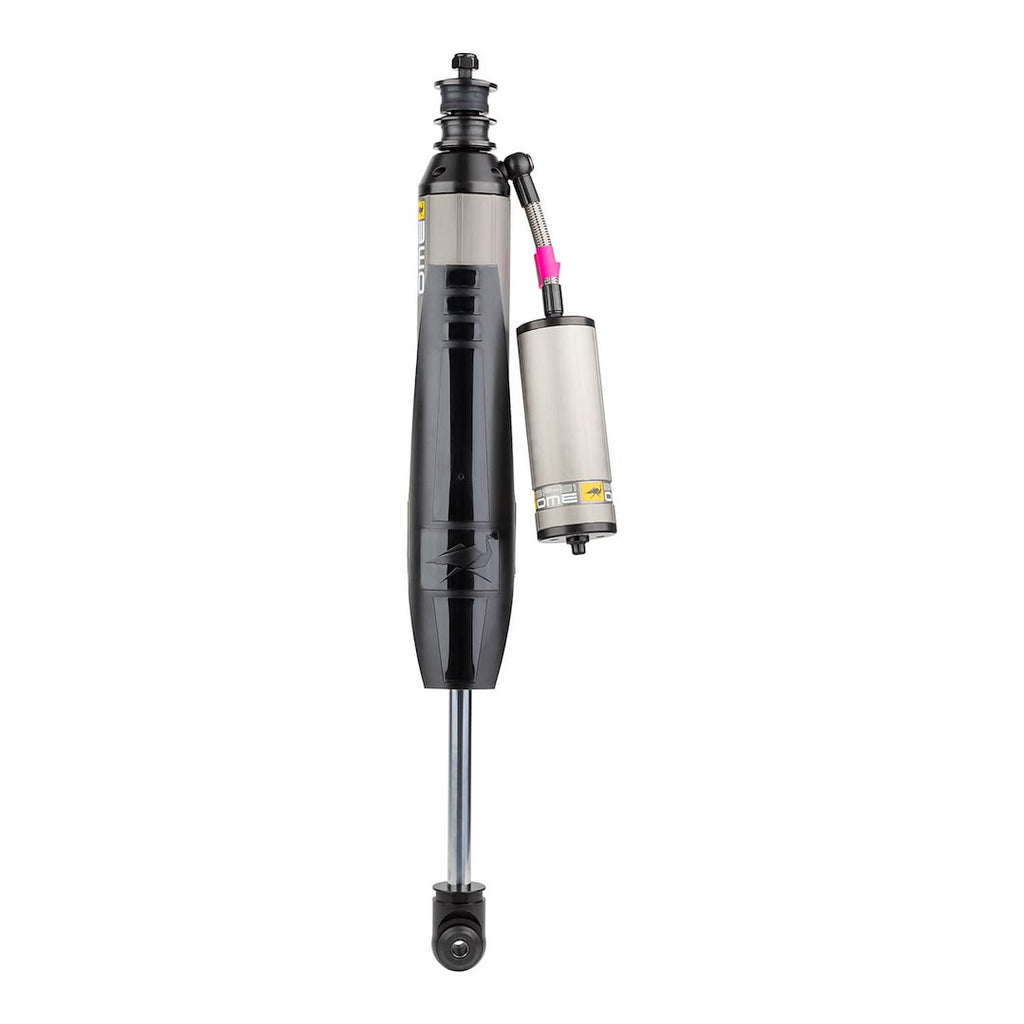

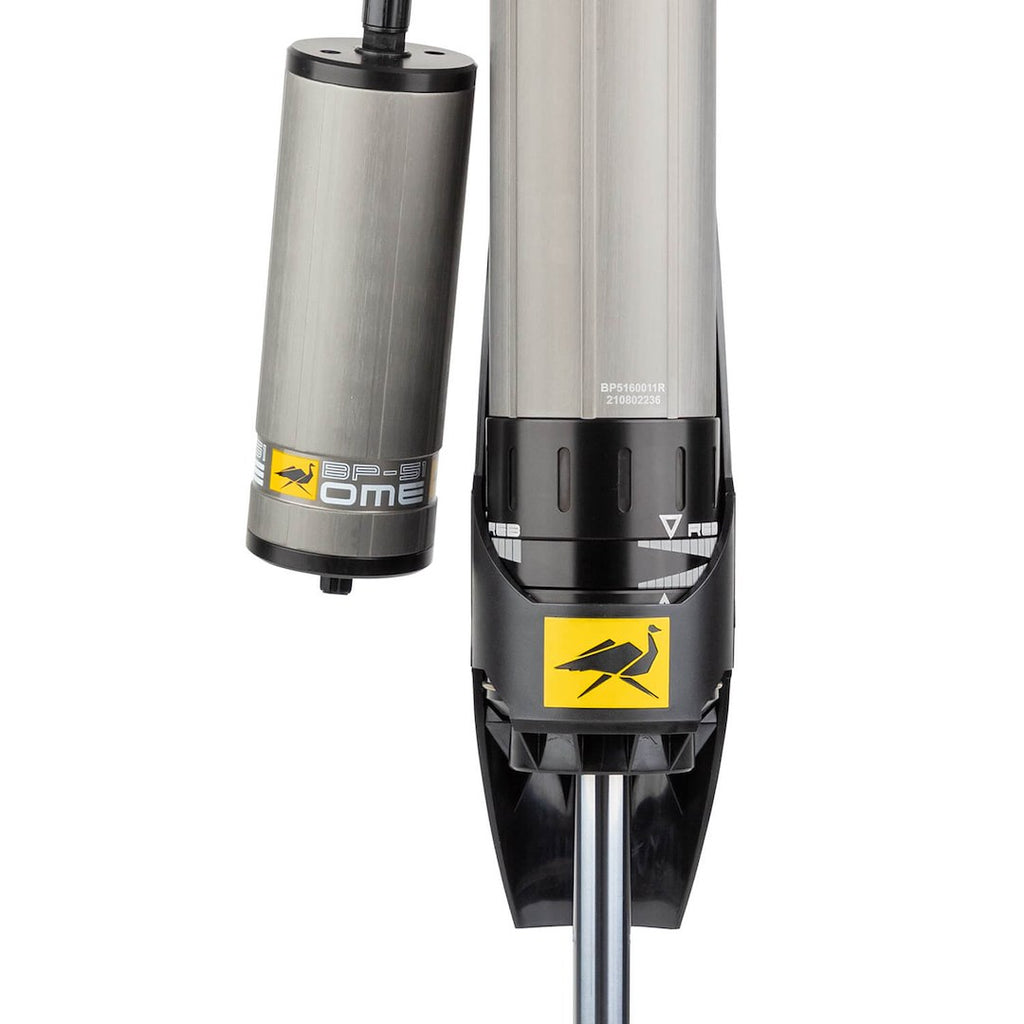

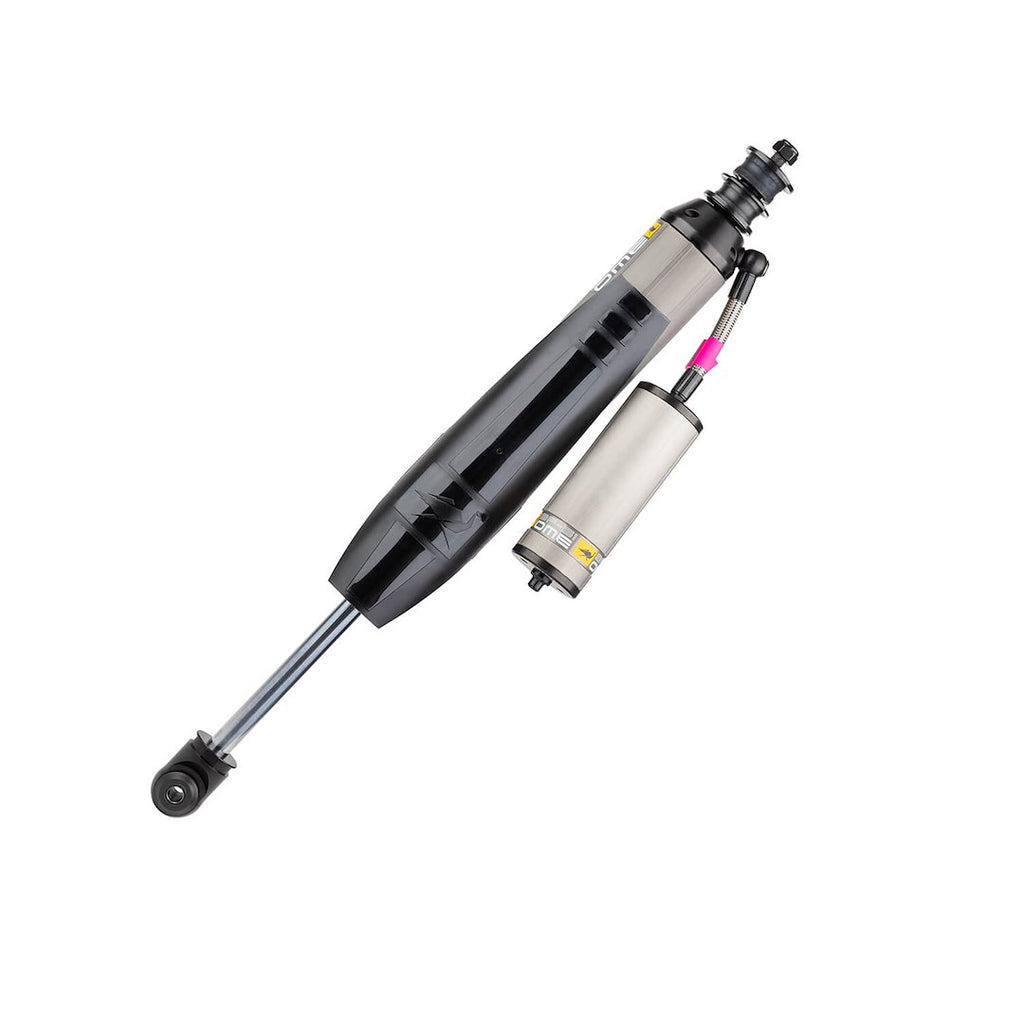

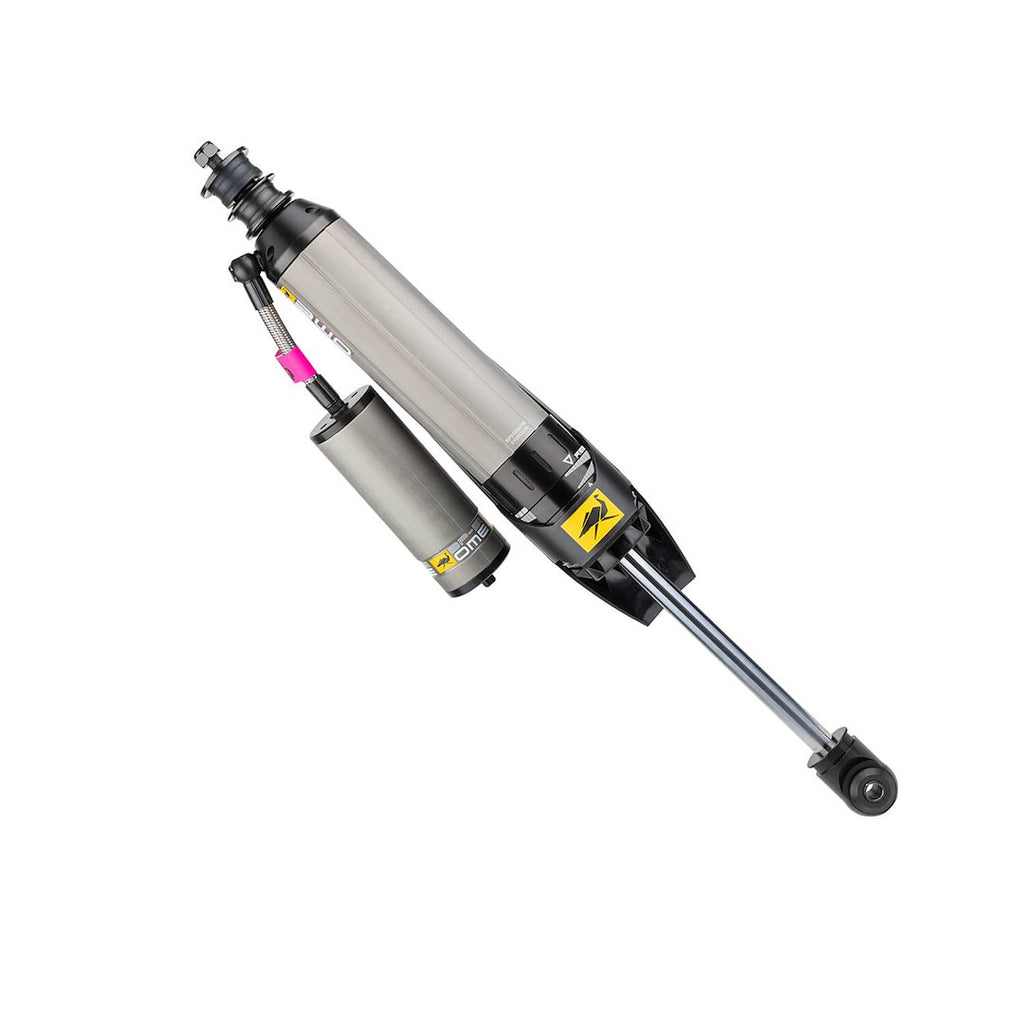

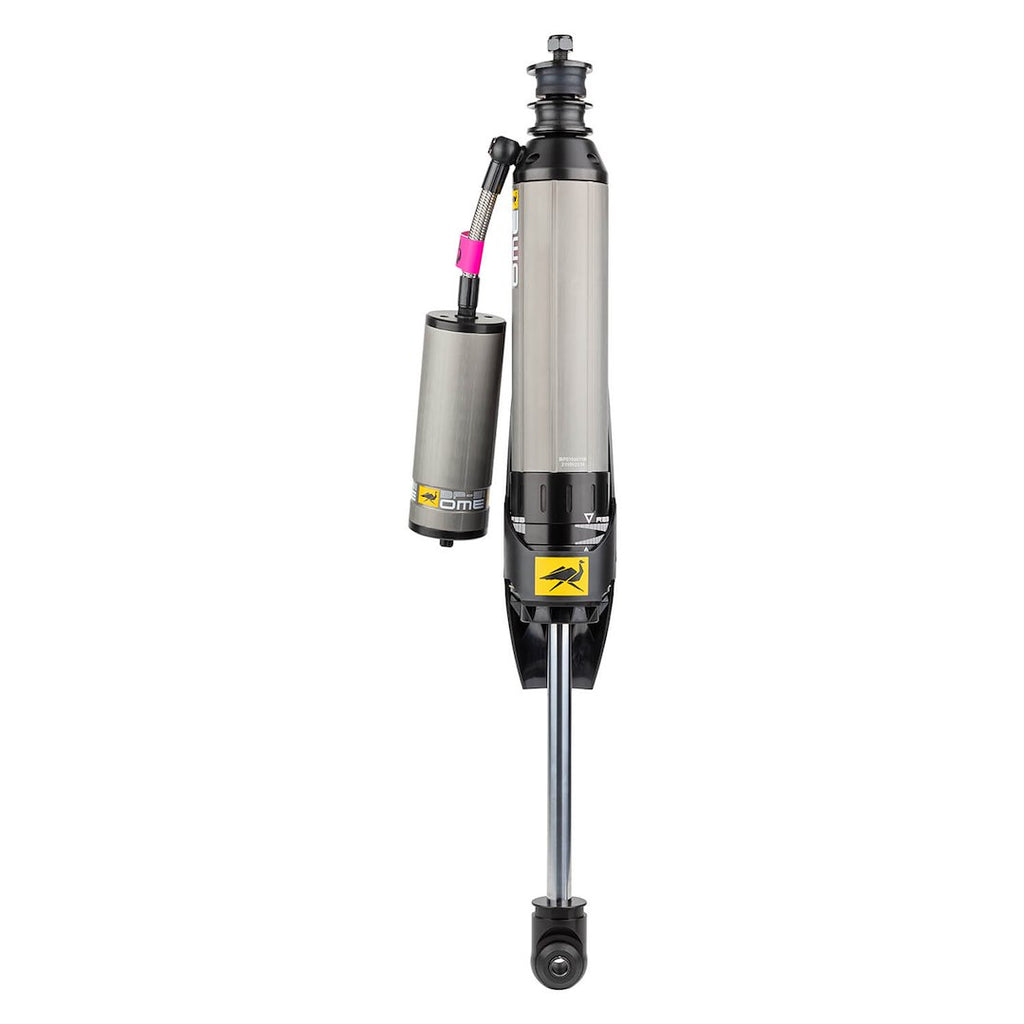

ARB Shock Absorber BP-51 (MPN: BP5160011R)

High performance hydraulic shock absorber with advanced adjustability features.

The ARB Shock Absorber BP-51 is engineered for high performance, providing exceptional comfort and control for off-road vehicles. This hydraulic shock absorber features an external reservoir that increases oil volume, resulting in lower oil temperatures and improved performance. Designed specifically for vehicle compatibility, it utilizes existing mounting locations for straightforward installation without modifications.

One of the standout features of the BP-51 is its independent adjustment for both rebound and compression, allowing users to fine-tune their ride to meet specific vehicle and trip requirements. The shock absorber is constructed from durable materials, including a hard chromed piston shaft and a high-density polyethylene shaft guard, ensuring longevity and resistance to damage from debris.

With a body made from 661 grade aluminum and a Type III hard anodized finish, the BP-51 offers enhanced heat dissipation and corrosion resistance. The shock absorber's design incorporates high flow fittings and a remote reservoir piggyback clamp for optimal oil flow and easy connection. This product is a reliable choice for those seeking to enhance their vehicle's suspension performance.

Features

• 661 Grade Aluminum Remote Oil Canister Allows For Increased Oil Volume, Resulting In Lower Oil Temperatures
• Durable Dash 6 High Temperature Teflon Hose Incorporates High Flow Fittings For Optimum Oil Flow
• Replaceable, Impact Resistant, High Density Polyethylene Shaft Guard Prevents Damage To The Shock Absorber Shaft From Stones And Other Debris
• Hard Chromed, Ground Piston Shaft For The Ultimate In Strength And Durability
• External, Independent Rebound And Compression Adjustment Allows Fine Tuning Of Ride Comfort And Control To Suit Varying Vehicle And Trip Requirements
• 661 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance
• Remote Reservoir Piggy Back Clamp Allows Easy Connection Of The Remote Oil Reservoir To The Main Shock Absorber Body

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5160011R
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21-1/2 Inch
• Compressed Length (IN): 15.4 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Gray
• Rod Diameter (IN): 0.7 Inch
• Valving Type: Multi Deflective Disc Valving
• Rod Material: Steel
• Body Material: Aluminum
• With Reservoir: Yes
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2005-2023 Toyota Tacoma
