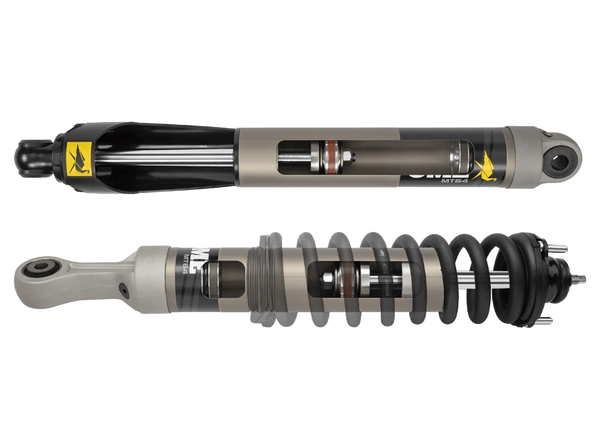

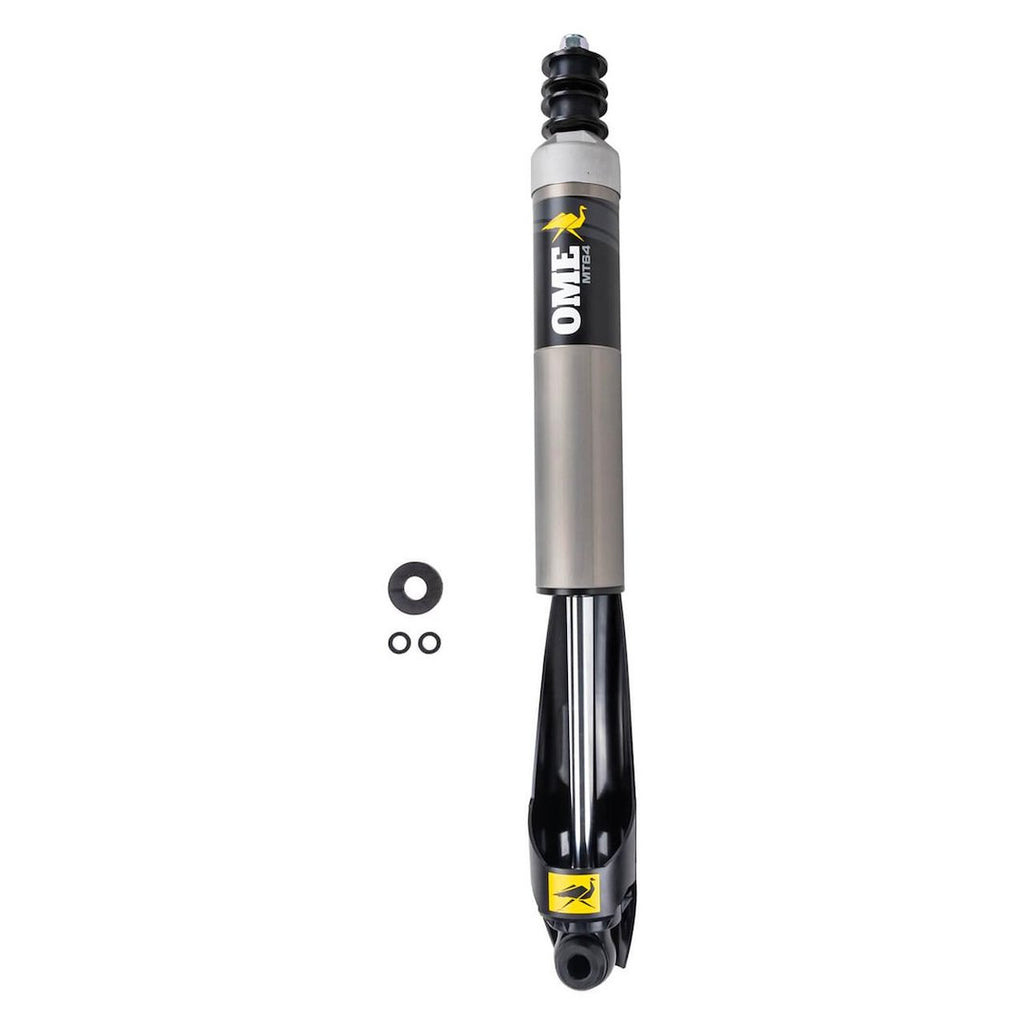

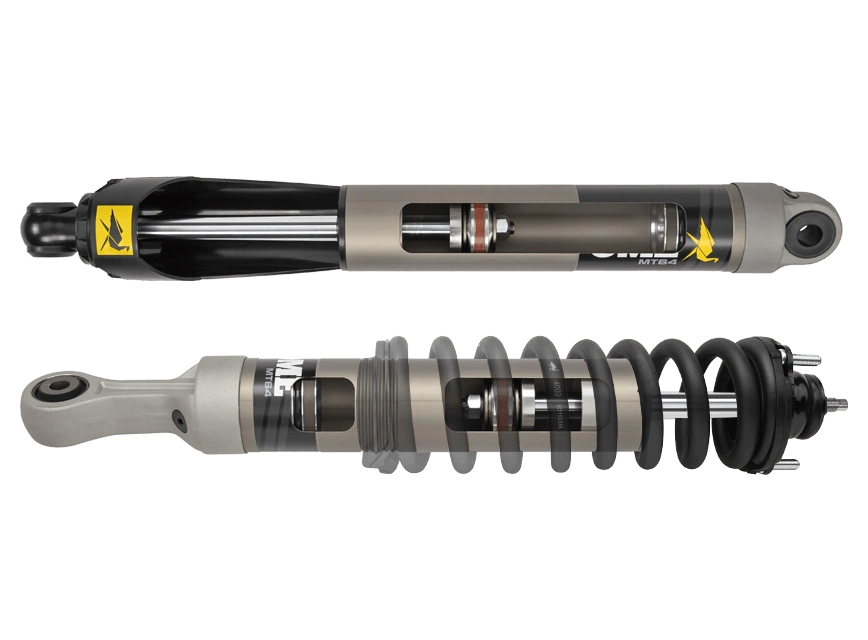

ARB MT64 Shock Absorber (MPN: MT64601031)

Engineered for optimal performance across various terrains and conditions.

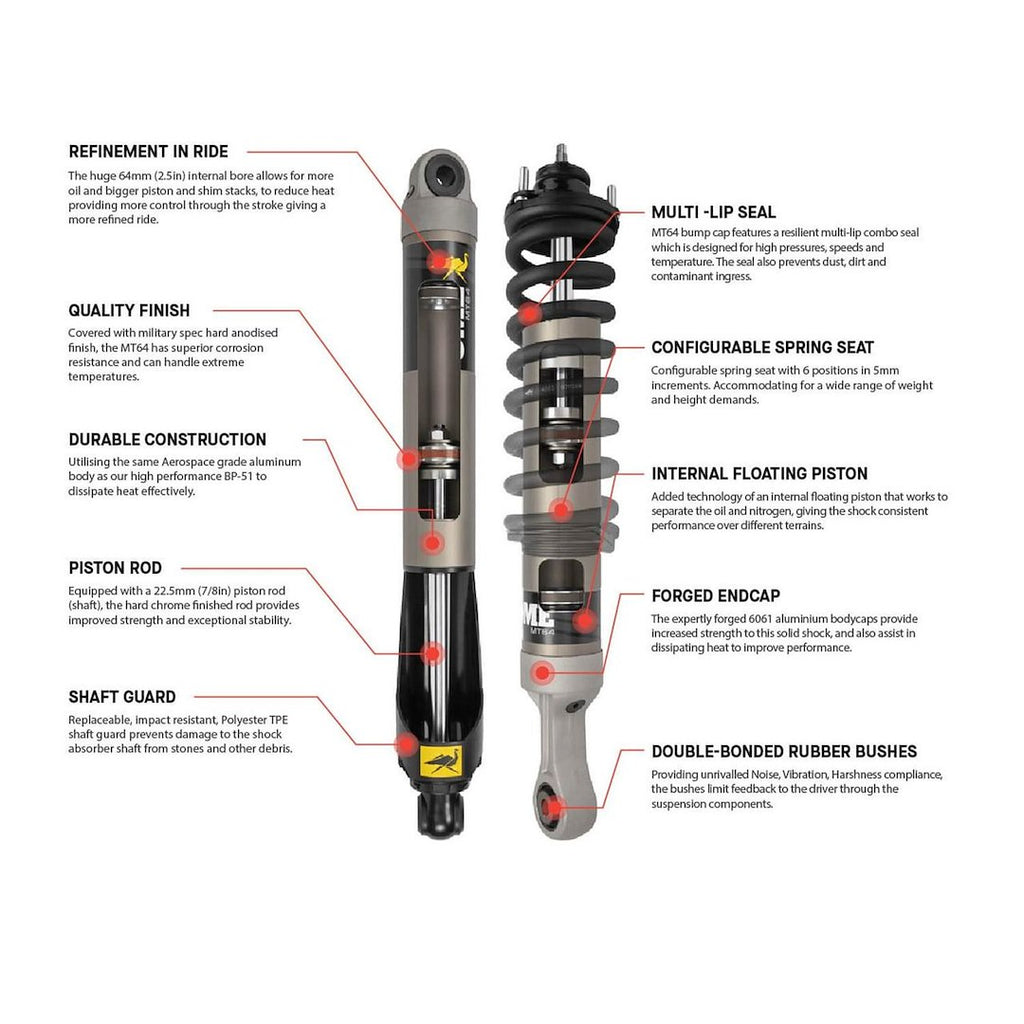

The ARB MT64 shock absorber is designed to provide exceptional ride quality and control for a wide range of vehicles. With a robust 2.8 inch aluminum body, this hydraulic shock absorber is specifically tuned for vehicles with a rear lift of 0-2 inches, accommodating stock rear end weights up to 660 pounds. Its monotube design allows for efficient oil flow and precise shock tuning, ensuring consistent performance in diverse driving conditions.

Constructed from aerospace-grade aluminum, the MT64 dissipates heat significantly faster than traditional steel, enhancing durability and resistance to stone damage. The shock features a hydraulic end zone top out, which adds cushioning at full extension to mitigate the impact of unexpected bumps. Additionally, the upgraded top hat is made from ultra-durable billet aluminum, eliminating weak points found in other shock designs.

The digressive valving system of the MT64 reacts instantly to changing surface conditions, maximizing performance and comfort. This shock absorber is a direct replacement for stock and aftermarket lift kits, making it a versatile choice for both daily driving and off-road adventures. With included hardware and a straightforward installation process, the MT64 is engineered to meet the demands of serious drivers.

Features

• Rear Shock Absorber Tuned For Stock Rear End Weight Up To 660 Pound And 2 Inch Lift
• Monotube Design With A Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With A Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps
• Upgraded Top Hat Utilizes An Through Bolt Mounting Style And Is Made From Ultra Durable Billet Aluminum Top Hat, Removes An Weak Spot Found On Other Shocks
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64601031
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 26-1/2 Inch
• Compressed Length (IN): 16.9 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Without Valving
• Rod Material: Aluminum
• Body Material: Aluminum
• With Reservoir: No
• Includes Hardware: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2025 Toyota Tundra
