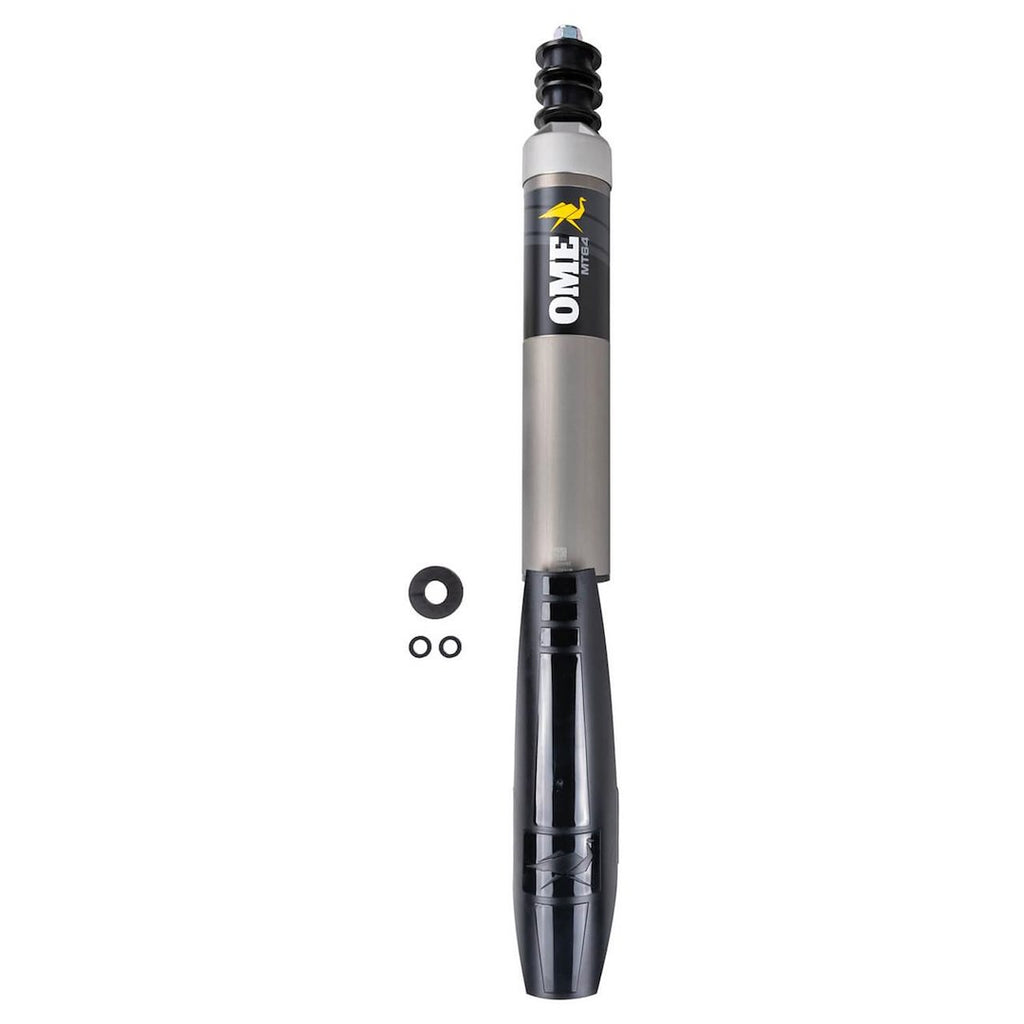

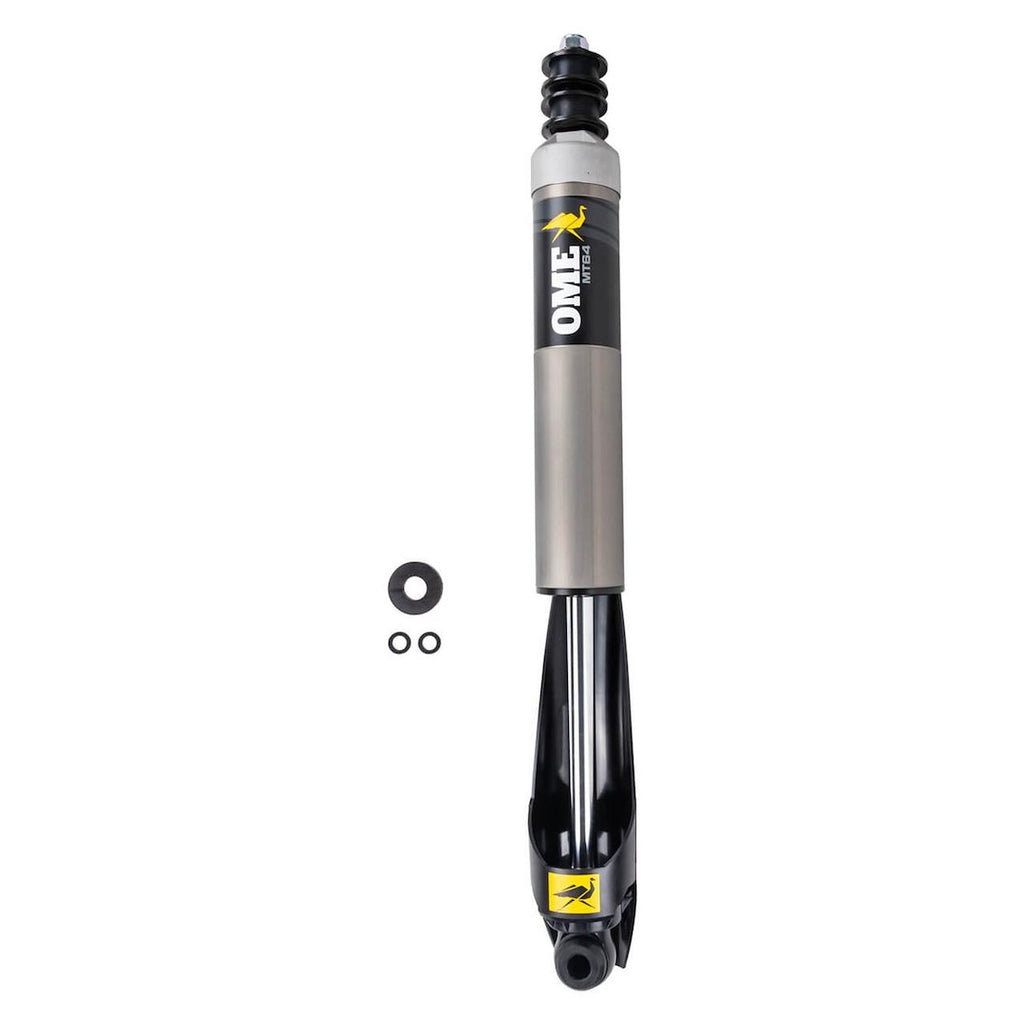

ARB MT64 Hydraulic Shock Absorber (MPN: MT64601052)

Engineered for optimal performance across various terrains and conditions.

The ARB MT64 hydraulic shock absorber is designed to provide superior ride quality and control for a wide range of vehicles. With a robust 2.8 inch aluminum body, this shock absorber is built to withstand the rigors of off-road driving while ensuring effective damping for both daily commutes and challenging terrains. It is specifically tuned for vehicles with a rear lift of 0 to 2 inches and can support weights up to 660 pounds, making it a versatile choice for various applications.

Featuring a monotube design, the MT64 allows for increased oil capacity, which enhances shock tuning accuracy and performance. The aerospace-grade aluminum construction dissipates heat significantly faster than traditional steel, providing added durability and protection against damage from stones and debris. The digressive valving system reacts instantly to changing surface conditions, ensuring that the driver experiences maximum performance and comfort.

This shock absorber is a direct replacement for stock and aftermarket lift kits, making installation straightforward. It includes essential components such as a dust shield, hardware, and a boot, ensuring that it is ready for immediate use. The hydraulic end zone top out feature provides additional cushioning at full extension, helping to absorb unexpected bumps and enhancing overall ride quality.

Features

• Rear Shock Absorber Tuned For Stock Rear End Weight Up To 660 Pound And 2 Inch Of Lift
• Monotube Design With An Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With A Hydraulic End Zone Top Out
• Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64601052
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 26.1 Inch
• Compressed Length (IN): 16-1/2 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Digressive Disc Valving
• Ride Height Adjustable: Yes
• Rod Material: Aluminum
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2025-2026 Toyota 4Runner
