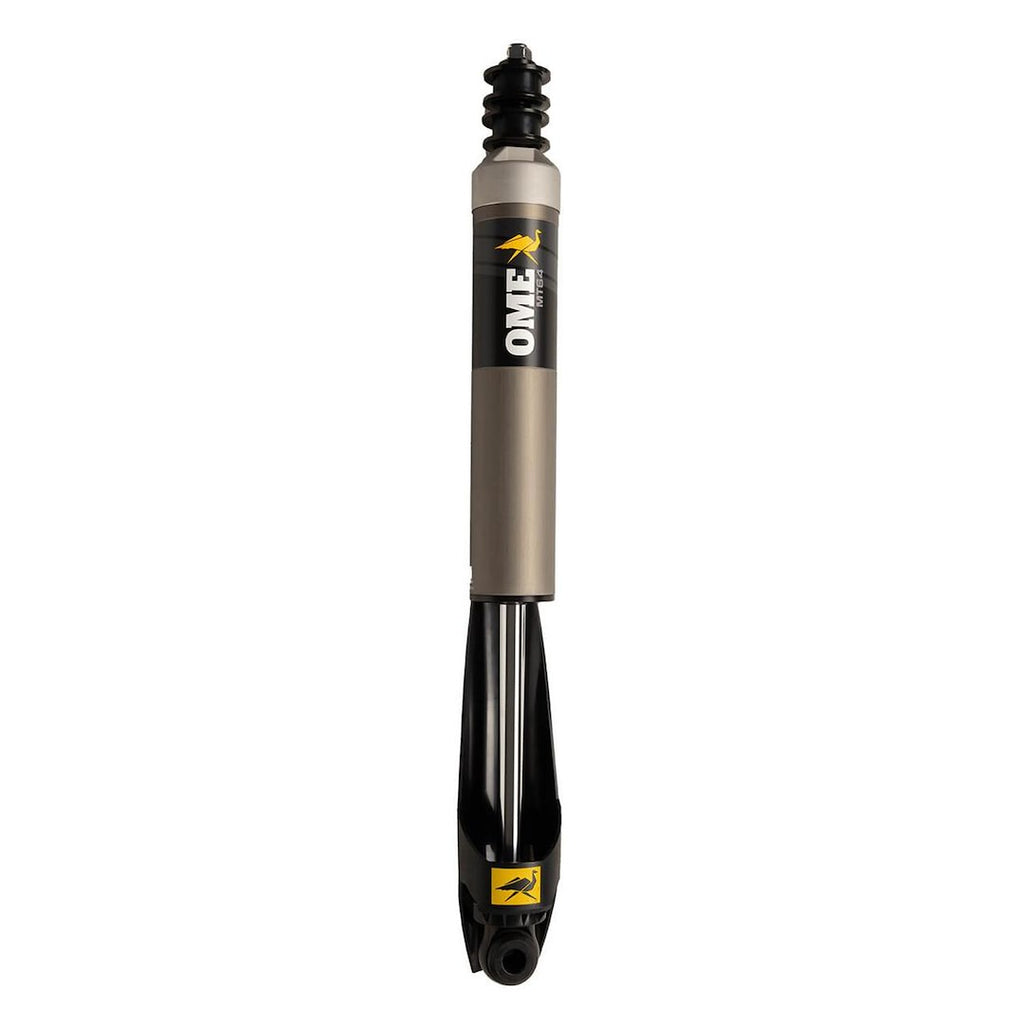

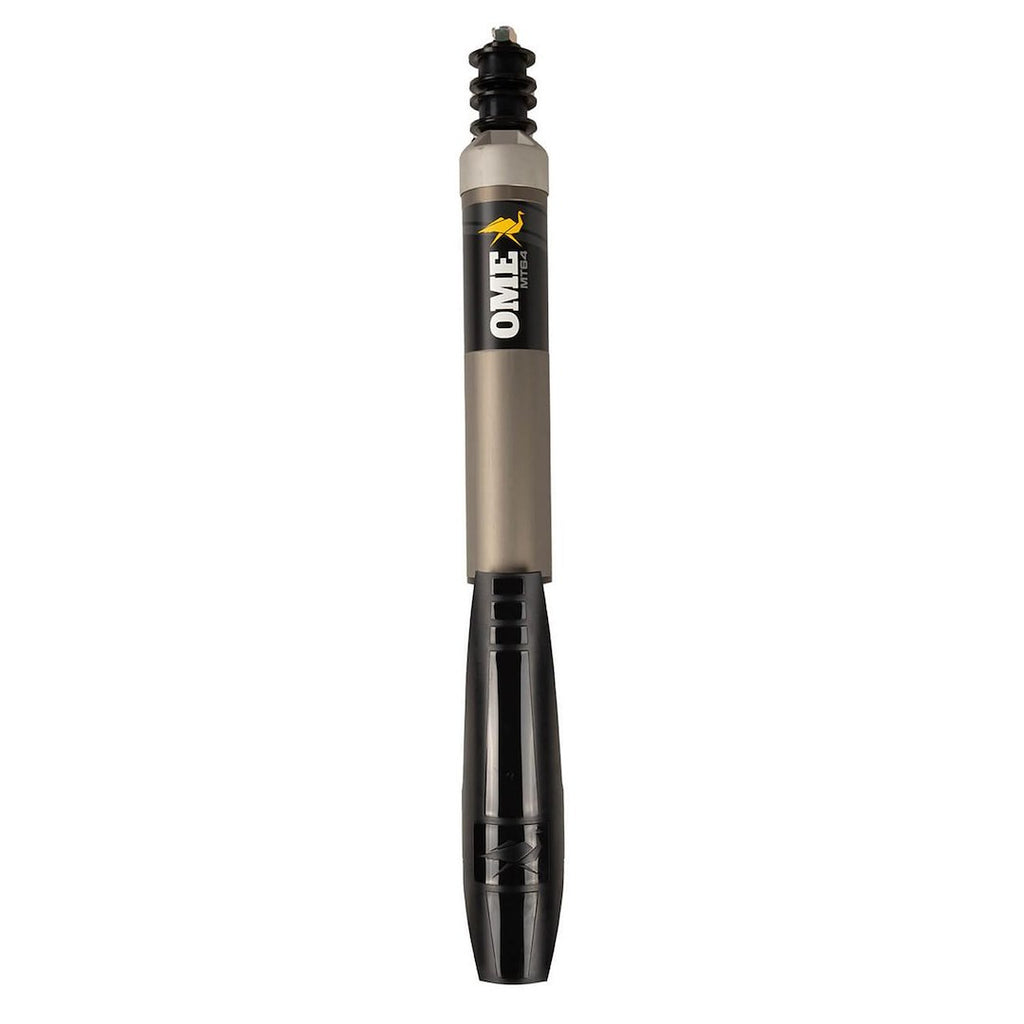

ARB MT64 Hydraulic Shock Absorber (MPN: MT64601035)

Engineered for optimal load handling and vehicle-specific damping.

The ARB MT64 Hydraulic Shock Absorber is designed to meet the rigorous demands of overlanding and custom vehicle builds. This shock absorber provides exceptional load handling capabilities, accommodating rear weights of up to 660 pounds while offering a 2-inch lift when paired with coil springs. Its monotube design features a robust 2.8-inch body that enhances oil capacity for precise shock tuning, ensuring performance under various conditions.

Constructed from aerospace-grade aluminum, the MT64 dissipates heat significantly faster than traditional steel, providing increased durability against stone damage. The shock's innovative hydraulic end zone top out adds cushioning at full extension, effectively managing unexpected bumps during travel. With digressive valving, the MT64 instantly adapts to changing surface conditions, maximizing performance for both on-road and off-road applications.

This shock absorber is a direct replacement for stock and aftermarket lift kits, featuring an upgraded top hat made from ultra-durable billet aluminum. The design eliminates weak points found in other shocks, ensuring reliability and strength. The ARB MT64 is engineered for those who require a smooth and comfortable ride, regardless of the terrain.

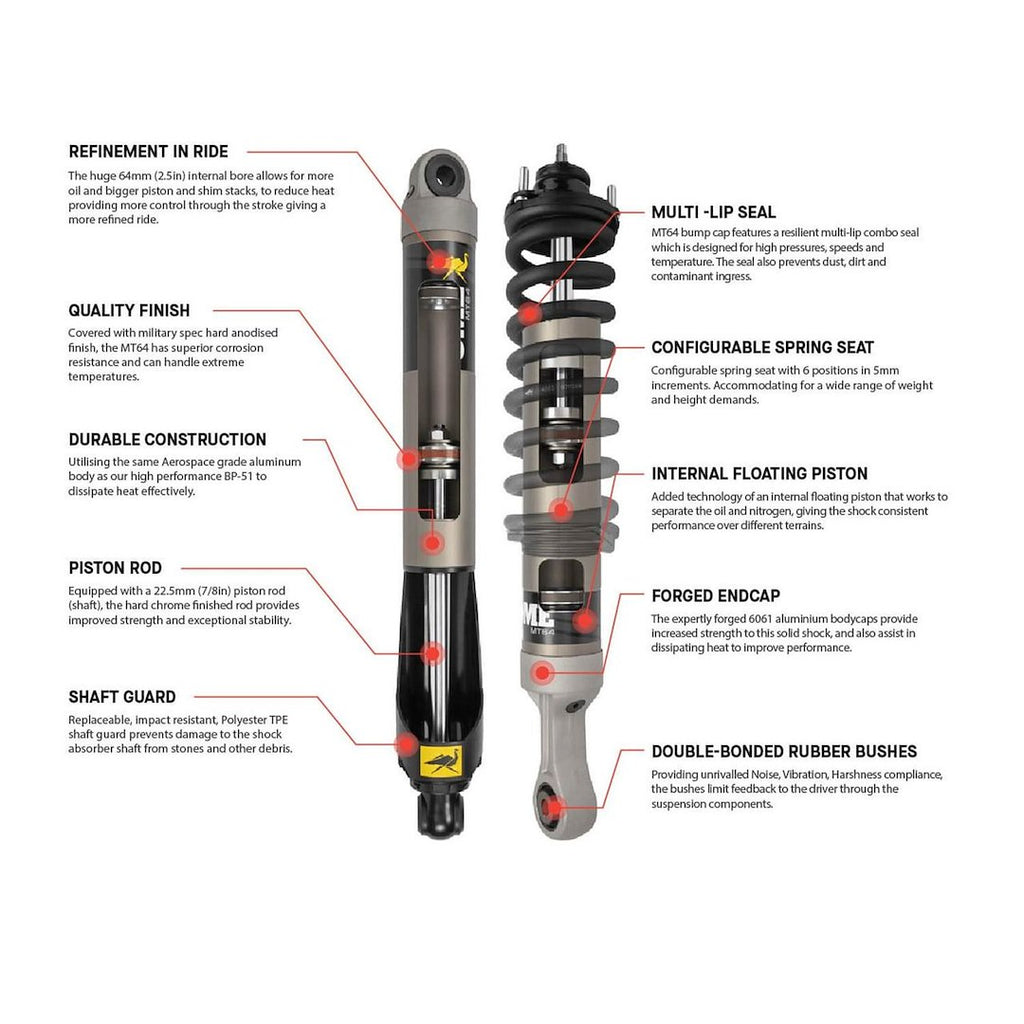

Features

• Rear Shock Absorber Tuned For Stock Rear End Weight Up To 660 Pound And 2 Inch Lift
• Monotube Design With A Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With A Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps
• Upgraded Top Hat Utilizes An Through Bolt Mounting Style And Is Made From Ultra Durable Billet Aluminum Top Hat, Removes An Weak Spot Found On Other Shocks
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64601035
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 26 Inch
• Compressed Length (IN): 16.4 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 7/8 Inch
• Valving Type: Without Valving
• Rod Material: Aluminum
• Body Material: Aluminum
• With Reservoir: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2024-2025 Toyota Tacoma
