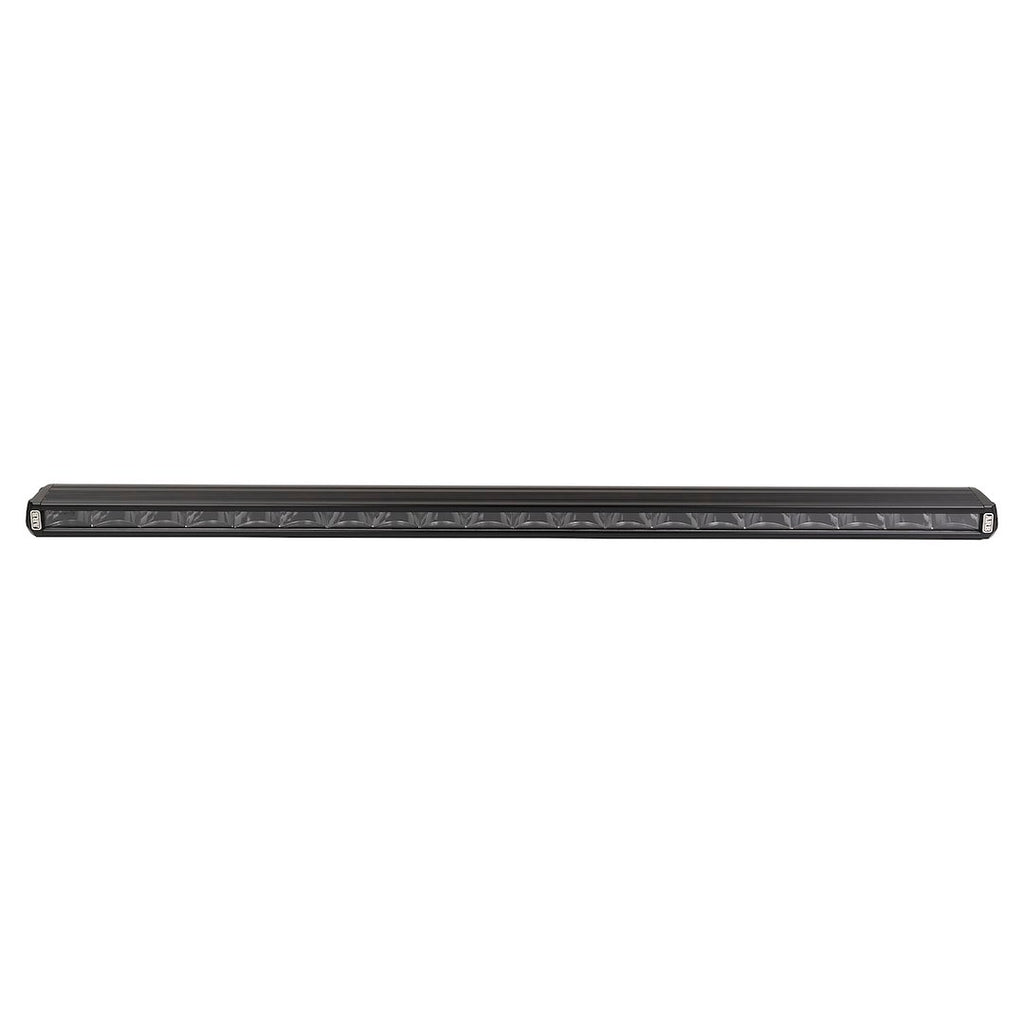

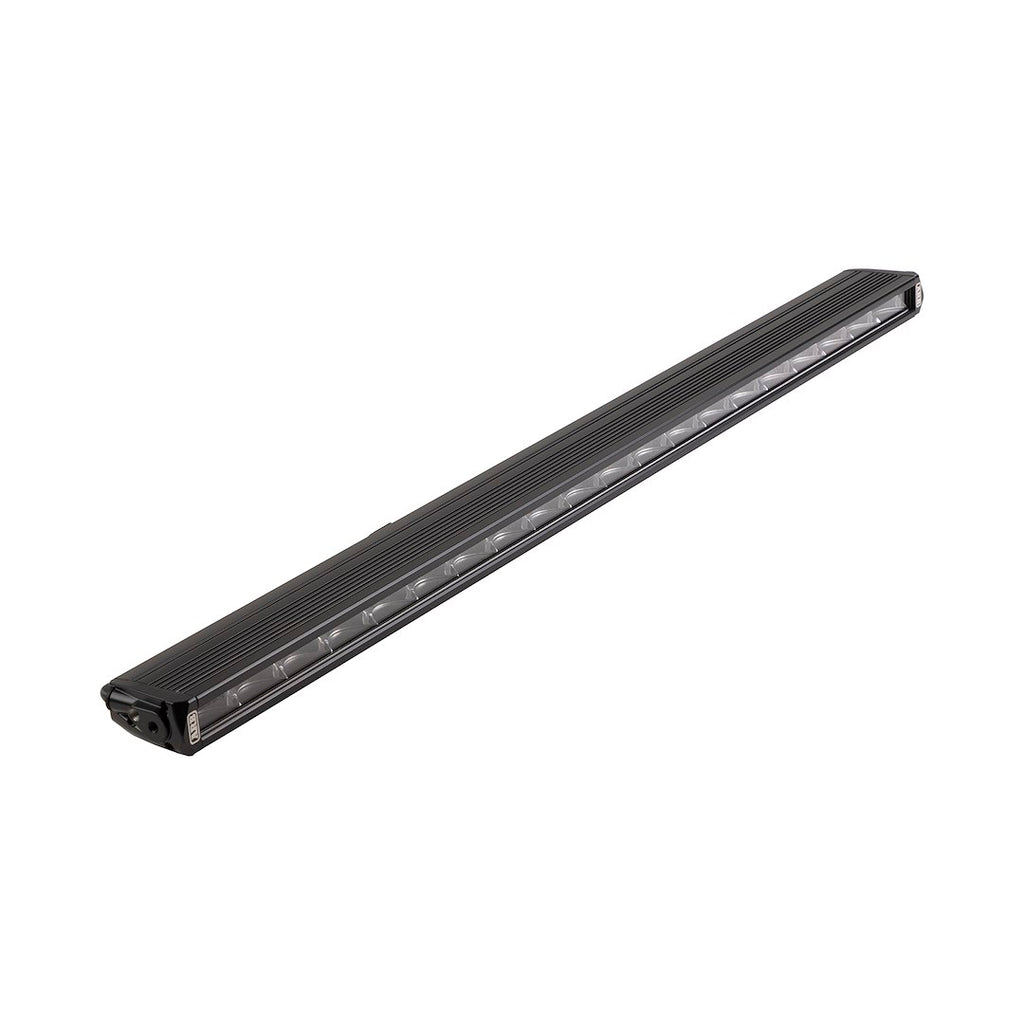

High-performance 36-inch light bar with advanced reflector design.
The ARB LED Slimline Light Bar is engineered for optimal performance and durability. Measuring 36 inches in length, this light bar features a unique reflector design that enhances both distance and width for highway driving, while minimizing light reflection off the vehicle hood. The combination beam technology provides an excellent mid-to-long-range spread, ensuring visibility on various terrains.
Constructed with a virtually indestructible polycarbonate lens and a robust extruded aluminum body, the light bar is finished with a stealth black powder coating for added protection. It is designed to withstand harsh conditions, featuring thermal management, dust and waterproof capabilities rated to IP68, and protection against over and under voltage.
The ARB light bar is equipped with 20 Amber OSRAM 6.5 Watt LED bulbs, delivering a total of 9279 raw lumens and 8552 effective lumens. Its bolt-on mounting style allows for easy installation on the ARB Roof Rack, providing flexibility to mount it in front or underneath the rack. Additionally, the light bar includes a waterproof Deutsch plug connector for a reliable connection.
Features
- Unique Reflector Design Provides Optimum Distance End Width For Highway Driving
- Reflector Design Limits Light Being Reflected Off The Vehicle Hood And Bar Work
- Combo Been Technology Provides Excellent Mid-To Long-Range Spread As Well As Distance Down The Road
- Virtually Indestructible Polycerbonate Lens
- Extruded Aluminum Body With Stealth Black Powder coated Finish
- Reverse Polarity Protection, Breather With Pressure-Tested Seal, Vibration And UV Tested
- Thermal Management, Dust And Waterproof To IP68, Over And Under Voltage Protection
- Protected Against Radio Frequency (RFi) And Electromagnetic (EMC) Interference. Two-Pin. Over-Moulded. Waterproof Plug
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: 1780500
- Bulb Type: LED
- Style: Straight
- Length: 36 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Lumens: 9279 Raw/ 8552 Effective Lumens
- Wattage: 130 Watt
- Voltage Rating: 12 Volt
- Bulb Specifications: 20 Amber OSRAM 6.5 Watt LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Bolt-On Mount
- Connection Type: Plug And Play Wiring Harness

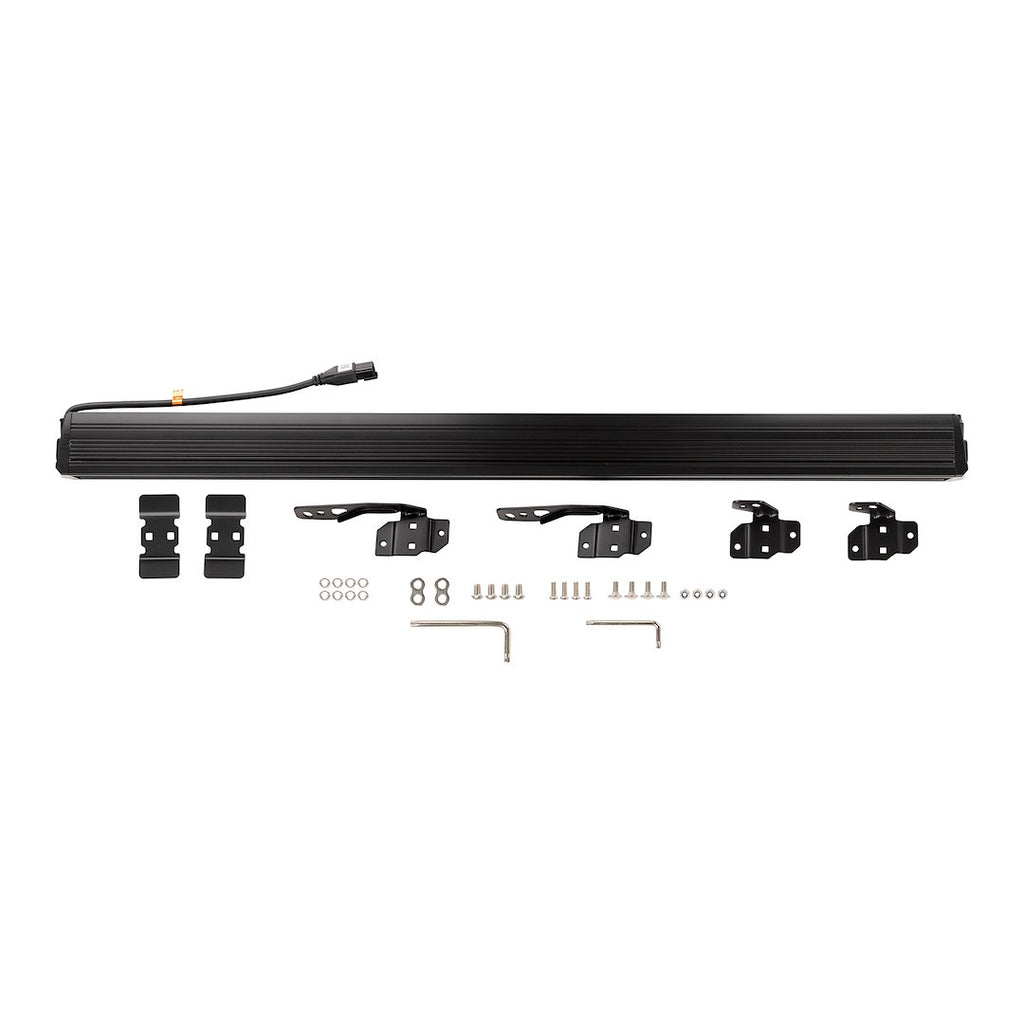

- Includes: With Mounting Hardware/ Waterproof Deutsch Plug Connector
- Estimated Install Time (Hours): 1.5
