Enhance your vehicle's performance with advanced leaf spring technology.

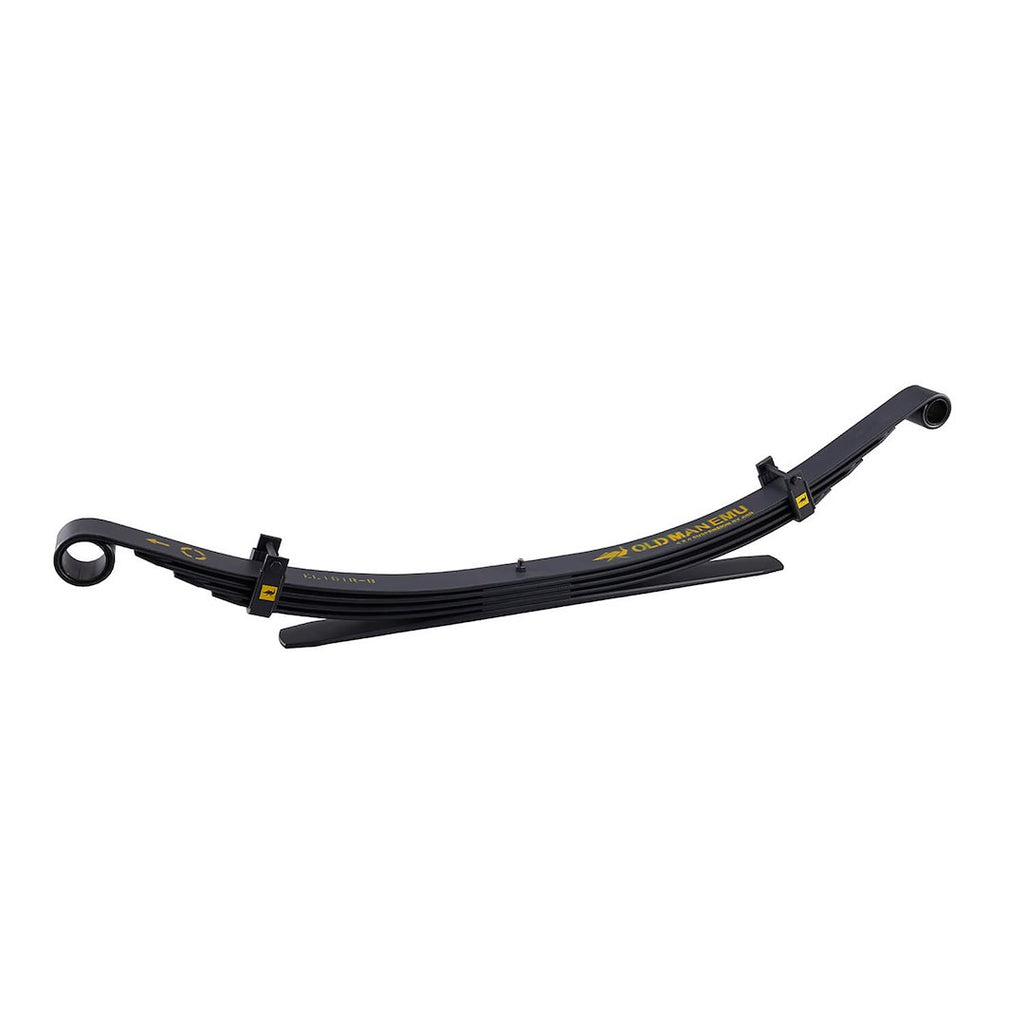

The ARB Leaf Spring is engineered to provide a 1 inch lift with a robust 230 foot pound rate, making it suitable for various recreational and commercial applications. This single leaf spring is designed with draw tapered and diamond cut leaves, which ensure that the load is distributed over a larger surface area, effectively reducing high stresses at the leaf ends. The inclusion of anti-friction pads and regreasable nylon interleaf liners minimizes friction at critical load points, enhancing ride quality and extending the lifespan of the spring.
Constructed with a flat axle seat area, this leaf spring allows for a secure axle mount, which reduces spring stress and further increases durability. The shot peening process applied to the tension side of all leaves significantly reduces spring stress, potentially doubling the lifespan of the spring. Additionally, the two-stage leaf pack design featured on most rear springs optimizes comfort while the military wrap adds an extra layer of safety.
Fully scragged and load tested, the ARB Leaf Spring ensures a permanent set that minimizes the risk of sagging, while meeting all required specifications. The bolted leaf clamps facilitate the installation of anti-squeak nylon liners, contributing to a quieter and more efficient operation. This leaf spring is an essential component for those looking to enhance their vehicle's handling and load carrying capabilities.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
- Provides Increased Ride Quality And Protection Against Leaf Breakage, Significantly Increasing The Spring Life
- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
- Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
- Two-Stage Leaf Pack: Featured On Most Rear Springs For Optimum Comfort
- Military Wrap: Designed To Provide Added Safety
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging, Load Testing Ensures The Spring Meets The Required Specification

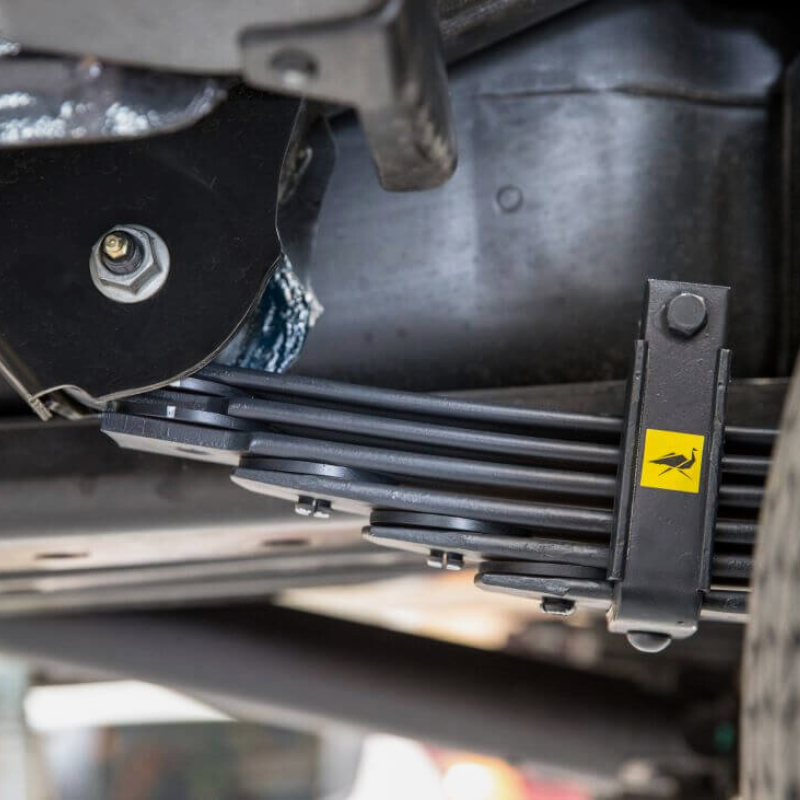

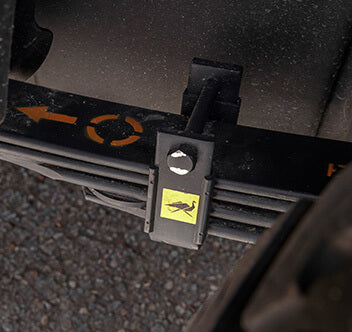

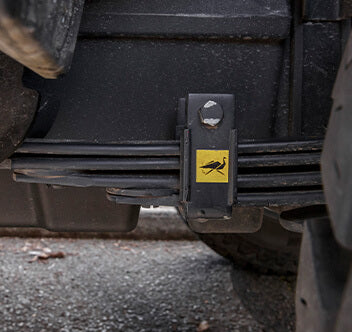

- Bolt Clamps And Liners: The Leaf Clamps Are Bolted To Allow Installation Of Anti Squeak Nylon Liners
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: EL101R
- Number Of Leafs: 4 + 1 Helper
- Spring Rate: 230/ 430 Pounds Per Inch
- Quantity: Single
- Estimated Install Time (Hours): 2
