High-performance LED light bar with advanced heat management and mounting system.

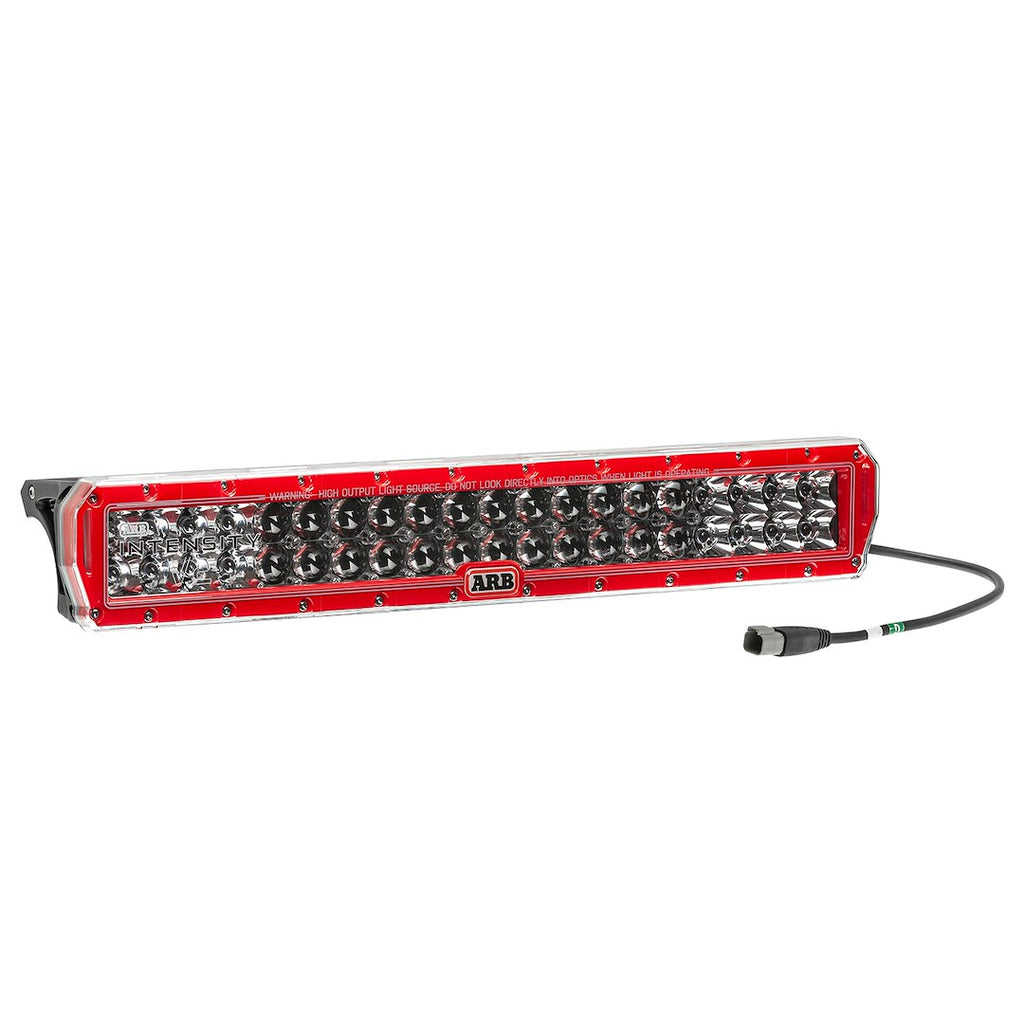

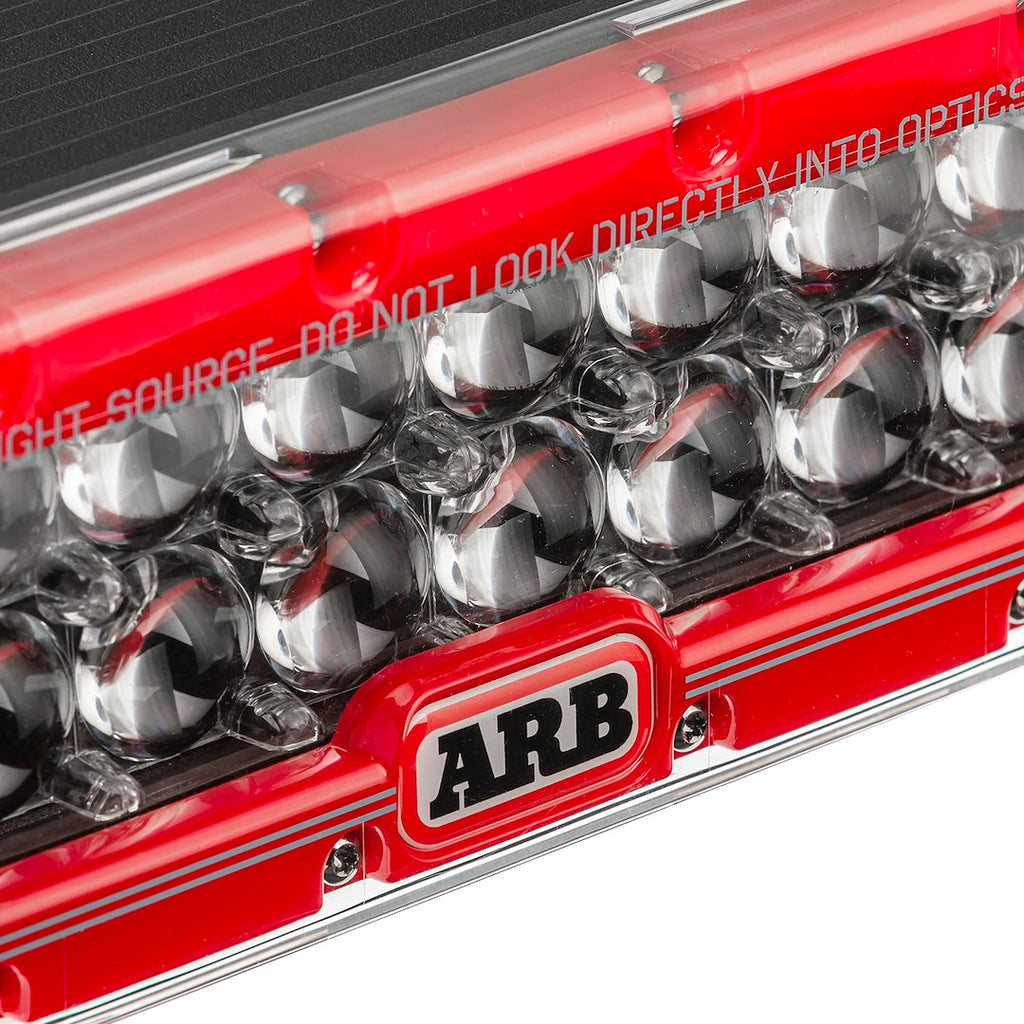

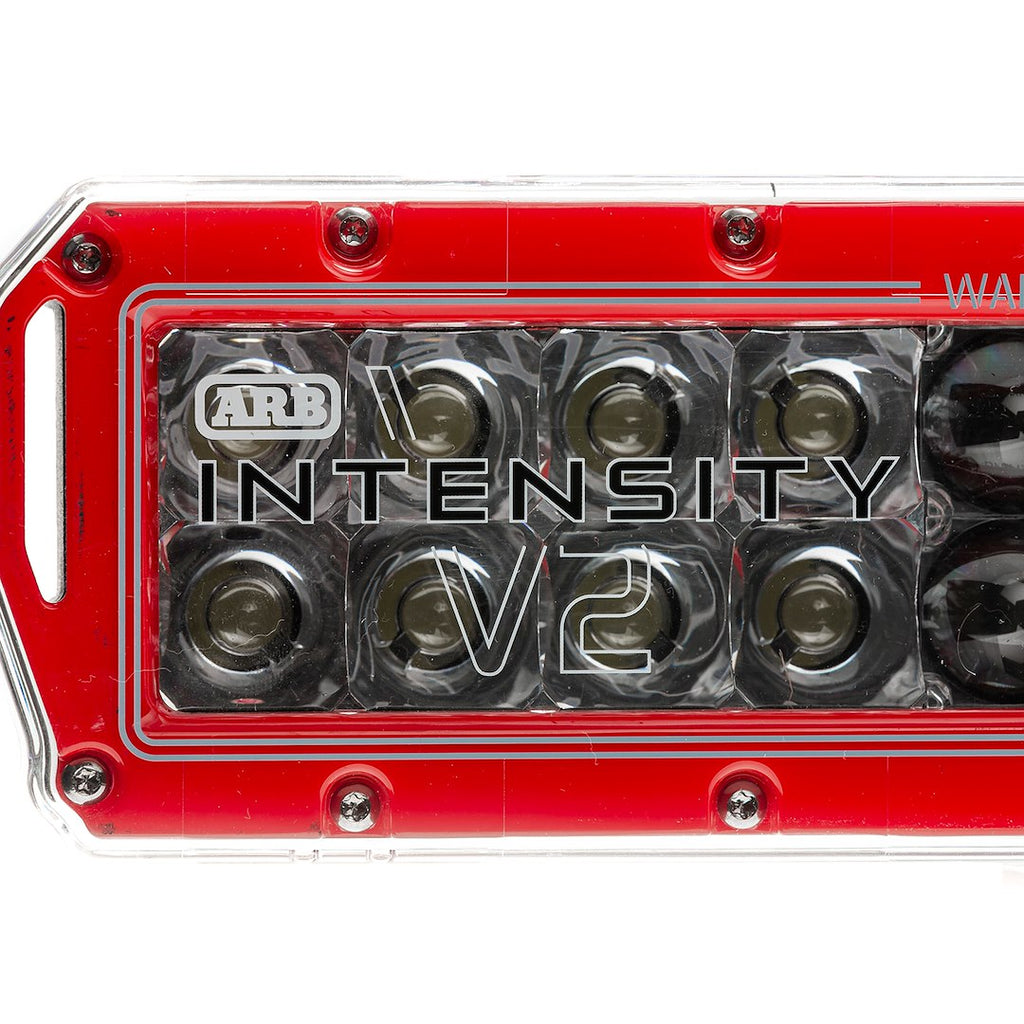

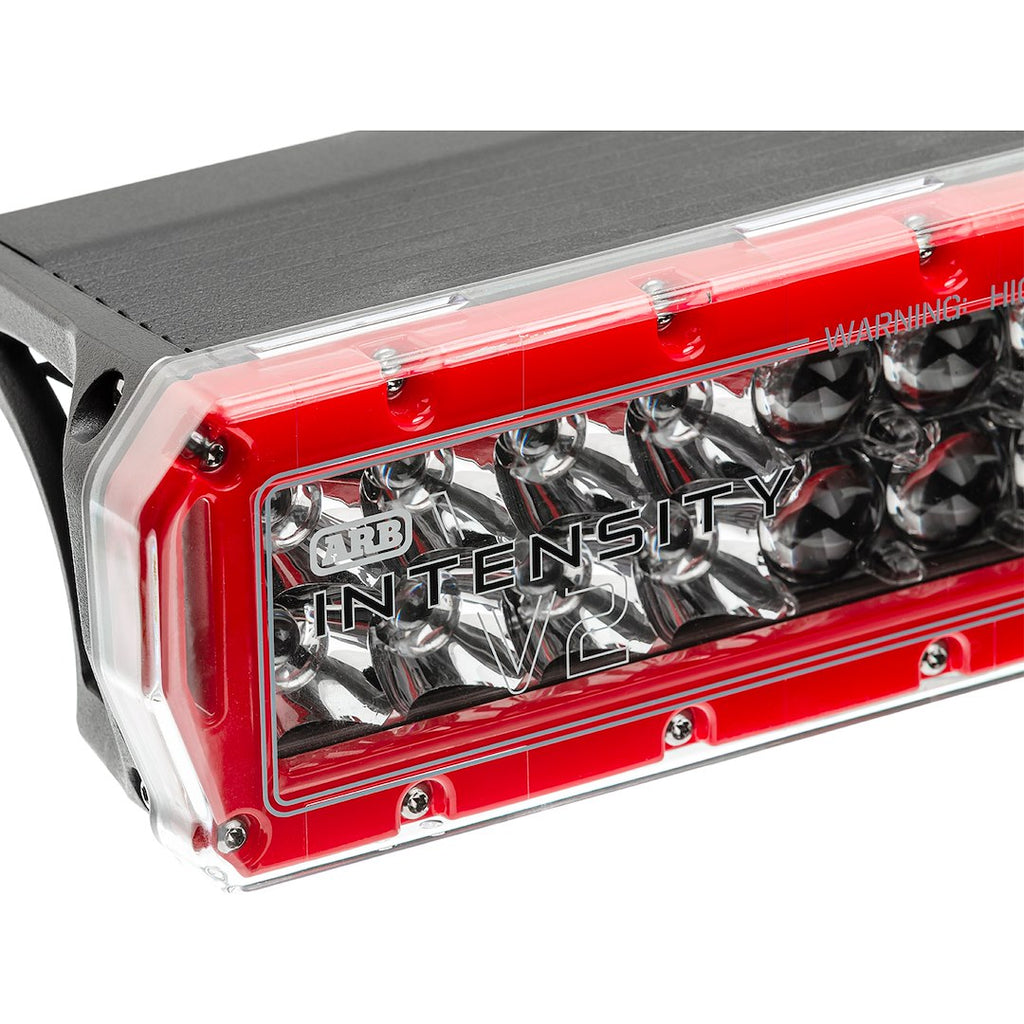

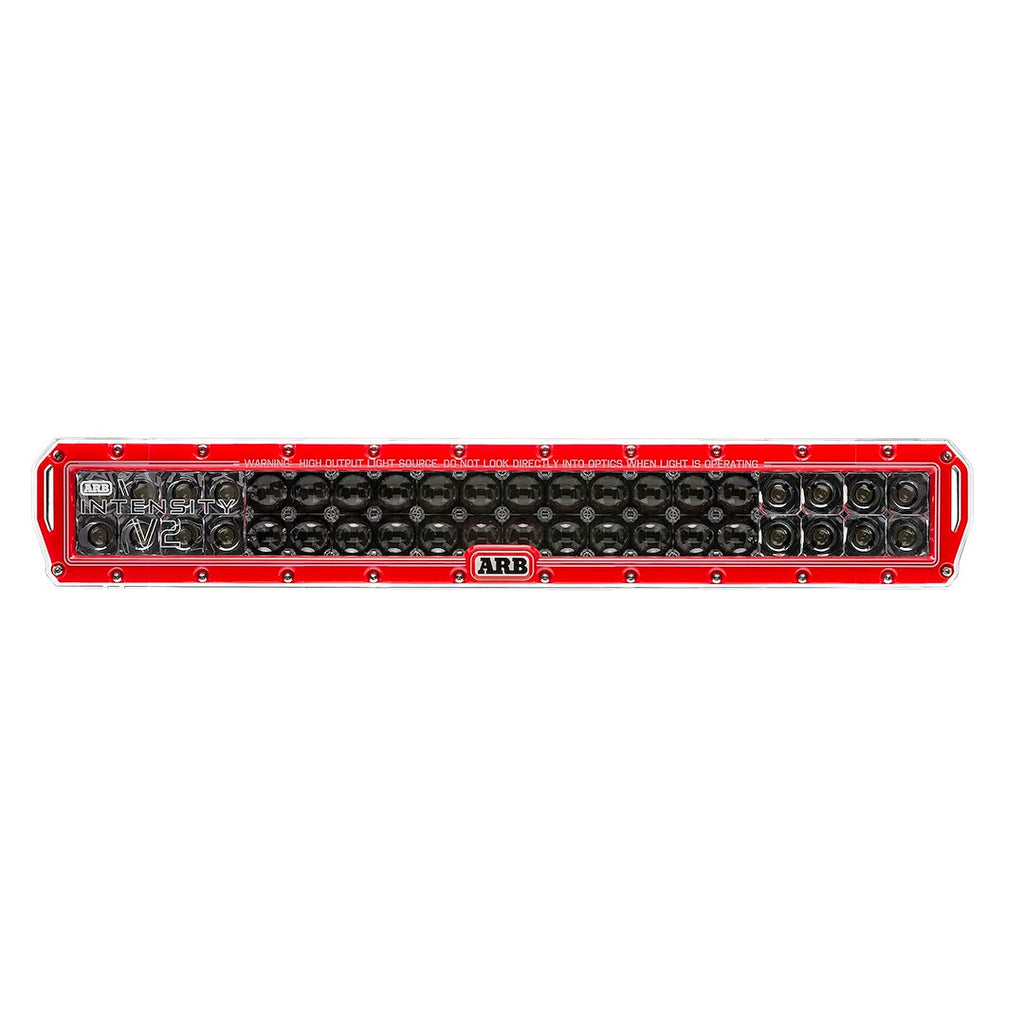

The ARB Intensity LED Light Bar is engineered for optimal performance and durability, featuring a robust aluminum housing and a specifically designed heat sink. This innovative design ensures efficient heat dissipation, enhancing the longevity of the 40 white LED bulbs while providing a powerful output of 25080 raw lumens. The light bar is available in both combo beam and spot beam configurations, allowing for versatile lighting solutions tailored to various driving conditions.
With a length of 22.1 inches, this light bar is equipped with a pedestal mount for easy installation on bull bars or roof racks. The sealed construction meets an IP68 rating, ensuring protection against dust and water ingress, making it suitable for off-road applications. The combination of a 6-degree spot and 24-degree flood beam angle provides excellent visibility, enhancing driving safety in low-light environments.
The ARB Intensity LED Light Bar operates within a voltage range of 9 to 36 volts and draws 21 amps at 12 volts, making it compatible with a wide range of vehicles. The polycarbonate lens is designed for clarity and durability, while the plug and play wiring harness simplifies the installation process. This light bar is a reliable choice for those seeking high-intensity lighting solutions.
Features
- Available In Either A Combo Beam Or Spot Beam Configuration
- Standard Pedestal Mounts

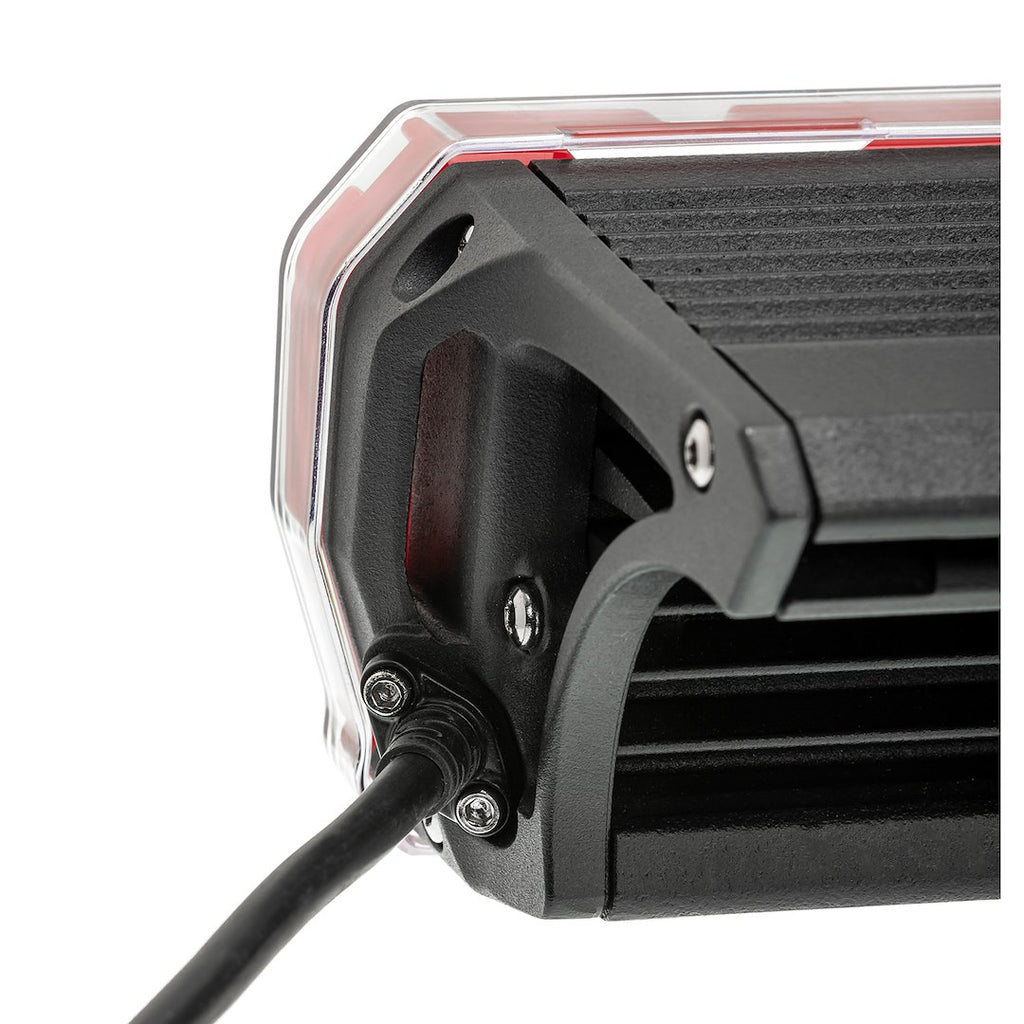

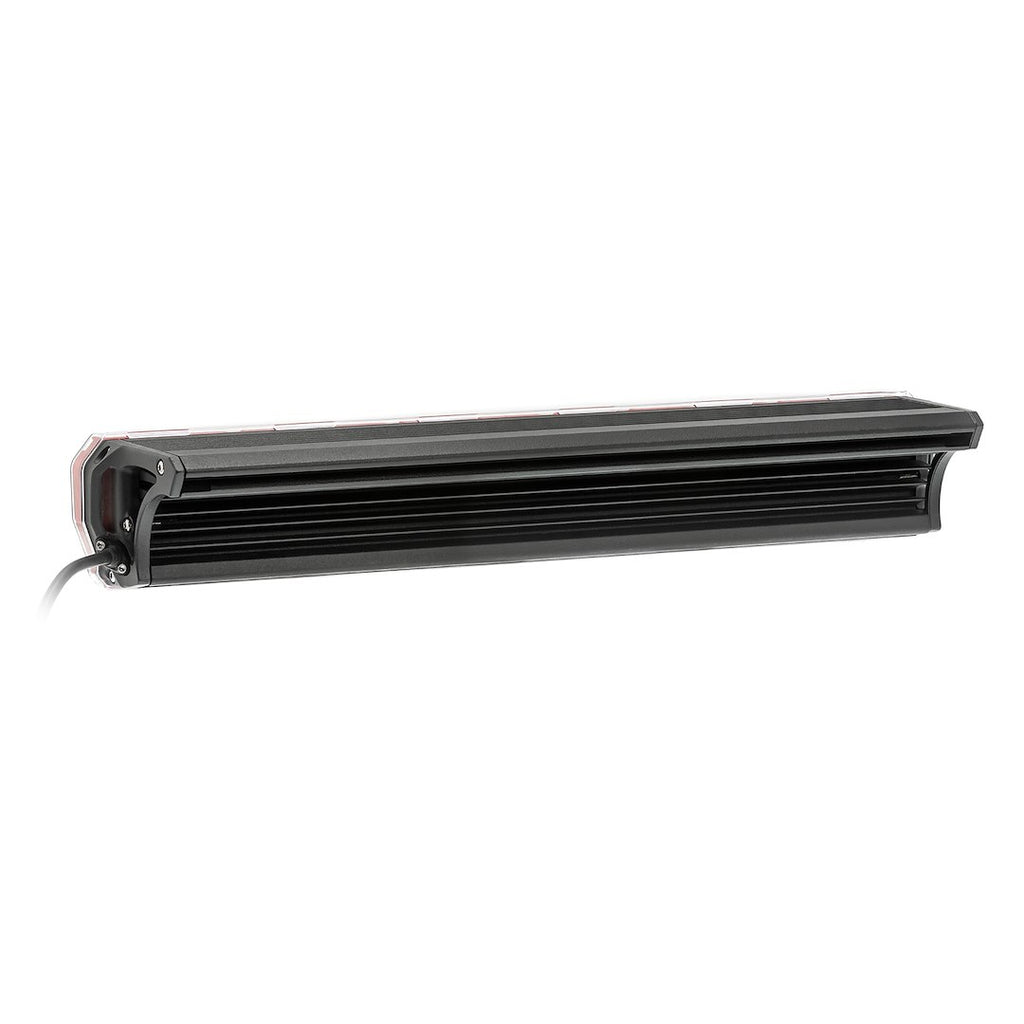

- Large Aluminum Extrusion Body With Cooling Fins Act As Heat Sing To Draw Heat Away From LEDs
- Sealed Light To Allow IP68 Rating For Protection Against Dust Ingress And Submersion Up To 3 Meters
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: AR40CV2
- Bulb Type: LED
- Style: Straight
- Length: 22-1/8 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible

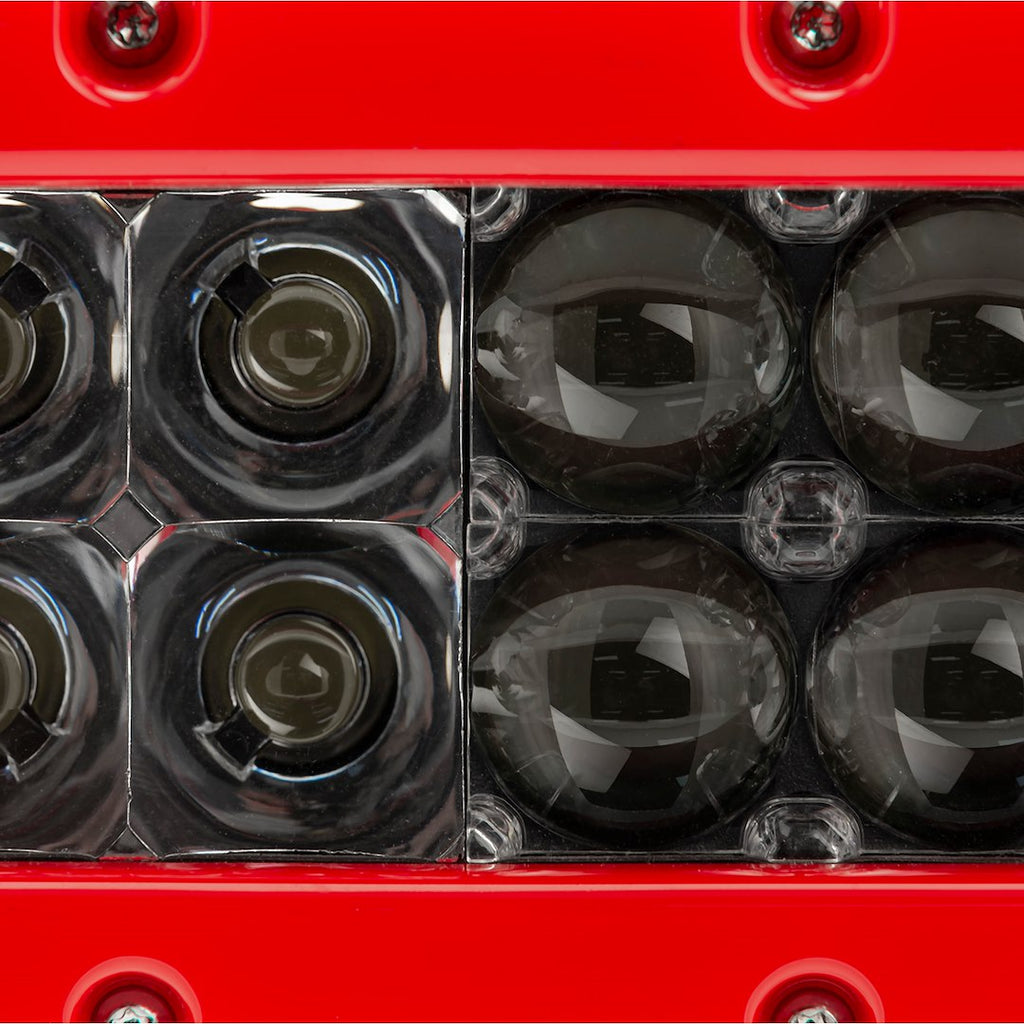

- Beam Angle (Deg): 24 Degree Flood/ 6 Degree Spot
- Lumens: 25080 Lumens
- Wattage: 305 Watt
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 21 Amp
- Bulb Specifications: 40 White LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum

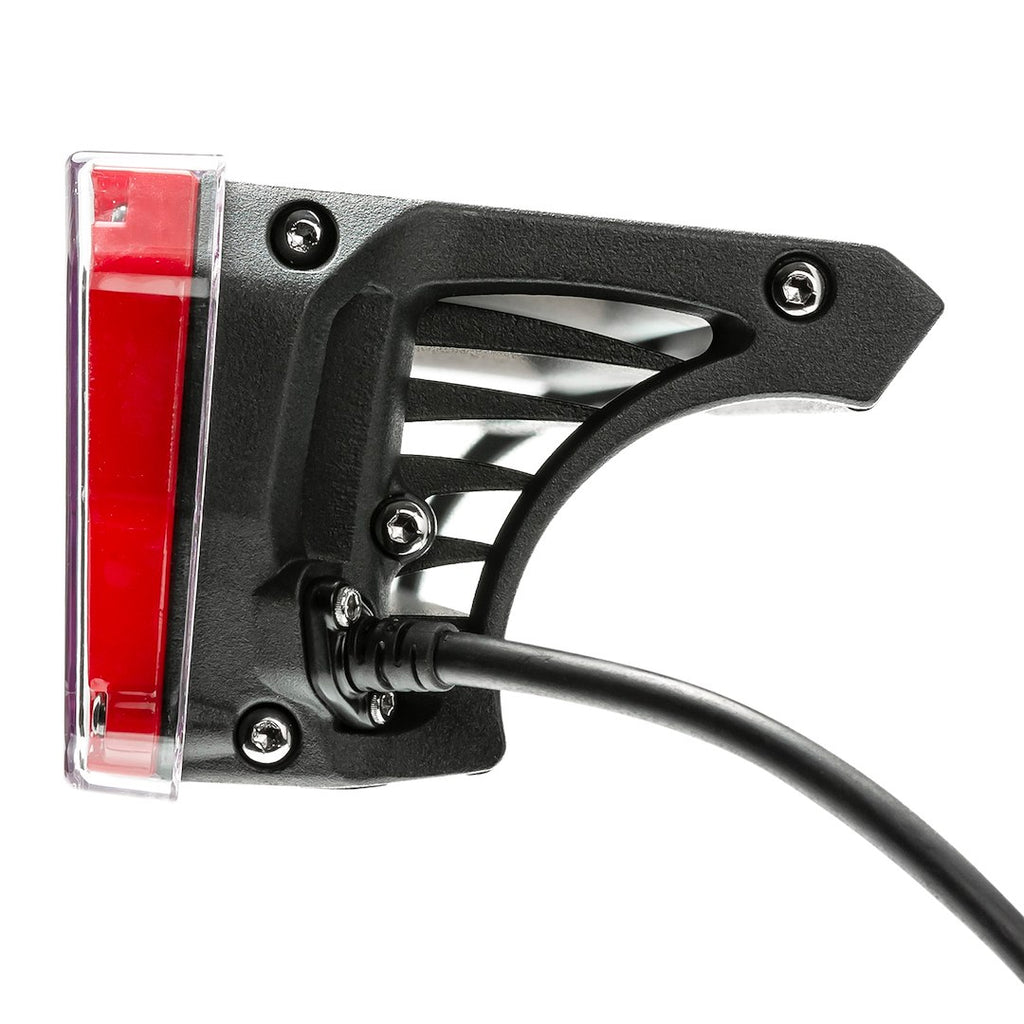

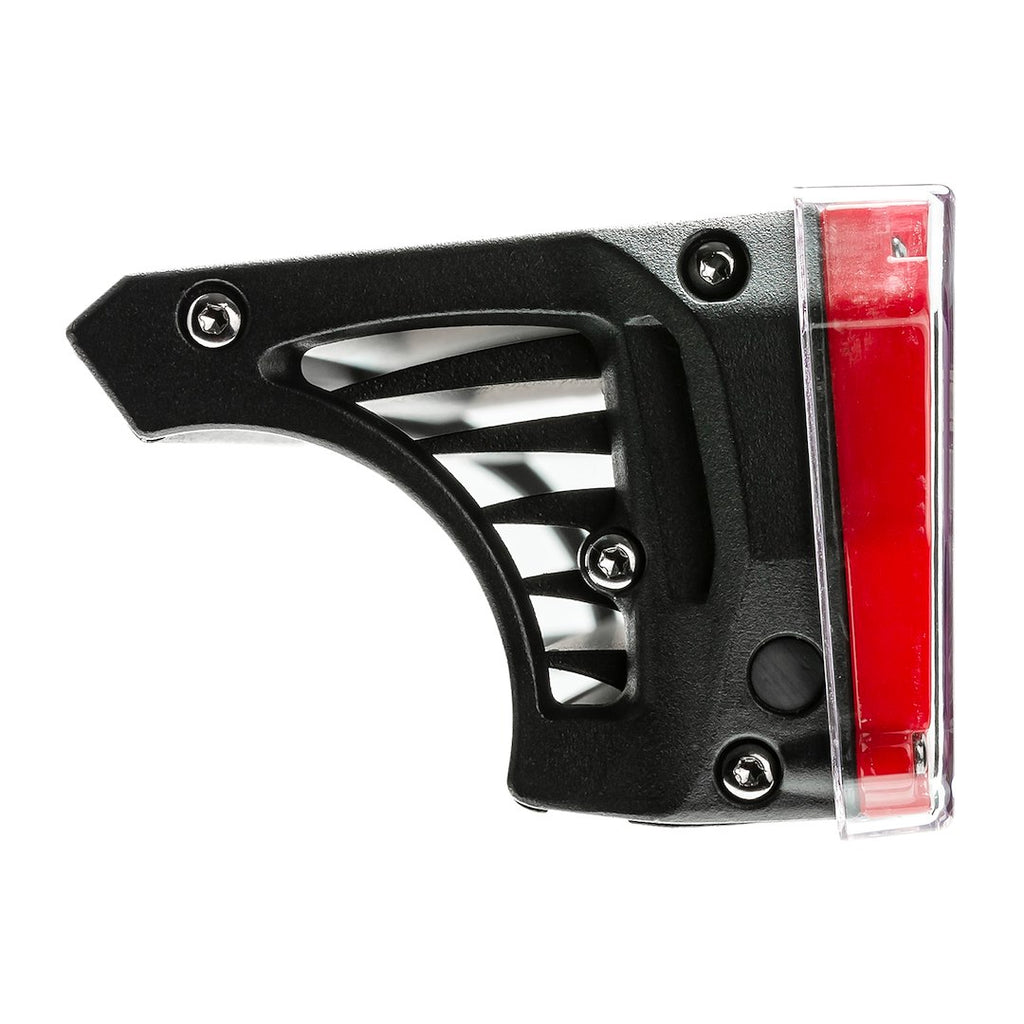

- Mounting Style: Pedestal Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Mounting Hardware/ Waterproof Deutsch Plug Connector
- Estimated Install Time (Hours): 1.5
