Engineered for optimal ride performance in diverse conditions.

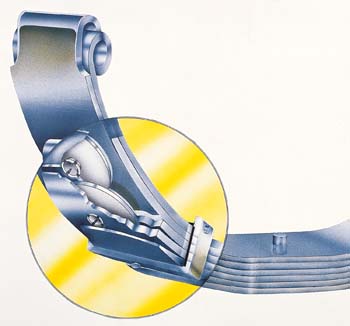

The ARB Emu Dakar leaf spring is a critical component of ARB's integrated 4x4 suspension systems, designed to enhance ride performance across various operating conditions. This single leaf spring features a 5 + 2 leaf configuration, providing a balance of strength and flexibility suitable for both recreational and commercial applications. The draw tapered and diamond cut leaves ensure that the load is distributed over a larger surface area, effectively reducing high stress at the leaf ends.
Each spring undergoes a scragging process and is load tested to ensure it takes a permanent set, minimizing the risk of sagging over time. The graphite coating further reduces friction between the spring leaves and friction pads, enhancing overall performance. Additionally, the military wrap design adds an extra layer of safety, while the anti-friction pads made from regreasable nylon liners help to reduce friction at the leaf tips where the load is most significant.
The flat axle seat area allows for a secure axle mount, which reduces spring stress and extends the lifespan of the spring. Shot peening on the tension side of all leaves is employed to further reduce spring stress, potentially doubling the life of the spring. This combination of features makes the ARB Emu Dakar leaf spring a robust choice for those seeking improved ride, handling, and load carrying capabilities.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
- Graphite Coating: To Further Reduce The Friction Between The Spring Leaves And Friction Pads
- Military Wrap: Designed To Provide Added Safety
- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
- Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS151R
- Number Of Leafs: 5 + 2 Helper
- Spring Rate: 244/ 535 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw Tapered And Diamond Cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2005-2017 Nissan Frontier
- 2009-2012 Suzuki Equator
