Engineered for optimal ride performance in diverse conditions.

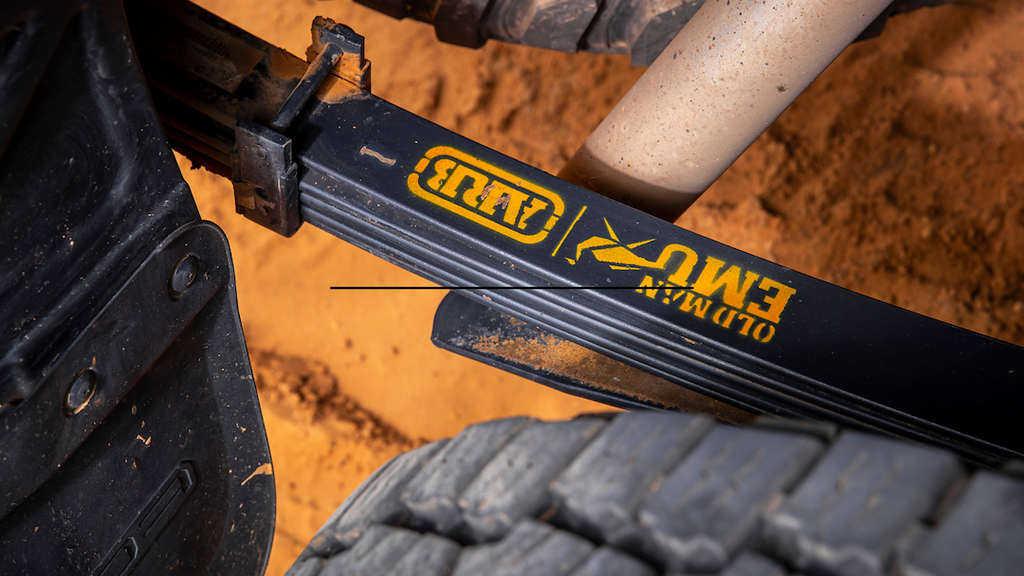

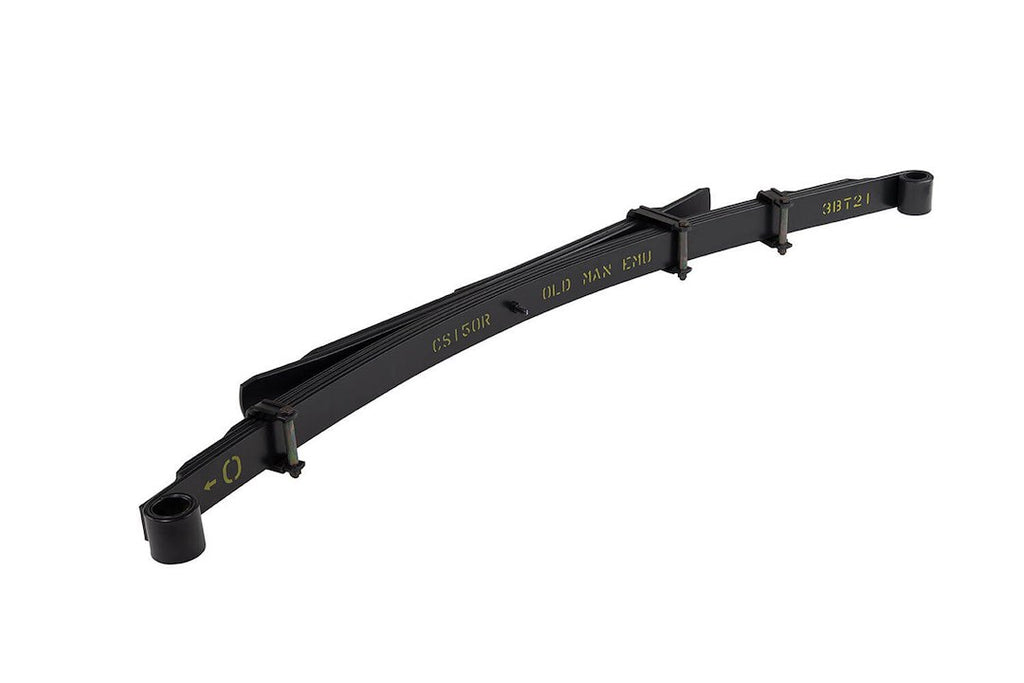

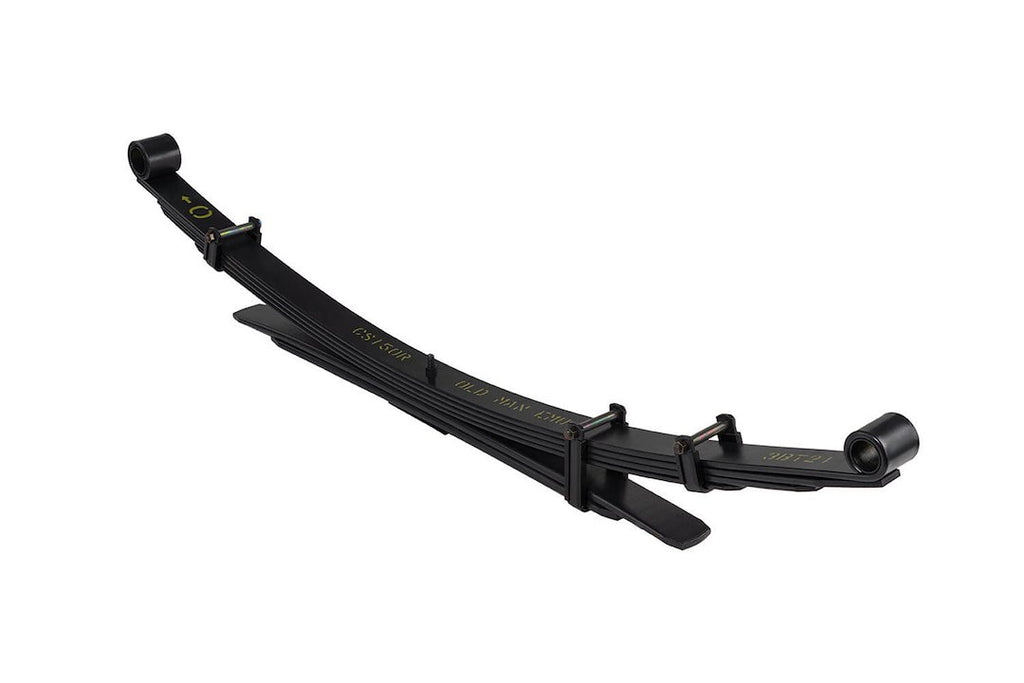

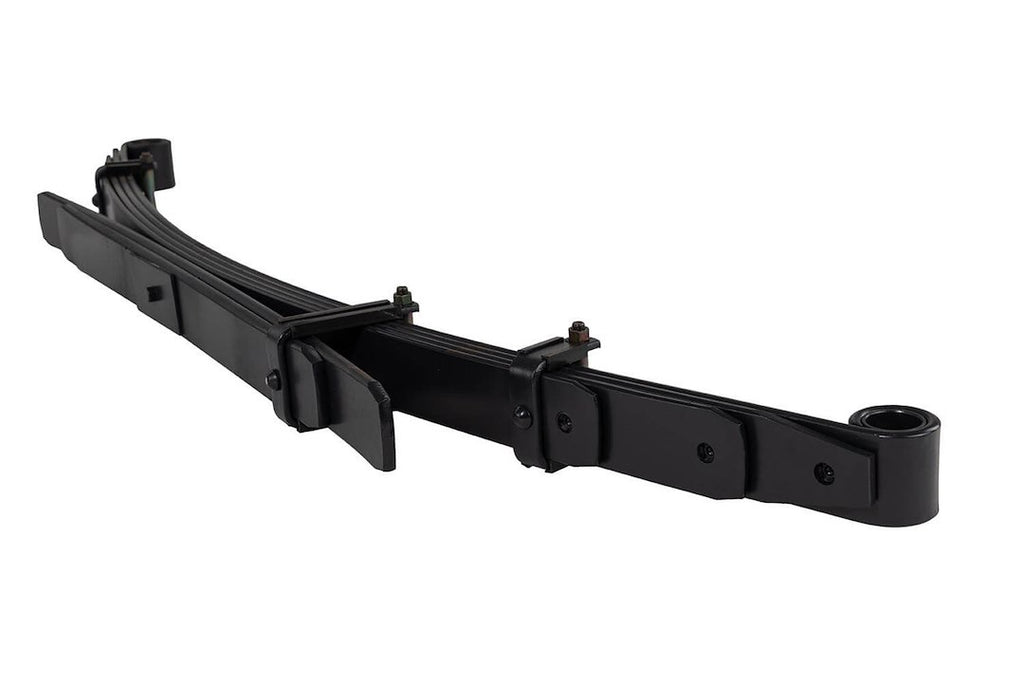

The ARB Emu Dakar leaf spring is a critical component of ARB's integrated 4x4 suspension systems, designed to enhance ride performance across various operating conditions. This single leaf spring features a draw tapered and diamond cut design, which ensures that the load is distributed progressively over a larger surface area, effectively reducing high stress at the leaf ends. The fully scragged and load tested construction guarantees a permanent set, minimizing the risk of sagging over time.
Incorporating advanced features such as a graphite coating, military wrap, and anti-friction pads, the Emu Dakar leaf spring significantly reduces friction and enhances safety. The flat axle seat area allows for a secure axle mount, which reduces spring stress and extends the lifespan of the spring. Additionally, the shot peening process applied to the tension side of all leaves can potentially double the life of the spring, making it a reliable choice for both recreational and commercial applications.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
- Graphite Coating: To Further Reduce The Friction Between The Spring Leaves And Friction Pads
- Military Wrap: Designed To Provide Added Safety

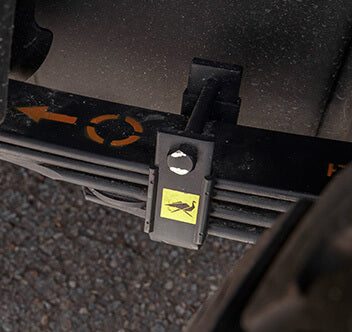

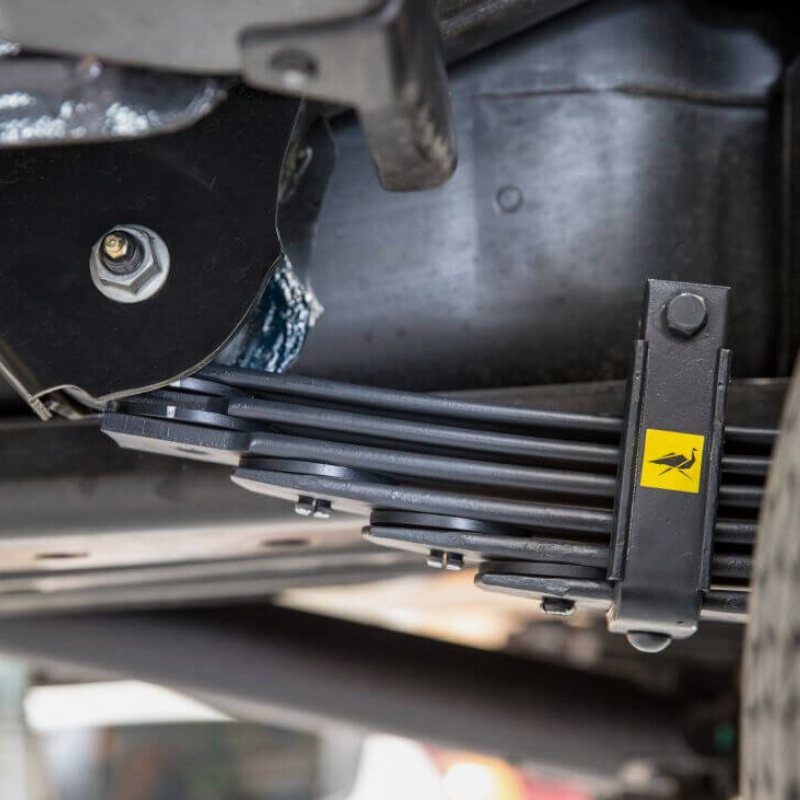

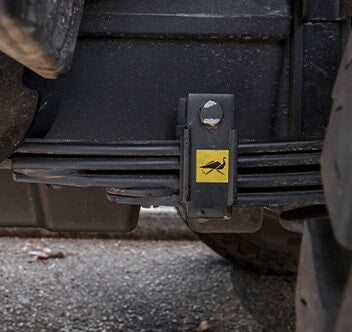

- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
- Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS150R

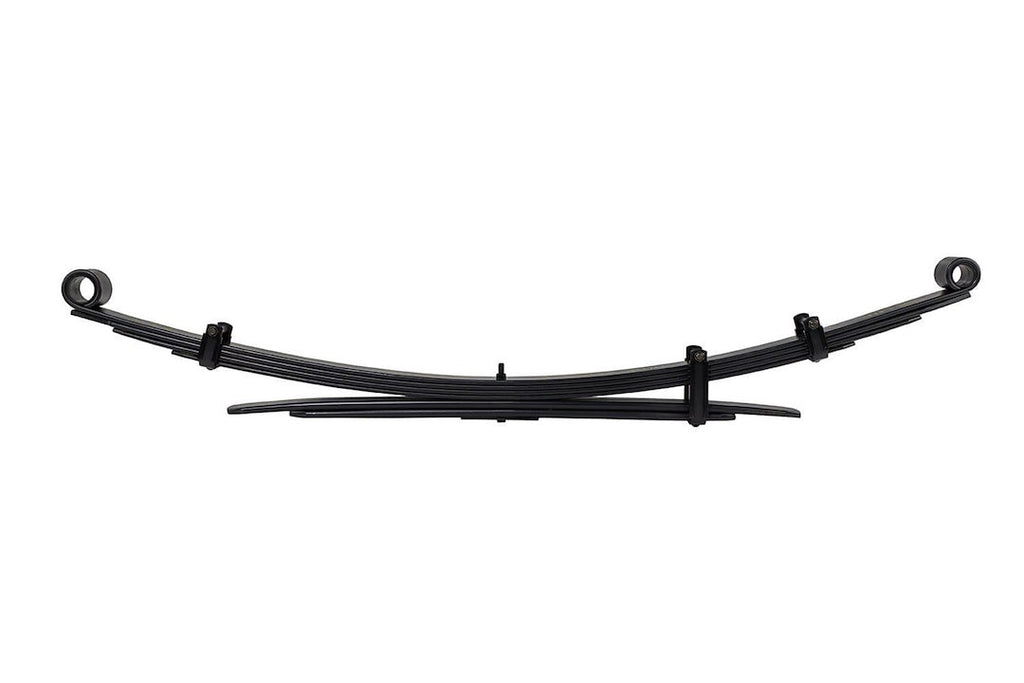

- Number Of Leafs: 4 + 2 Helper
- Spring Rate: 192/ 481 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw Tapered And Diamond Cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2005-2017 Nissan Frontier
- 2009-2012 Suzuki Equator
