Engineered for optimal ride performance in diverse conditions.

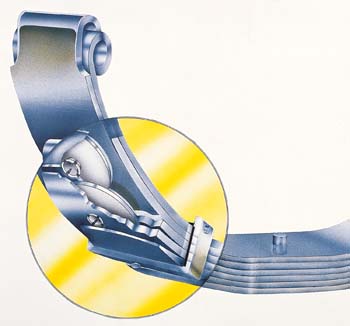

The ARB Emu Dakar leaf spring is a critical component of ARB's integrated 4x4 suspension systems, designed to enhance ride performance across various operating conditions. This single leaf spring features a 4 + 3 leaf configuration, providing a robust solution for both recreational and commercial vehicle applications. The draw tapered and diamond cut leaves ensure that the load is distributed over a larger surface area, effectively reducing high stress at the leaf ends and enhancing durability.
Each spring undergoes a scragging process, which allows it to take a permanent set, minimizing the risk of sagging over time. The graphite coating further reduces friction between the spring leaves and friction pads, contributing to smoother operation. Additionally, the military wrap design enhances safety, while anti-friction pads made from regreasable nylon liners reduce friction at the leaf tips, where the load is most significant.
The flat axle seat area is engineered to provide a secure axle mount, reducing spring stress and extending the lifespan of the spring. Shot peening on the tension side of all leaves is employed to alleviate spring stress, potentially doubling the life of the spring. This combination of features makes the ARB Emu Dakar leaf spring a reliable choice for enhancing vehicle handling and load carrying capabilities.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
- Graphite Coating: To Further Reduce The Friction Between The Spring Leaves And Friction Pads
- Military Wrap: Designed To Provide Added Safety
- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
- Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS031R
- Number Of Leafs: 4 + 3 Helper
- Spring Rate: 165/ 571 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw Tapered And Diamond Cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 1986-1994 Nissan D21
- 1998-2004 Nissan Frontier
- 1995-1997 Nissan Pickup
