Engineered for optimal ride performance in diverse conditions.
The ARB Emu Dakar leaf spring is designed to enhance the suspension system of 4x4 vehicles, providing improved ride quality and handling. With a configuration of 5 + 1 leaves, this single leaf spring is suitable for a variety of applications, whether for recreational or commercial use. The draw tapered and diamond cut design ensures that the load is distributed evenly, minimizing stress at the leaf ends and enhancing durability.
Each leaf spring undergoes a scragging process, which allows it to take a permanent set, thereby reducing the risk of sagging over time. The graphite coating further decreases friction between the leaves, contributing to smoother operation. Additionally, the military wrap design adds an extra layer of safety, while the anti-friction pads made from regreasable nylon help to reduce friction at critical load points.
The flat axle seat area is engineered to provide a secure axle mount, which reduces stress on the spring and extends its lifespan. Shot peening on the tension side of the leaves is employed to alleviate spring stress, effectively doubling the life of the spring. This leaf spring is a vital component for those looking to enhance their vehicle's load carrying capability and overall performance.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
- Graphite Coating: To Further Reduce The Friction Between The Spring Leaves And Friction Pads

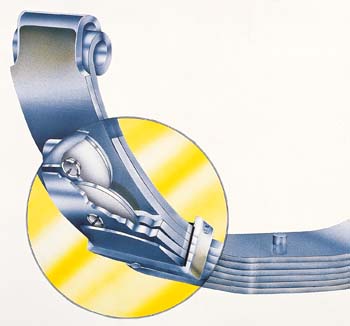

- Military Wrap: Designed To Provide Added Safety
- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
- Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS022R
- Number Of Leafs: 5 + 1 Helper
- Spring Rate: 194/ 388 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw Tapered And Diamond Cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 1991-1999 Mitsubishi Montero
