Engineered for optimal ride performance in diverse conditions.

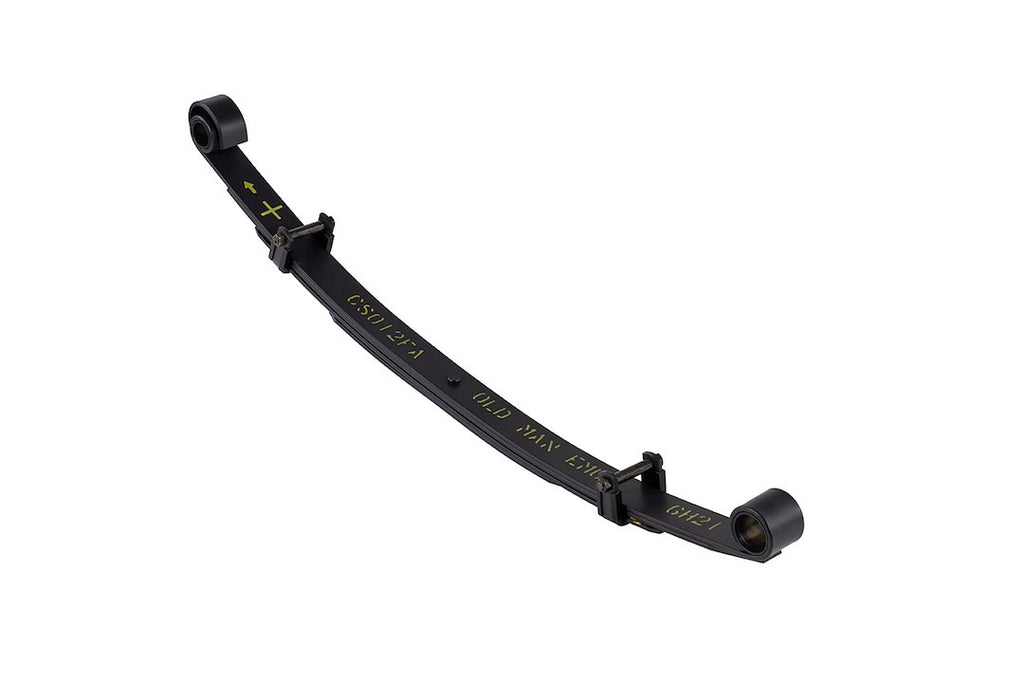

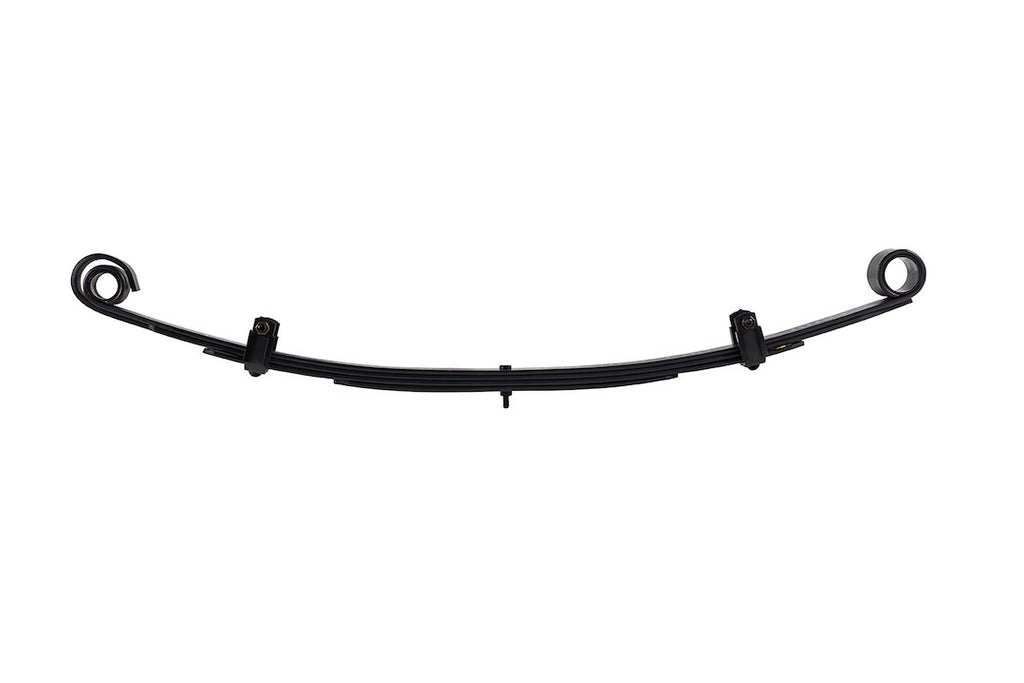

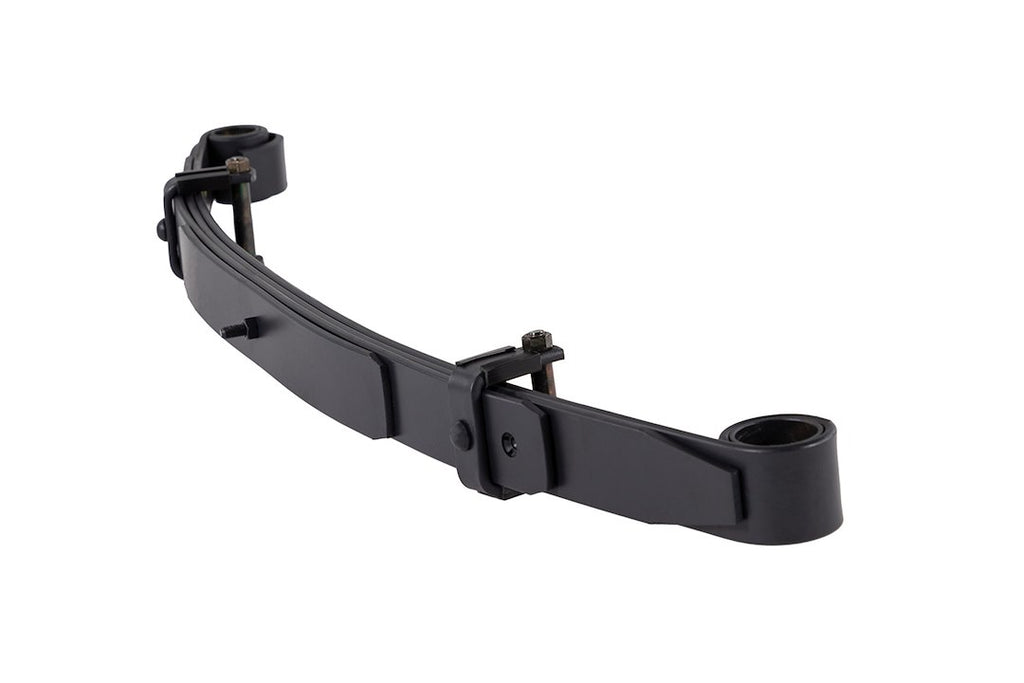

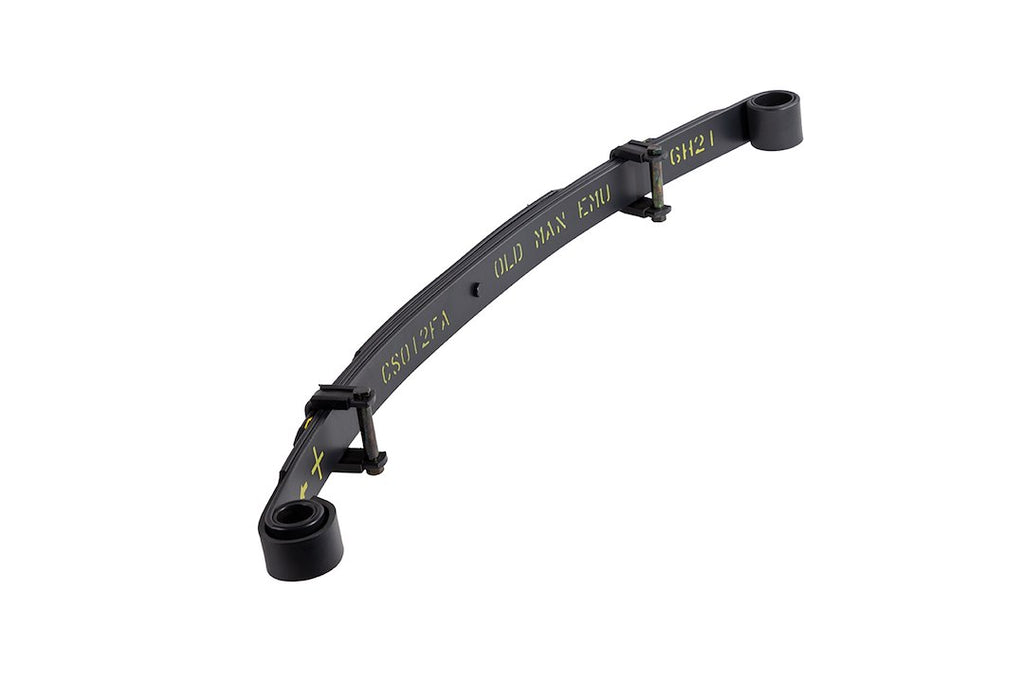

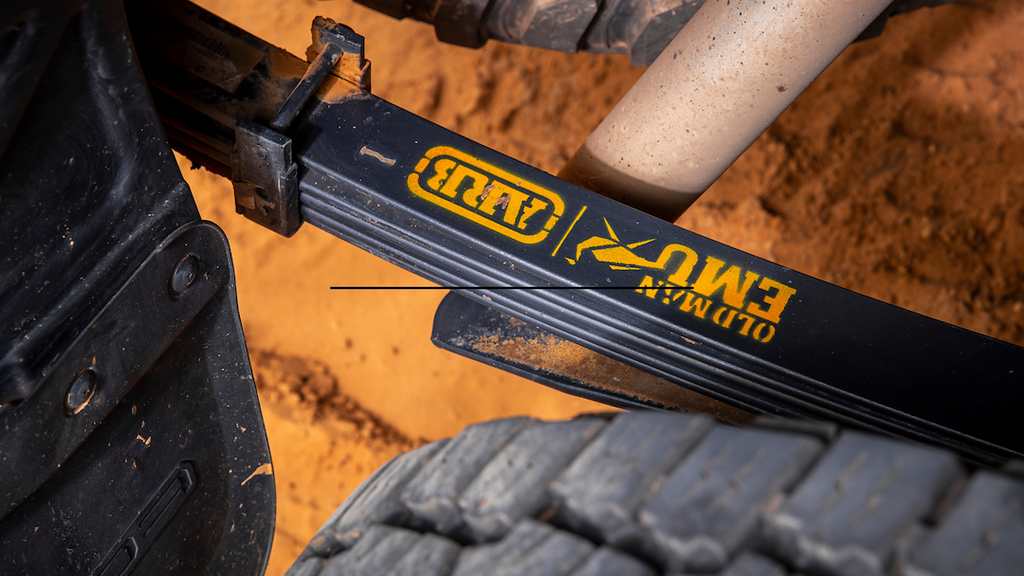

The ARB Emu Dakar leaf spring is a critical component of ARB's integrated 4x4 suspension systems, designed to enhance ride performance across various operating conditions. This leaf spring features a draw tapered and diamond cut design, which ensures that the load is distributed over a larger surface area, effectively reducing high stresses at the leaf ends and improving overall ride quality. With a two-stage leaf pack configuration, the spring provides optimal comfort by allowing the vehicle to ride primarily on the primary stage when unladen, while the secondary stage offers additional support when needed.
Each leaf spring is fully scragged and load tested to ensure it meets the required specifications, significantly reducing the risk of sagging over time. The military wrap design enhances safety, while the shot peening process on the tension side of all leaves can double the lifespan of the spring by reducing stress. Additionally, anti-friction pads made from regreasable nylon liners minimize friction at the leaf tips, where the load is greatest, further contributing to the longevity and performance of the spring.
The flat axle seat area allows for a secure and safe axle mount, which reduces spring stress and increases durability. The leaf clamps are bolted to facilitate the installation of anti-squeak nylon liners, ensuring a quiet and efficient operation. This single leaf spring is suitable for various applications, making it a versatile choice for both recreational and commercial vehicles.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends, Provides Increased Ride Quality
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging, Load Testing Ensures The Spring Meets The Required Specification
- Two-Stage Leaf Pack: Featured On Most Rear Springs For Optimum Comfort, Unladen The Vehicle Is Largely Riding On The Primary Stage, With The Secondary Stage Providing Additional Support
- Military Wrap: Designed To Provide Added Safety. Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, Process Can Double The Life Of A Spring
- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life

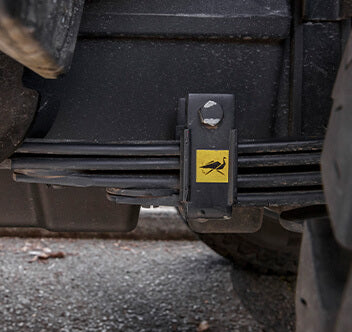

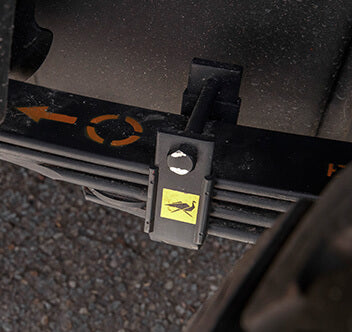

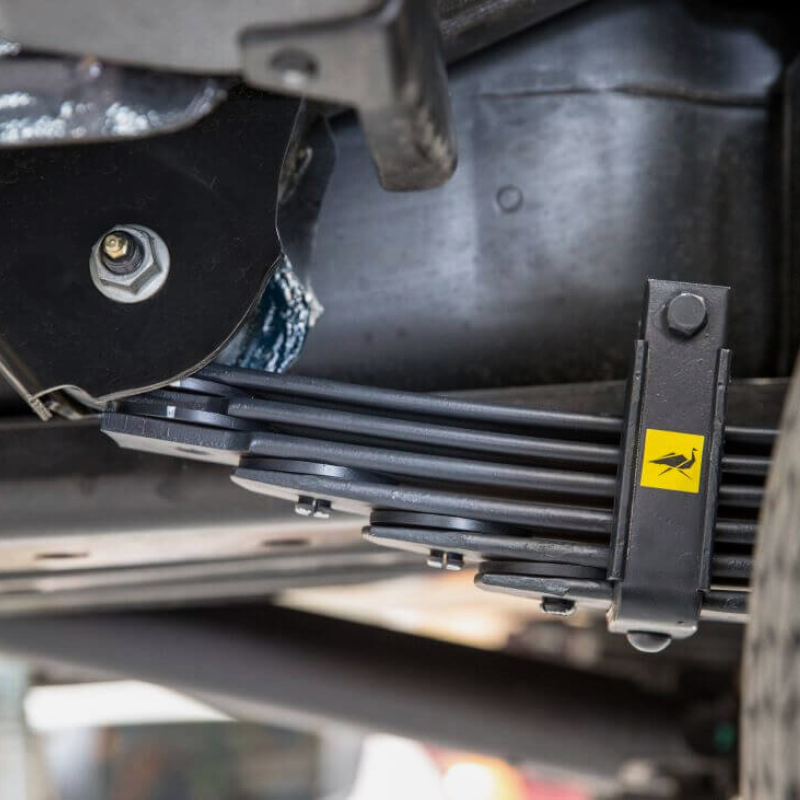

- Bolt Clamps And Liners: The Leaf Clamps Are Bolted To Allow Installation Of Anti Squeak Nylon Liners
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS012FA
- Number Of Leafs: 4 Main
- Spring Rate: 207 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw Tapered And Diamond Cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 1986-1995 Suzuki Samurai
