Engineered for optimal ride performance in diverse conditions.

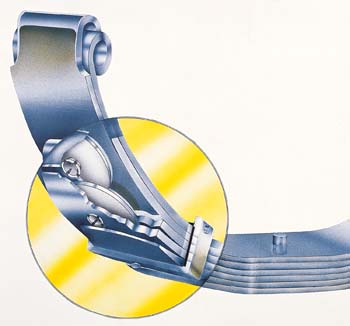

The ARB Emu Dakar leaf spring is a critical component of ARB's integrated 4x4 suspension systems, designed to enhance ride performance across various operating conditions. This leaf spring features a draw tapered and diamond cut design, which ensures that the load is distributed over a larger surface area, effectively reducing high stresses at the leaf ends. With a configuration of 6 plus 2 leaves, this single spring is tailored for both recreational and commercial applications, providing versatility in vehicle setup.
Each leaf spring is fully scragged and load tested, ensuring a permanent set that minimizes the risk of sagging over time. The graphite coating applied to the springs further reduces friction between the leaves and friction pads, enhancing overall performance. Additionally, the military wrap design adds an extra layer of safety, while anti-friction pads made from regreasable nylon liners help to reduce friction at the leaf tips, where the load is most significant.
The flat axle seat area of the ARB Emu Dakar leaf spring allows for a secure axle mount, which reduces spring stress and extends the lifespan of the spring. Shot peening on the tension side of all leaves is employed to further reduce spring stress, potentially doubling the life of the spring. This leaf spring is an essential upgrade for those looking to improve their vehicle's handling, ride quality, and load carrying capabilities.
Features
- Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends
- Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘set’ Which Reduces The Risk Of Sagging
- Graphite Coating: To Further Reduce The Friction Between The Spring Leaves And Friction Pads
- Military Wrap: Designed To Provide Added Safety
- Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
- Flat Axle Seat Area Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
- Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, This Process Can Double The Life Of A Spring
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: CS004RA
- Number Of Leafs: 6 + 2 Helper
- Spring Rate: 268/ 570 Pounds Per Inch
- Quantity: Single
- Spring Type: Draw Tapered And Diamond Cut
- Includes Bushings: No
- Bushing Material: No Bushing
- Estimated Install Time (Hours): 2
