Engineered for maximum protection and durability in off-road conditions.

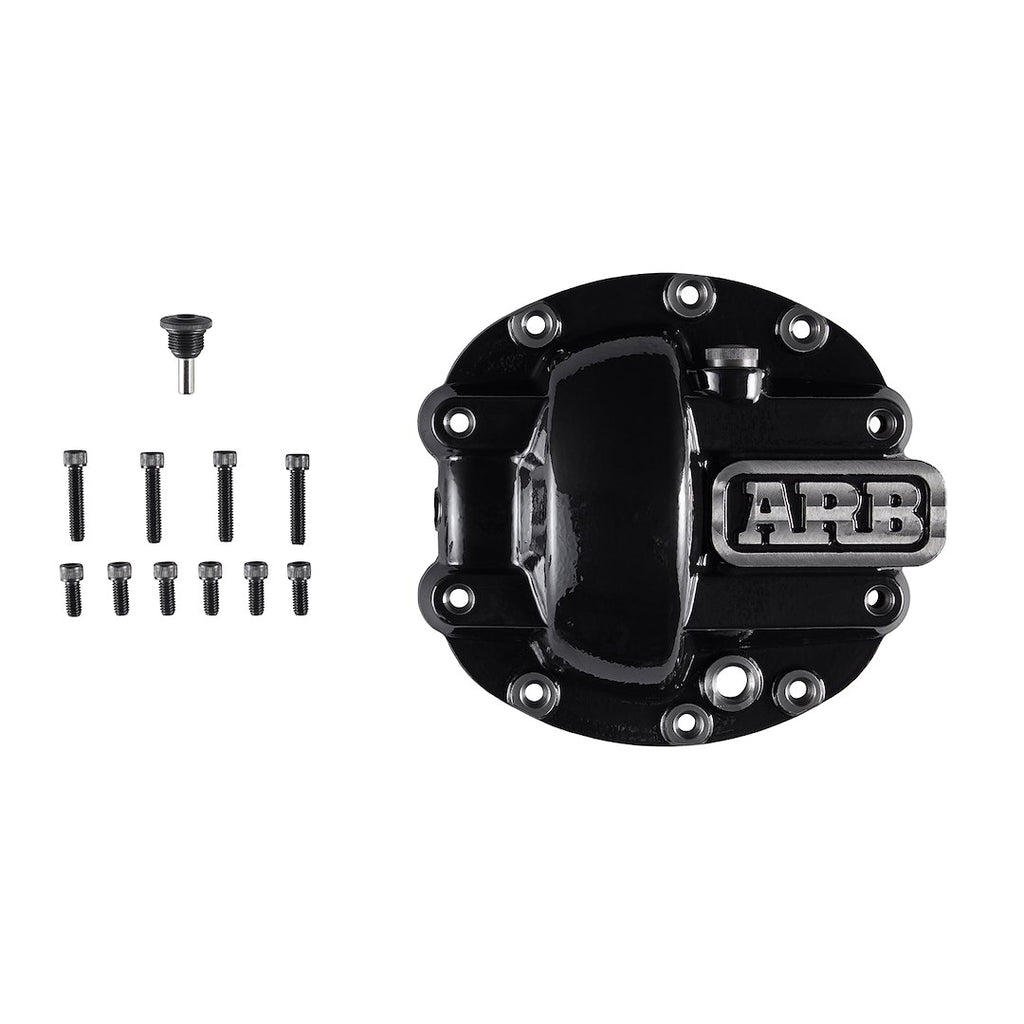

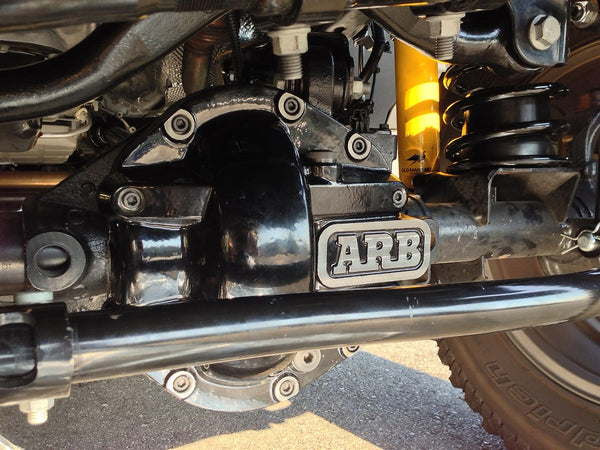

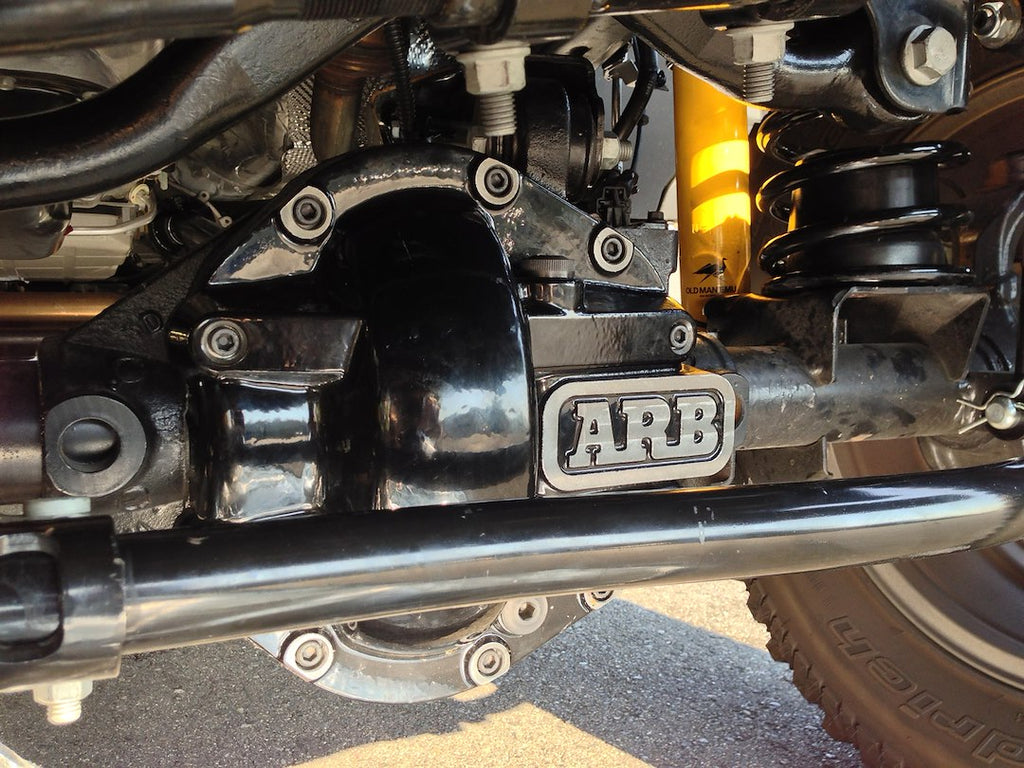

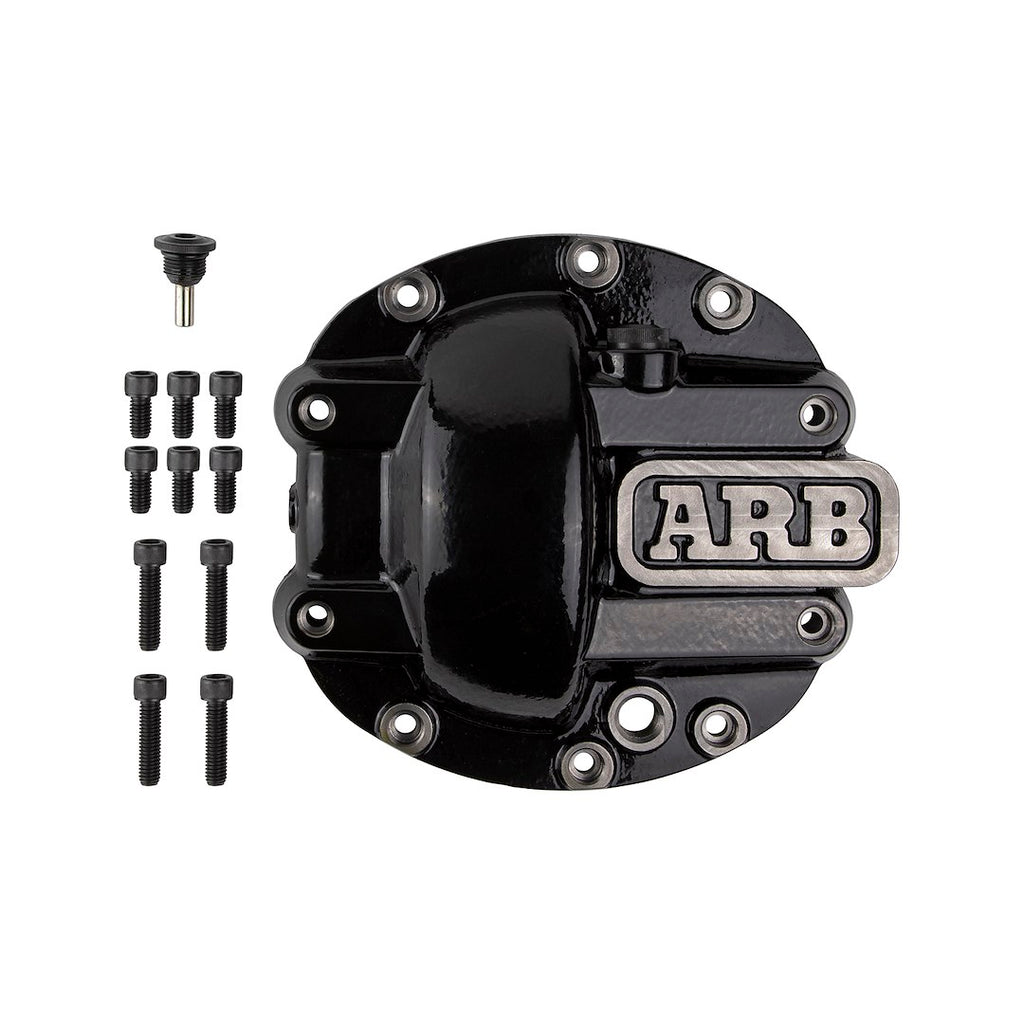

The ARB Differential Cover is designed specifically for the Dana 30 axle, providing robust protection against off-road hazards. Constructed from high tensile nodular iron, this cover enhances the structural integrity of the differential, ensuring that the ring and pinion gears maintain optimal meshing and longevity. The computer optimized cross brace design significantly increases the overall strength of the axle, allowing it to withstand greater loads and stresses encountered during off-road driving.
Incorporating advanced features such as high power neodymium magnets in both the drain plug and dipstick, the ARB Differential Cover effectively collects metallic wear particles, providing critical insights into the internal condition of the differential. The unique dipstick and filler cap design allows for easy adjustment of the differential oil level, accommodating customized driveline angles. This attention to detail not only prolongs carrier bearing life but also optimizes approach and departure angles, enhancing vehicle performance on challenging terrains.
With a sleek black powder-coated finish, the ARB Differential Cover combines functionality with a durable aesthetic. It is engineered to meet the demands of off-road enthusiasts, ensuring that your differential remains protected from potential damage while maintaining peak performance.
Features
- Computer Optimized Cross Brace Design Increases The Structural Rigidity Of The Whole Axle
- Additional Housing Strength Helps Keep The Ring And Pinion Gears Meshing On The Flat Faces Of The Teeth, Greatly Increasing Ring And Pinion Life And Overall Maximum Load Strength
- Top Quality, High Power Neodymium Magnets Are Used In Both The Drain Plug And The Dipstick To Collect Metallic Wear Particles As The Vehicle Moves
- Magnet Location In The End Of The Dipstick Allows The Oil To Be Checked For Tell-Tale Signs Of Internal Damage
- Prolonged Carrier Bearing Life Due To Extra Support To The Bearing Alignment
- Approach/Departure Angle Optimized By Angled Exterior Surfaces
- Unique Dipstick/Filler Cap Design Allows Differential Oil Level To Be Adjusted For Customized High Driveline Angles
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: 0750002B
- Axle Model: Dana 30
- Cover Bolts: 10
- Color: Black
- Material: Nodular Iron
- Type: Smooth
- Finish: Powder Coated
- Carrier Main Cap Support/Girdle: No
- Includes Drain Plug: Yes
- Includes Filler Plug: Yes
- Includes Gaskets: No
- Includes Bolts/Studs: Yes
Compatibility / Fit
- 1984-2001 Jeep Cherokee
- 1959-1960 Jeep CJ3
- 1966-1966 Jeep CJ3
- 1959-1960 Jeep CJ5
- 1966-1983 Jeep CJ5
- 1966-1968 Jeep CJ5A
- 1959-1960 Jeep CJ6
- 1966-1975 Jeep CJ6
- 1966-1968 Jeep CJ6A
- 1976-1986 Jeep CJ7
- 1981-1985 Jeep Scrambler
- 1945-1958 Jeep Willys
- 1997-2006 Jeep Wrangler TJ
