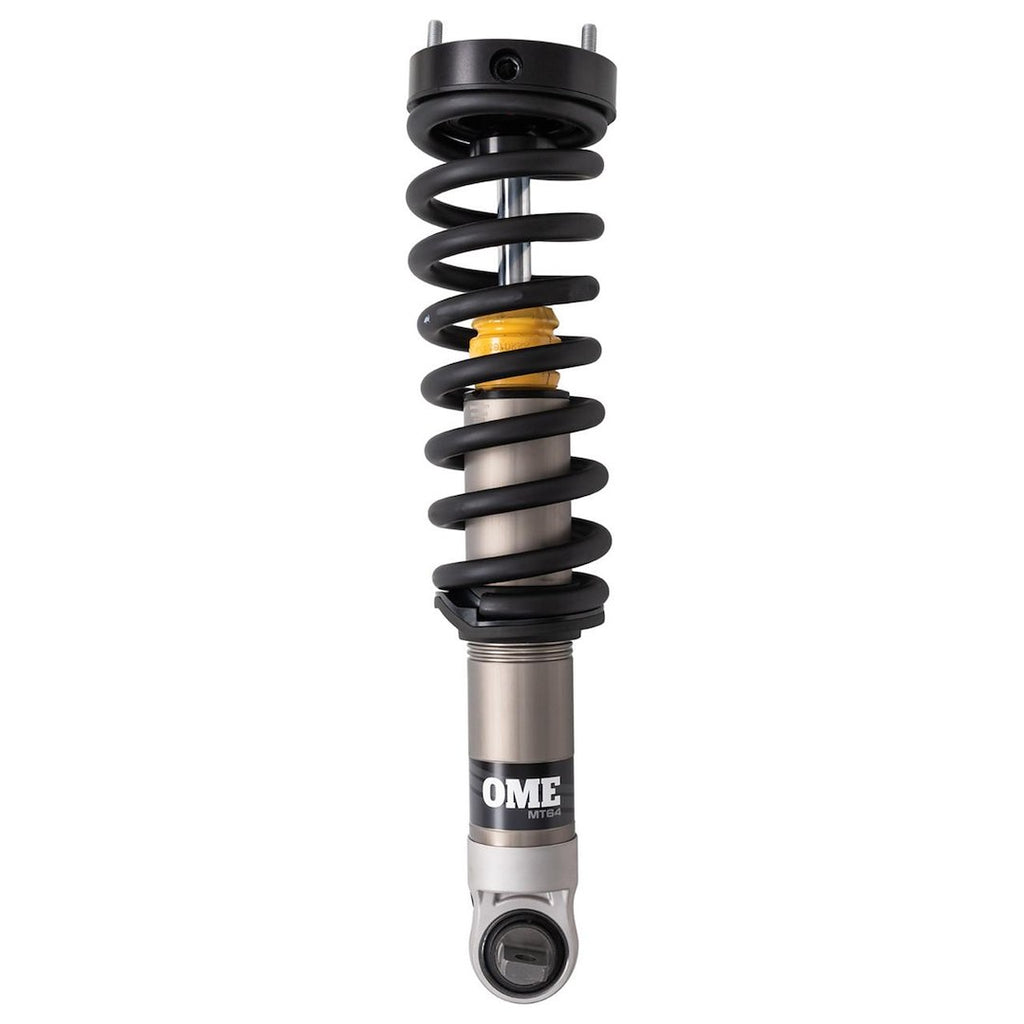

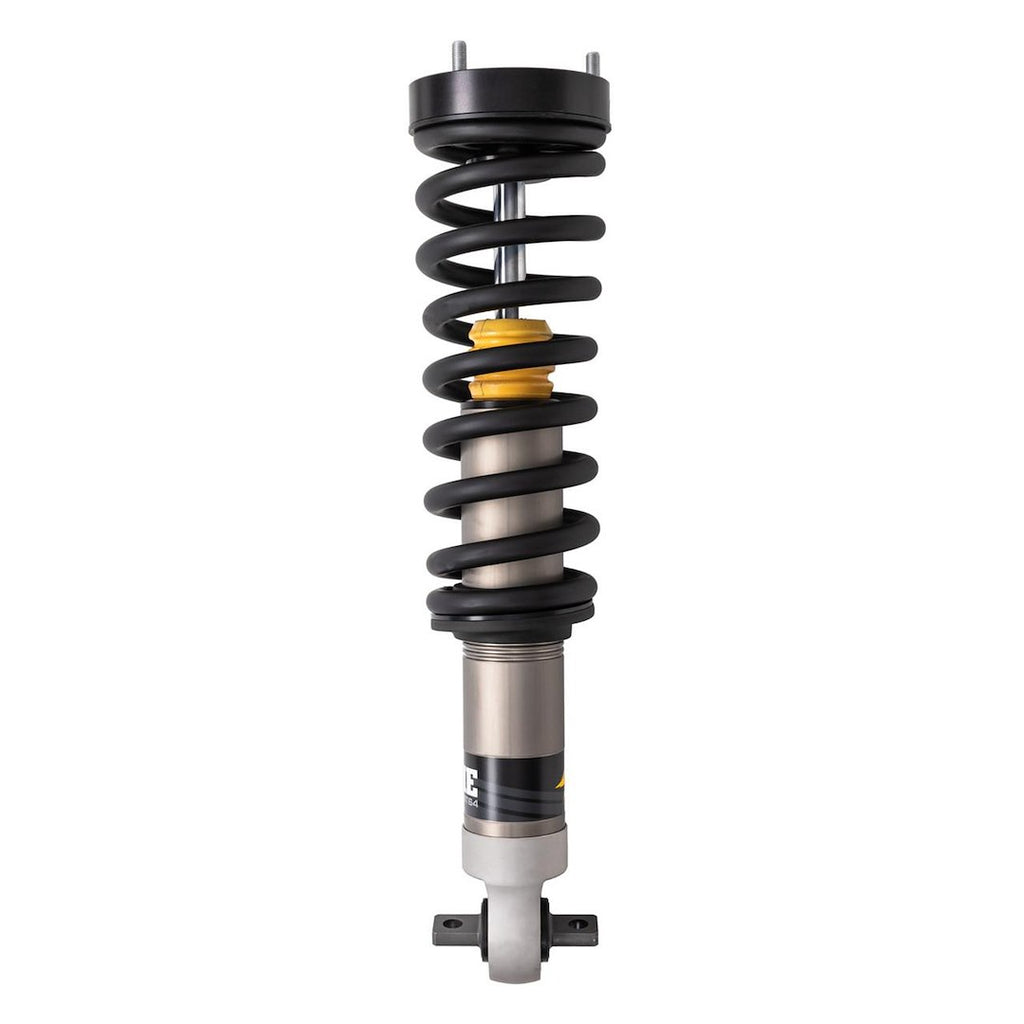

ARB Coil Over Shock Absorber (MPN: MT64996008)

Engineered for optimal performance across diverse terrains and conditions.

The ARB MT64 coilover shock absorber is designed to enhance ride quality and control for a variety of vehicles. With a robust 2.8 inch aluminum body, this shock absorber provides effective heat dissipation and increased durability against damage. The monotube design features digressive valving that adapts to changing surface conditions, ensuring maximum performance whether on rugged trails or smooth roads.

This coilover assembly is preassembled for direct bolt-in fitment, allowing for a straightforward installation process. It offers a factory-set lift of 3 inches on stock weight vehicles, with adjustable lift options ranging from 1-1/4 to 2-1/2 inches through the included snap ring grooves. This flexibility allows users to tailor their vehicle's suspension to meet specific driving needs.

Constructed with aerospace-grade aluminum, the MT64 is lightweight yet strong, featuring a forged body cap and rod ends that enhance its structural integrity. The hydraulic end zone top out provides additional cushioning at full extension, helping to absorb unexpected bumps. This shock absorber is a direct replacement for stock and aftermarket lift kits, making it a versatile choice for various applications.

Features

• Complete Coilover Assembly Allows For Direct Bolt In Fitment
• Providing 2-1/2 Inch Of Lift On Vehicles With Stock To 220 Pound Of Front End Weight
• Adjustable 6-Position Snap Ring Allows For A Range Of Lifts In Giving You Control Of Your Build
• Monotube Design With A Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With A Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64996008
• Adjustable: No
• Upper Mounting Type: Strut
• Lower Mounting type: Cross Pin
• Extended Height (IN): 22-5/8 Inch
• Compressed Height (IN): 16-1/2 Inch
• Quantity: Single
• Valving Type: Digressive Disc Valving
• Shock Type: Monotube
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Style: Pigtail
• Spring Finish: Powder Coated
• Spring Color: Black

Compatibility / Fit

• 2021-2026 Ford F-150
