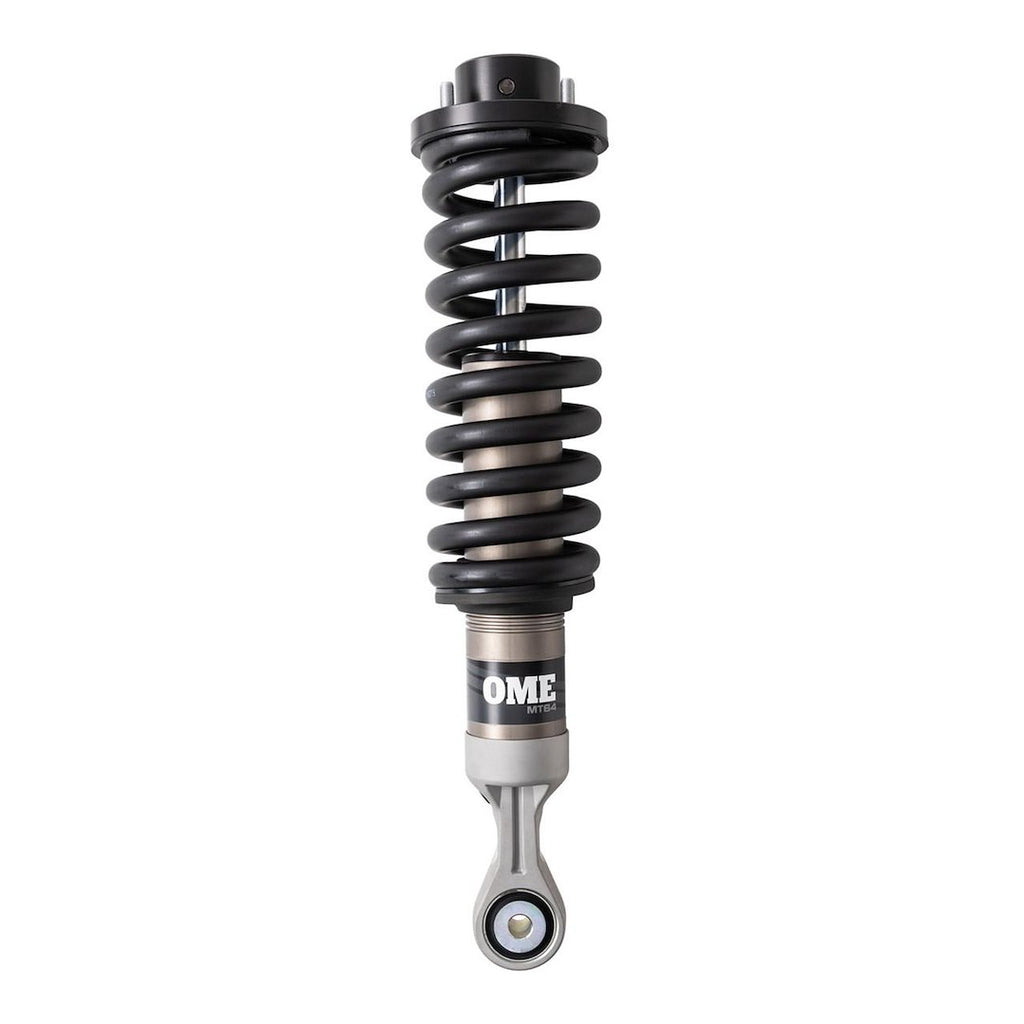

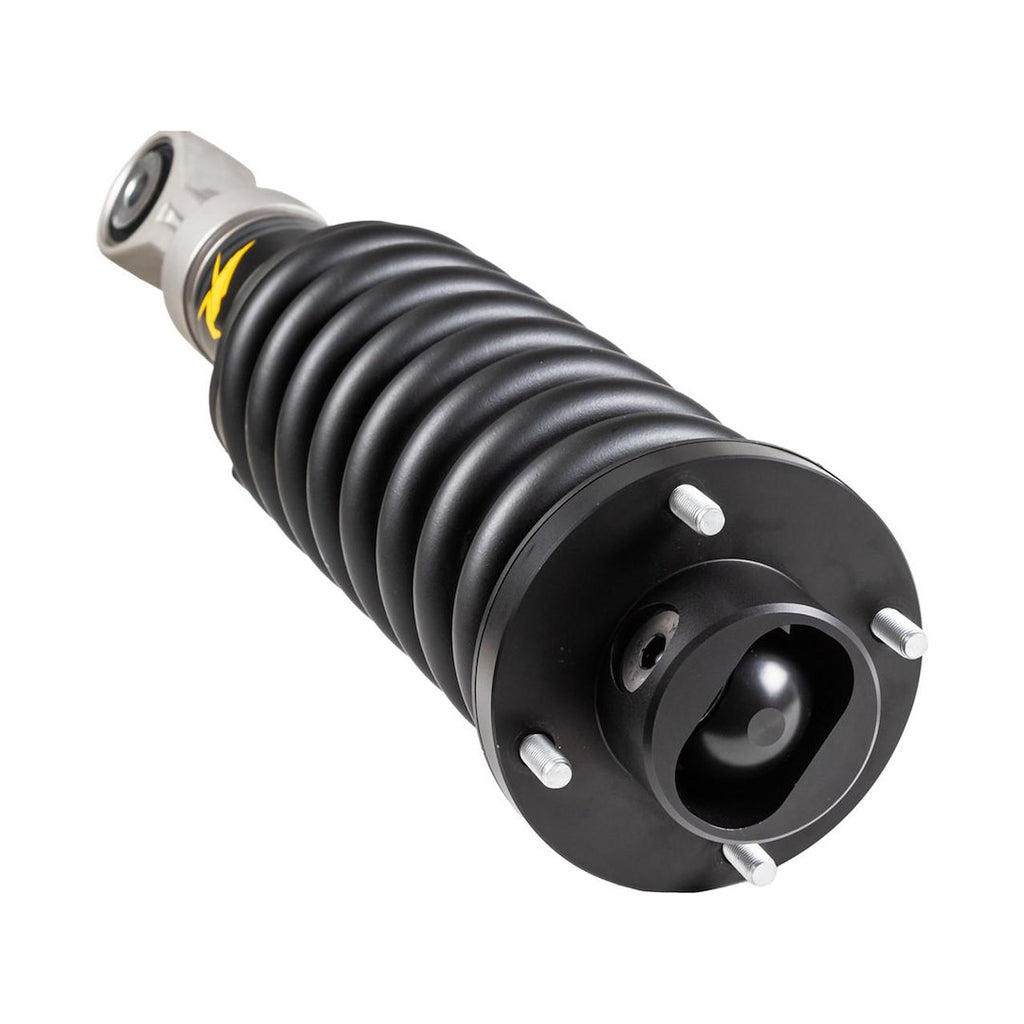

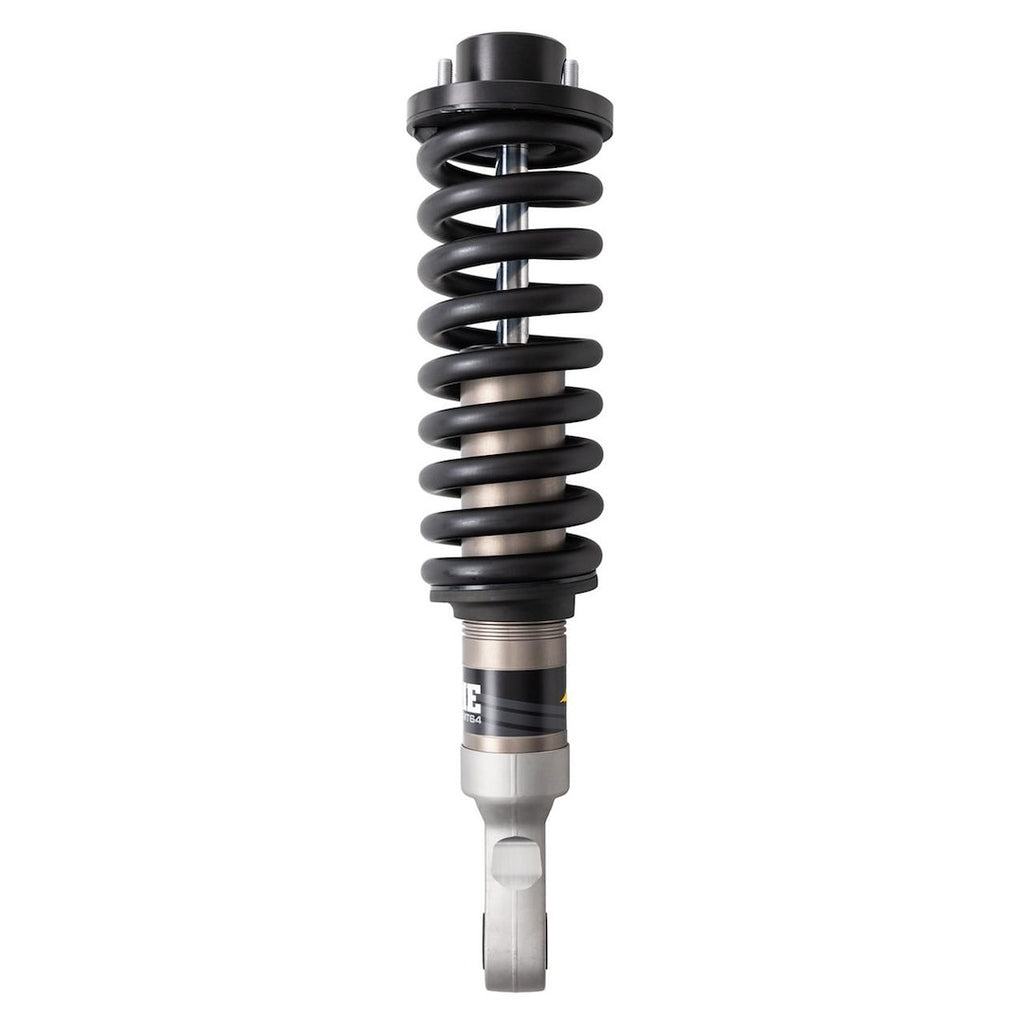

ARB Coil Over Shock Absorber (MPN: MT64996005)

Engineered for optimal performance across diverse terrains and conditions.

The ARB coil over shock absorber, model MT64, is designed to enhance ride quality and control for various driving conditions. With a robust 2.8 inch aluminum body, this shock absorber features non-adjustable valving that provides consistent performance without the need for frequent adjustments. It is preassembled for direct bolt-in fitment, allowing for a straightforward installation on vehicles with stock front end weight, achieving a lift of 3 inches while offering the flexibility to adjust between 1-3/4 to 3 inches using snap ring grooves.

Constructed with an aerospace grade aluminum body, the MT64 dissipates heat significantly faster than traditional steel, ensuring durability and protection against stone damage. The monotube design allows for more oil capacity, which contributes to accurate shock tuning and improved performance. Additionally, the hydraulic end zone top out feature provides extra cushioning at full extension, enhancing comfort over unexpected bumps.

This shock absorber is a direct replacement for both stock and aftermarket lift kits, making it a versatile choice for various vehicle modifications. The digressive valving system reacts instantly to changing surface conditions, maximizing performance and ride comfort across different terrains. The MT64 is an essential component for those seeking reliable and high-quality suspension solutions.

Features

• Complete Coilover Assembly Allows For Direct Bolt In Fitment, While Providing 3 Inch Of Lift On Vehicles With Stock Front End Weight
• An Adjustable Spring Seat With Six Positions Allows One Coil Spring To Cater For Differing Accessory Weight
• Monotube Design With An Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With An Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64996005
• Adjustable: No
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 1-3/4 To 3 Inch Lift
• Extended Height (IN): 23 Inch
• Compressed Height (IN): 17.7 Inch
• Quantity: Single
• Valving Type: Non Adjustable Valving
• Shock Type: Hydraulic
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Style: Pigtail
• Spring Finish: Powder Coated
• Spring Color: Black
• Spring Material: Steel
• Includes Mounting Hardware: No

Compatibility / Fit

• 2022-2025 Toyota Tundra
