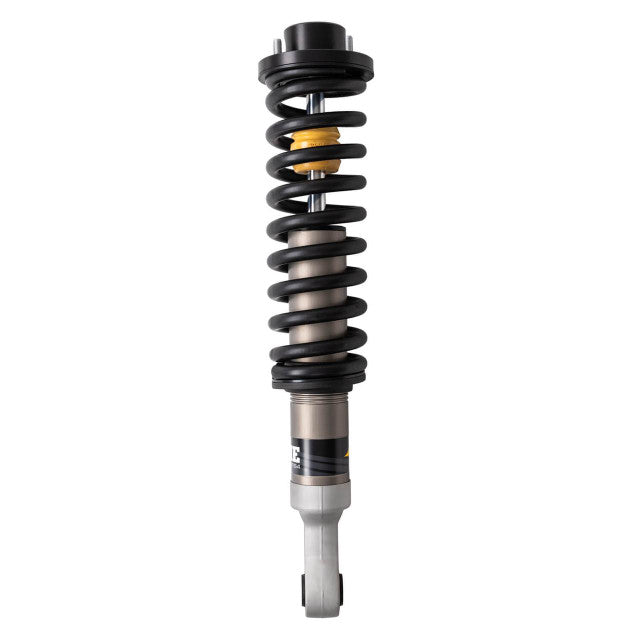

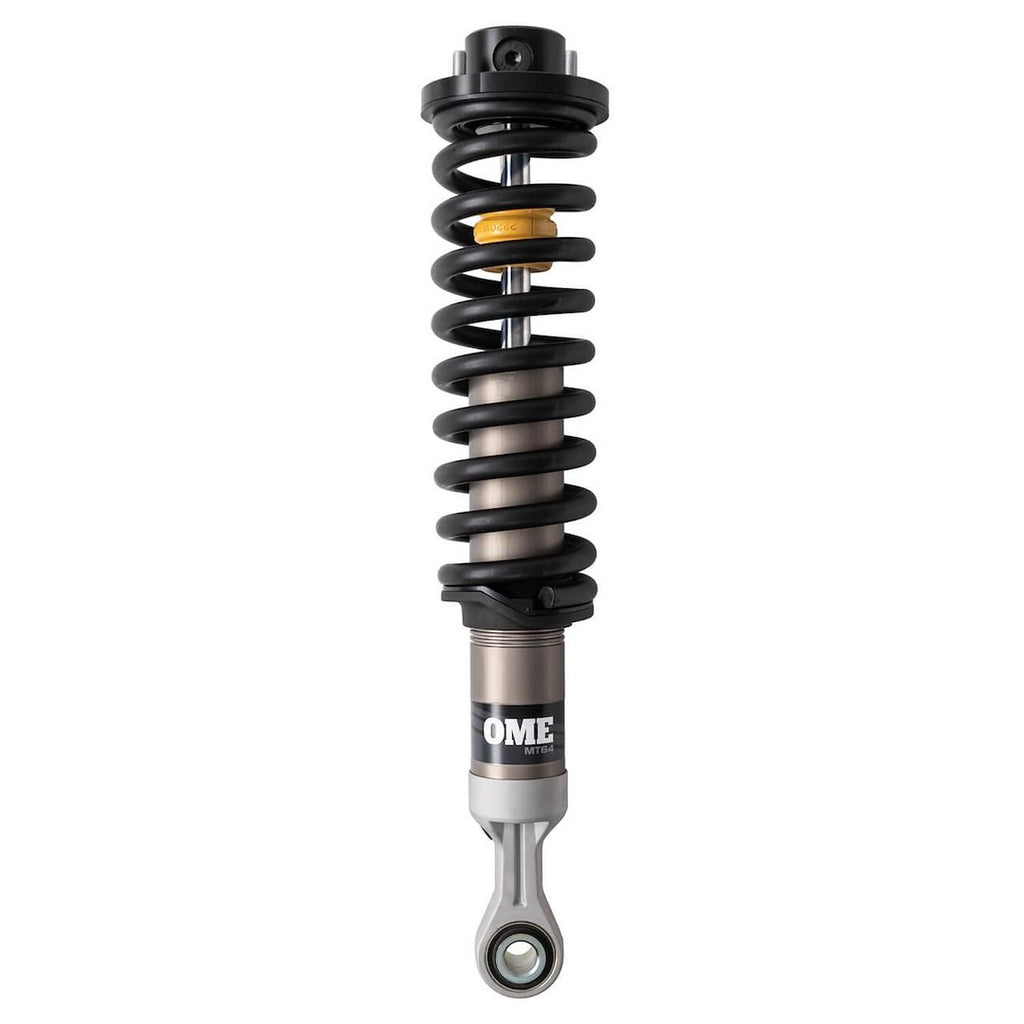

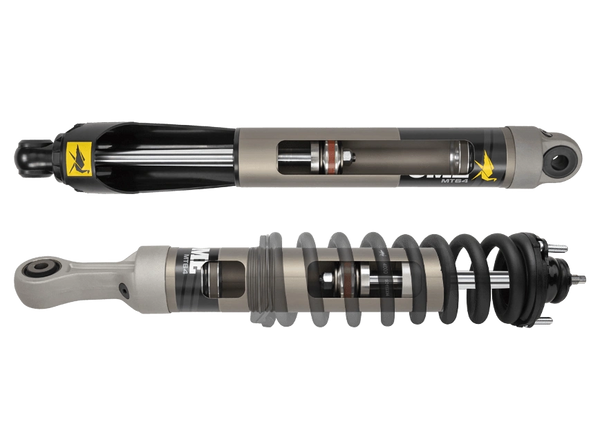

ARB Coil Over Shock Absorber (MPN: MT64996004)

Engineered for optimal performance in overlanding and unique vehicle builds.

The ARB MT64 coilover assembly is designed to meet the rigorous demands of overlanding while accommodating a variety of vehicle configurations, from stock to heavily modified. This assembly features a complete coilover design that allows for direct bolt-in fitment, providing a lift range of 1.75 to 3 inches for vehicles with a front end weight of 220 to 330 pounds. The monotube construction, with a substantial 2.8-inch body, enhances oil capacity and shock tuning accuracy, ensuring reliable performance under diverse conditions.

Constructed from aerospace-grade aluminum, the shock body dissipates heat significantly faster than traditional steel, offering improved durability against stone damage. The digressive valving system is engineered to respond instantly to changing terrain, maximizing performance and ride comfort. Additionally, the adjustable snap-ring design allows for customization of lift height, catering to specific vehicle setups and load conditions.

The MT64 is built to handle the dynamic loads associated with overlanding accessories such as bumpers, campers, and roof racks. With features like a hydraulic end zone top out for added cushioning at full extension, this shock absorber is designed to provide a smooth ride both on and off the road. The ARB MT64 coilover assembly is a reliable choice for those seeking enhanced vehicle performance and comfort in challenging environments.

Features

• Complete Coilover Assembly Allows For Direct Bolt In Fitment, Providing 3in Of Lift On Vehicles With 220 To 330 Pound Front End Weight
• Adjustable 6-Position Snap Ring Allows For A Range Of Lifts From 1.75 To 3 Inch Giving You Control Of Your Build

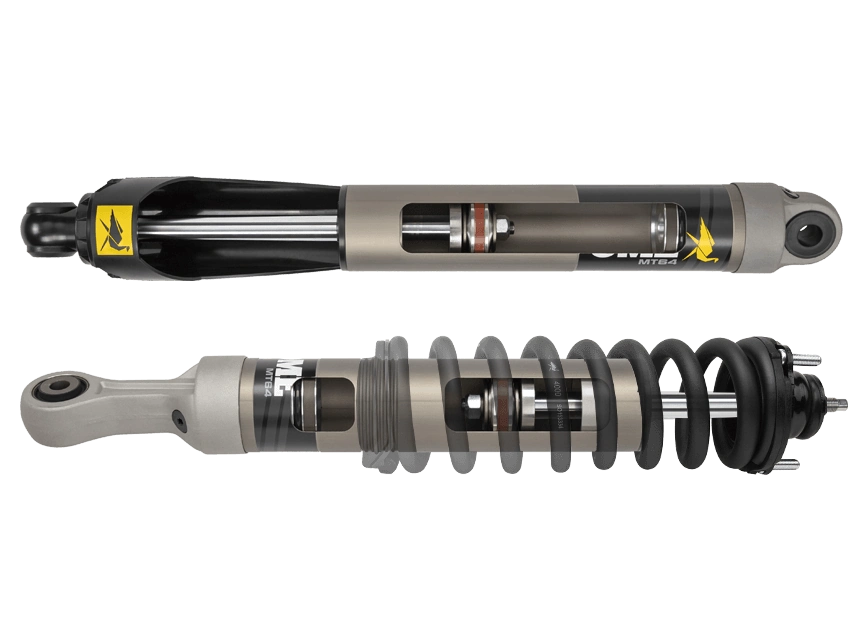

• Monotube Design With A Massive 2.8in Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With A Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64996004
• Adjustable: Yes
• Upper Mounting Type: Strut
• Front/Rear Drop (IN): 1-3/4 Inch To 3 Inch Lift
• Extended Height (IN): 26 Inch
• Compressed Height (IN): 19.3 Inch
• Quantity: Single
• Valving Type: Non Adjustable
• Shock Type: Coil Spring
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Style: Pigtail
• Spring Finish: Anodized
• Spring Color: Black

Compatibility / Fit

• 2024-2026 Lexus GX550
• 2024-2025 Toyota Land Cruiser
