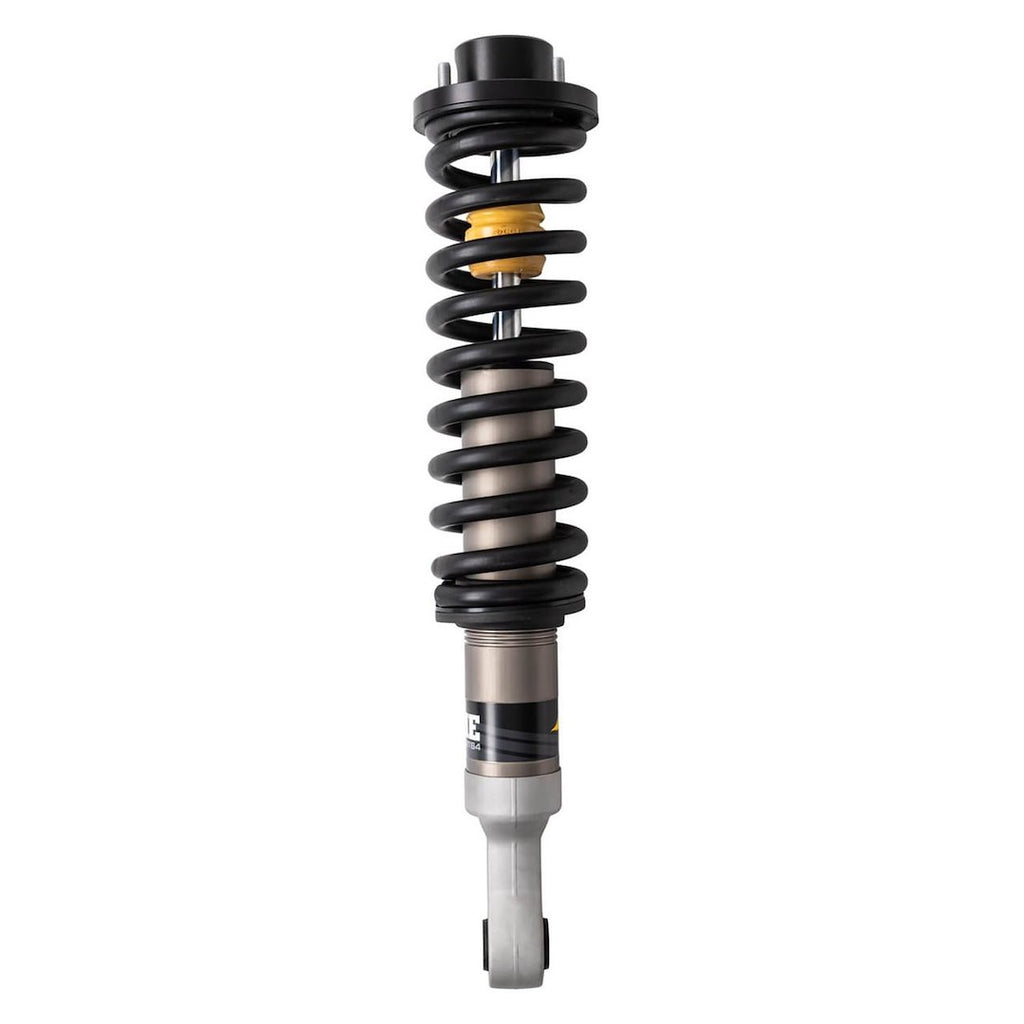

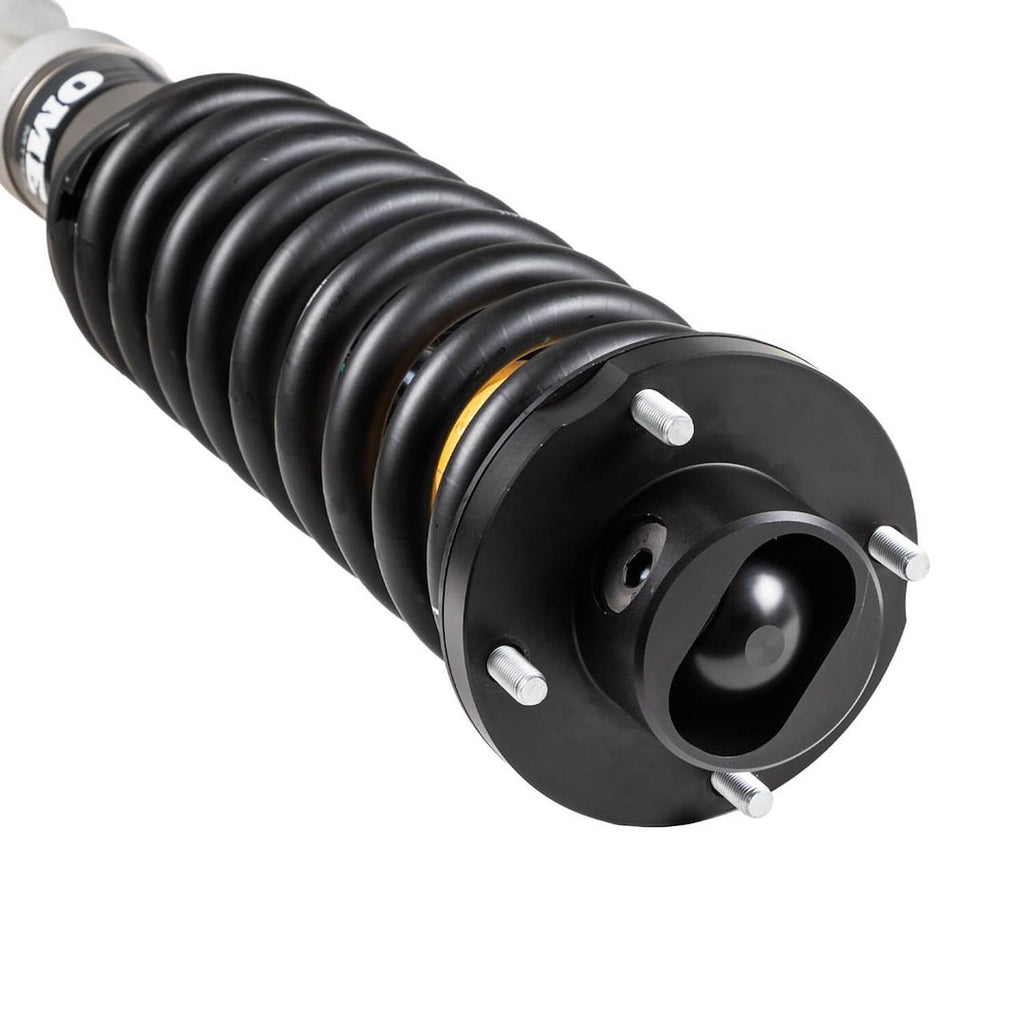

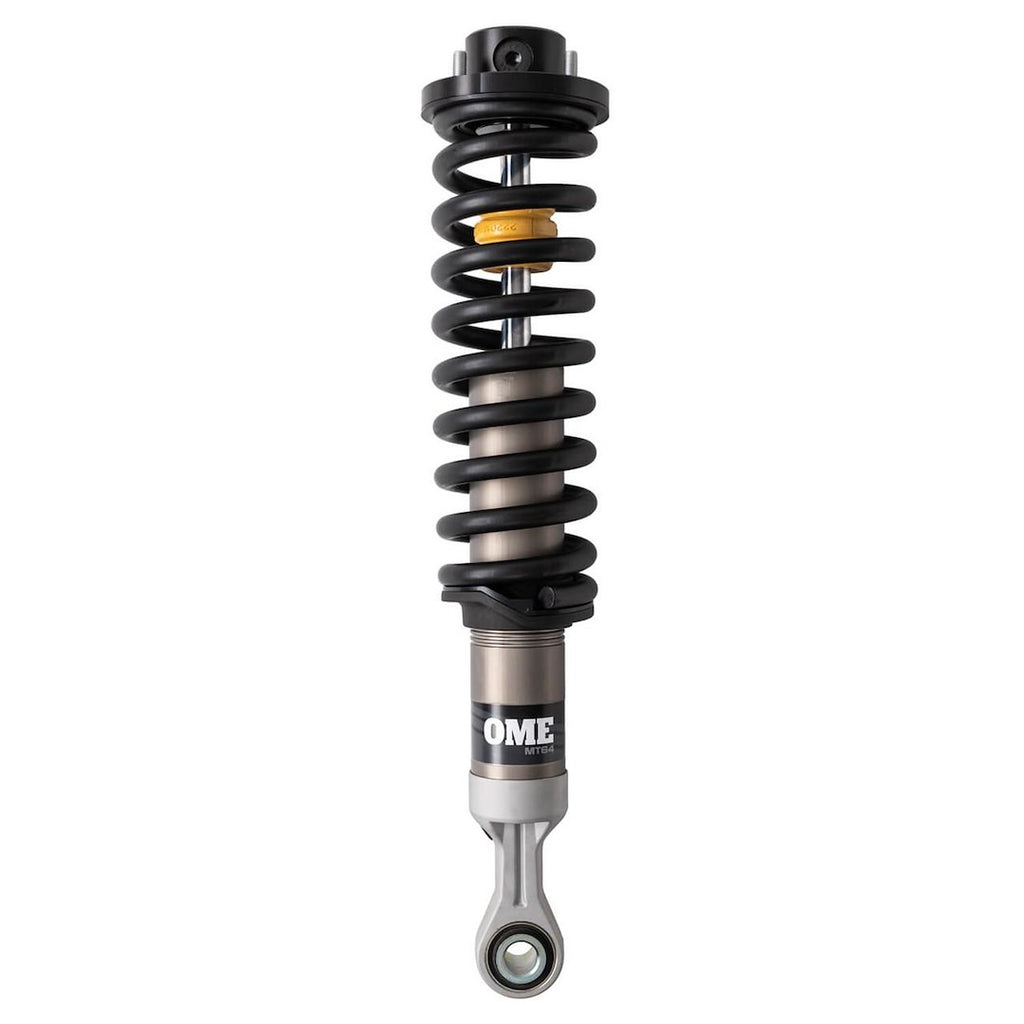

ARB Coil Over Shock Absorber (MPN: MT64996003)

Engineered for optimal performance in overlanding and unique vehicle builds.

The ARB MT64 coilover shock absorber is designed to meet the rigorous demands of overlanding while accommodating a variety of vehicle configurations, from stock to heavily modified. This assembly features a non-adjustable valving system that provides reliable performance under diverse load conditions, ensuring stability and comfort on both paved and unpaved surfaces. With a lift range of 1-3/4 to 3 inches, the MT64 allows for enhanced ground clearance, making it suitable for vehicles equipped with additional accessories such as bumpers and roof racks.

Constructed with a robust monotube design and a large 2.8-inch body, the MT64 optimizes oil capacity for precise shock tuning and heat dissipation. The aerospace-grade aluminum body is engineered to dissipate heat significantly faster than traditional steel, enhancing durability and resistance to damage from stones and debris. The adjustable spring seat with multiple snap-ring grooves allows for customization based on accessory weight, providing versatility for various setups.

The hydraulic end zone top-out feature adds cushioning at full extension, mitigating the impact of unexpected bumps during travel. With digressive valving that responds instantly to changing terrain, the MT64 ensures maximum performance and comfort, making it a reliable choice for serious adventurers and off-road enthusiasts.

Features

• Complete Coilover Assembly Allows For Direct Bolt In Fitment, While Providing 3 Inch Of Lift On Vehicles With Stock Front End Weight
• An Adjustable Spring Seat With Six Positions Allows One Coil Spring To Cater For Differing Accessory Weight
• Monotube Design With An Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With An Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64996003
• Adjustable: No
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 1-3/4 To 3 Inch Lift
• Extended Height (IN): 26 Inch
• Compressed Height (IN): 19.3 Inch
• Quantity: Single
• Valving Type: Non Adjustable Valving
• Shock Type: Hydraulic
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Style: Pigtail
• Spring Finish: Powder Coated
• Spring Color: Black
• Spring Material: Steel
• Includes Mounting Hardware: No

Compatibility / Fit

• 2024-2025 Toyota Land Cruiser
