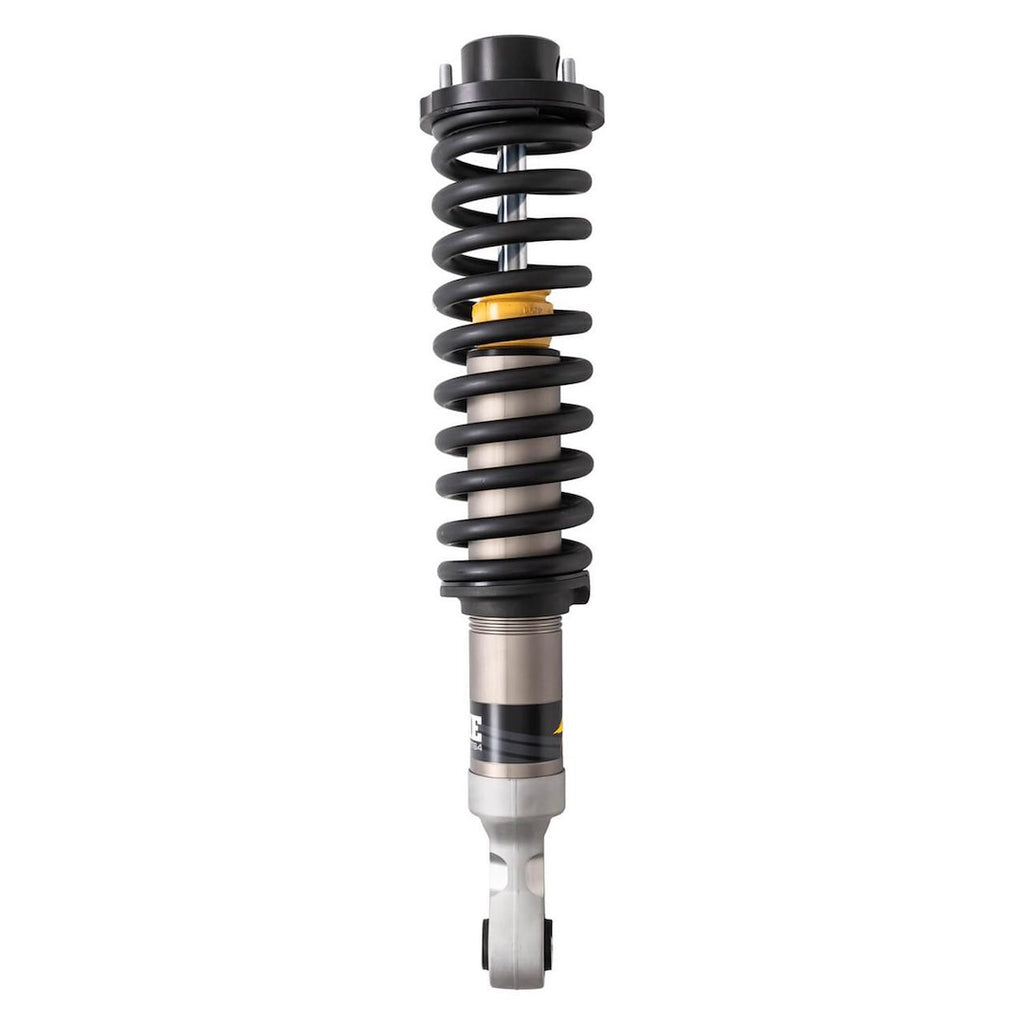

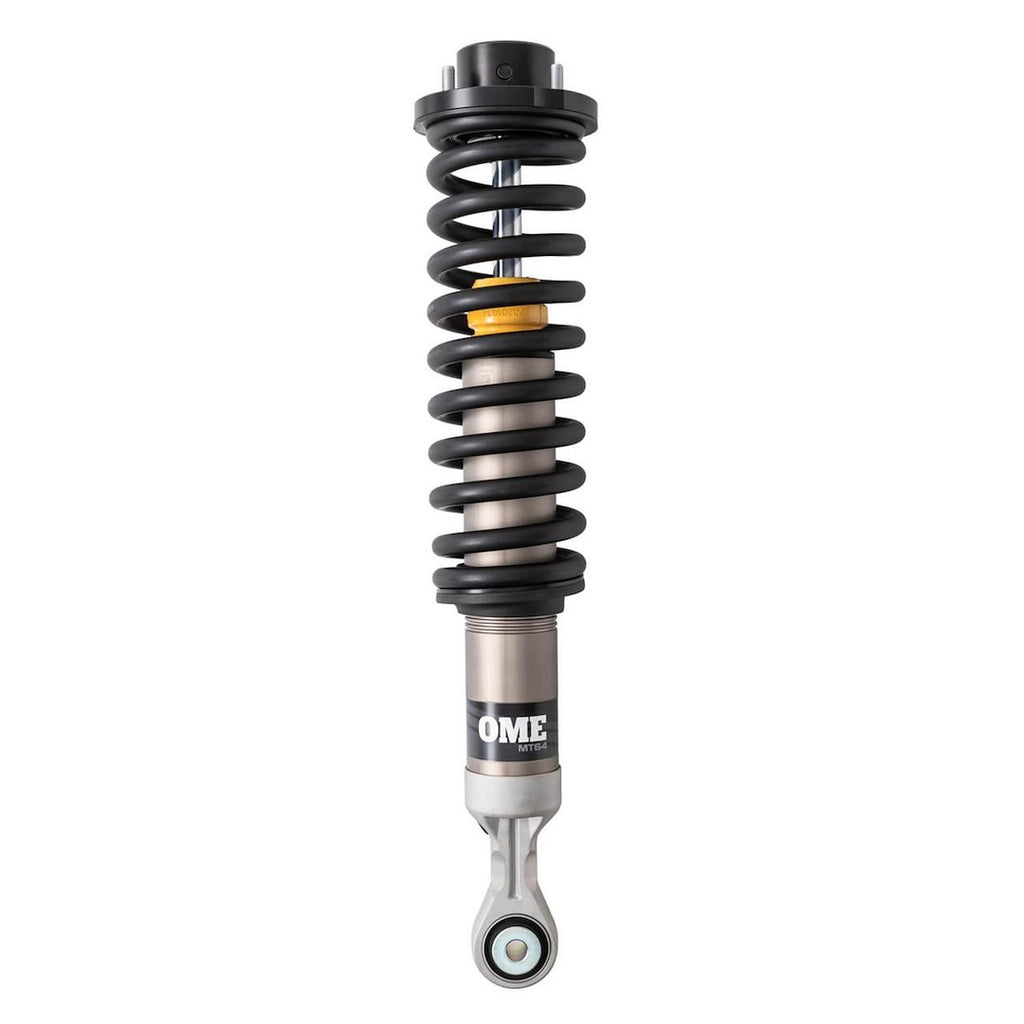

ARB Coil Over Shock Absorber (MPN: MT64996001)

Engineered for optimal performance in overlanding and unique vehicle builds.

The ARB MT64 coilover assembly is designed to meet the rigorous demands of overlanding while accommodating a variety of vehicle configurations, from stock to heavily modified. This assembly features a non-adjustable valving system that provides consistent performance across different loads and setups. With multiple snap-ring grooves, it allows for a 3 inch lift on vehicles with stock front end weight, enhancing ground clearance and off-road capability.

Constructed with a monotube design and a robust 2.8 inch body, the MT64 ensures effective heat dissipation and precise shock tuning. The aerospace-grade aluminum body is engineered to withstand harsh conditions, dissipating heat fifteen times faster than steel and offering increased protection against damage. The hydraulic end zone top out feature provides additional cushioning at full extension, enhancing comfort during unexpected bumps.

The MT64 is equipped with digressive valving that reacts instantly to changing surface conditions, maximizing performance and stability. This coilover assembly is a direct replacement for stock and aftermarket lift kits, making it a versatile choice for those looking to enhance their vehicle's off-road capabilities. Its durable construction and thoughtful design make it a reliable option for both daily driving and adventurous overlanding.

Features

• Complete Coilover Assembly Allows For Direct Bolt In Fitment, While Providing 3 Inch Of Lift On Vehicles With Stock Front End Weight
• An Adjustable Spring Seat With Six Positions Allows One Coil Spring To Cater For Differing Accessory Weight
• Monotube Design With An Massive 2.8 Inch Body Allowing For More Oil And Accurate Shock Tuning
• Aerospace Grade Aluminum Body Dissipates Heat Fifteen Times Faster Than Steel, And Increases Protection Against Stone Damage
• Forged Body Cap And Rod Ends Reduce Weight While Maintaining Strength
• Direct Replacement For Stock And Aftermarket Lift Kit
• Designed With An Hydraulic End Zone Top Out, Providing An Added Padding At The Shock’s Full Extension, To Help Compensate For Any Unexpected Bumps
• Digressive Valving Instantly Reacts To Changing Surface Conditions To Maximize Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: MT64996001
• Adjustable: No
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 3 Inch Lift
• Extended Height (IN): 23 Inch
• Compressed Height (IN): 17.7 Inch
• Quantity: Single
• Valving Type: Non Adjustable Valving
• Shock Type: Hydraulic
• Shock Body Color: Gray
• Shock Body Material: Aluminum
• Spring Style: Pigtail
• Spring Finish: Powder Coated
• Spring Color: Black
• Spring Material: Steel
• Includes Mounting Hardware: No

Compatibility / Fit

• 2024-2025 Toyota Tacoma
