Advanced shock absorber technology for superior performance and control.

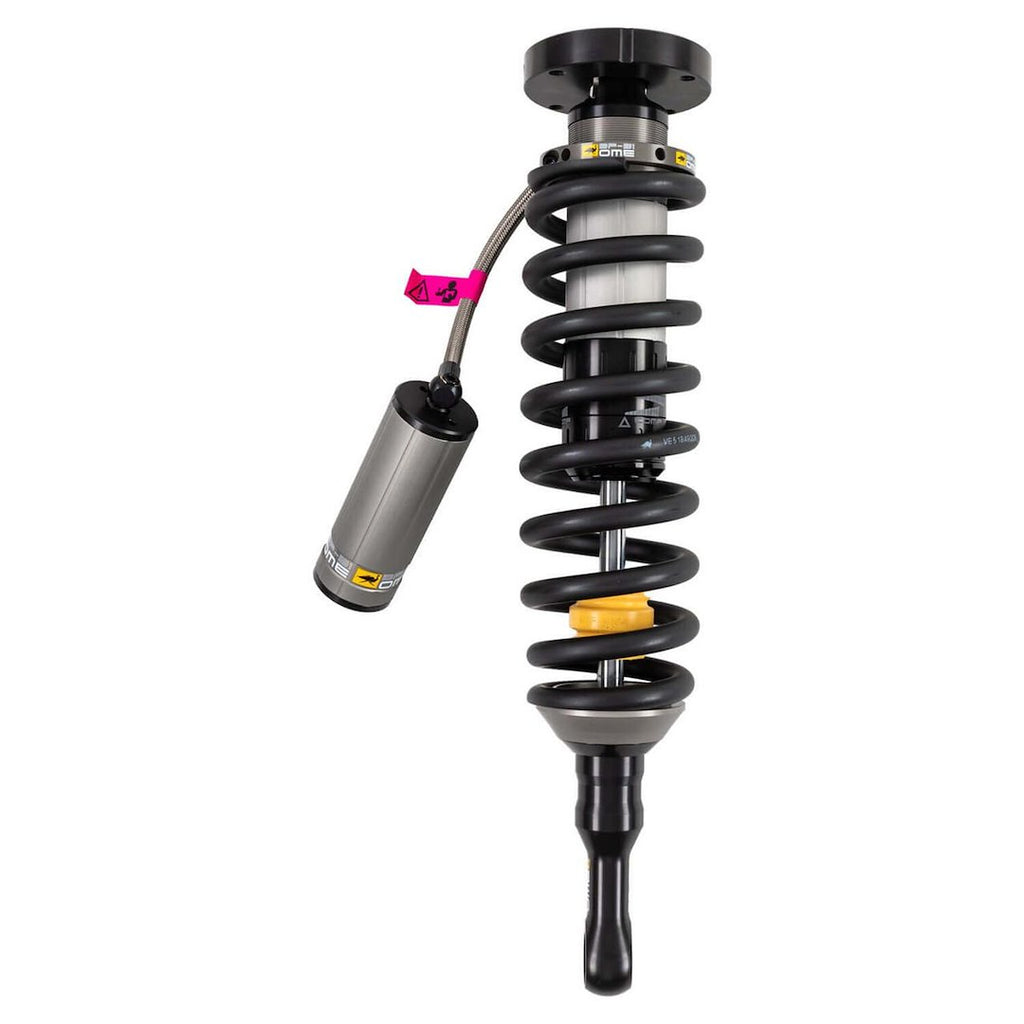

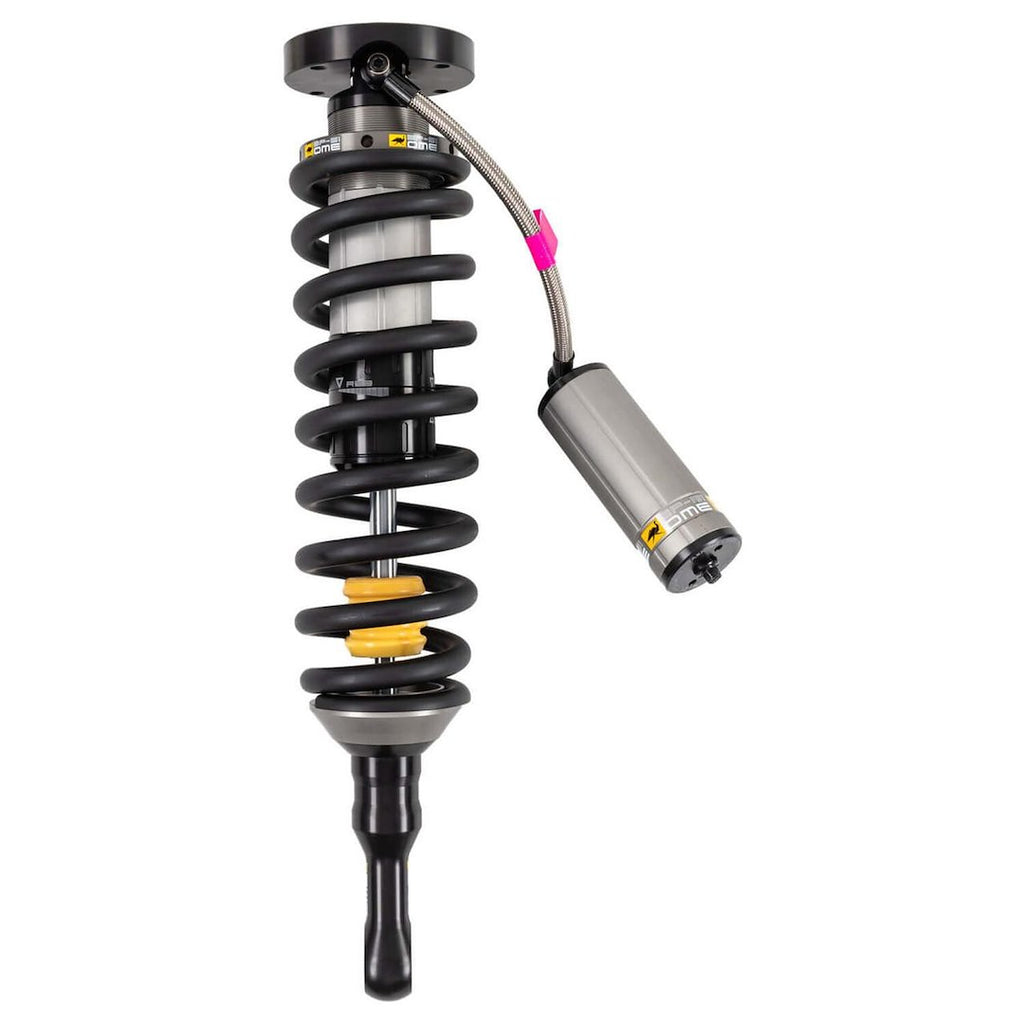

The ARB Coil Over Shock Absorber is engineered to enhance both on-road comfort and off-road capability. Featuring a 51 millimeter diameter bore, this shock absorber utilizes innovative bypass technology to provide position and velocity sensitive damping, ensuring optimal performance in various driving conditions. The remote reservoir design increases oil capacity, which helps maintain lower temperatures for consistent performance during extended use.
Constructed from durable 6061 T6 aluminum with a Type III hard anodized finish, this shock absorber is built to withstand harsh environments while offering excellent heat dissipation and corrosion resistance. The fully assembled coilover includes a preload adjustable collar, allowing for a lift of up to 3 inches, accommodating different front end weights without compromising ride quality.
With 10 levels of compression and rebound adjustment, the ARB Coil Over Shock Absorber allows for precise tuning to match specific vehicle setups and driving conditions. This product is designed for easy installation without the need for vehicle modifications, making it a practical choice for those seeking enhanced chassis control and handling off-road.
Features
- Position And Velocity Sensitive Damping
- Internal Bypass Technology, Giving Increased Control At End Zones
- Features 10 Levels Of Compression Adjustment
- Features 10 Levels Of Rebound Adjustment
- 6061 Grade Aluminum Shock Absorber Body With Type III

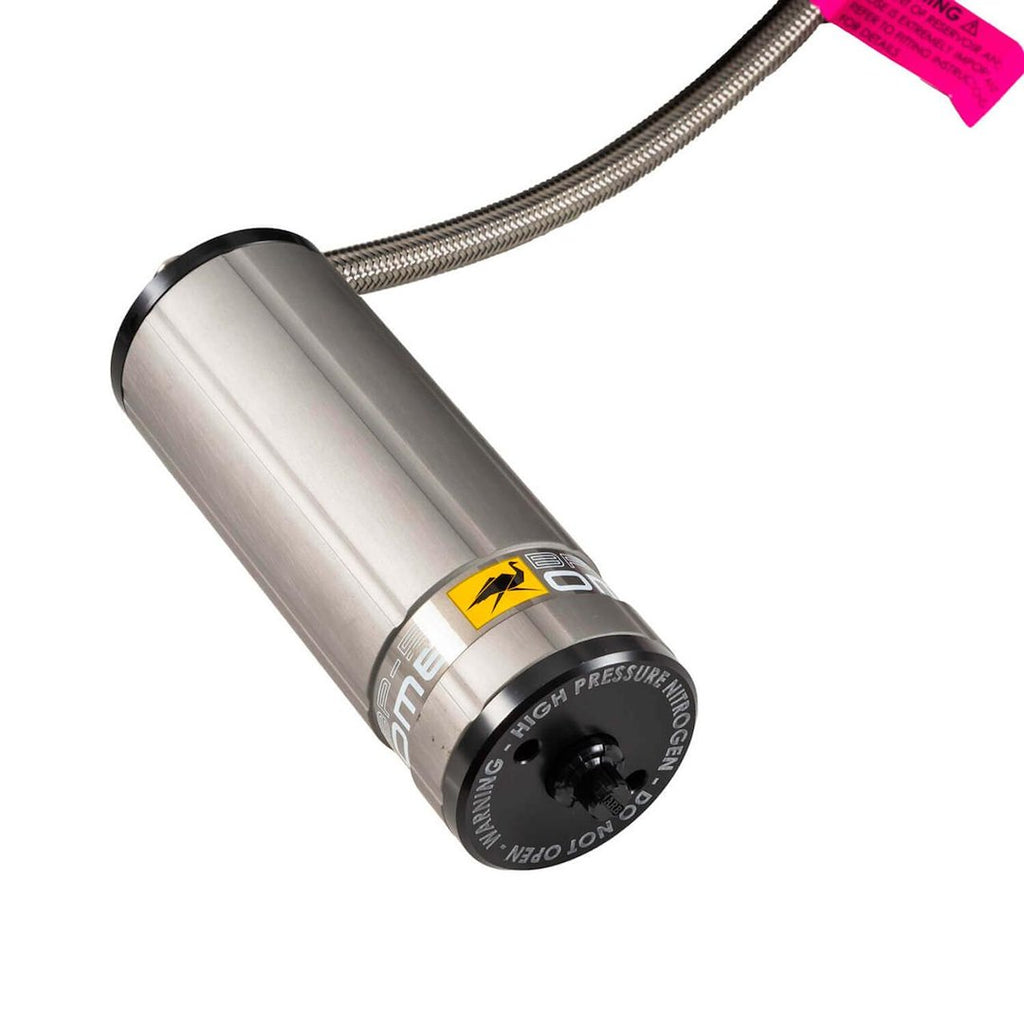

- Remote Reservoir For Increased Oil Capacity, Helps Maintain A Lower Temperature For Optimal Performance In All Scenarios

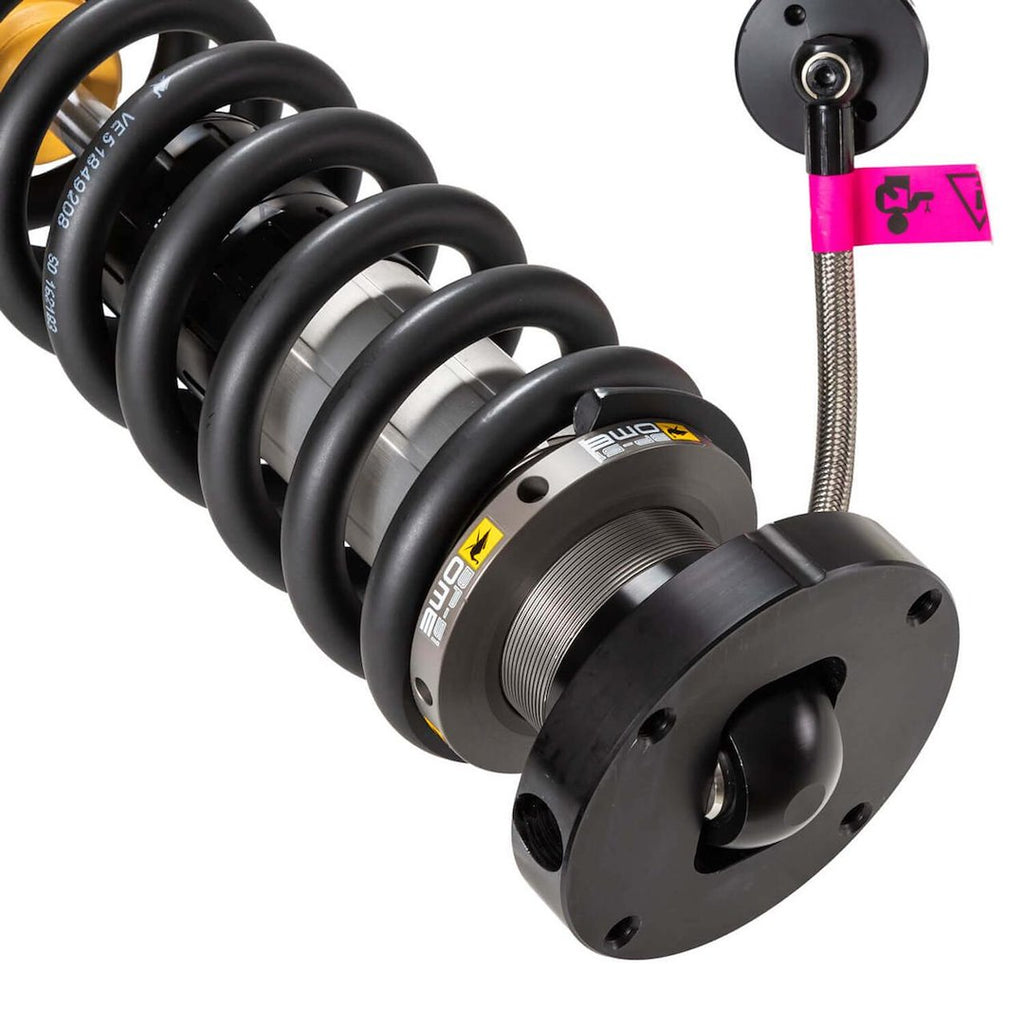

- Fully Assembled Coilover With Preload Adjustable Collar Allowing For Up To 3 Inch Of Lift Regardless Of Front End Weight
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5190029R
- Adjustable: No
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 3 Inch Lift
- Extended Height (IN): 25.1 Inch
- Compressed Height (IN): 19.4 Inch
- Quantity: Single
- Valving Type: Non Adjustable Valving
- Shock Type: Hydraulic
- Shock Body Color: Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Finish: Powder Coated
- Spring Color: Black
- Spring Material: Steel
Compatibility / Fit
- 2024-2025 Toyota Land Cruiser
