Advanced shock absorber technology for enhanced vehicle performance.

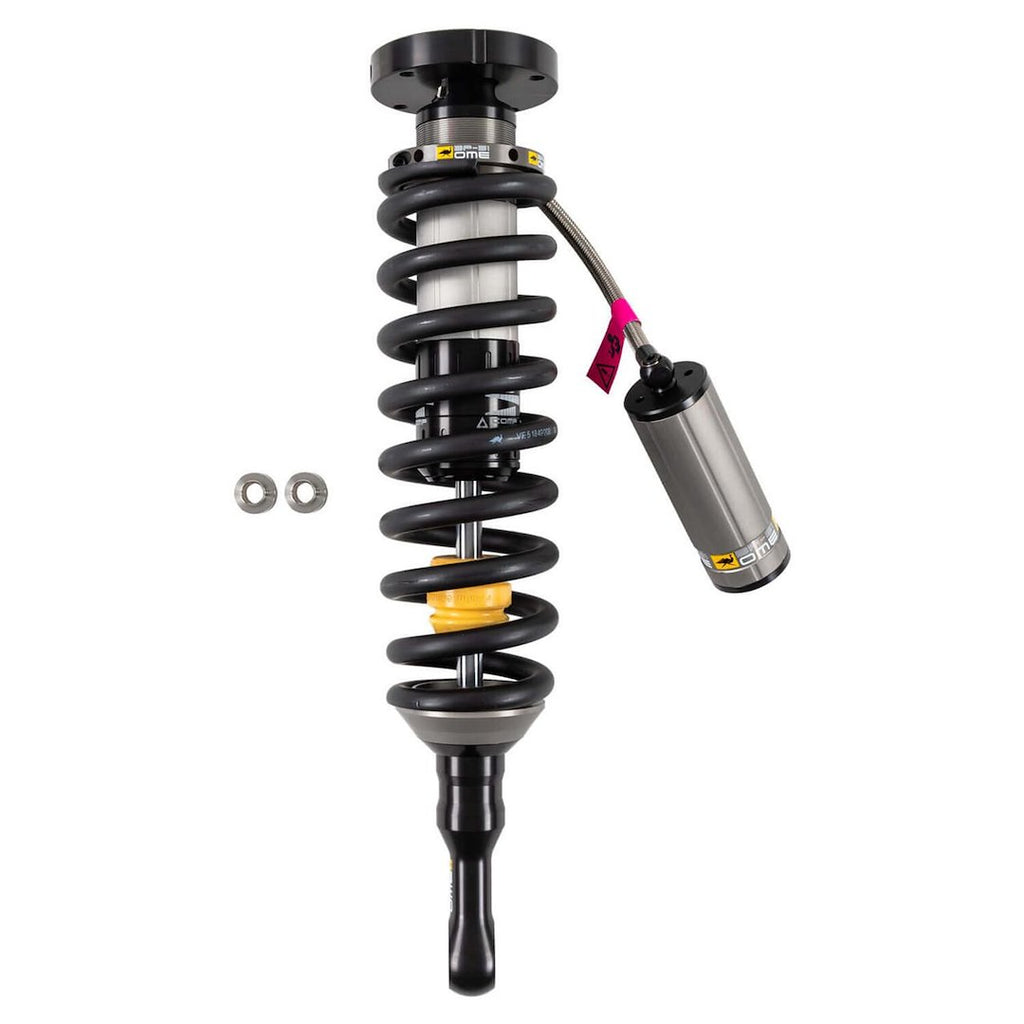

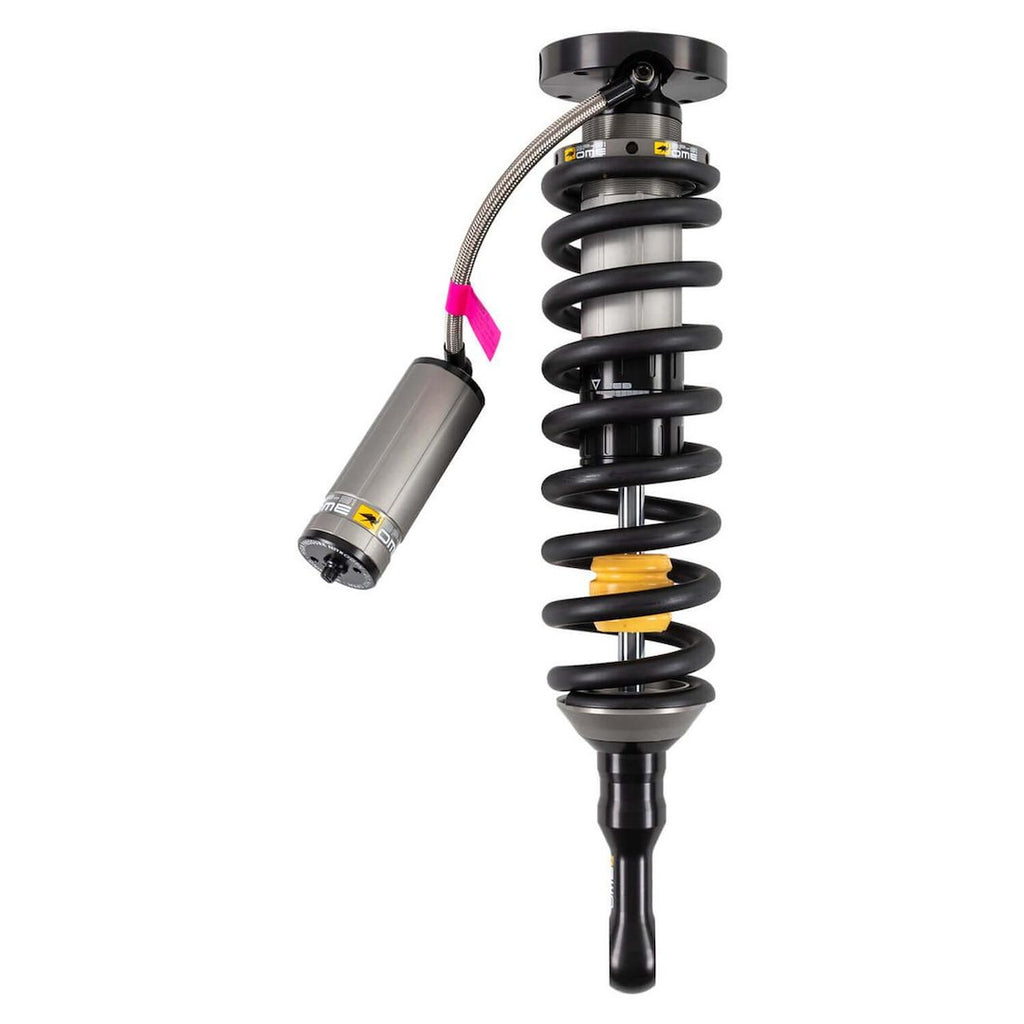

The ARB Coil Over Shock Absorber, model BP-51, integrates cutting-edge racing technology into everyday vehicle applications. Designed for both on-road comfort and off-road capability, this shock absorber features a 51 millimeter diameter bore and a remote reservoir that enhances oil capacity and temperature management. The innovative internal bypass technology allows for position and velocity sensitive damping, providing increased control during extreme driving conditions.
Constructed from durable 6061 T6 aluminum with a Type III hard anodized finish, the shock absorber ensures exceptional resistance to corrosion and damage from stones. The fully assembled coilover design includes a preload adjustable collar, allowing for a lift of up to 3 inches, accommodating various front end weights without the need for modifications. With 10 levels of compression and rebound adjustment, users can fine-tune the damping performance to suit their specific driving conditions and vehicle setup.
Manufactured in-house by ARB, the BP-51 shock absorbers are rigorously tested under harsh Australian conditions, ensuring reliability and performance. This product is engineered to deliver a balance of ride comfort and exceptional chassis control, making it a valuable addition to any vehicle seeking enhanced performance both on and off the road.

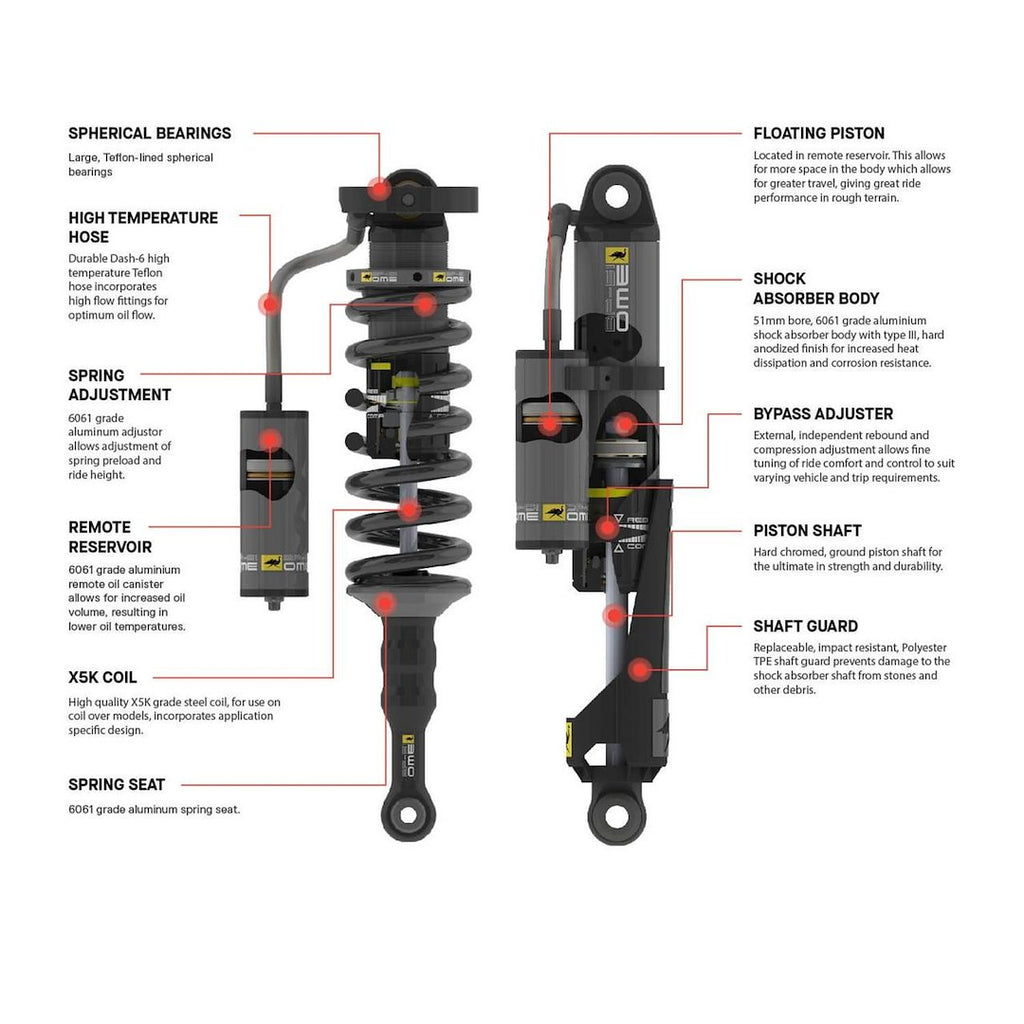

Features
- Position And Velocity Sensitive Damping
- Internal Bypass Technology, Giving Increased Control At End Zones
- Features 10 Levels Of Compression Adjustment
- Features 10 Levels Of Rebound Adjustment
- 6061 Grade Aluminum Shock Absorber Body With Type III

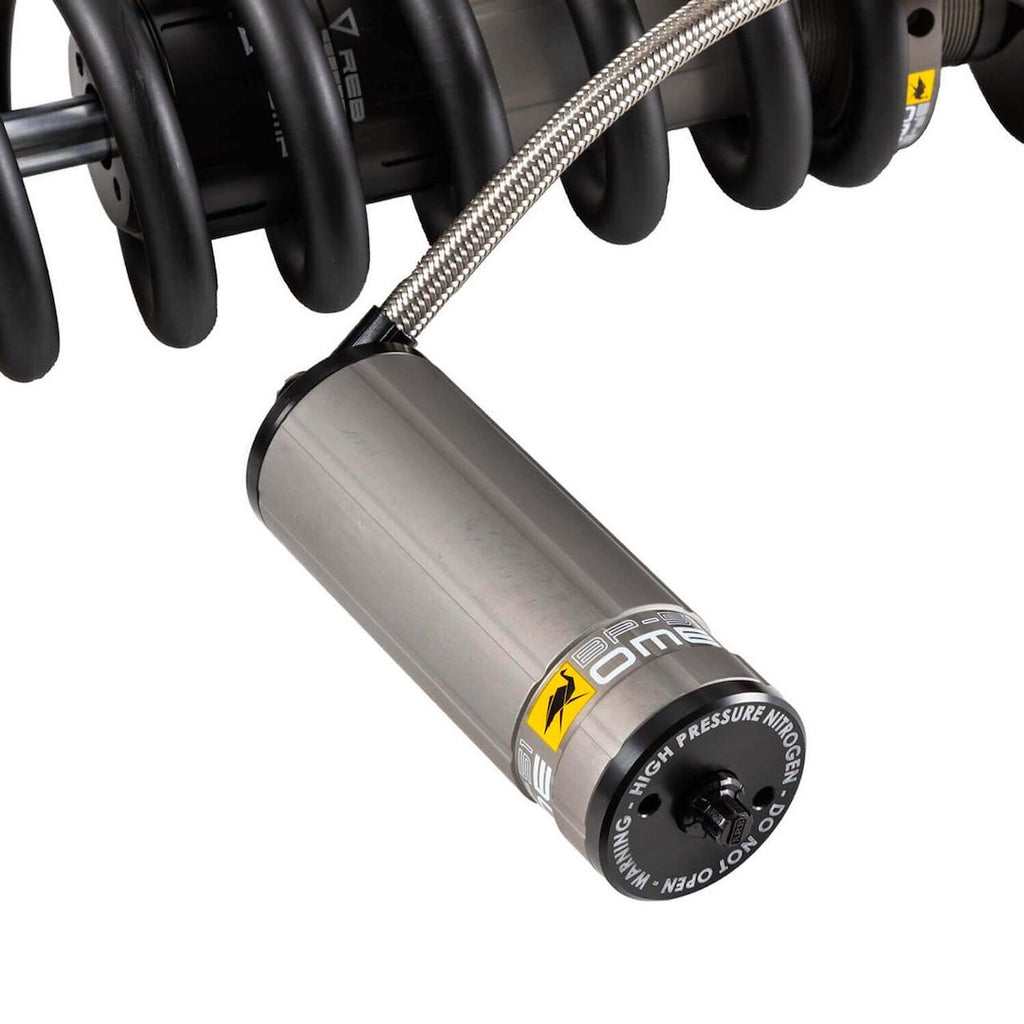

- Remote Reservoir For Increased Oil Capacity, Helps Maintain A Lower Temperature For Optimal Performance In All Scenarios

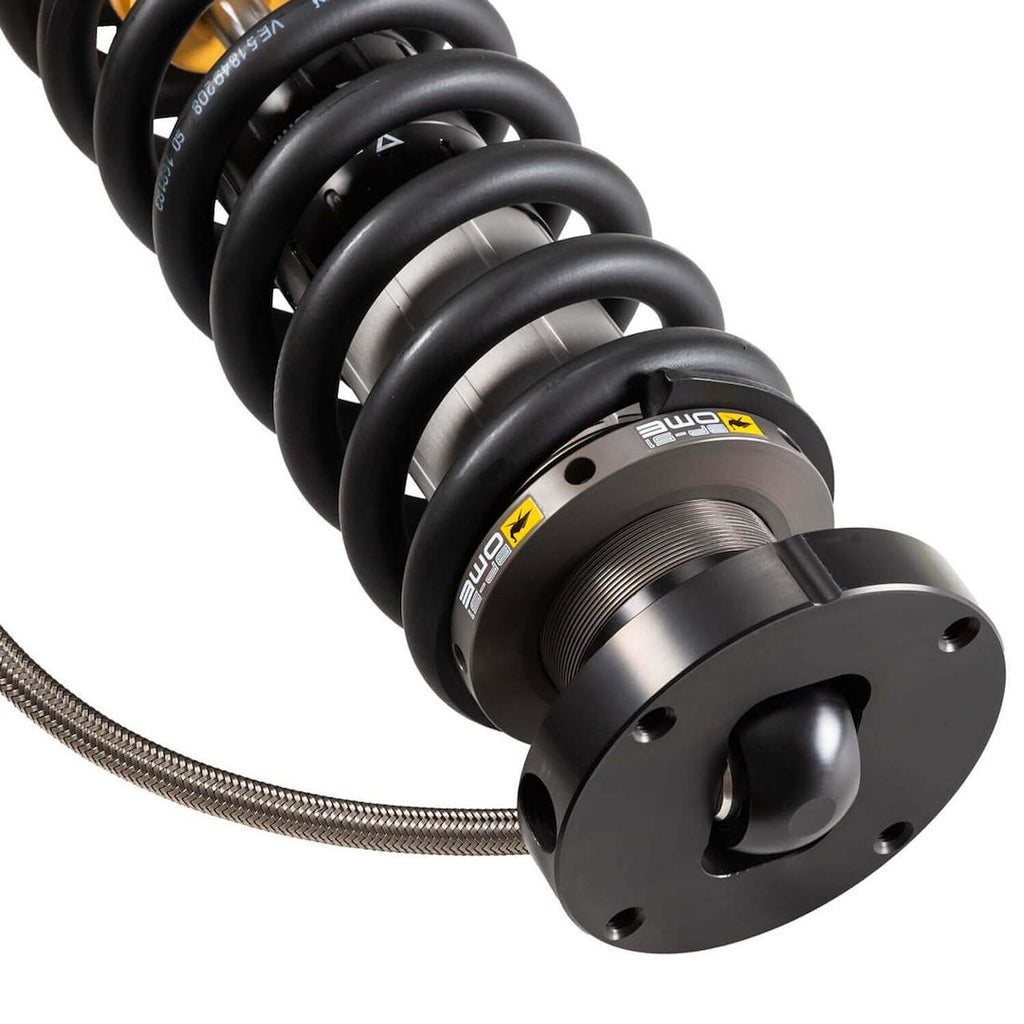

- Fully Assembled Coilover With Preload Adjustable Collar Allowing For Up To 3 Inch Of Lift Regardless Of Front End Weight
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5190029L
- Adjustable: No
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 3 Inch Lift
- Extended Height (IN): 25.1 Inch
- Compressed Height (IN): 19.4 Inch
- Quantity: Single
- Valving Type: Non Adjustable Valving
- Shock Type: Hydraulic
- Shock Body Color: Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Finish: Powder Coated
- Spring Color: Black
- Spring Material: Steel
Compatibility / Fit
- 2024-2025 Toyota Land Cruiser
