Advanced shock absorber technology for enhanced vehicle performance.

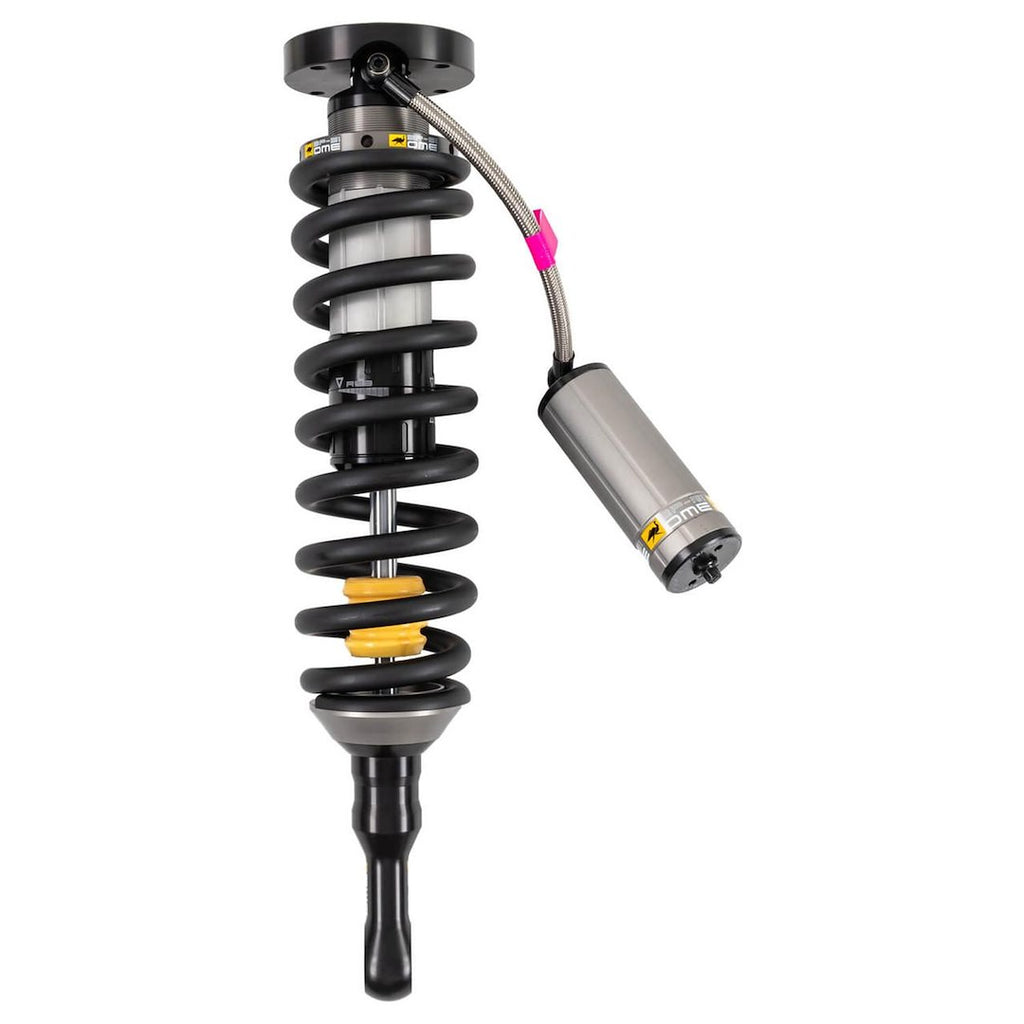

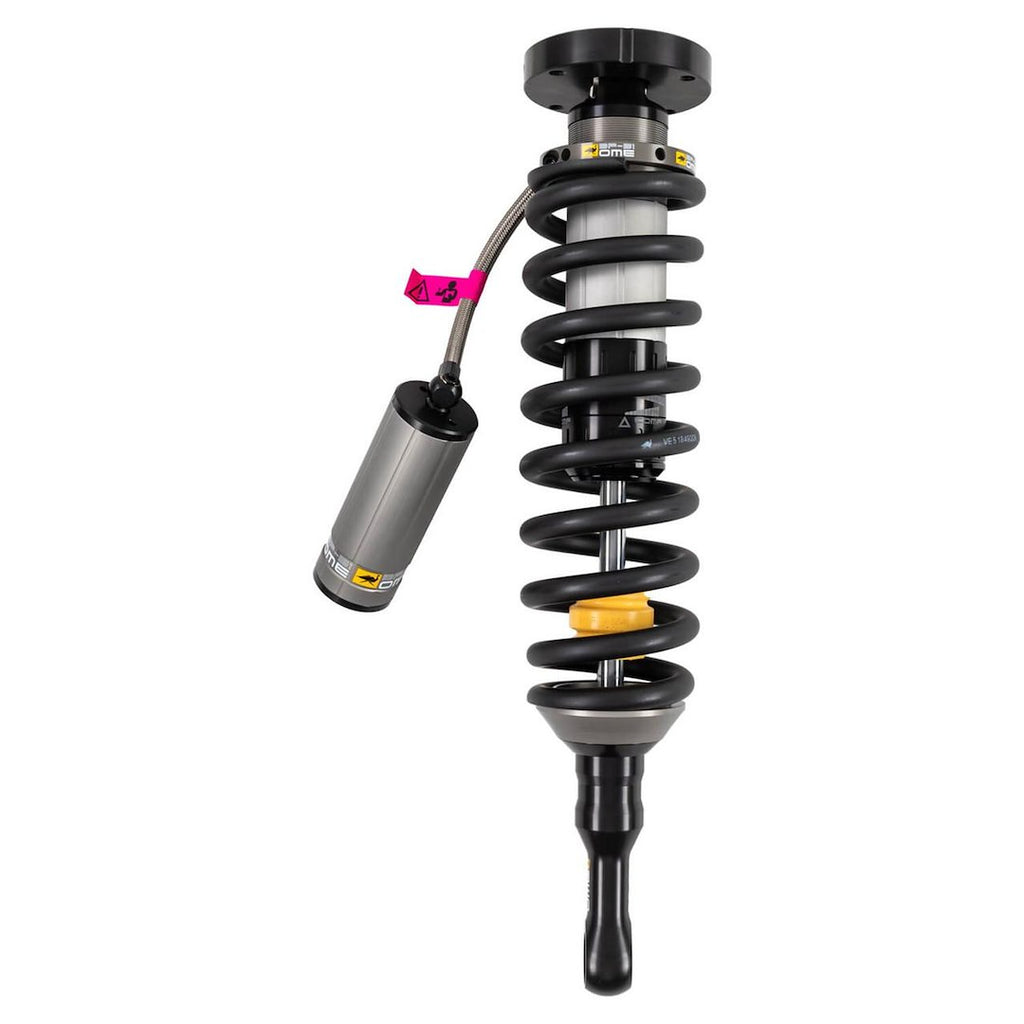

The ARB Coil Over Shock Absorber is engineered to provide exceptional performance both on and off road. Featuring a 51 millimeter diameter bore, this shock absorber utilizes innovative bypass technology to enhance damping control, particularly in challenging conditions. The remote reservoir design increases oil capacity, which helps maintain optimal temperatures for consistent performance. Constructed from durable 6061 T6 aluminum with a hard anodized finish, this shock absorber is built to withstand harsh environments while offering resistance to corrosion and stone damage.
Designed for easy installation, the ARB Coil Over Shock Absorber requires no modifications to your vehicle. It offers a significant 3 inch lift and includes a preload adjustable collar, allowing for customization based on front end weight. The shock absorber features non adjustable valving, ensuring reliable performance across various terrains. With its position and velocity sensitive damping, this product delivers a balanced ride, combining comfort for everyday driving with enhanced control for off road adventures.

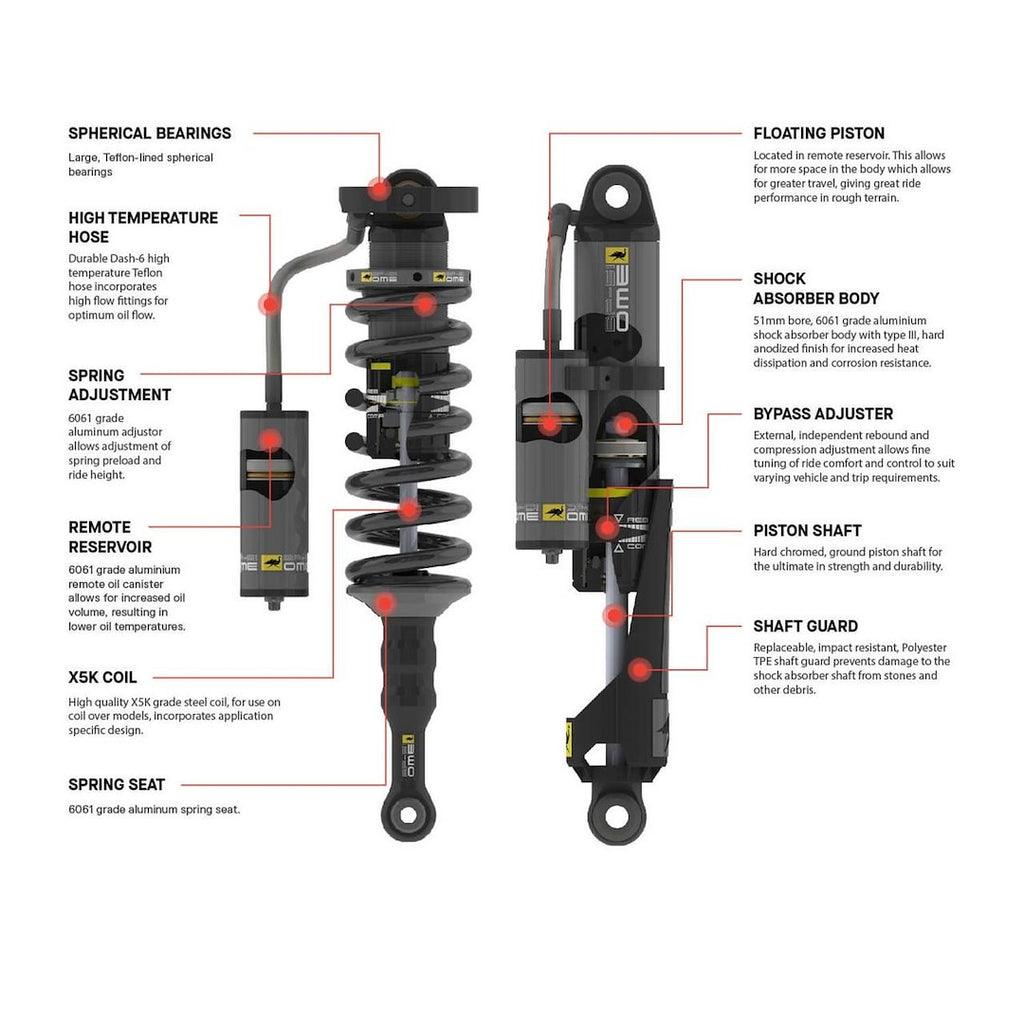

Features
- Position And Velocity Sensitive Damping
- Internal Bypass Technology, Giving Increased Control At End Zones
- Features 10 Levels Of Compression Adjustment
- Features 10 Levels Of Rebound Adjustment
- 6061 Grade Aluminum Shock Absorber Body With Type III

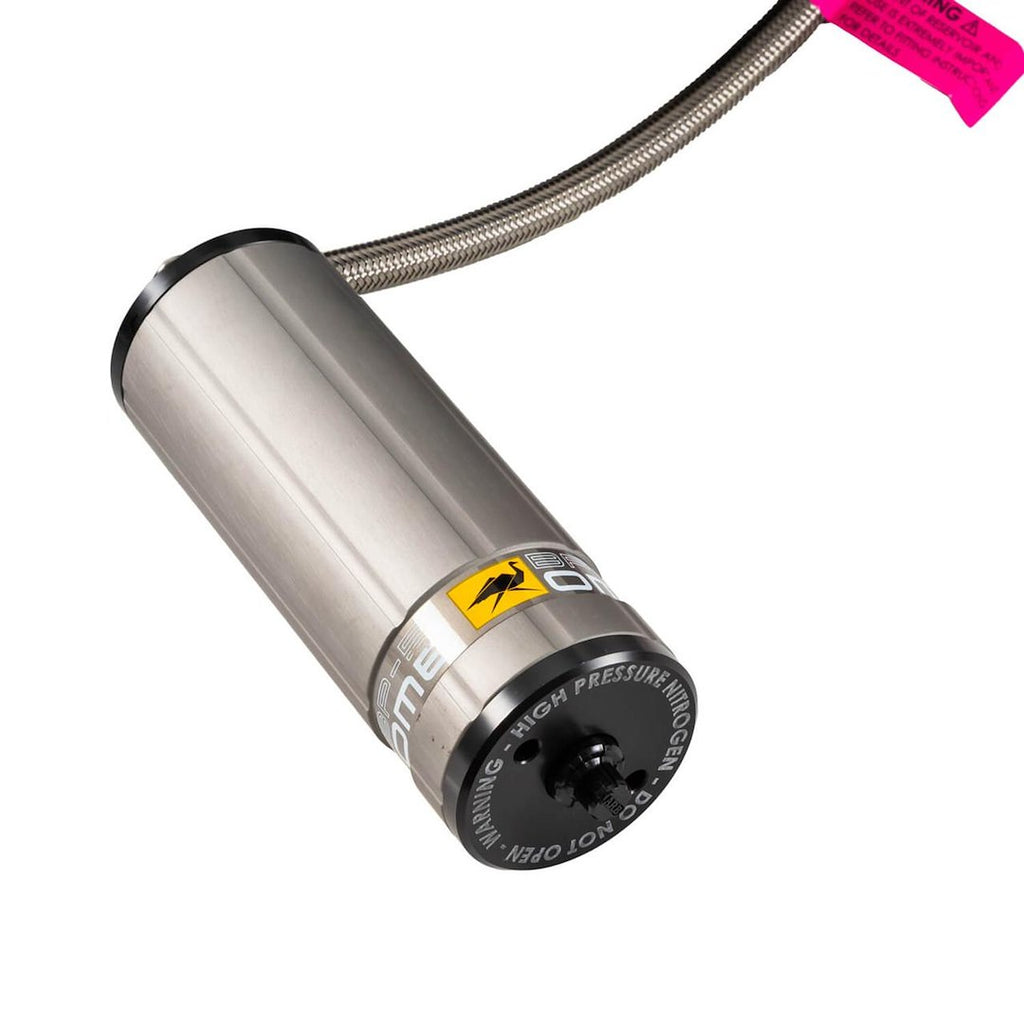

- Remote Reservoir For Increased Oil Capacity, Helps Maintain A Lower Temperature For Optimal Performance In All Scenarios

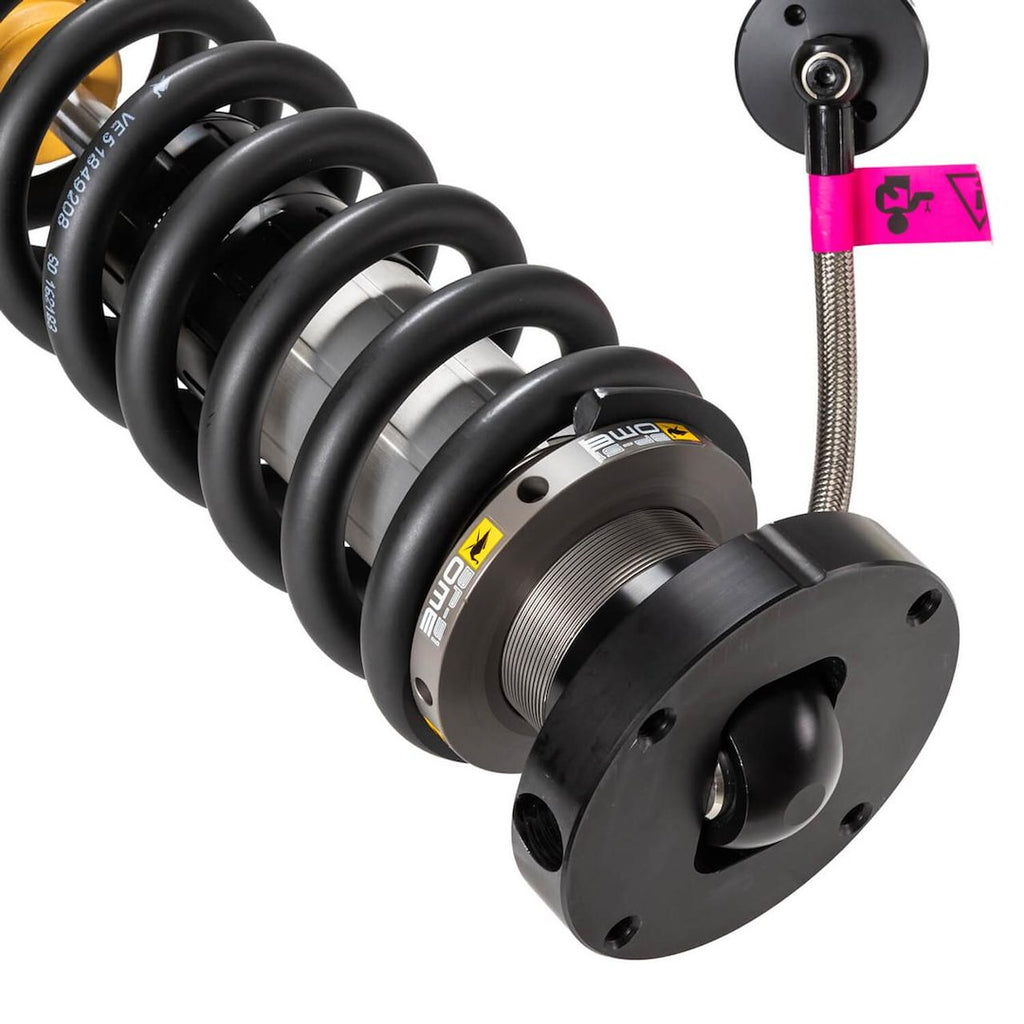

- Fully Assembled Coilover With Preload Adjustable Collar Allowing For Up To 3 Inch Of Lift Regardless Of Front End Weight
Specifications
- Manufacturer: ARB
- Manufacturer Part Number: BP5190028R
- Adjustable: No
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 3 Inch Lift
- Extended Height (IN): 25.3 Inch
- Compressed Height (IN): 19.5 Inch
- Quantity: Single
- Valving Type: Non Adjustable Valving
- Shock Type: Hydraulic
- Shock Body Color: Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Finish: Powder Coated
- Spring Color: Black
- Spring Material: Steel
Compatibility / Fit
- 2024-2025 Toyota Tacoma
