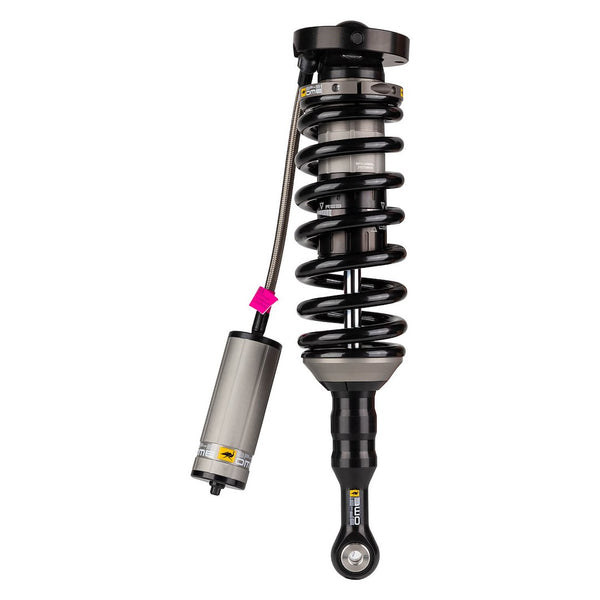

ARB Coil Over Shock Absorber (MPN: BP5190006R)

Advanced shock absorber with independent compression and rebound adjustment for superior ride quality.

The ARB Coil Over Shock Absorber is engineered for high performance and durability, providing a significant enhancement in vehicle handling and comfort. This shock absorber features independent compression and rebound valve adjustment, allowing for precise tuning to meet specific driving conditions and preferences. Designed for easy installation, it utilizes existing mounting locations, eliminating the need for modifications to the vehicle.

Constructed from 661 T6 aluminum, the shock body and reservoir offer excellent heat dissipation and corrosion resistance, ensuring longevity and consistent performance. The internal bypass system, combined with position-sensitive damping, enhances comfort at ride height while increasing control as the vehicle approaches its limits. The shock absorber is also equipped with kidney bypass ports that maximize oil flow and tunability, further improving ride customization.

With a high-quality X5K grade steel coil and an impact-resistant, replaceable shaft guard, this shock absorber is built to withstand harsh conditions. The use of high viscosity index oil ensures durability and consistent performance across various temperatures. The ARB Coil Over Shock Absorber is a reliable choice for those seeking to enhance their vehicle's suspension system.

Features

• Kidney Bypass Ports: Maximum Bore Size And Bypass Diameter, Greater Oil Volume, More Tunable And Ability To Generate Force
• External Compression And Rebound Adjustment: Independent Adjustment Of Compression And Rebound, Adjustable While Installed On The Vehicle
• Body/Reservoir/Components 661 T6 Aluminum: Heat Dissipation, Corrosion Resistance
• Internal Bypass, Shim Controlled, Position Sensitive Damping: Provides Comfort At Ride Height, Damping Increases As You Get Closer To The End Zone, Increased Control At End Zones
• Dash 6 High Temperature Teflon Hose With High Flow Fittings: No Restriction Of Oil Flow
• High Quality X5K Grade Steel Coil
• Impact Resistant, Replaceable Shaft Guard: Protects Against Stone Damage
• 1 Percent Re-Buildable And Re-Valveable: Longevity, Tuneability
• High Performance, High Viscosity Index Oil: Durability And Consistency Of Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190006R
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 3 Inch Lift
• Extended Height (IN): 21.45 Inch
• Compressed Height (IN): 17.28 Inch
• Quantity: Single
• Valving Type: Compression And Adjustable Rebound Valving
• Shock Type: Coil Spring
• Shock Body Color: Black/ Gray
• Shock Body Material: Aluminum
• Spring Style: Single Flat End
• Spring Color: Black
• Spring Material: Aluminum

Compatibility / Fit

• 2005-2023 Toyota Tacoma

Technical Documents

• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• FI_VM90010016_BP-51_Tacoma_Front_RevB.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf

Product Videos
