ARB Coil Over Shock Absorber (MPN: BP5190006L)

Advanced suspension technology for superior performance on any terrain.

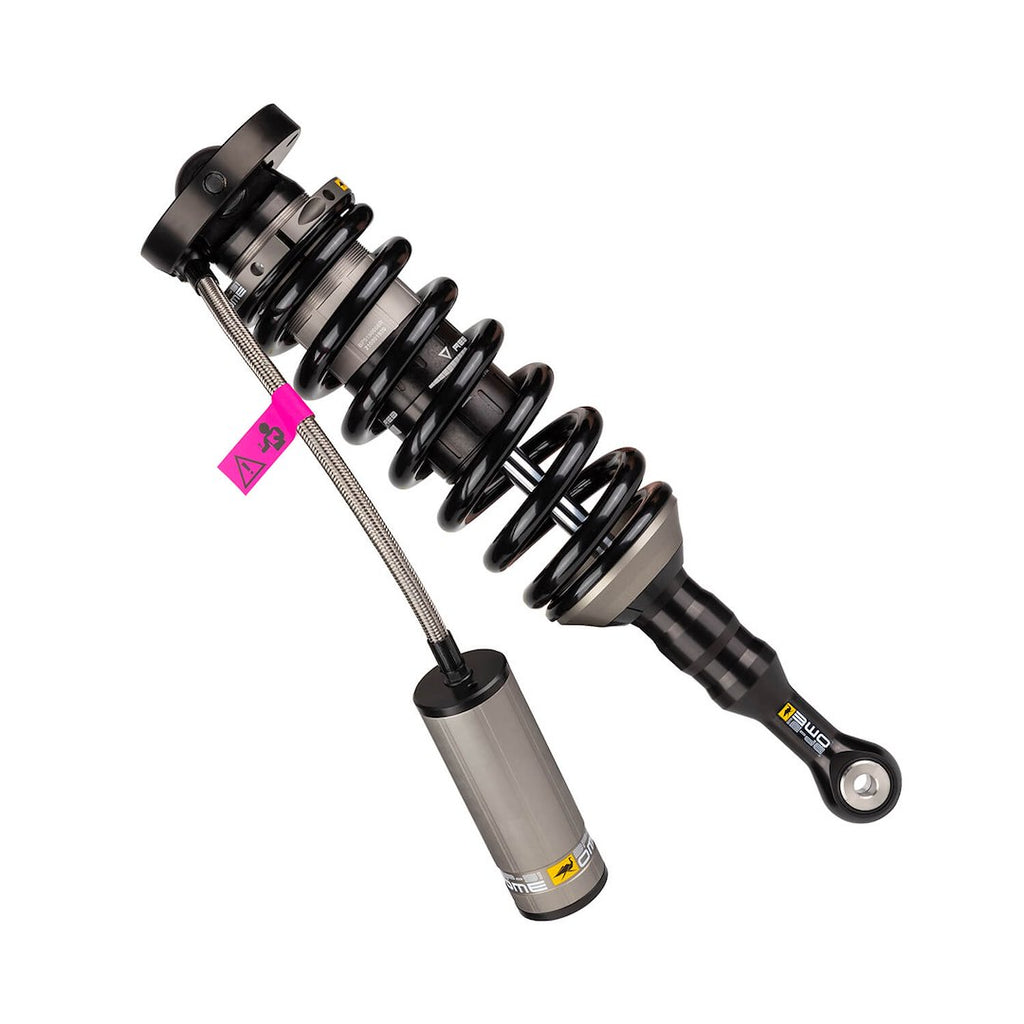

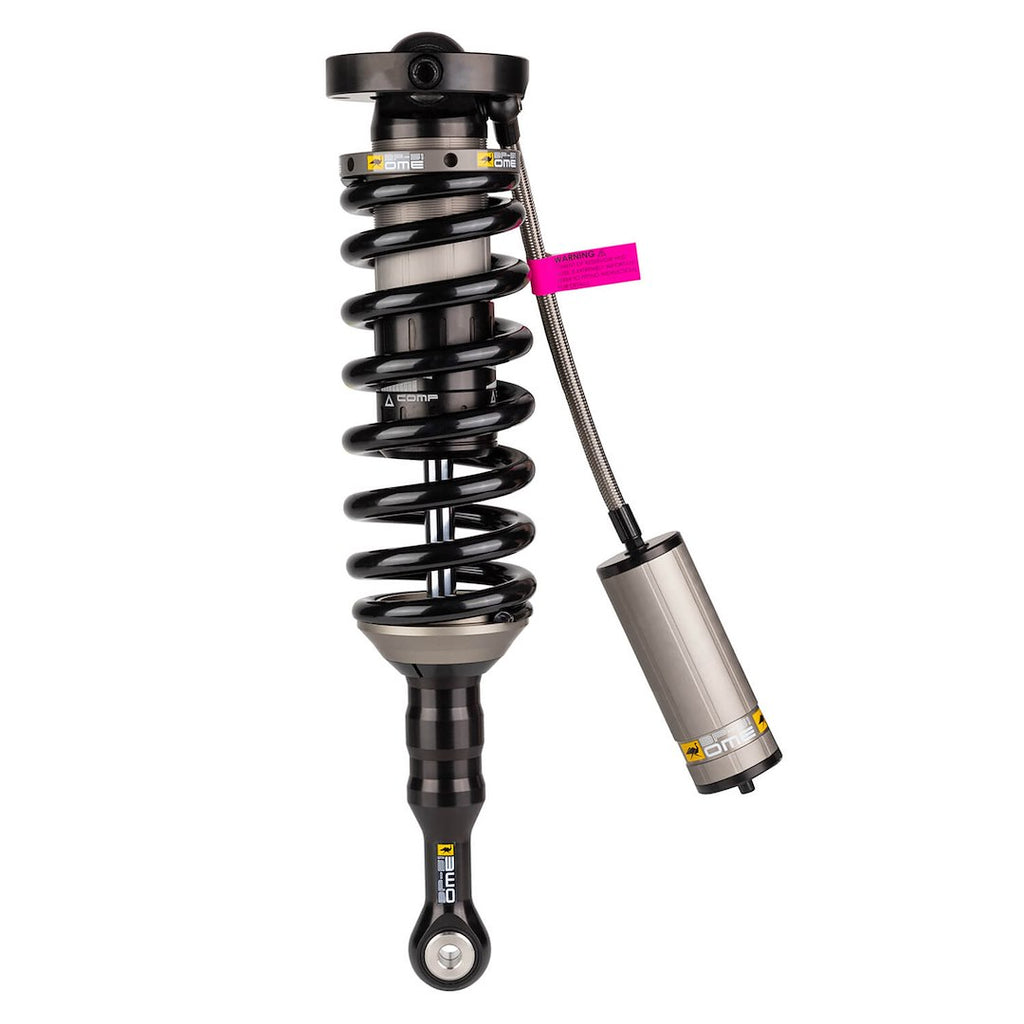

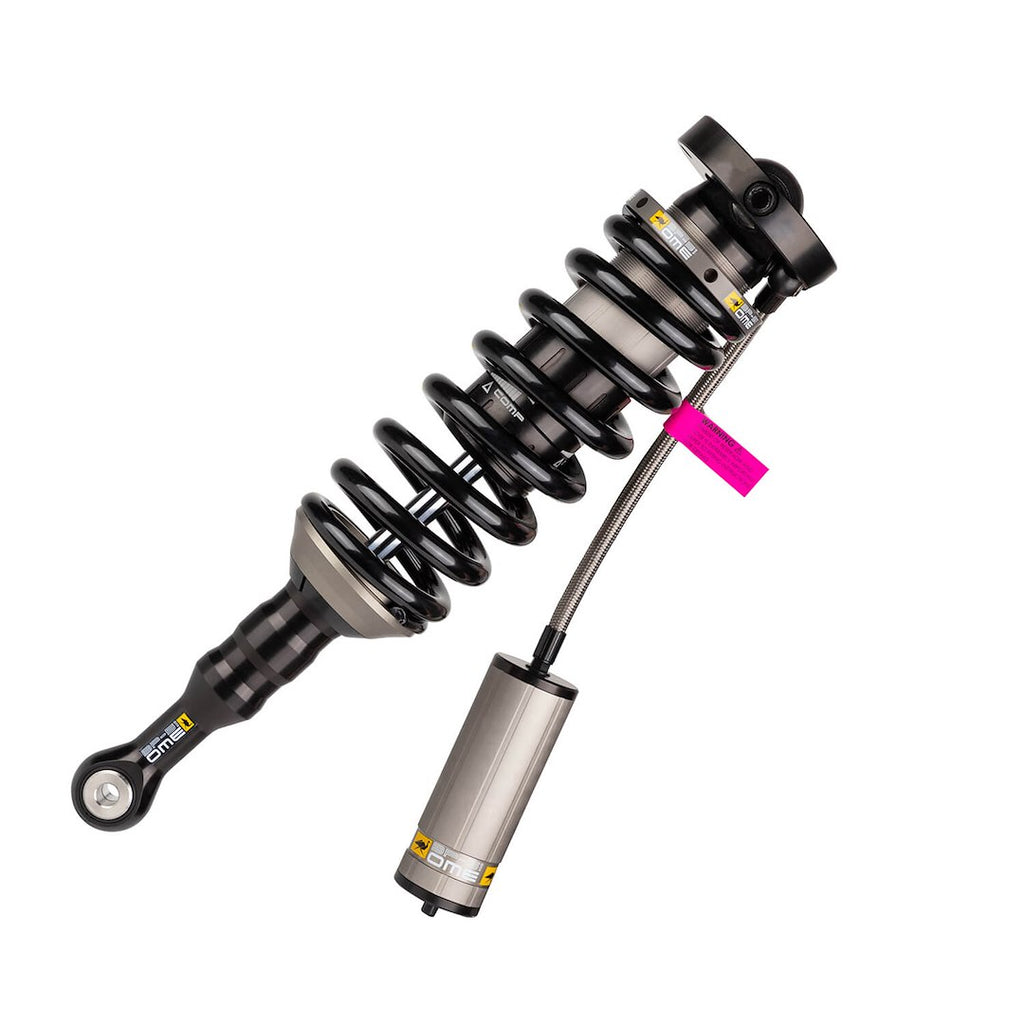

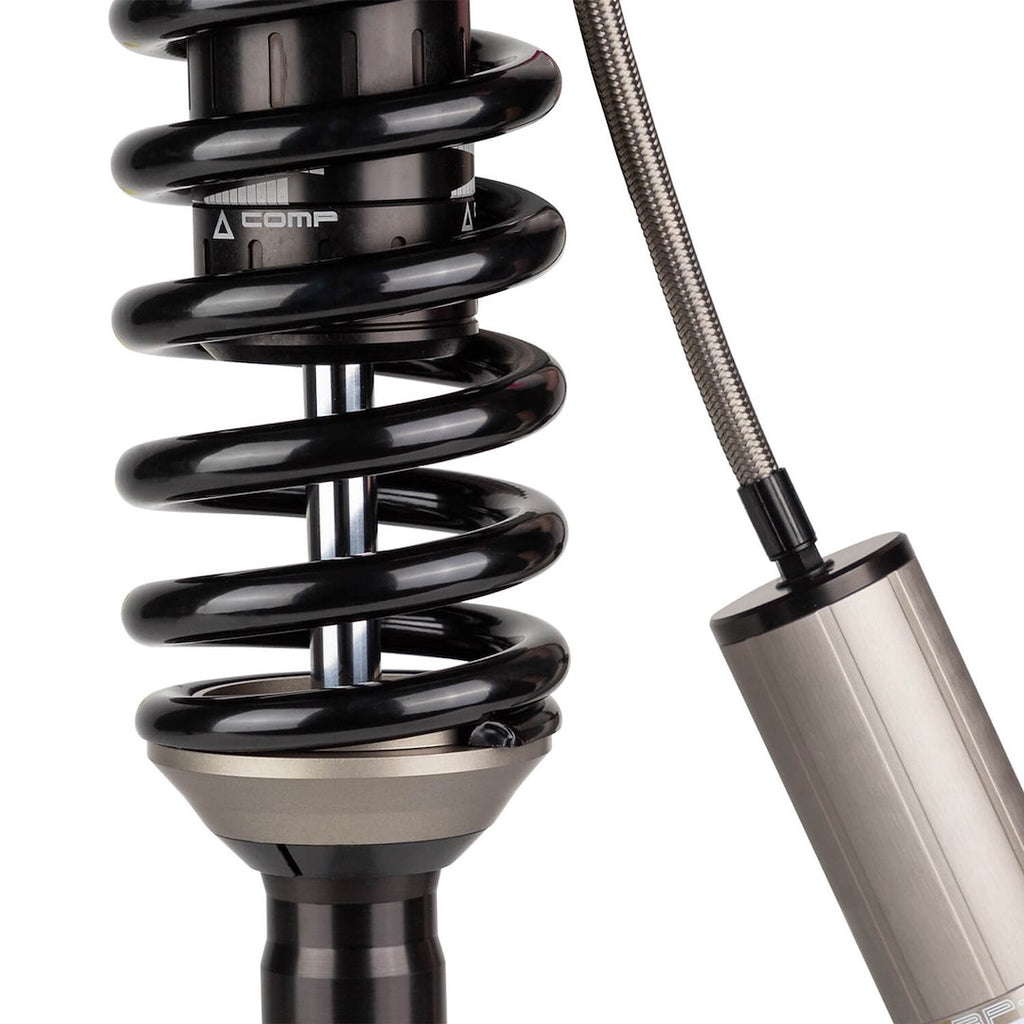

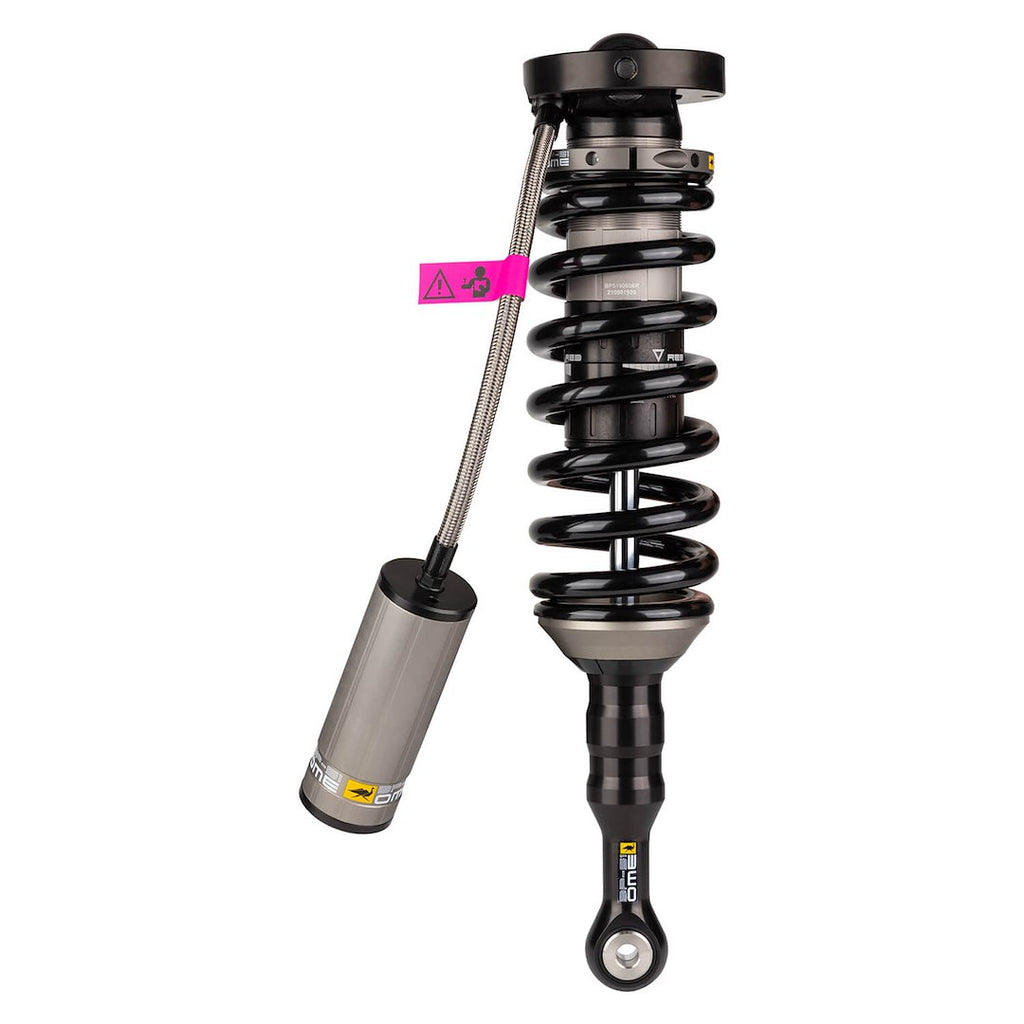

The ARB Coil Over Shock Absorber, model BP-51, is engineered to enhance both on-road and off-road driving experiences. This suspension system features independent compression and rebound valve adjustment, allowing for precise tuning to match various driving conditions. The adjustable ride height capability ensures optimal vehicle performance, while the single flat end coil spring design contributes to improved stability and control.

Constructed from high-quality X5K grade steel, the coil springs are designed specifically for durability and performance. The internal bypass system utilizes shim-controlled position-sensitive damping, which provides comfort at ride height and increases damping near the end zones for enhanced control. With a maximum bore size and bypass diameter, this shock absorber offers greater oil volume, resulting in improved heat dissipation and performance.

The ARB BP-51 is manufactured entirely in-house, ensuring stringent quality control and reliability. The shock body is made from aluminum, featuring a sleek black and gray finish, which not only enhances aesthetics but also contributes to the overall lightweight design. This product is suitable for various applications, making it a versatile choice for those seeking to elevate their vehicle's suspension system.

Features

• Internal Bypass With Shim Controlled Position Sensitive Damping
• Provides Comfort At Ride Height
• Damping Increases Near End Zone
• Increased Control At End Zones
• Maximum Bore Size And Bypass Diameter
• Greater Oil Volume
• Enhanced Tunability For Force Generation

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190006L
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 3 Inch Lift
• Extended Height (IN): 21.45 Inch
• Compressed Height (IN): 17.28 Inch
• Quantity: Single
• Valving Type: Compression And Adjustable Rebound Valving
• Shock Type: Coil Spring
• Shock Body Color: Black/ Gray
• Shock Body Material: Aluminum
• Spring Style: Single Flat End
• Spring Color: Black
• Spring Material: Aluminum

Compatibility / Fit

• 2005-2023 Toyota Tacoma
