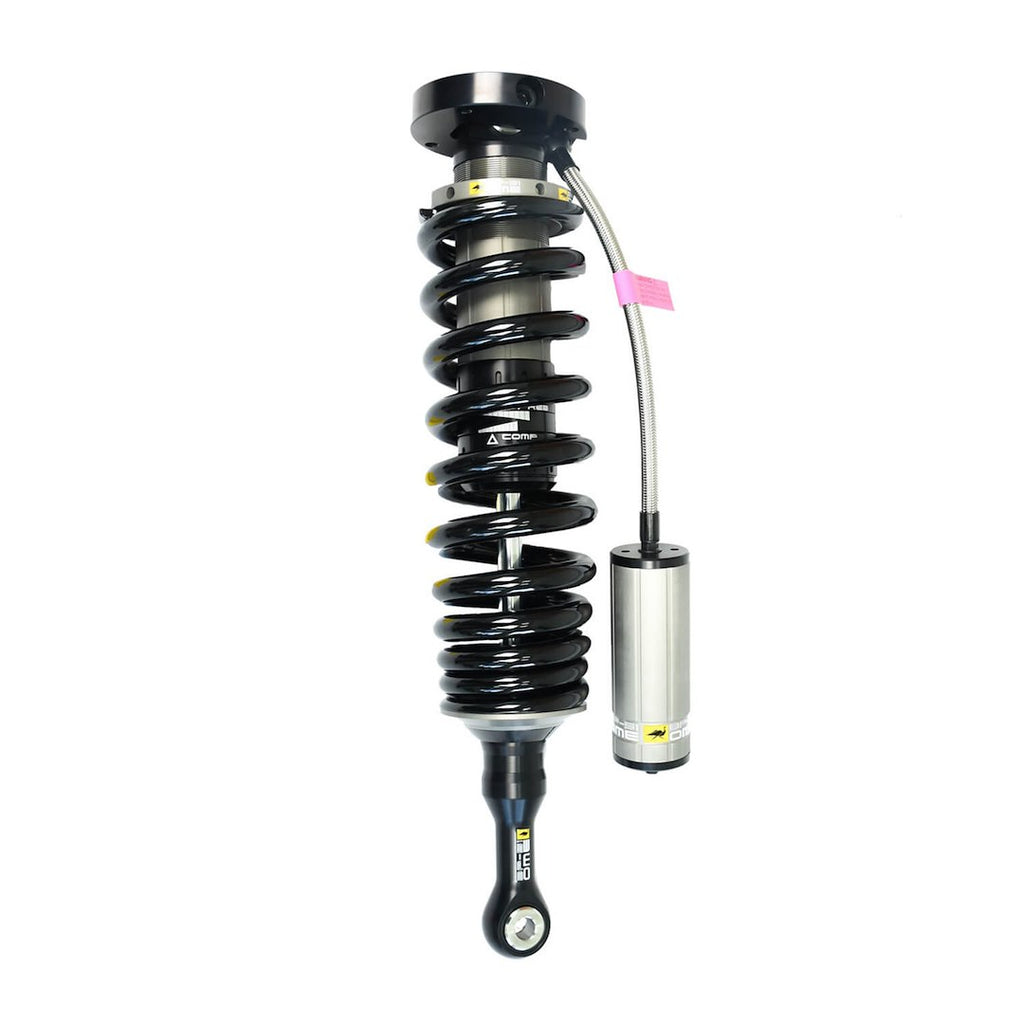

ARB Coil Over Shock Absorber (MPN: BP5190003L)

Advanced shock absorber with independent compression and rebound adjustment.

The ARB Coil Over Shock Absorber is engineered for high performance and durability, providing exceptional comfort and control for off-road vehicles. This shock absorber features independent adjustment for both compression and rebound, allowing users to customize their ride quality based on specific vehicle needs or trip conditions. Designed for easy installation, it utilizes existing mounting locations, eliminating the need for modifications to the vehicle.

Constructed from 661 T6 aluminum, the shock body and reservoir offer excellent heat dissipation and corrosion resistance, ensuring longevity in harsh environments. The high-quality X5K grade steel coil and impact-resistant shaft guard enhance durability, protecting against potential damage from stones and debris. With a rebuildable and re-valveable design, this shock absorber allows for ongoing tuneability, making it a versatile choice for serious off-road enthusiasts.

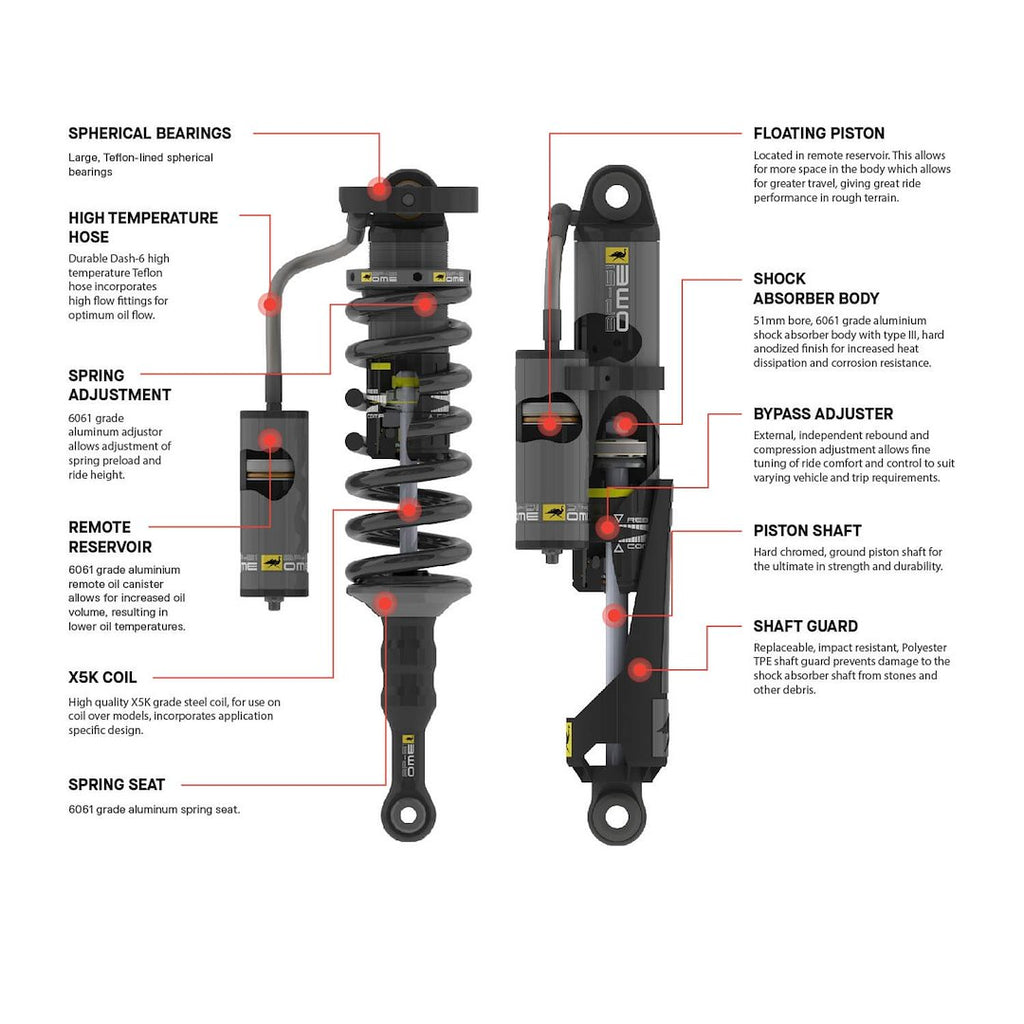

Features

• Vehicle Specific Applications: No Fitting Modifications Required
• External Compression And Rebound Adjustment: Independent Adjustment Of Compression And Rebound, Adjustable While Installed On The Vehicle
• Body/Reservoir/Components 661 T6 Aluminum: Heat Dissipation, Corrosion Resistance
• High Temperature Viton And Teflon Seal Pack: Durability Of Seals
• Dash 6 High Temperature Teflon Hose With High Flow Fittings: No Restriction Of Oil Flow
• High Quality X5K Grade Steel Coil
• Impact Resistant, Replaceable Shaft Guard: Protects Against Stone Damage
• 1 Percent Re-Buildable And Re-Valveable: Longevity, Tuneability
• High Performance, High Viscosity Index Oil: Durability And Consistency Of Performance

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190003L
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 1-1/2 To 2 Inch Lift
• Extended Height (IN): 23.81 Inch
• Compressed Height (IN): 17.67 Inch
• Quantity: Single
• Valving Type: Compression And Adjustable Rebound Valving
• Shock Type: Coil Spring
• Shock Body Color: Black/ Gray
• Shock Body Material: Aluminum
• Spring Style: Single Flat End
• Spring Color: Black
• Spring Material: Aluminum

Compatibility / Fit

• 2007-2011 Toyota Land Cruiser
• 2013-2015 Toyota Land Cruiser
